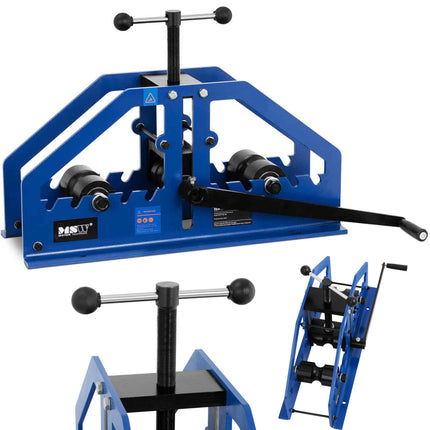

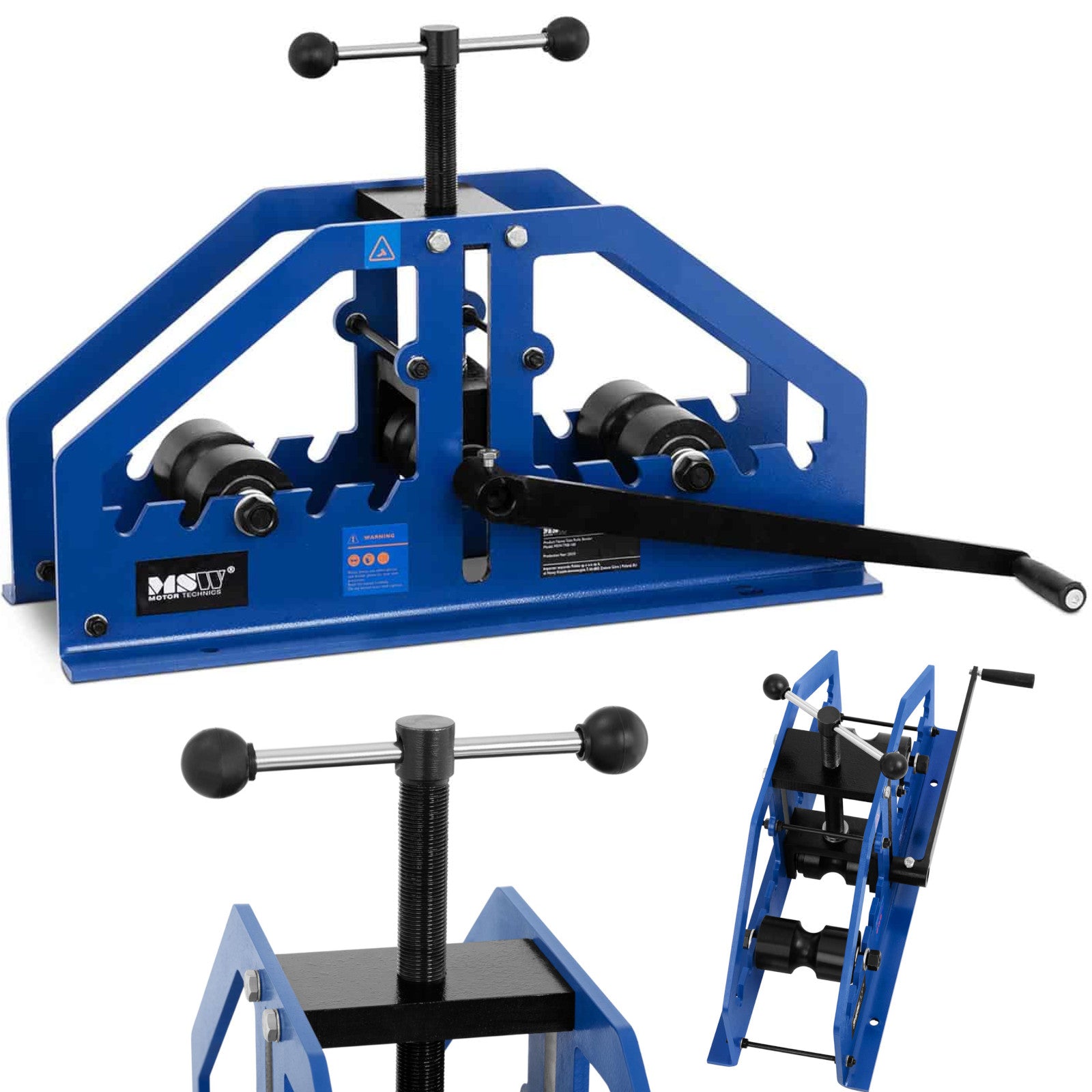

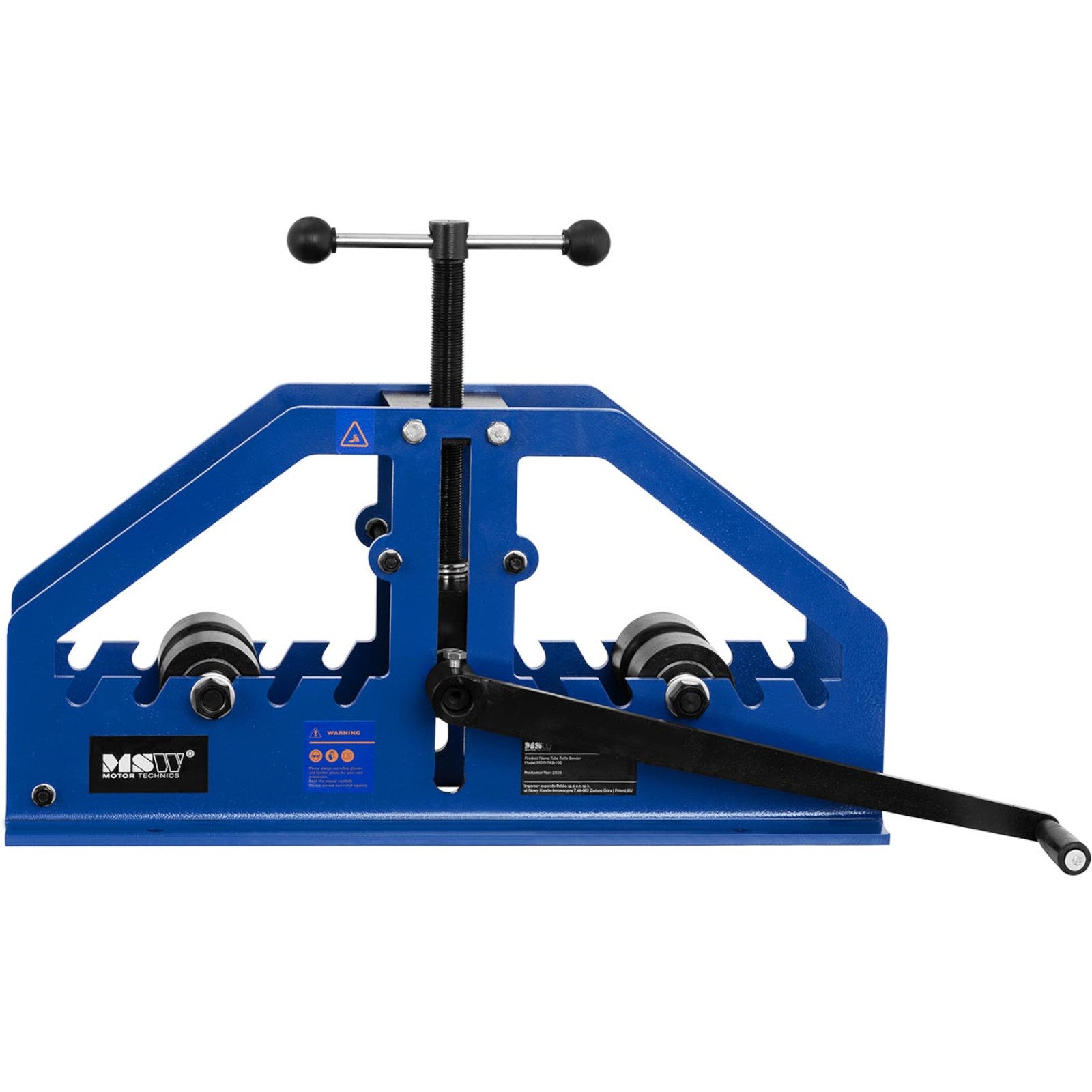

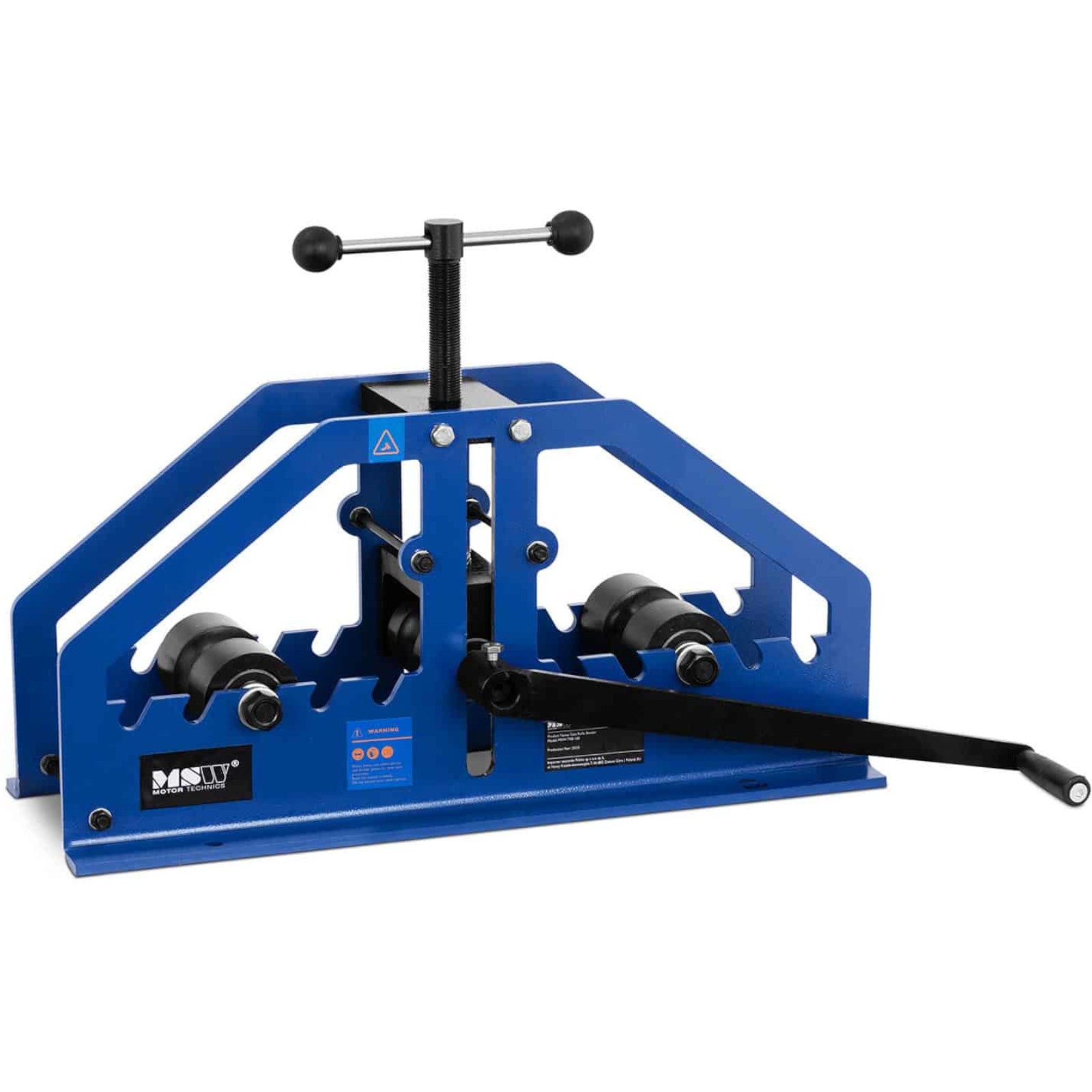

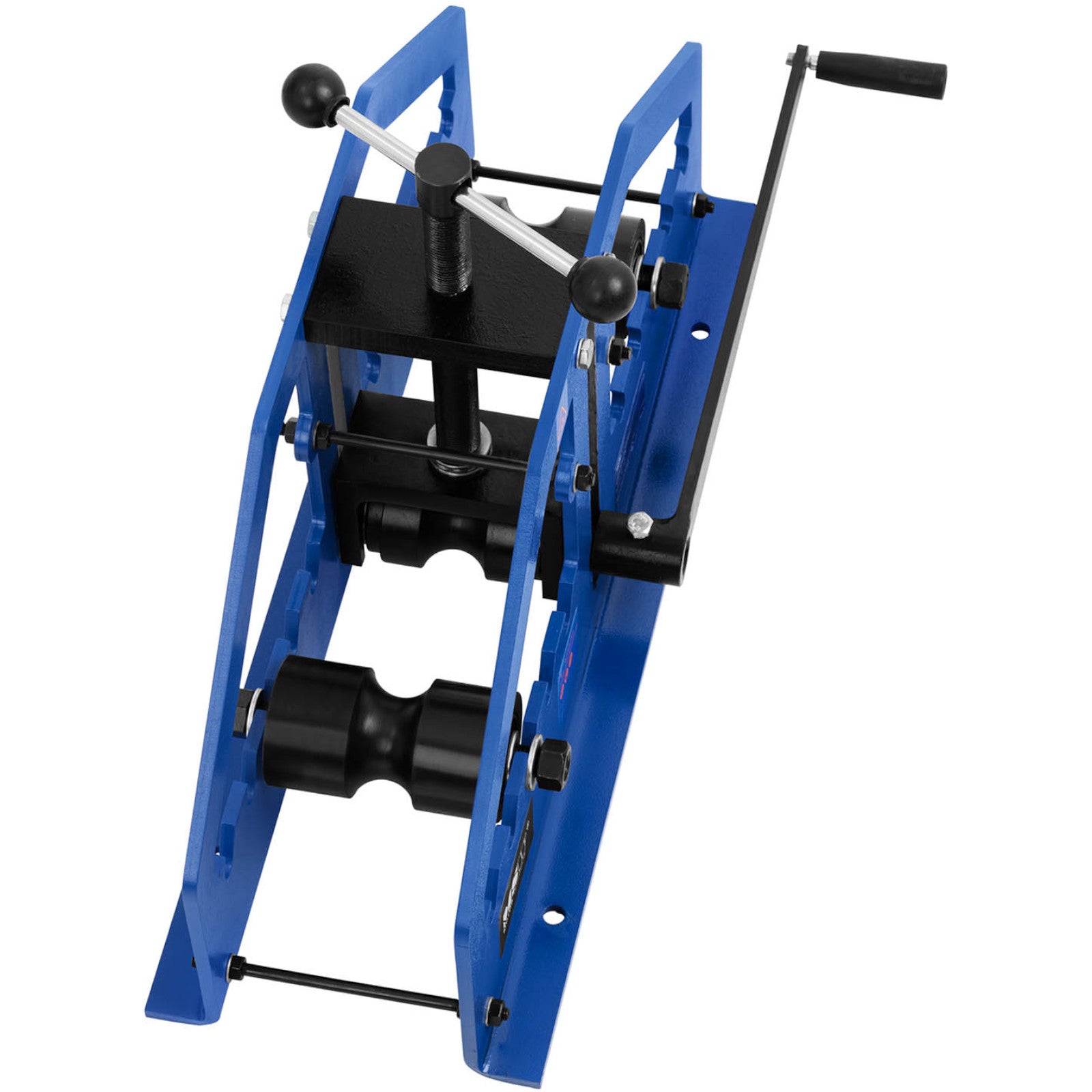

Roller roll bending machine for profile pipes 0-360 degrees 660-1200 mm

Description

Manufacturer's code: 10061170

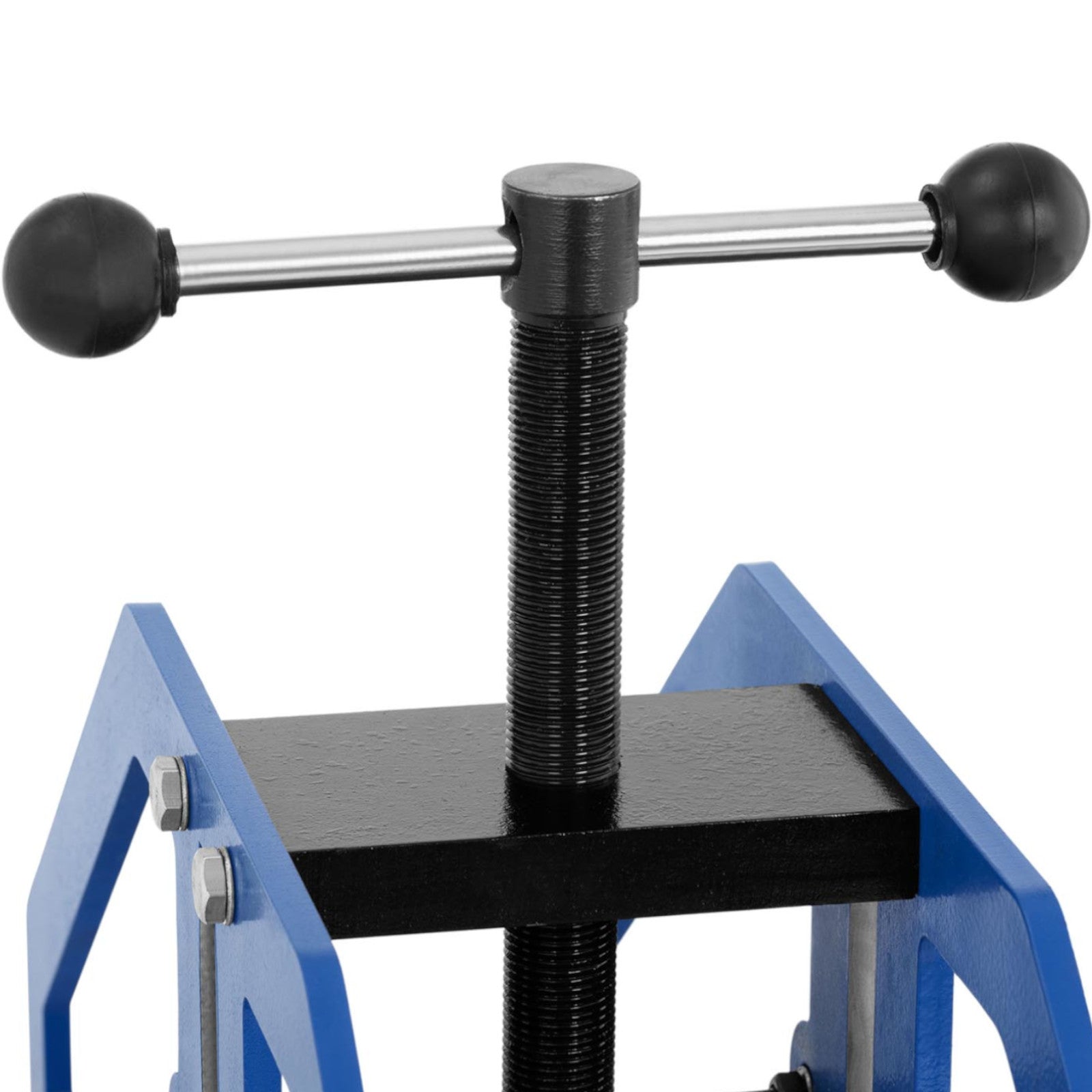

The MSW pipe rolling machine is suitable for modeling metal materials used in construction, car workshops and hobby workshops. The device can be used to shape construction pipes (thickness 1-1/2", min. bend radius 20") and conduit pipes (gr. 2", min. bend radius 70"). It is also suitable for flat bars (gr. 1-1/4", min. arc radius 10"),C-sections (gr. 1 x 2", min. arc radius 60") and squareprofiles (gr. 2", min. arc radius 70") and rectangular profiles (gr. 1 x 2", min. arc radius 60"). The bending range is from0 to 360deg. The adjustable form allows you to adapt the rolling machine to the dimensions of the processed material. The upper roller is set with a large knob. The minimum rolling diameter is 660 mm and the maximum is 1200 mm. The structure of the device is made of low-carbon steel and the rollers are made of carbon steel. Mounting holes with a diameter of 11 mm allow you to attach the equipment to the ground.
Product features:
  • - For processing pipes, profiles and flat bars,
  • - Bending range from 0 to 360deg,
  • - Easy manual operation,
  • - Efficiently setting up the company using a large knobs,
  • - Durability made of low-carbon steel.

Technical parameters:
  • - Catalog number - 10061170
  • - Article condition - New
  • - Model - MSW-TRB-100
  • - Material - Steel carbon, Steel
  • - Color - Blue
  • - Hole diameter [mm] - 11
  • - Outlet diameter [mm] - 38
  • - Machining angle [deg] - 0-360
  • - Cable diameter [mm] - 35
  • - Material thickness [mm] - 8
  • - Minimum rolling diameter [mm] - 660
  • - Dimensions (LxWxH) [cm] - 60 x 22 x 50
  • - Weight [kg] - 29
  • - Shipping dimensions (LxWxH) [cm] - 62 x 24 x 38
  • - Shipping weight [kg] - 33

In the set:
  • - Pipe rolling machine
  • - Lever
  • - Adjustable form
  • - User manual

Roller roll bending machine for profile pipes 0-360 degrees 660-1200 mm

Product form

Manufacturer's code: 10061170The MSW pipe rolling machine is suitable for modeling metal materials used in construction, car workshops and hobby... Read more

Barcode: 4062859953933

21 in stock

€323,45 Incl. VAT

    • Guaranteed secure & safe checkout.

      paypal

    Description

    Manufacturer's code: 10061170
    The MSW pipe rolling machine is suitable for modeling metal materials used in construction, car workshops and hobby workshops. The device can be used to shape construction pipes (thickness 1-1/2", min. bend radius 20") and conduit pipes (gr. 2", min. bend radius 70"). It is also suitable for flat bars (gr. 1-1/4", min. arc radius 10"),C-sections (gr. 1 x 2", min. arc radius 60") and squareprofiles (gr. 2", min. arc radius 70") and rectangular profiles (gr. 1 x 2", min. arc radius 60"). The bending range is from0 to 360deg. The adjustable form allows you to adapt the rolling machine to the dimensions of the processed material. The upper roller is set with a large knob. The minimum rolling diameter is 660 mm and the maximum is 1200 mm. The structure of the device is made of low-carbon steel and the rollers are made of carbon steel. Mounting holes with a diameter of 11 mm allow you to attach the equipment to the ground.
    Product features:
    • - For processing pipes, profiles and flat bars,
    • - Bending range from 0 to 360deg,
    • - Easy manual operation,
    • - Efficiently setting up the company using a large knobs,
    • - Durability made of low-carbon steel.

    Technical parameters:
    • - Catalog number - 10061170
    • - Article condition - New
    • - Model - MSW-TRB-100
    • - Material - Steel carbon, Steel
    • - Color - Blue
    • - Hole diameter [mm] - 11
    • - Outlet diameter [mm] - 38
    • - Machining angle [deg] - 0-360
    • - Cable diameter [mm] - 35
    • - Material thickness [mm] - 8
    • - Minimum rolling diameter [mm] - 660
    • - Dimensions (LxWxH) [cm] - 60 x 22 x 50
    • - Weight [kg] - 29
    • - Shipping dimensions (LxWxH) [cm] - 62 x 24 x 38
    • - Shipping weight [kg] - 33

    In the set:
    • - Pipe rolling machine
    • - Lever
    • - Adjustable form
    • - User manual
