Description
Manufacturer's code:

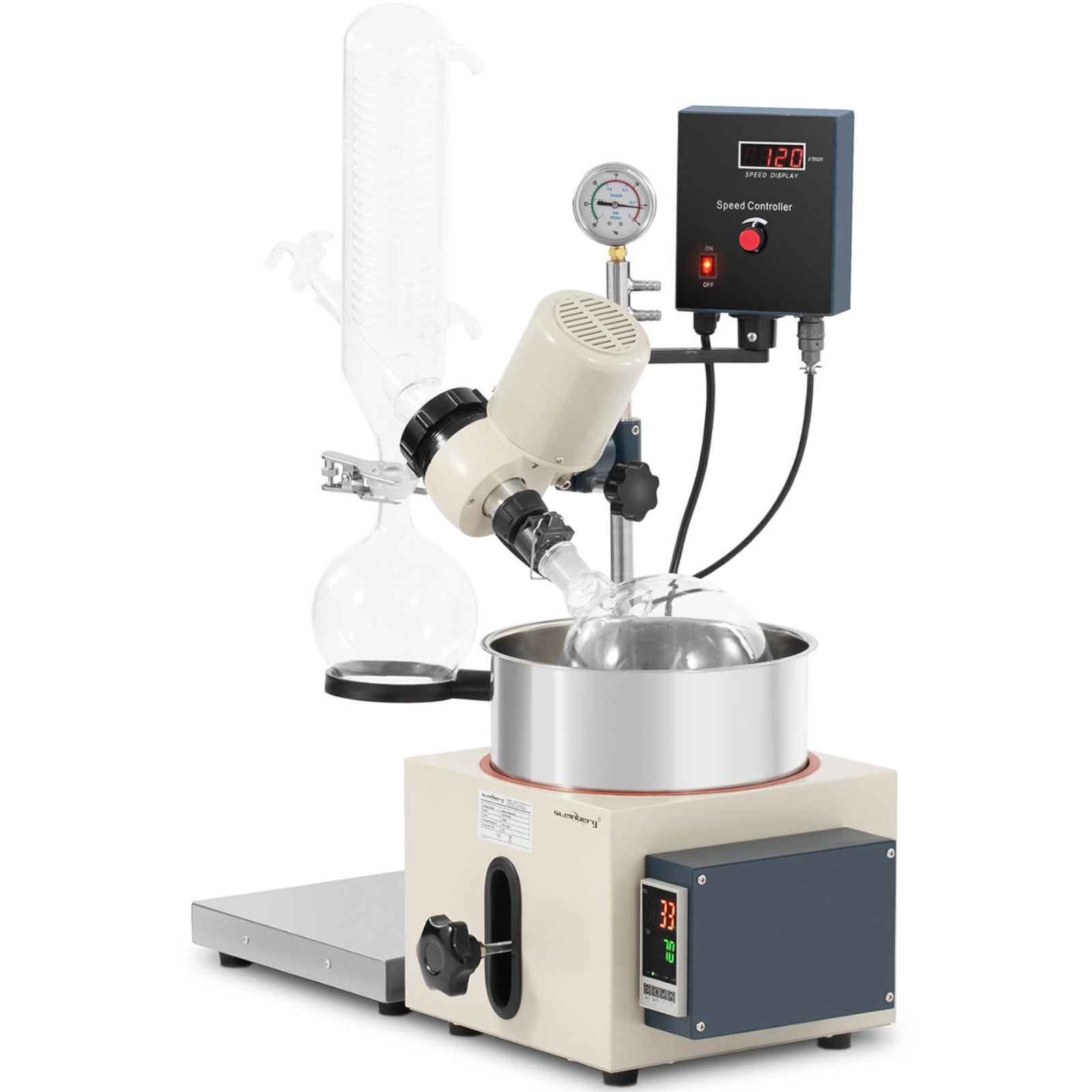

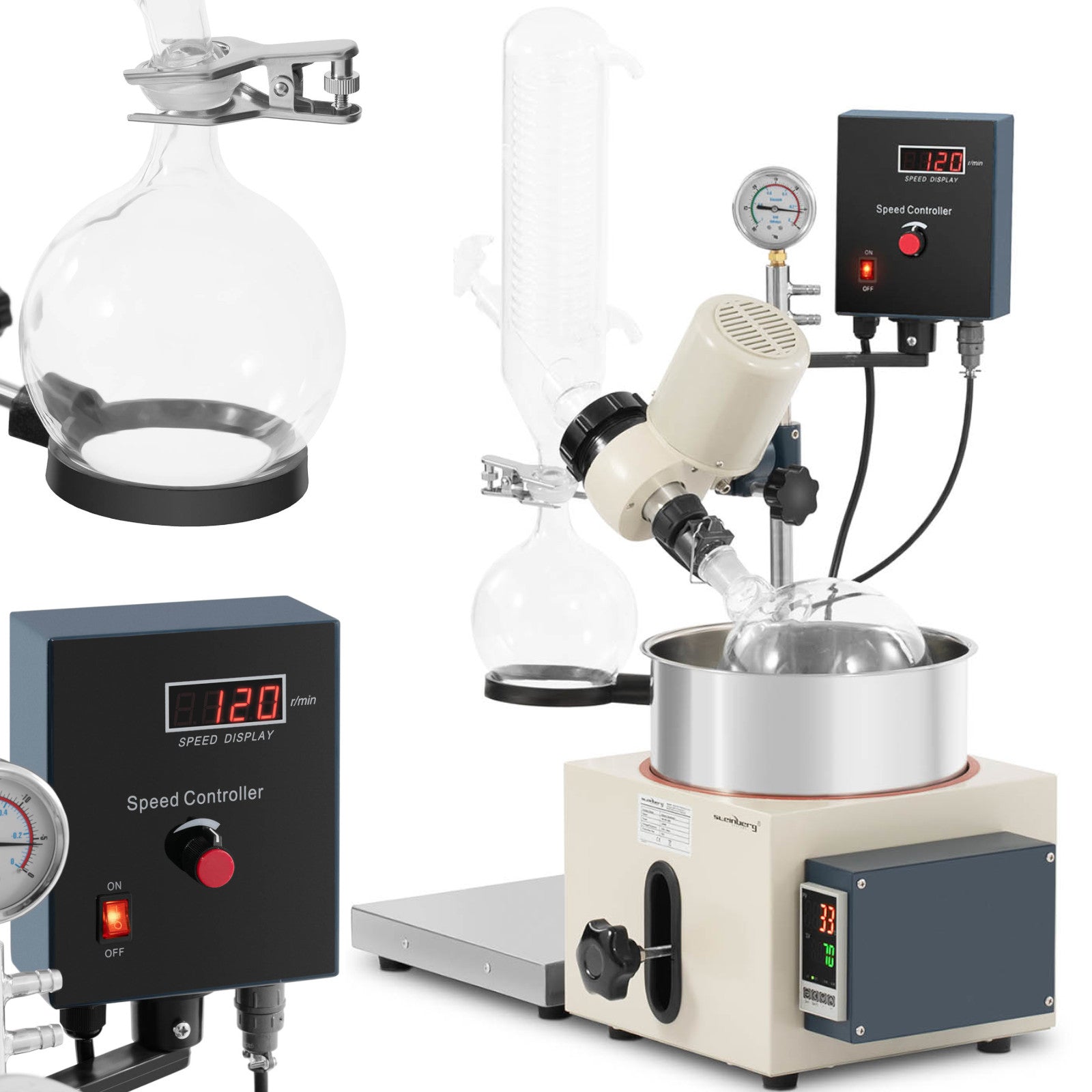

10030663Steinberg Systems vacuum excavation ideally suited for laboratory, chemical, pharmaceutical, research and research industries to evaporate solvent by heating under reduced pressure.
for the concentration and purification of easily degradable biological productsThey're not easily reacting with different substances.
High vacuum level - 0.098 MPa ensures high performance of equipment. The device is equipped with
vacuum controllerThe temperature range is
0-99deg C with accuracy +/-1deg CEffective action
Capacitor translates into a high recovery rate.

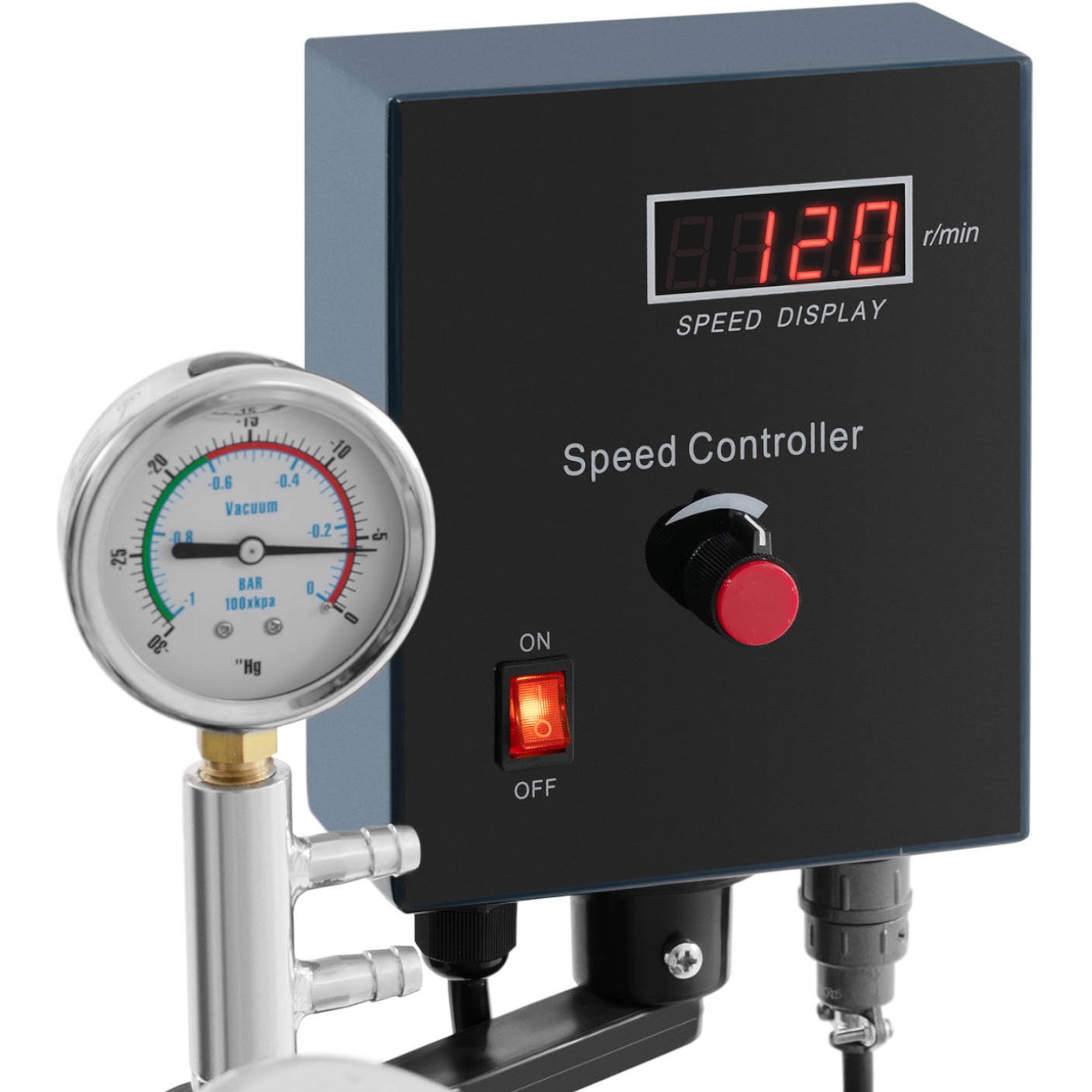

Digital displays The mains are running at a speed of 0-120 rpm and the temperature of the heating bath, which makes it easier to control the distillation process. The fireplace has a temperature limiter. The mains valve can use continuous power which provides a large area of condensation. The bath is equipped with ergonomic
Handheld handlesand also a hand lift for exact adjustment of the flask. Engine with power

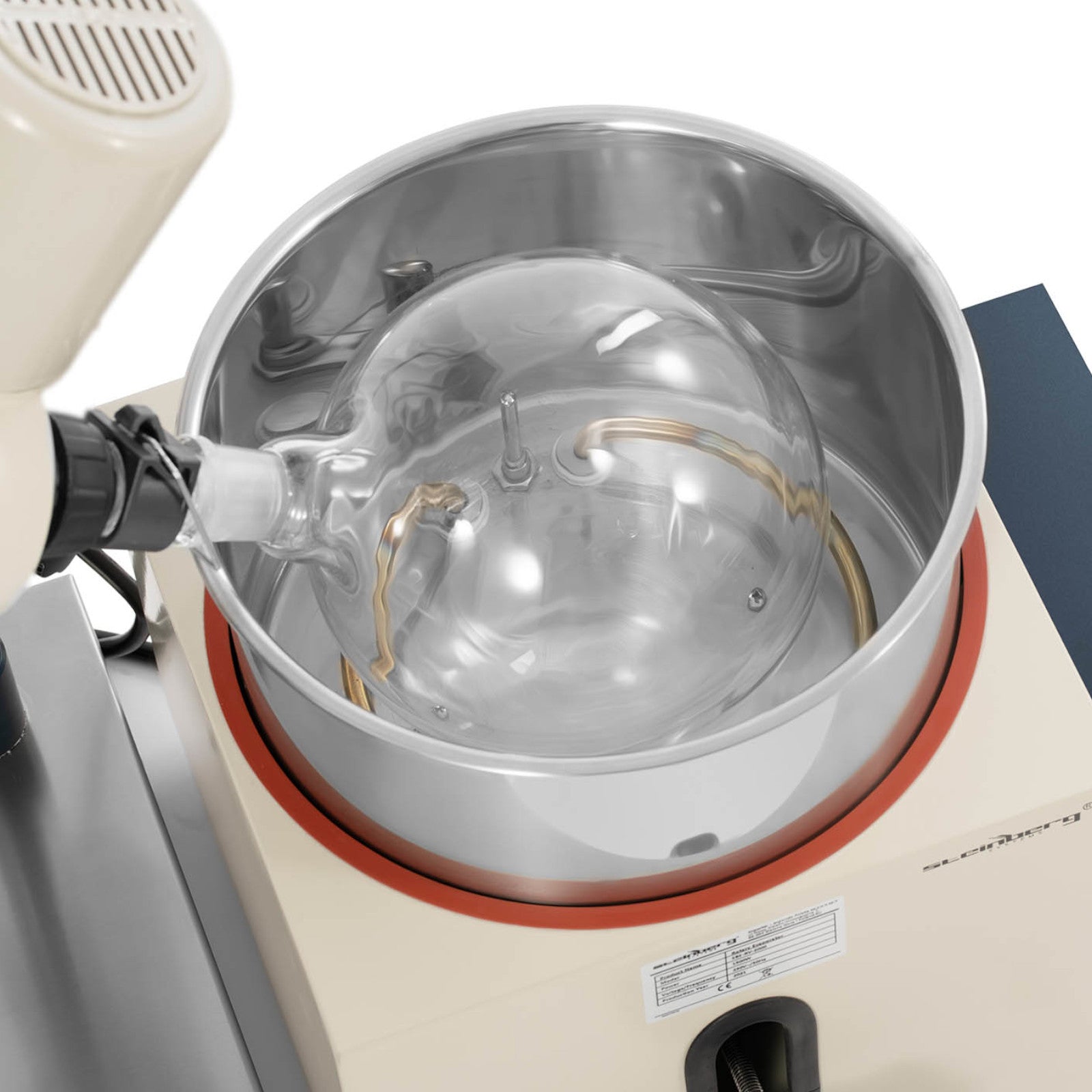

40 W The stainless steel bath tank facilitates handling and maintenance of the vacuum burner.
Product features: - - Productivity - large quantities of distillate thanks to 1 l collection flask,
- - Accuracy - precise temperature setting,
- - Strength - a strong engine provides smooth operation,
- - Precision - fixed speed for optimal results.
Technical parameters: - - Model - SBS-RV-2000
- - Voltage [V] - 230
- - Temperature accuracy [deg C] - +/-1
- - Temperature range [deg C] - 0-99
- - Rotary speed [min] - 120
- - Material - Bath material SS304, combined bath and teflon + glass GG-17
- - Frequency [Hz] - 50
- - Engine power [W] - 40
- - Reception flask [l] - 1
- - Rotary flask [l] - 5
- - Power of the bath [W] - 1500
- - Bath capacity [l] - 5
- - Steaming speed [l/h] - N/A
- - Lifting [mm] - 120
- - Vacuum level [MPa] - 0.098
- - Air pipe - Length 678 mm, OD = 14.5 mm, ID = 8,5 mm
- - Dimensions (DxSxW) [cm] - 73 x 33 x 100
- - Weight [kg] - 25
- - Dimensions of dispatch (DxSxW) [cm] - 63 x 49 x 55
- - Weight of dispatch [kg] - 32
Included: - - Vacuum excavation
- - Main bracket
- - Engine - Set
- - Water bath - set
- - Rotary flask 5 l

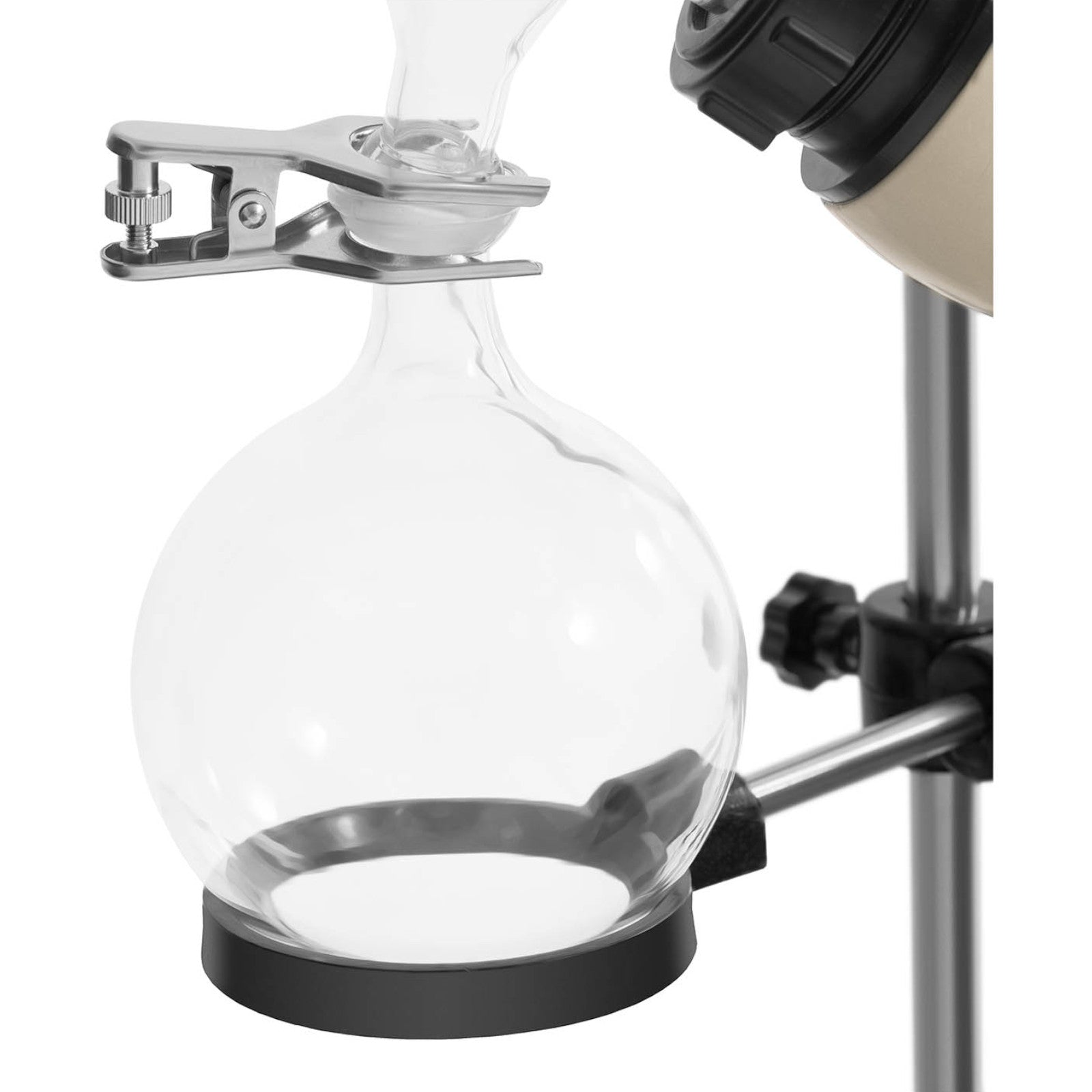

- - Pick-up flask 1 l
- - Glass wire.
- - Power valve 19#

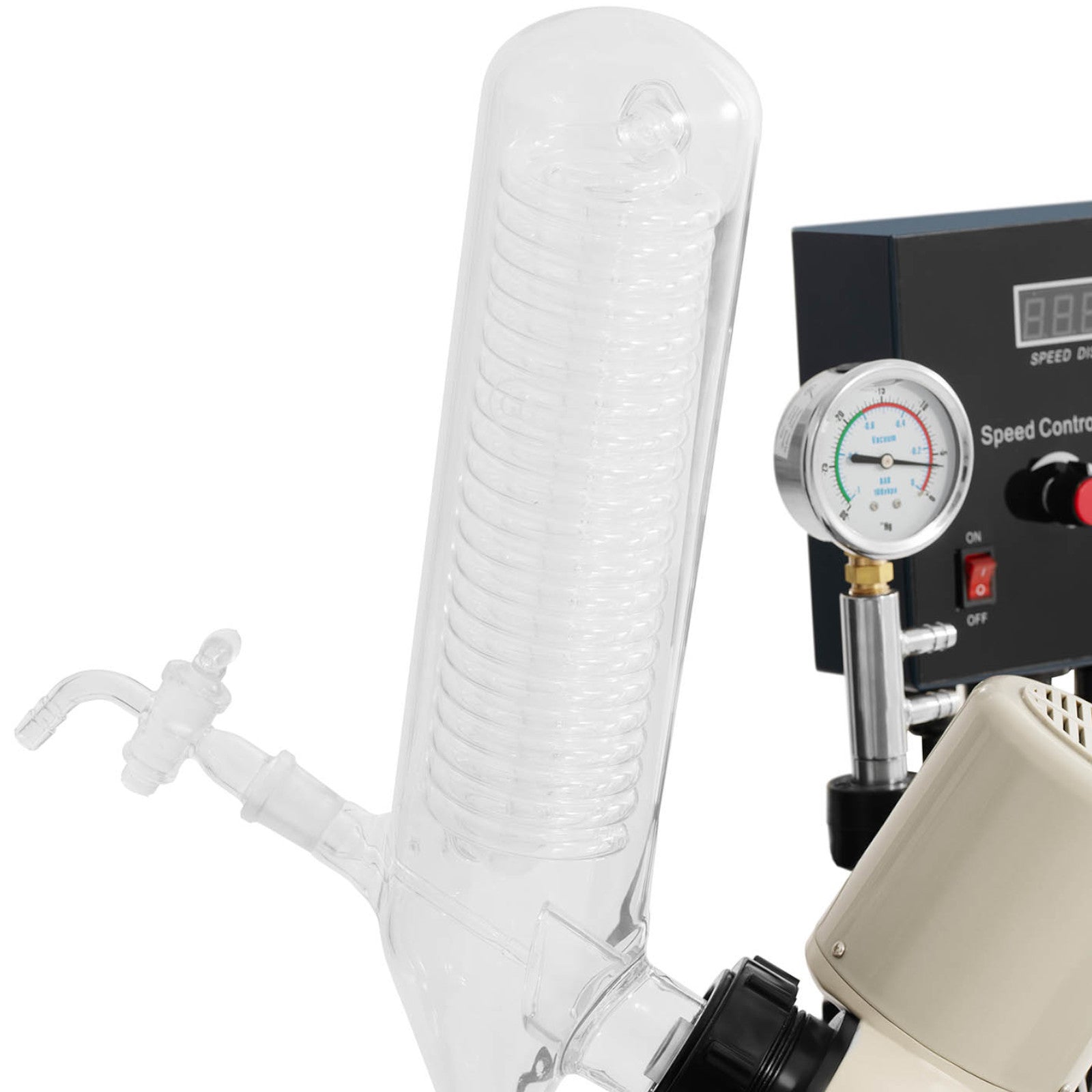

- - Main condenser Ø85 x 460 mm / clip for ball mill
- - Oil seal Ø25 mm - set
- - Small PTFE pad Ø50 mm
- - The vacuum meter.
- - Vacuum lamp
- - Rotary pad - set
- - Pick-up flask holder
- - PTFE cable - set
- - Clip of the condenser - set
- - The regulator.
- - O-ring 43 mm
- - The hexagon key.
- - Fuses - 2 pieces (16 A and 3 A)
- - Screws - 5 pcs.
- - User manual
