Description
Manufacturer's name:
SWS01Presented product from Stamos Welding Group to

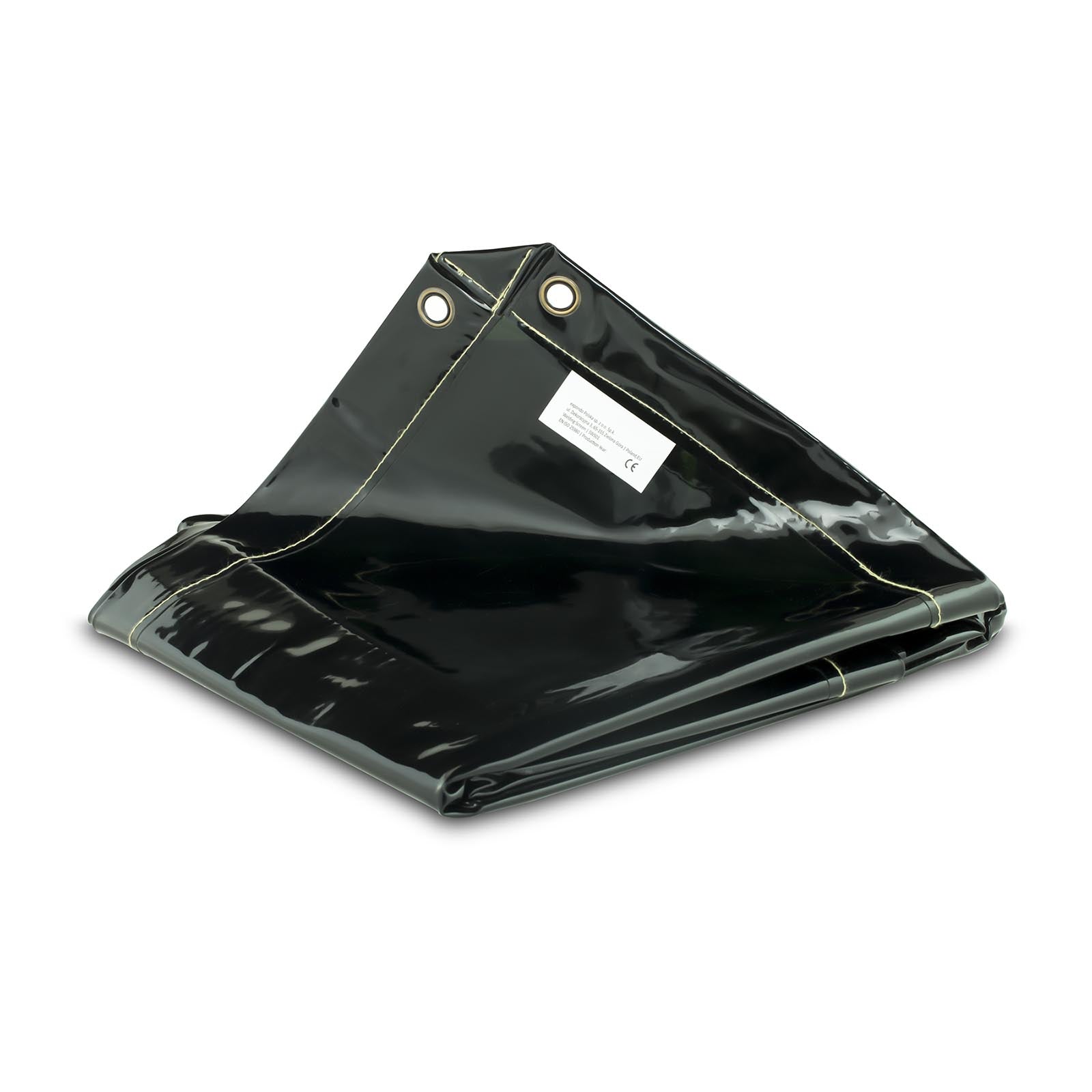

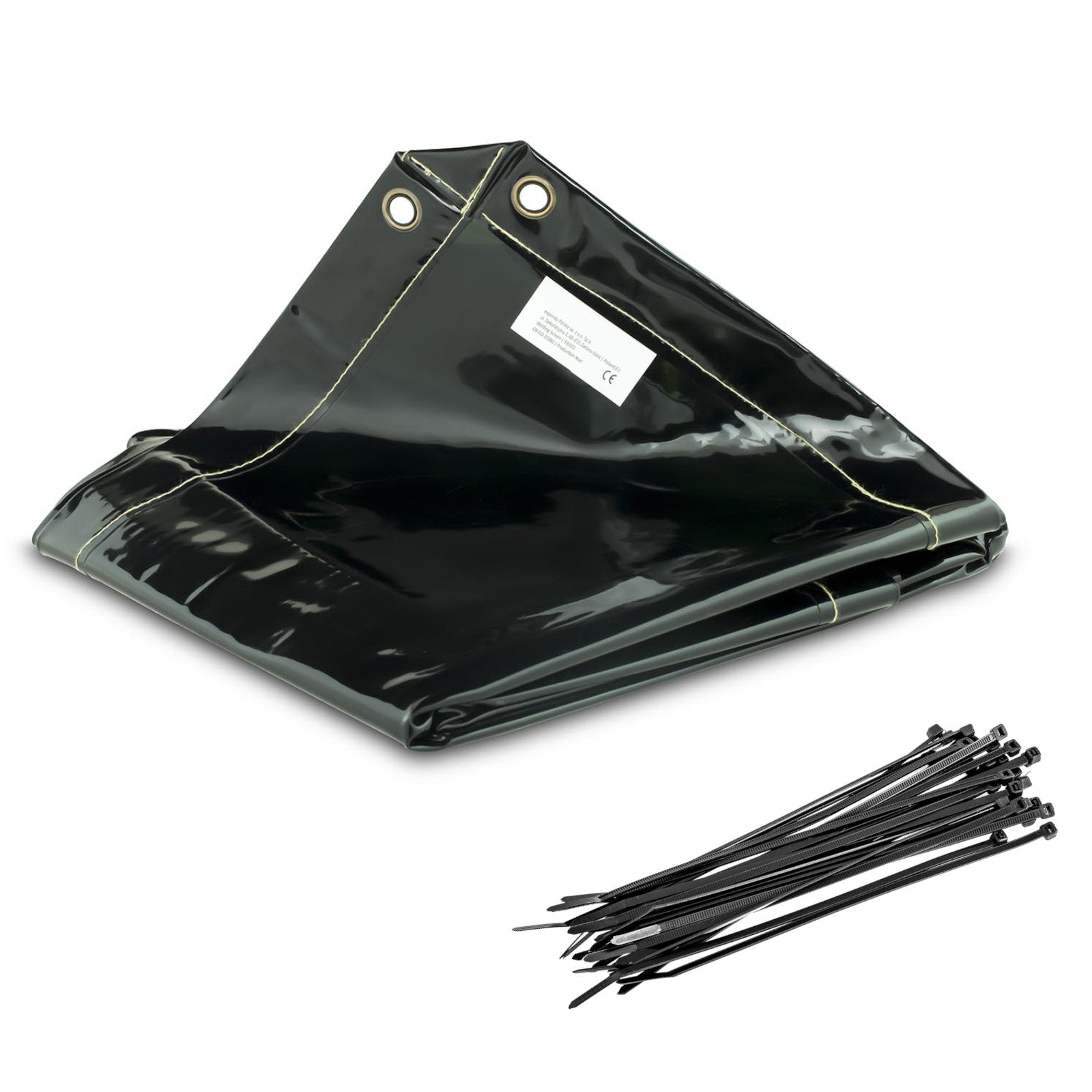

The curtain to the welding screen. The dimensions of 239 x 175 cm provide effective protection against the harmful effects of electric arc radiation, sparks and splices of welded elements, separating the welder's working area from the rest of the employees. The curtain was made of UV-resistant vinyl. This material was sewn with fire-resistant threads from Kevlar with a thickness of 0.4 mm. The SWS01 is in accordance with EN ISO 25980 required for health and safety procedures.
Characteristics and functions:- Functionality
- Durability
- Easy mounting of the
- Safety
- Note: product does not contain a rack
Technical parameters: - - Model - SWS01
- - Catalog number - 10020607
- - The state of the article - New
- - Material - Vinyl
- - Sutures - Strong Fire Resistant Fences
- - Light transmission based on light source A> 0.0001 - 0,93%
- - Spectral penetration factor for wavelength 210nm≤λ≤313nm - < 0.002%
- - Spectral penetration factor for wavelength 313nm≤λ≤400nm [%] - < 3
- - Hazard level < 1 (400nm≤λ≤1400nm) - 0,6
- - Light permeability based on light source A after exposure to UV rays - 0,63%
- - Relative change in light transmission after exposure to UV rays - 29,6%
- - Hazard level < 1 (400nm λ≤1400nm) after exposure to UV rays - 0,59
- - moderate UV resistance - Yes.
- - Fire resistance - Yes.
- - The distances between the flyers - 304 mm
- - Thickness of material - 0,4 mm
- - Length - 230 cm
- - Width - 175 cm
- - Dimensions (DxSxW) - 234 x 168 x 0.5 cm
- - Weight - 2.38 kg
- - Dimensions of dispatch (DxSxW) - 39 x 36 x 3 cm
- - Weight of shipping - 2.43 kg
Included:- Welding curtain
