Description
Manufacturer's code:
10280610Wiesenfield screw feeder can be used to transport bulk materials such as grain, sawdust or fertilizers upwards. Whether it's loading a trailer or bringing raw material to machines. The screw conveyor is perfect for constantly replenishing pellet presses.
With a capacity of 80 - 1000 kg/h, you can precisely adjust the speed of the screw feeder to the requirements of the press. In this way, you can optimize work, increase productivity and obtain perfect pellets in a short time.

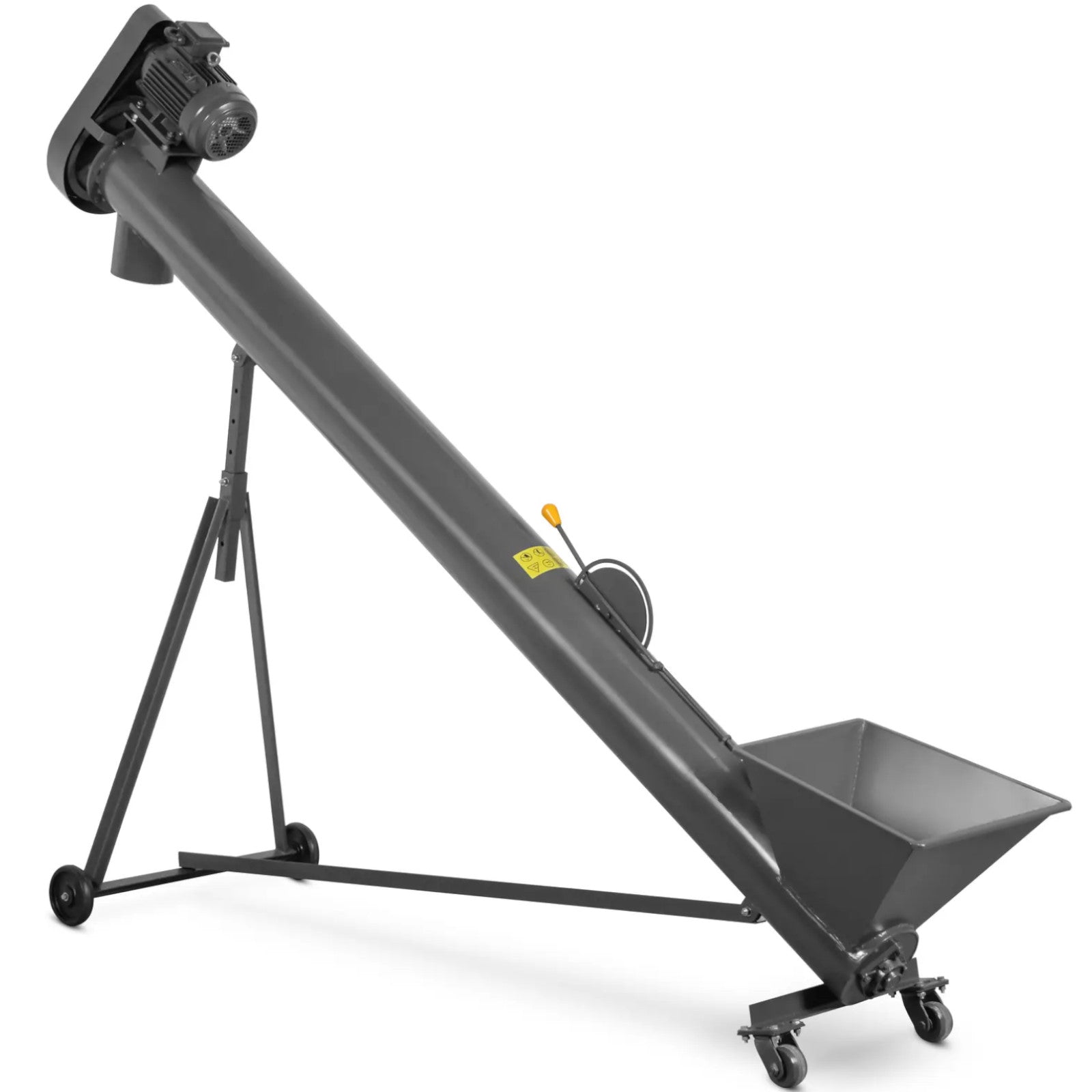

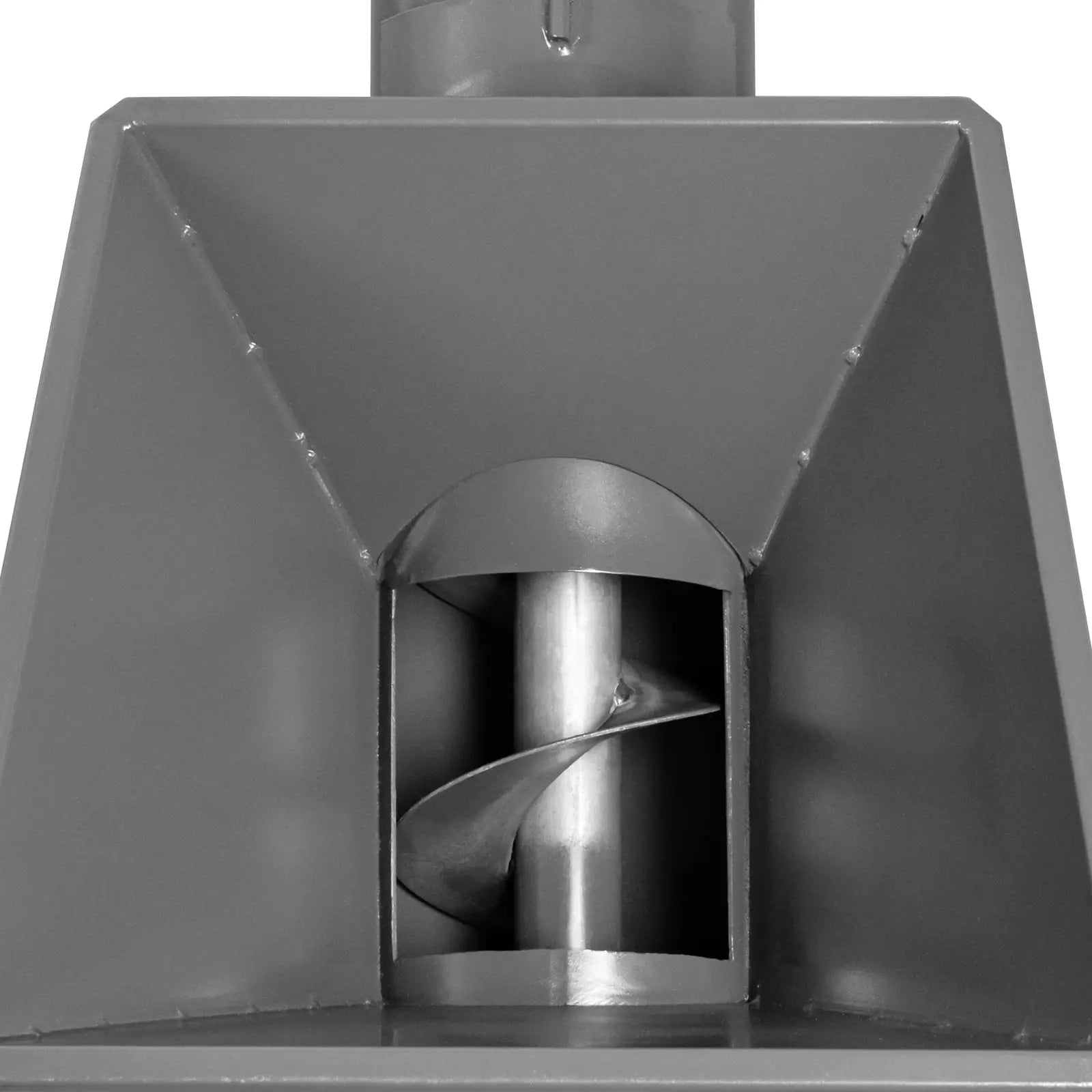

The height of the conveyor can be adjusted on seven levels in the range from 125 to 175 cm. Just place a 3 m long pipe on four wheels and place the conveyor outlet over the hopper of the pellet machine. Sawdust or other materials are easily loaded into the large conveyor inlet. It can be reduced or enlarged depending on the volume of the product.
The raw material reaches the press evenly through a transport pipe with a diameter of 220 mm. Thanks to the thickness of 3 mm, the pipe is particularly durable and suitable for continuous use, even at high efficiency.
Product features: - - The screw feeder achieves a capacity of 80 to 1000 kg/hour,

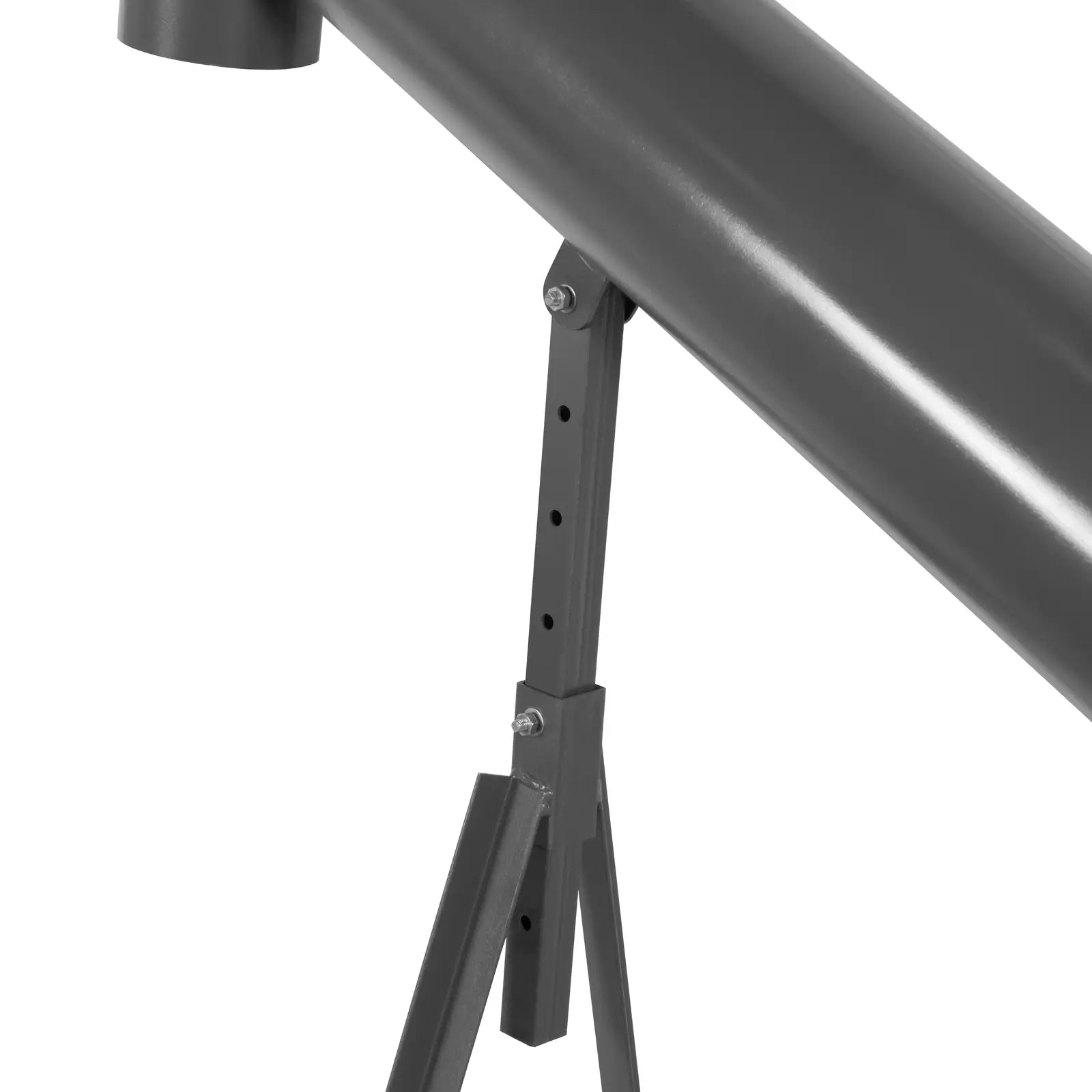

- - The screw conveyor can be set in 7 steps ranging from 125 to 175 cm,

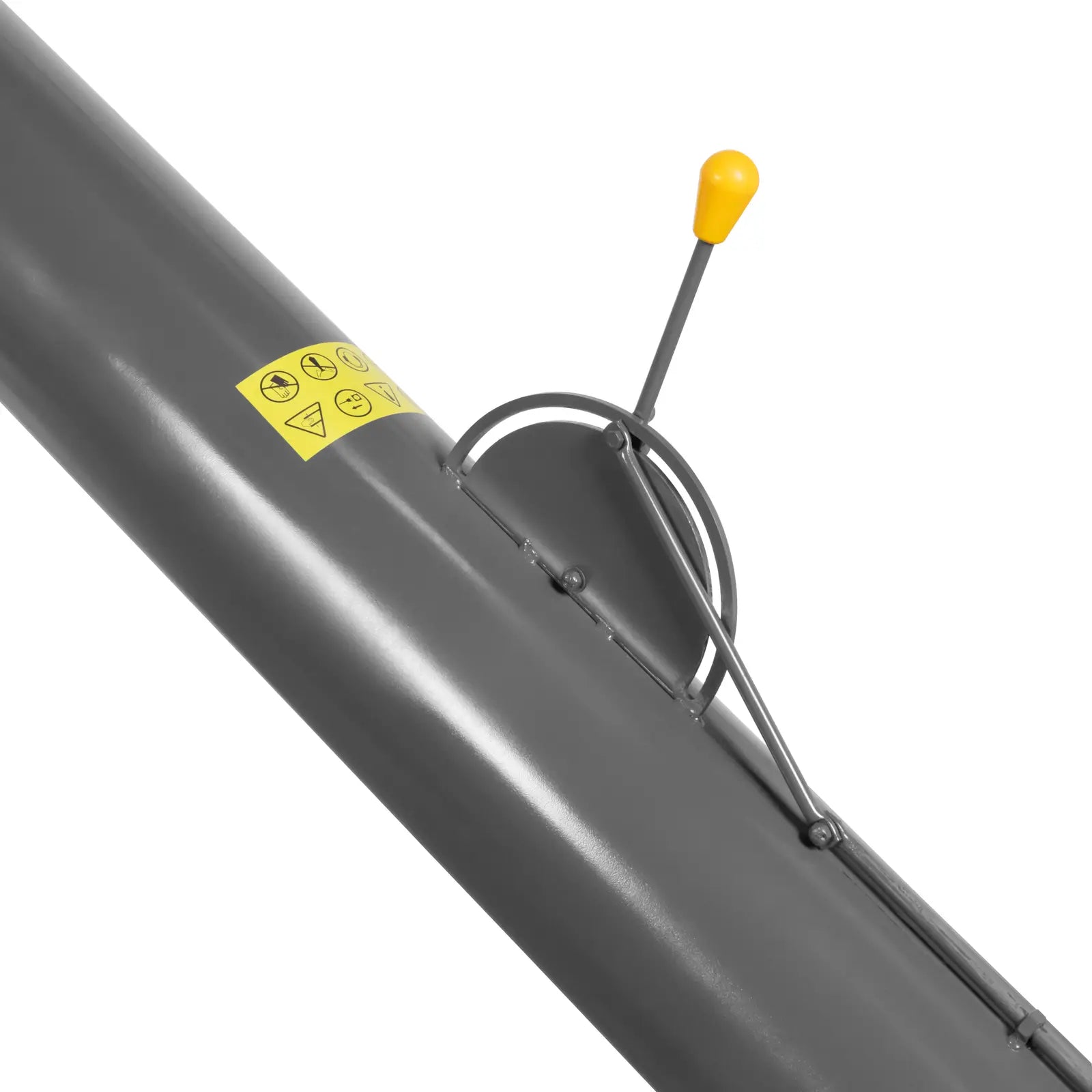

- - Adjustable flow will allow you to adjust the amount of material to the capacity of the pellet mill,
- - The screw conveyor tube with a diameter of 220 mm has walls 3 mm thick,
- - Thanks to the four wheels, you can optimally position the feeder.
Technical parameters: - - Catalog number - 10280610
- - Article condition - New
- - Model - WIE-SC-200
- - Frequency [Hz] - 50
- - Power supply type - Mains
- - Material - Carbon steel
- - Color - Grey
- - Voltage [V] - 400
- - IP protection level - IP55
- - Wheel size [mm] - 45 x 80
- - Production [kg/h] - 80 - 1000
- - Rated speed [rpm] - 1400
- - Plug - 5-pin
- - Power [W] - 2200
- - Pipe diameter [mm] - 220
- - Adjustable height - 125 - 175 cm
- - Insulation class - F
- - IEC protection class - I
- - Pipe wall thickness [mm] - 3
- - Device duty cycle - S1 (continuous operation)
- - Power cable - 3 m
- - Pipe length - 3 m
- - Spiral diameter - 190 mm
- - Number of wheels - 4

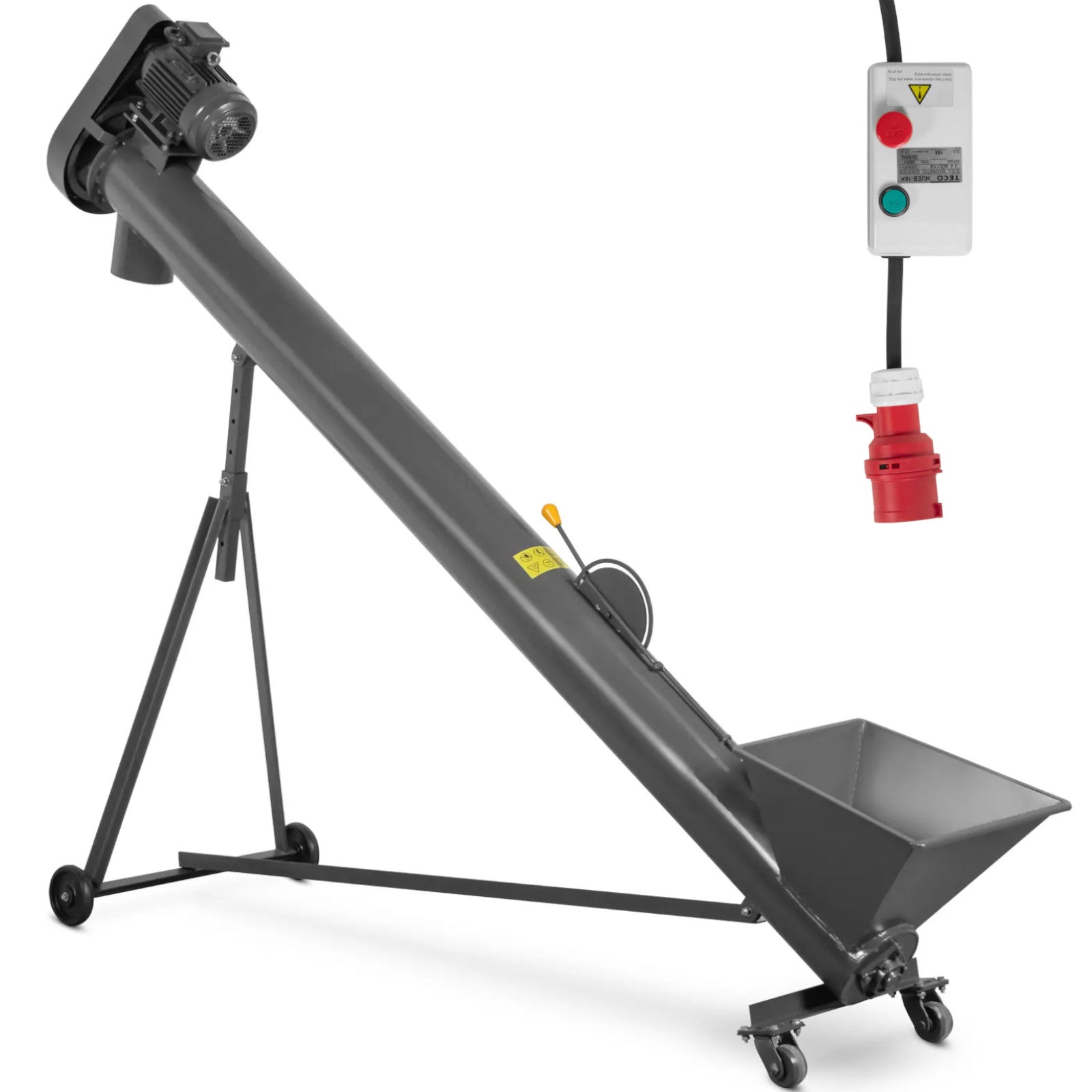

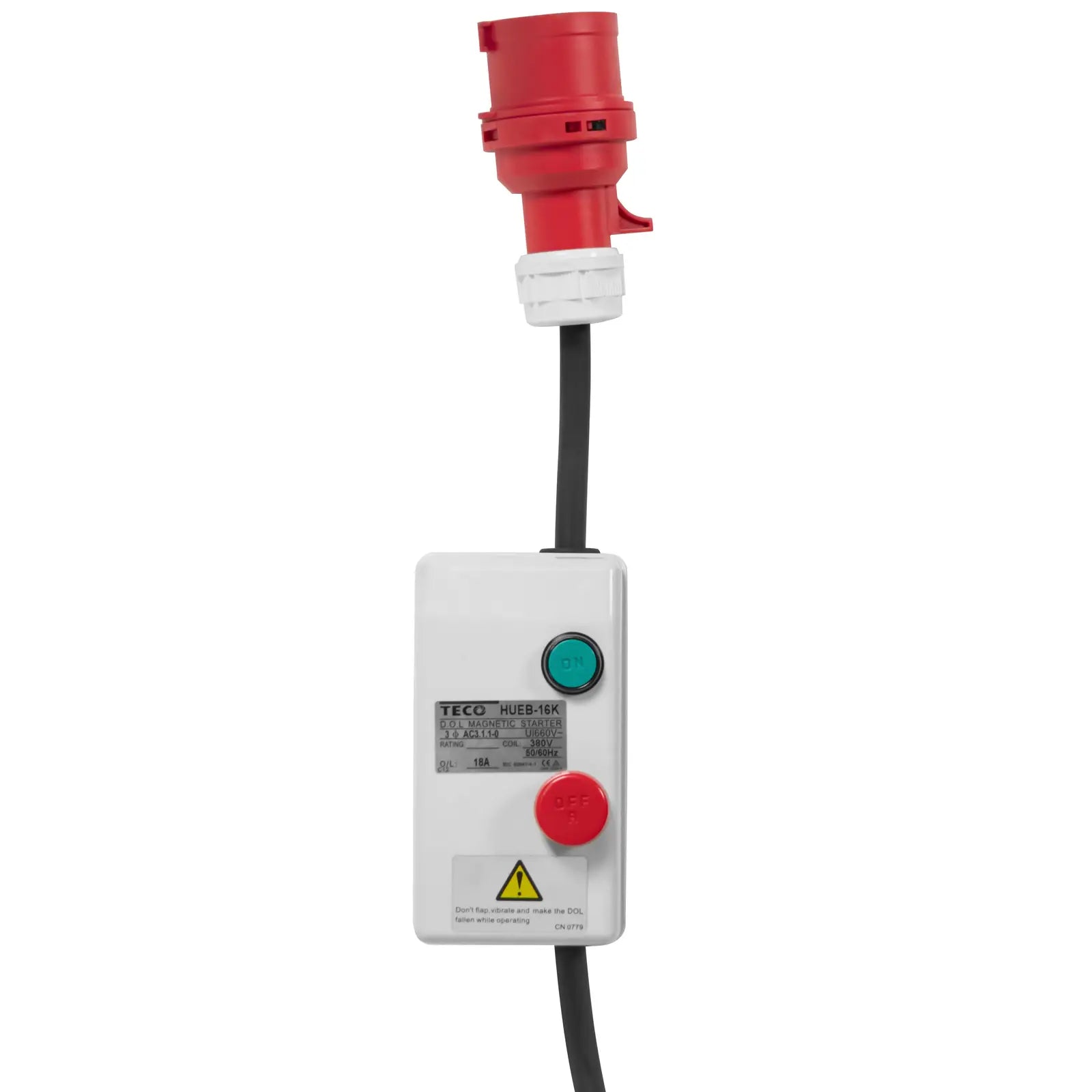

- - Emergency stop switch - Yes
- - Overload protection - Yes

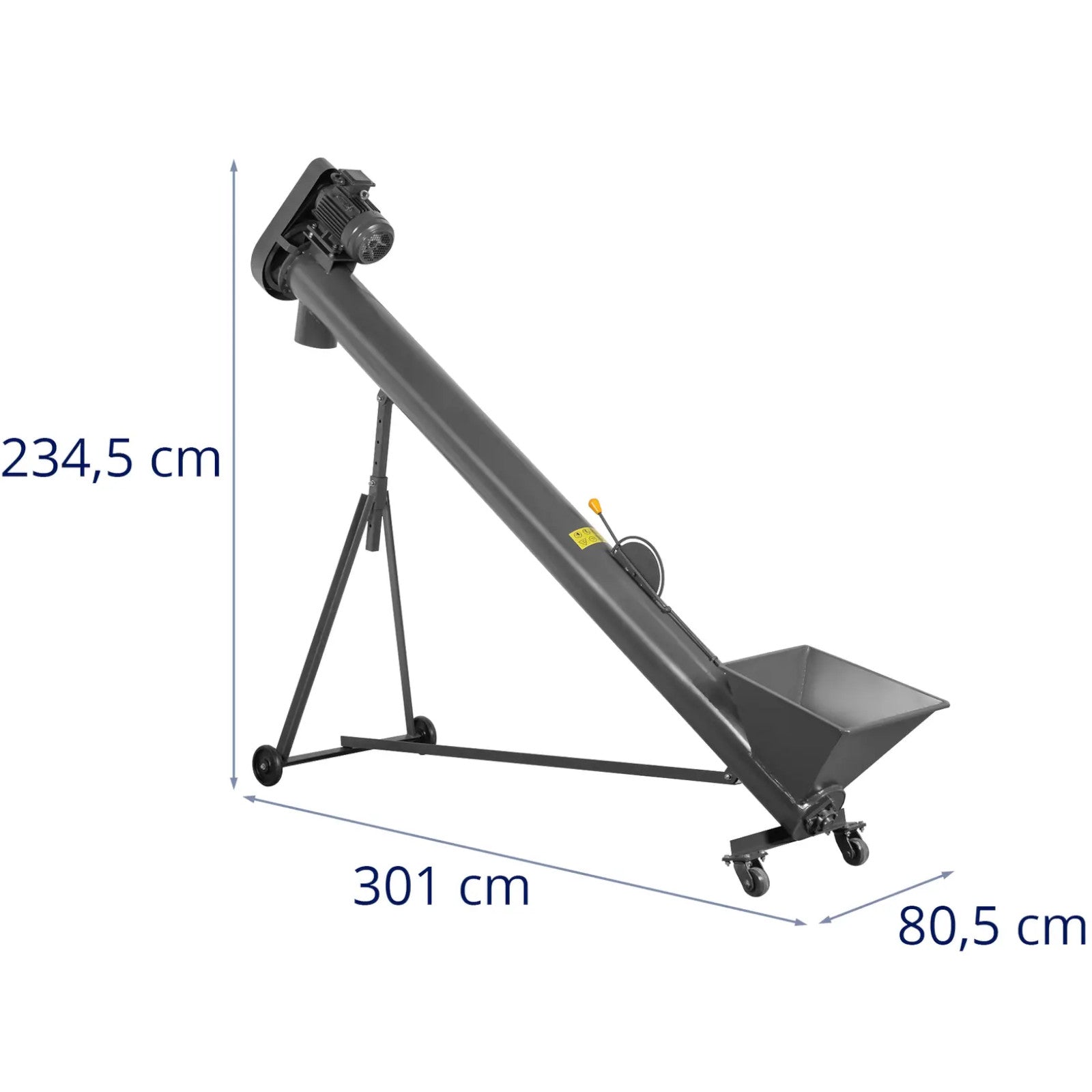

- - Dimensions (LxWxH) - 300.8 x 80.5 x 234.5 cm
- - Weight - 155 kg
- - Shipping dimensions (LxWxH) - 64 x 330 x 84 cm
- - Shipping weight - 221 kg
