Description
Manufacturer's code:

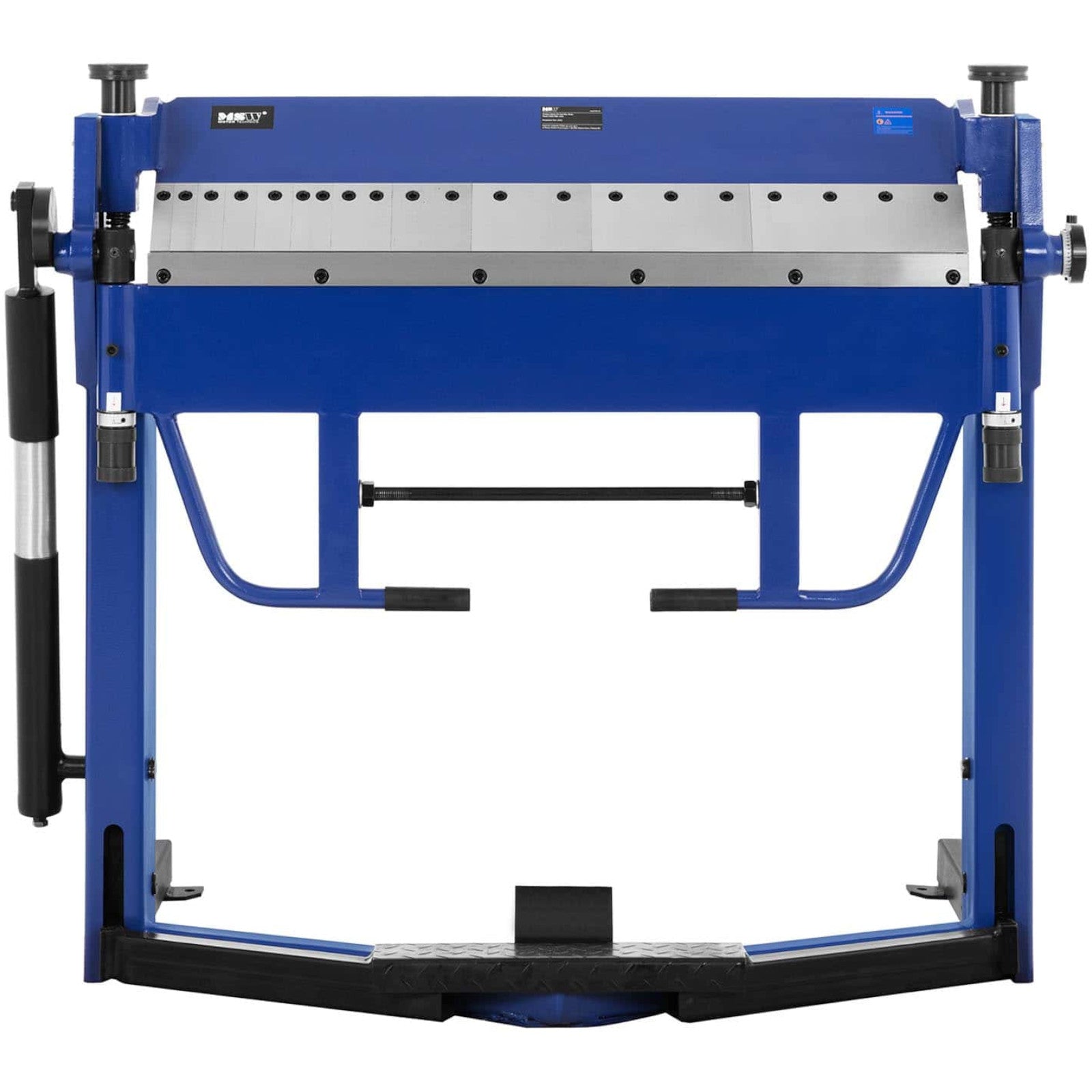

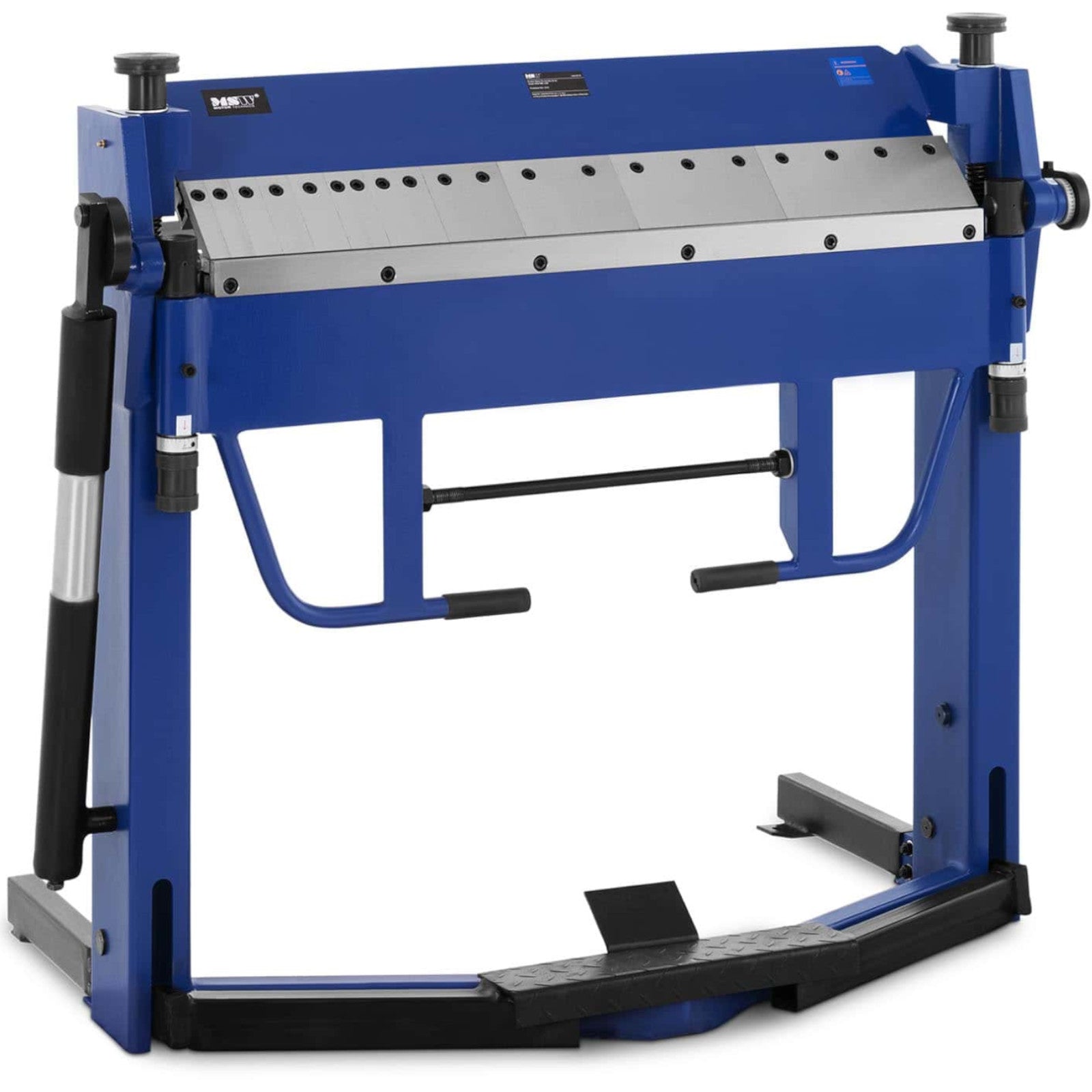

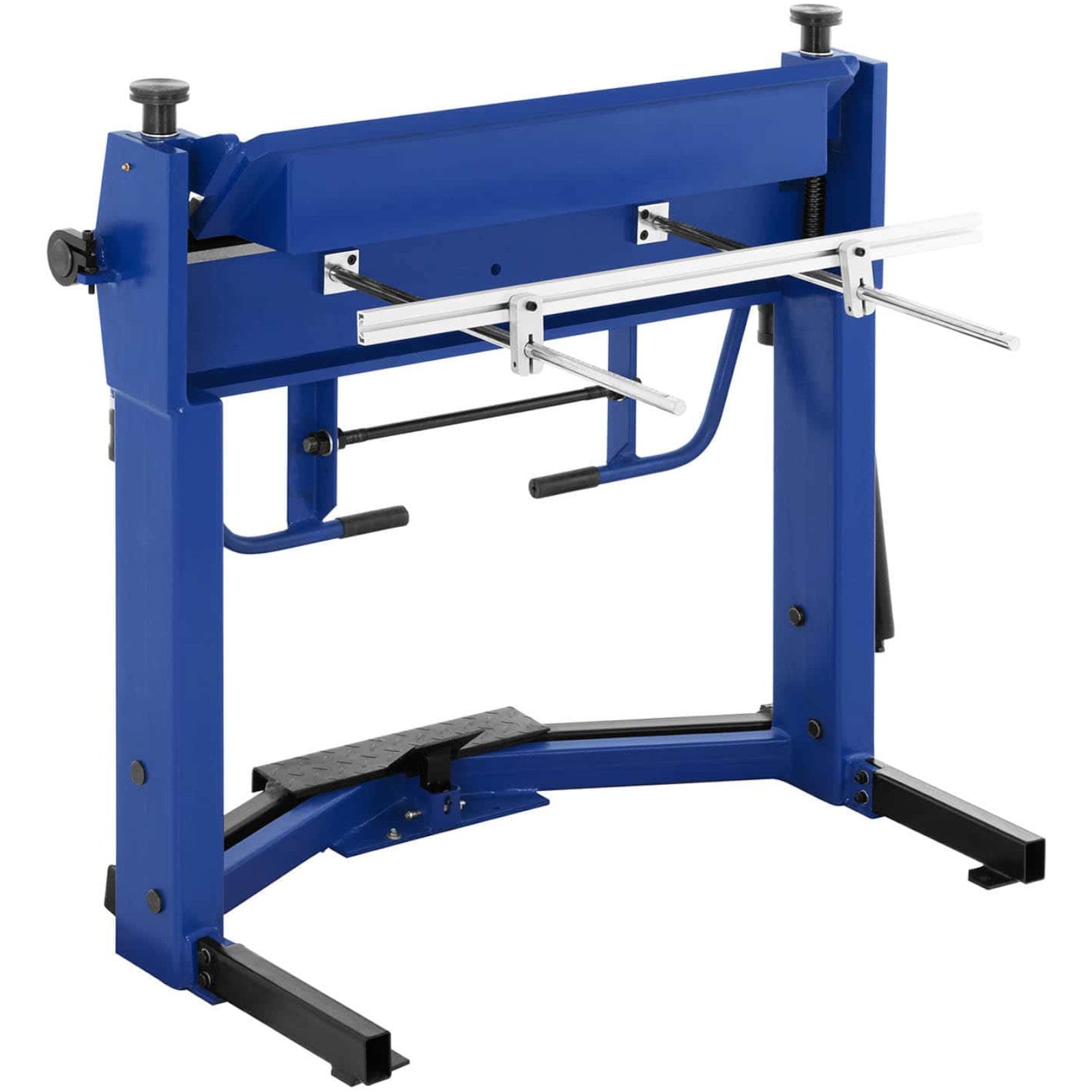

10061168The MSW table sheet metal bender is a practical tool for all types of workshops, factories, modeling plants, sheet metal workshops and others. It is especially suitable for "boxes #8221" when renovating bodywork, construction of entrance gates and doors. The device is made in accordance with the highest German quality standards. The efficient machine processes sheets with a maximum width of 1020 mm and a thickness of 2.5 mm. The bending angle is
0-135deg. The device is equipped with segments
25, 30, 35, 40, 45, 50, 75, 100, 150, 200, 270 mmThe opening reaches
50 mm. The segment bending machine is easy to use with a foot pedal with an anti-slip coating dealing with sheet metal processing.
Product features: - - Maximum working width 1020 mm,
- - Maximum sheet thickness 2.5 mm,
- - Setting the folding angle in the range of 0-135deg,
- - Segments 25, 30, 35, 40, 45, 50, 75, 100, 150, 200, 270 mm,
- - Foot pedal with anti-slip coating.
Technical parameters: - - Catalog number - 10061168
- - Article condition - New
- - Model - MSW-PBR-1020
- - Material - Low carbon steel
- - Bending angle [deg] - 0-135
- - Hole diameter [mm] - 13
- - Maximum width of sheet to be processed [mm] - 1020
- - Maximum thickness of the sheet to be processed [mm] - 2.5
- - Dimensions (LxWxH) - 142 x 60 x 115 cm
- - Weight - 270 kg
- - Shipping dimensions (LxWxH) - 145 x 63 x 121 cm
- - Shipping weight - 320 kg
The set includes: - - Segment bending machine
- - Assembly accessories
- - Brackets
- - User manual
