Networking – Smart Switch WiFi Ethernet Power Meter SPM-Main

Name: Networking – Smart Switch WiFi Ethernet Power Meter SPM-Main
Brand: SONOFF
SKU: 1017021
Price: 9.73 EUR
Availability: InStock

16 in stock

€9,73 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

View full details

Overview

The Smart Switch WiFi Ethernet Power Meter SPM-Main from SONOFF brings networking you can rely on, made for your home & garden needs. A popular choice in Home and Garden, Electronics.

Product code: 1017021

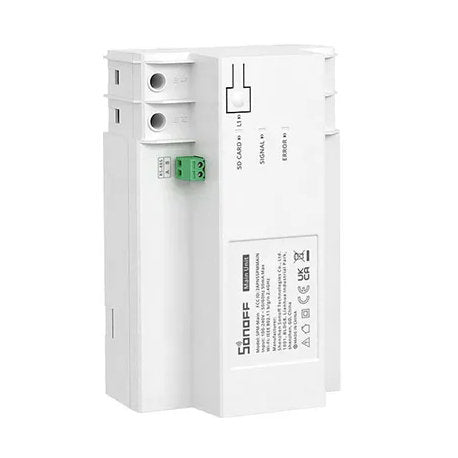

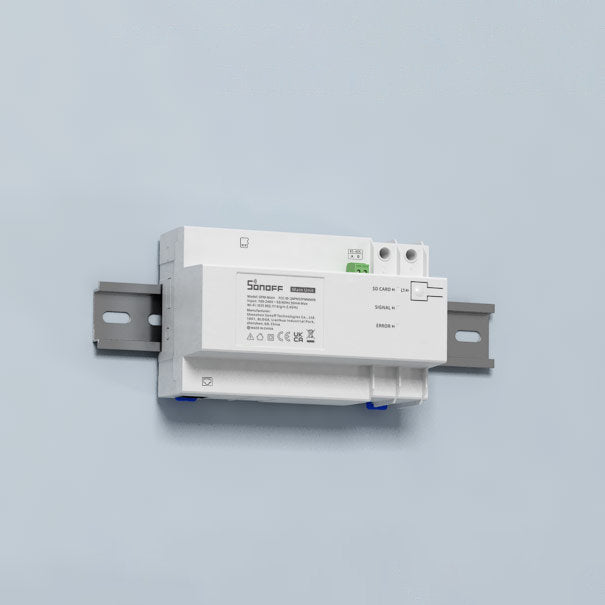

Sonoff SPM-Main intelligent switch that allows you to measure power consumption. The device is the main element of the system consisting of SPM-Main and SPM-4Relay.

The device supports wired communication(Ethernet RJ45 port) and wireless Wi-Fi. The product is very versatile - it allows support for up to 128 channels. To do this, connect it to the SPM-4Relay switch (max. 32 pcs).

SPM-Main is equipped with overload protection, which will help avoid damage to your devices. In addition, thanks to the built-in microSD card reader,you can secure energy consumption history from up to 180 days

The microSD card and SPM-4Relay are not included in the set - they can be purchased separately.

Key features

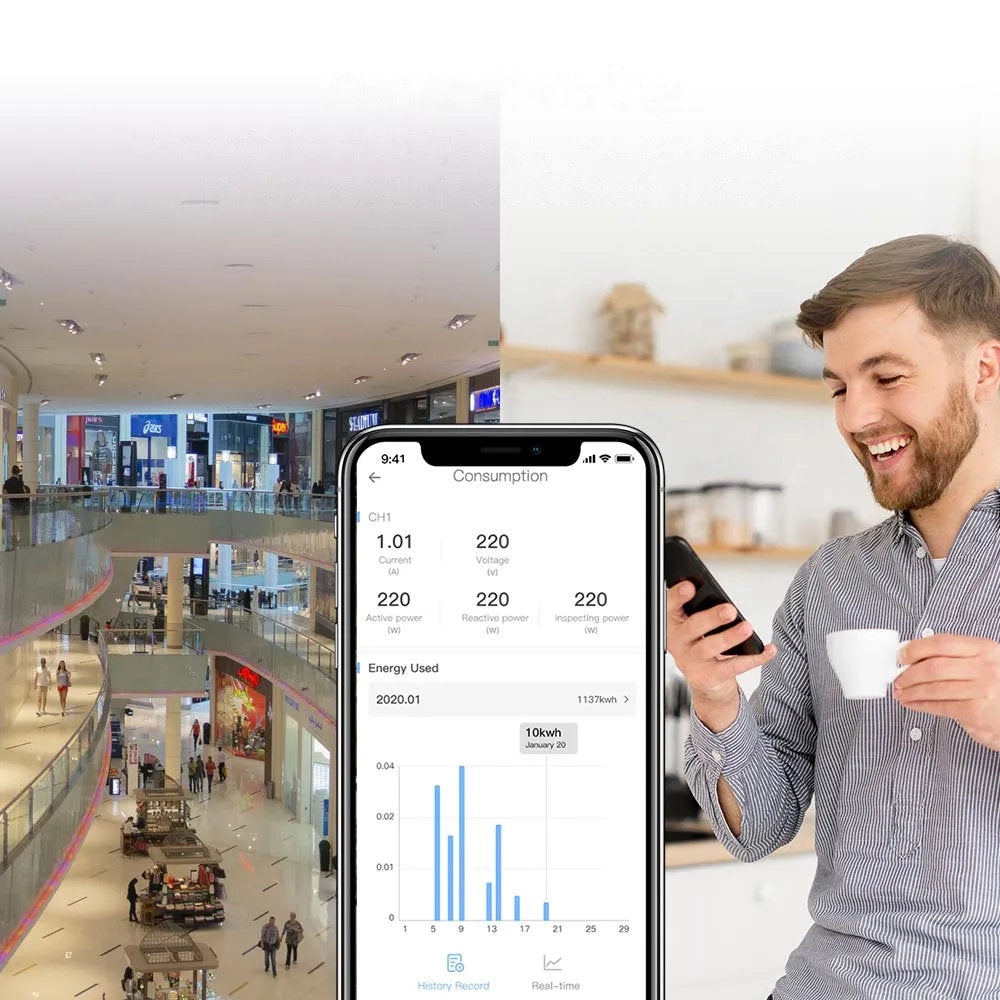

The SPM-Main switch has many different applications - it enables, among others: checking how much electricity your tenants use monthly, what is the energy consumption in your office

Protection of expensive equipment in the server room - the switch has overload protection

Possibility of connecting devices - SPM-Main communicates with the cloud via the RJ45 Ethernet port or Wi-Fi

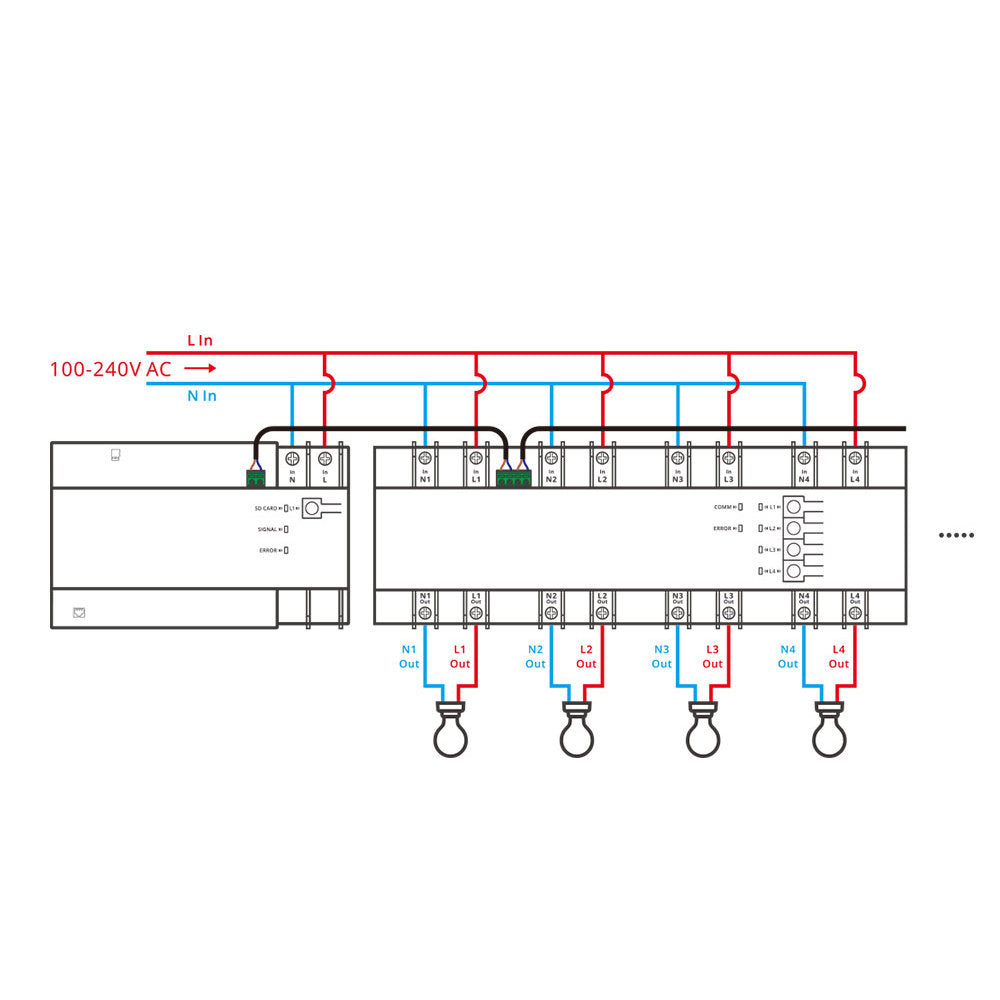

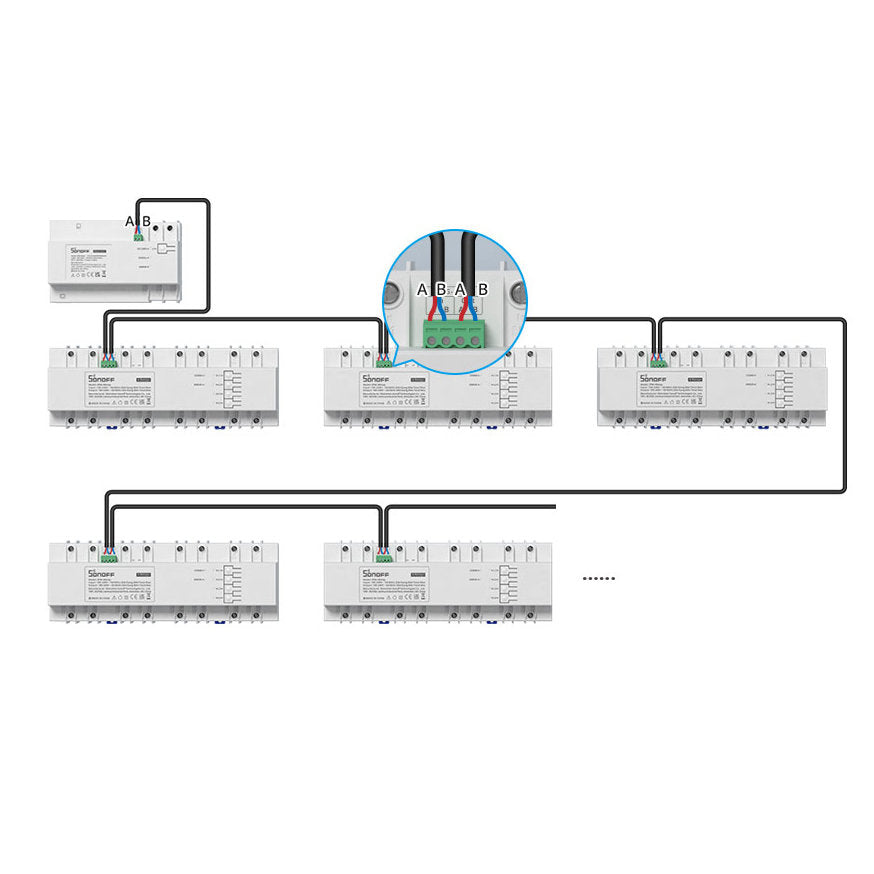

Connection with SPM-4Relay switches is made via the RS-485 port, which ensures stable long-distance transmission

Support for up to 128 channels - One SPM-Main main module allows you to connect and control up to 32 SPM-4Relay switches

Each SPM-4Relay offers as many as 4 independent channels with a maximum load of 20 A each

Thanks to this, SPM-Main can support up to 128 channels

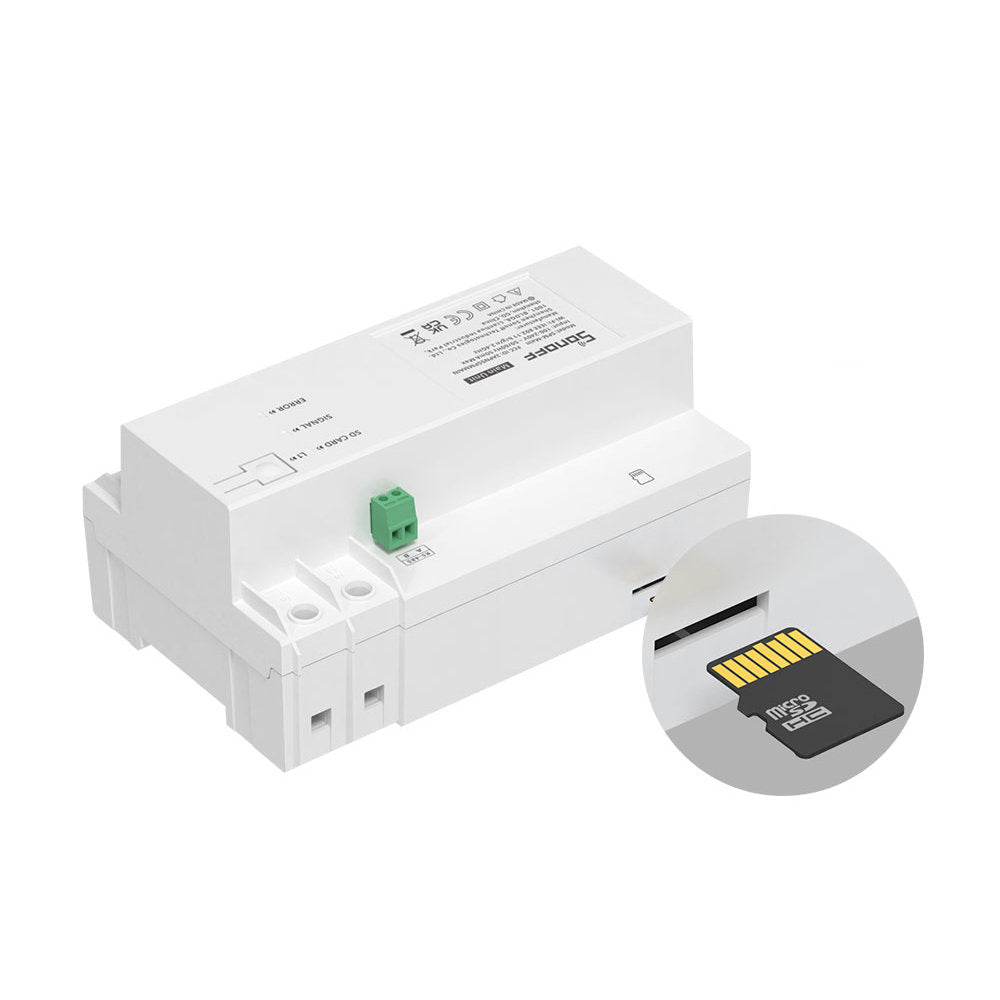

History of energy consumption on a microSD card - The product allows you to record the history of energy consumption measurements from the last 180 days

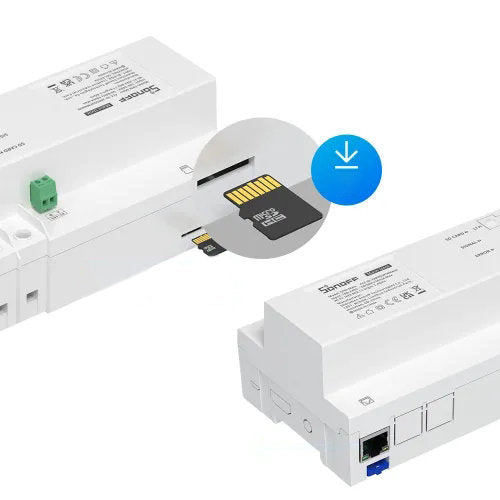

The switch is equipped with a microSD card reader (8-32 GB, microSDHC)

It enables convenient export of data and ensures security of important data. information

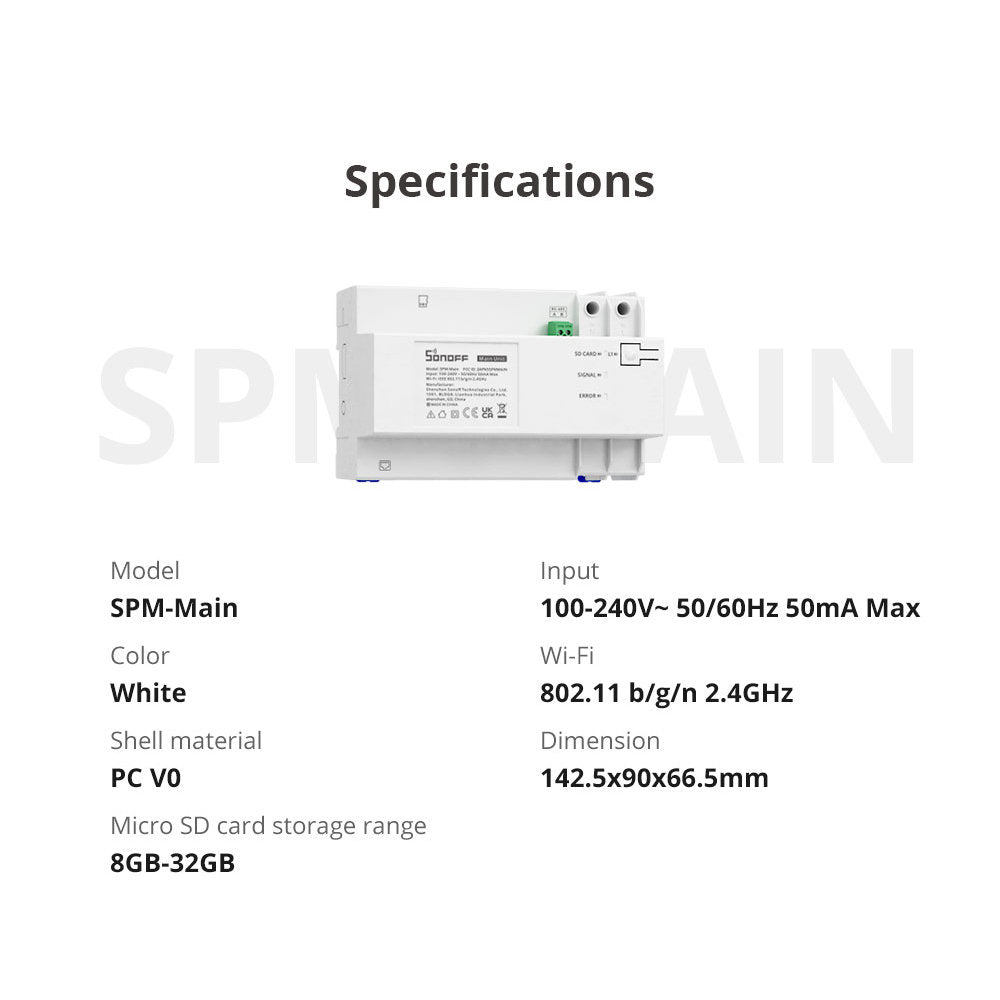

Technical specification

Specification	Detail
This is an ideal solution for apartment blocks	allows you to check energy consumption in 128 apartments
Manufacturer	Sonoff
Model	SPM-Main
Color	White
Input	100-240 V ~50/60 Hz 50 mA max
Wi-Fi	802.11 b/g/n 2.4 GHz
Material	PC V0
Dimensions	142.5 x 90 x 66.5 mm
Compatible microSD cards	8-32 GB (microSDHC)
