Description
Manufacturer's number:

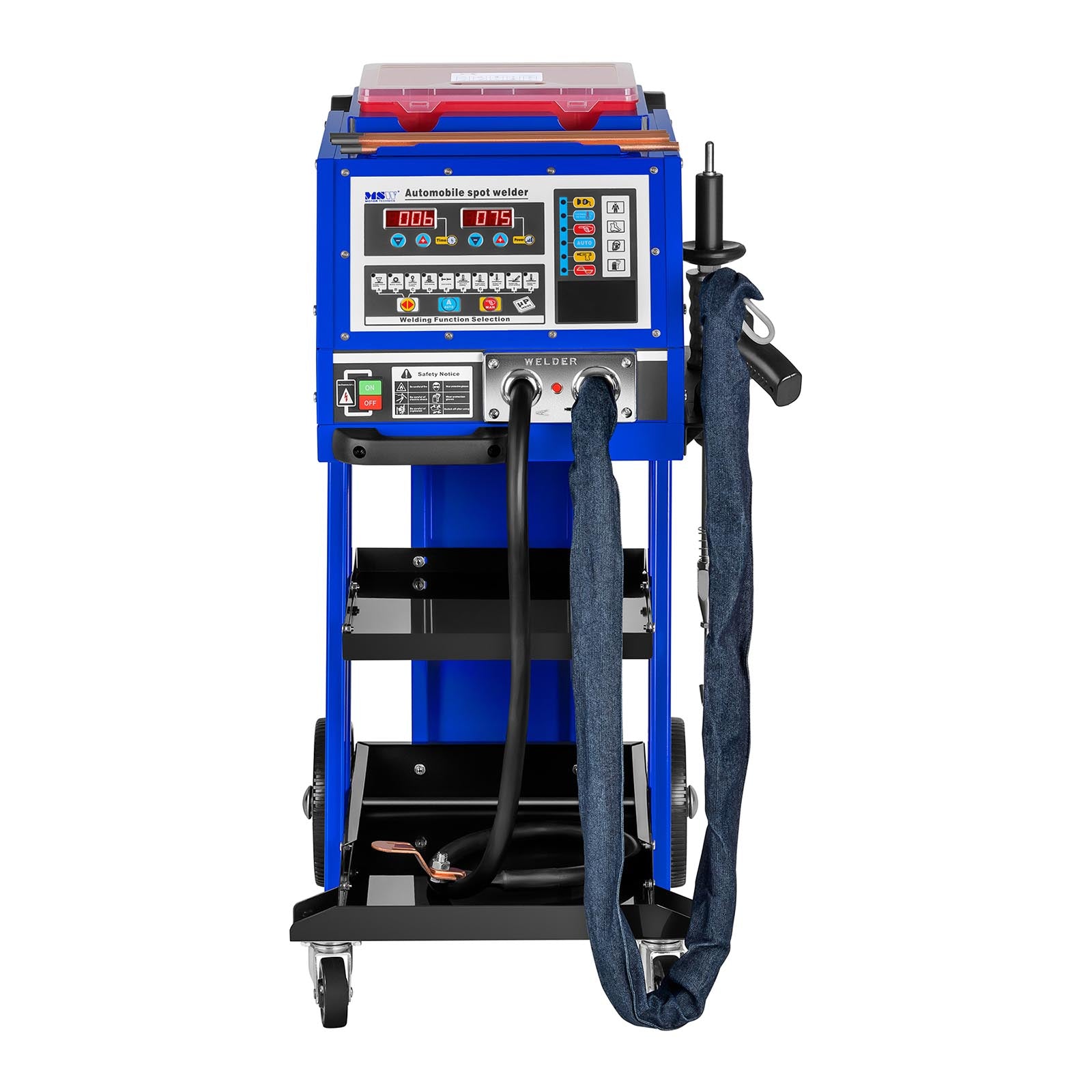

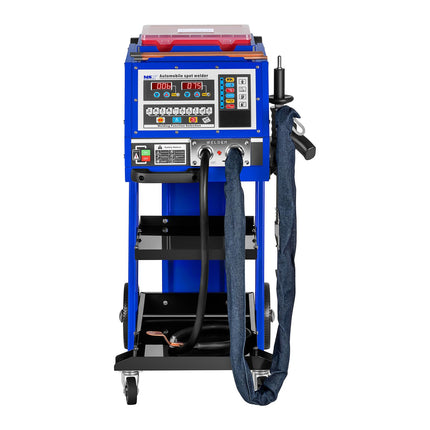

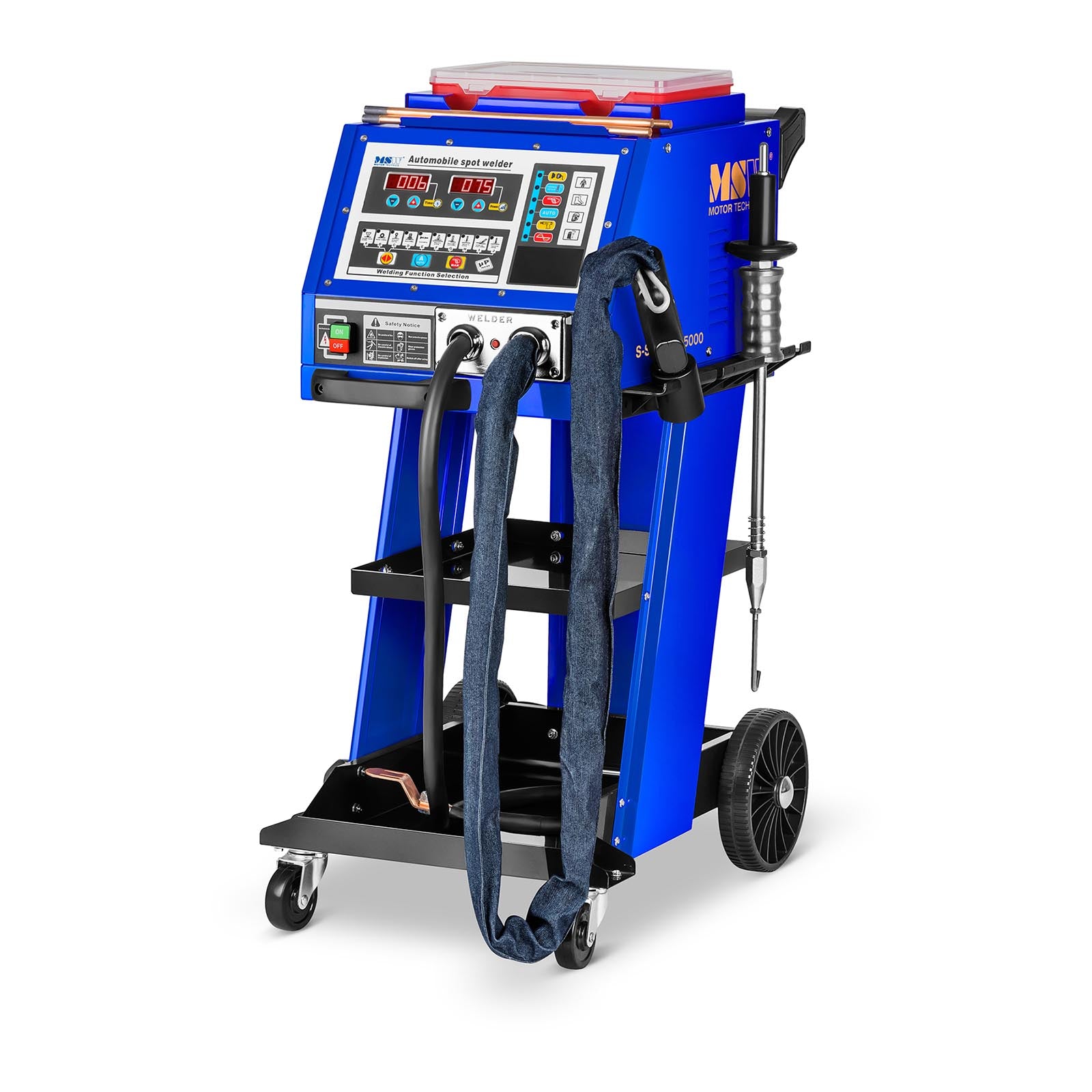

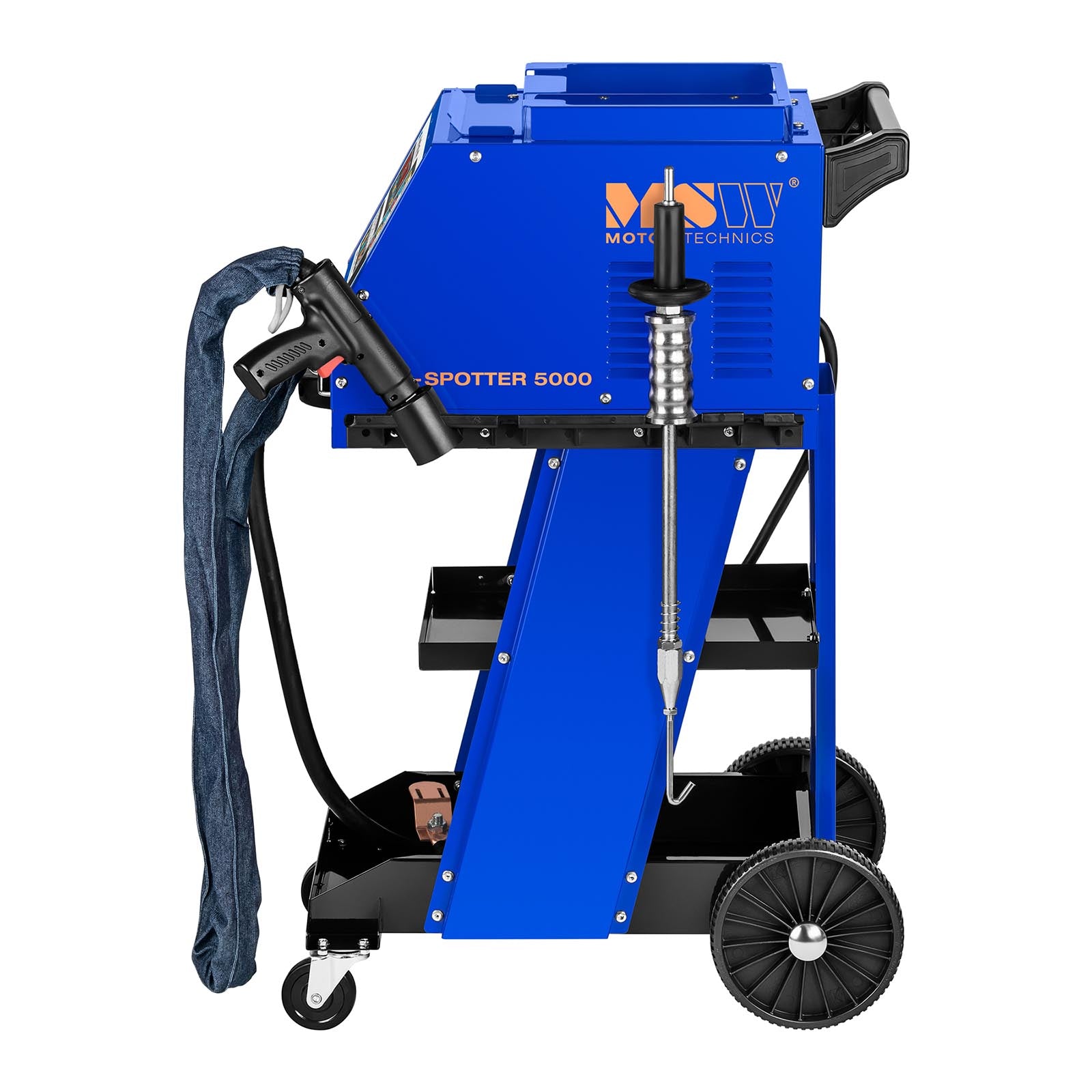

10060443S-SPOTTER 5000 sheet welding machine is used when fixing dents in the body of various vehicles.
easy to use, Thanks.

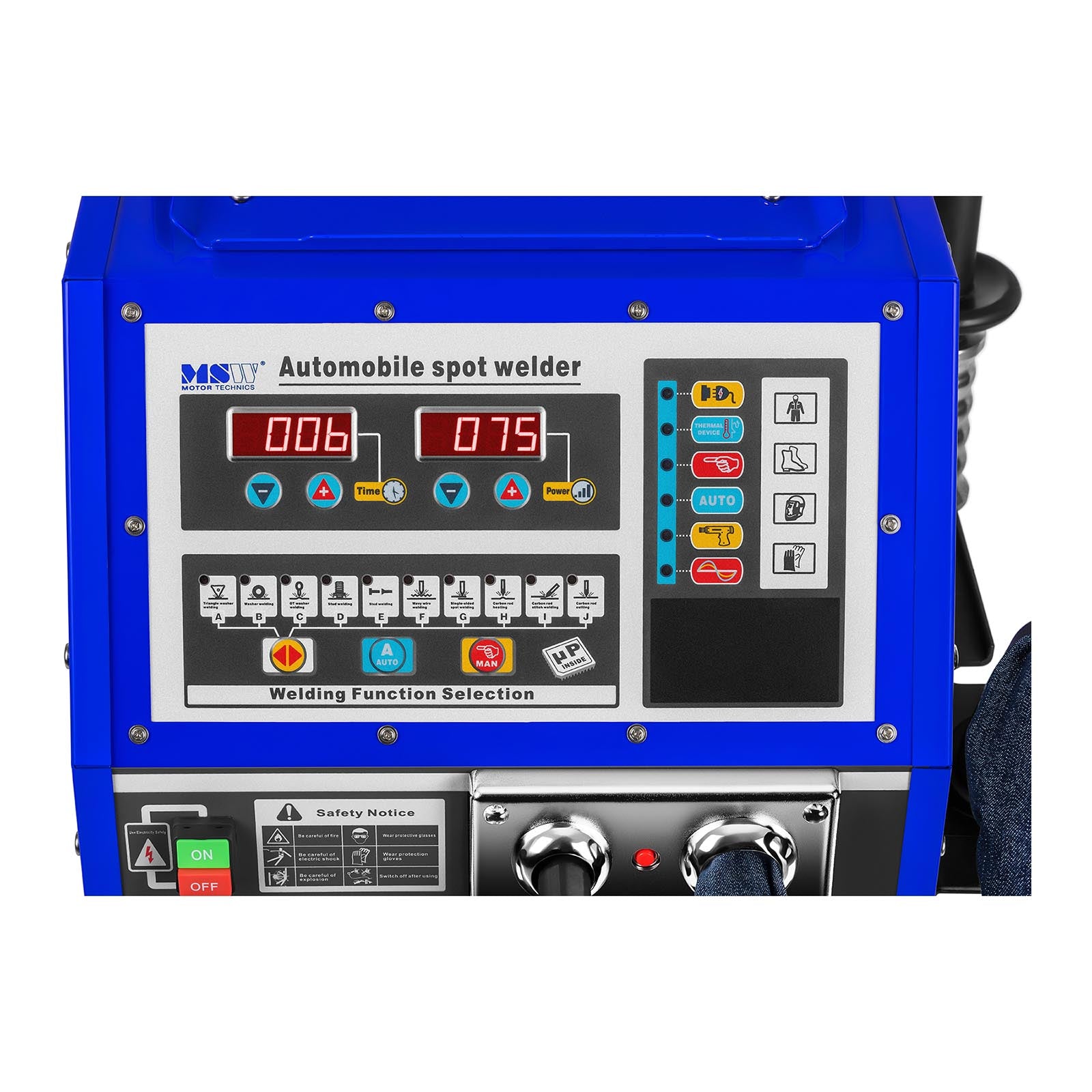

touch control panelwhich is responsible for setting the spotter parameters.
output current (up to 5000 A), setting
timera (range 0,01 s to 999s) and selection
one of ten automatic functions: - - Welding triangular pads
- - Welding of pads
- - Welding stakes, screws, etc.
- - Screw welding
- - Welding with wavy wire
- - Unilateral welding
- - Swelling
- - Heating and shrinking with carbon wire
- - Cut with coal wire
The device also has
two modes of operation (automatic and manual)The first one allows for work.
according to pre-defined welding timeand the second to the moment,
until the button of the gun is releasedSafe use guarantees
built-in fuse and system to prevent overheatingThe control over the welding machine condition is possible thanks to
a clear LED display.

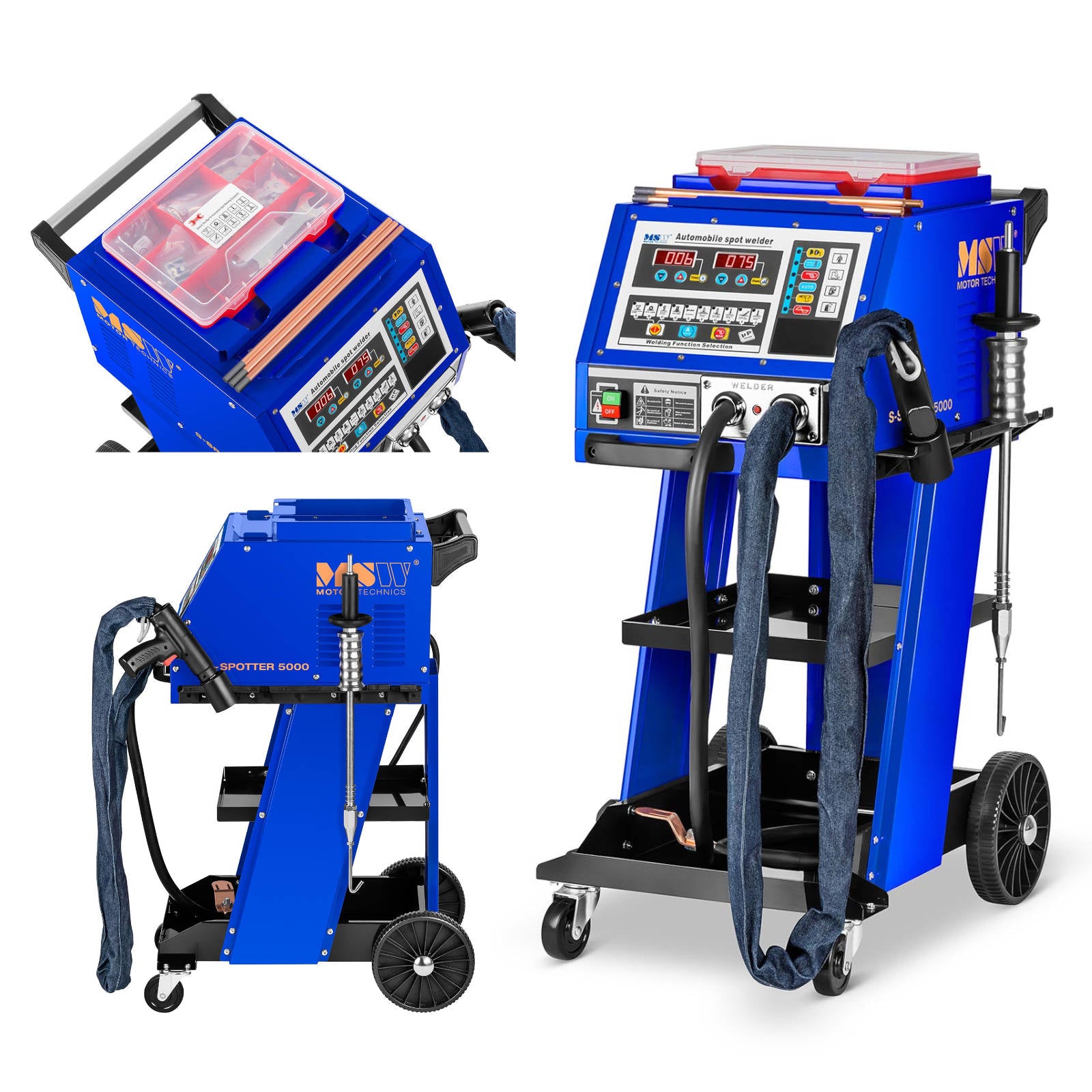

The welding machine is

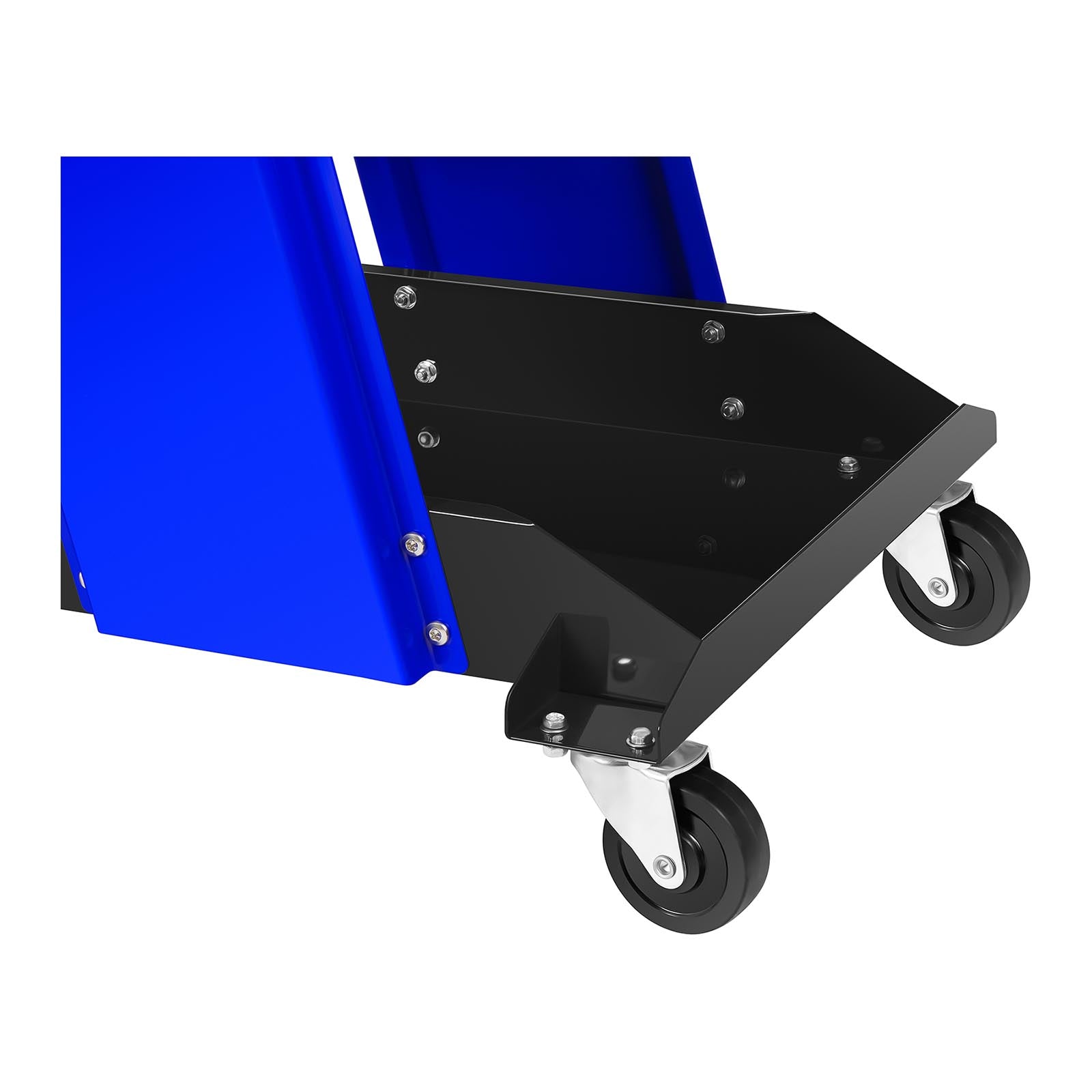

fully mobile with four wheels (two torsion and two constants), and

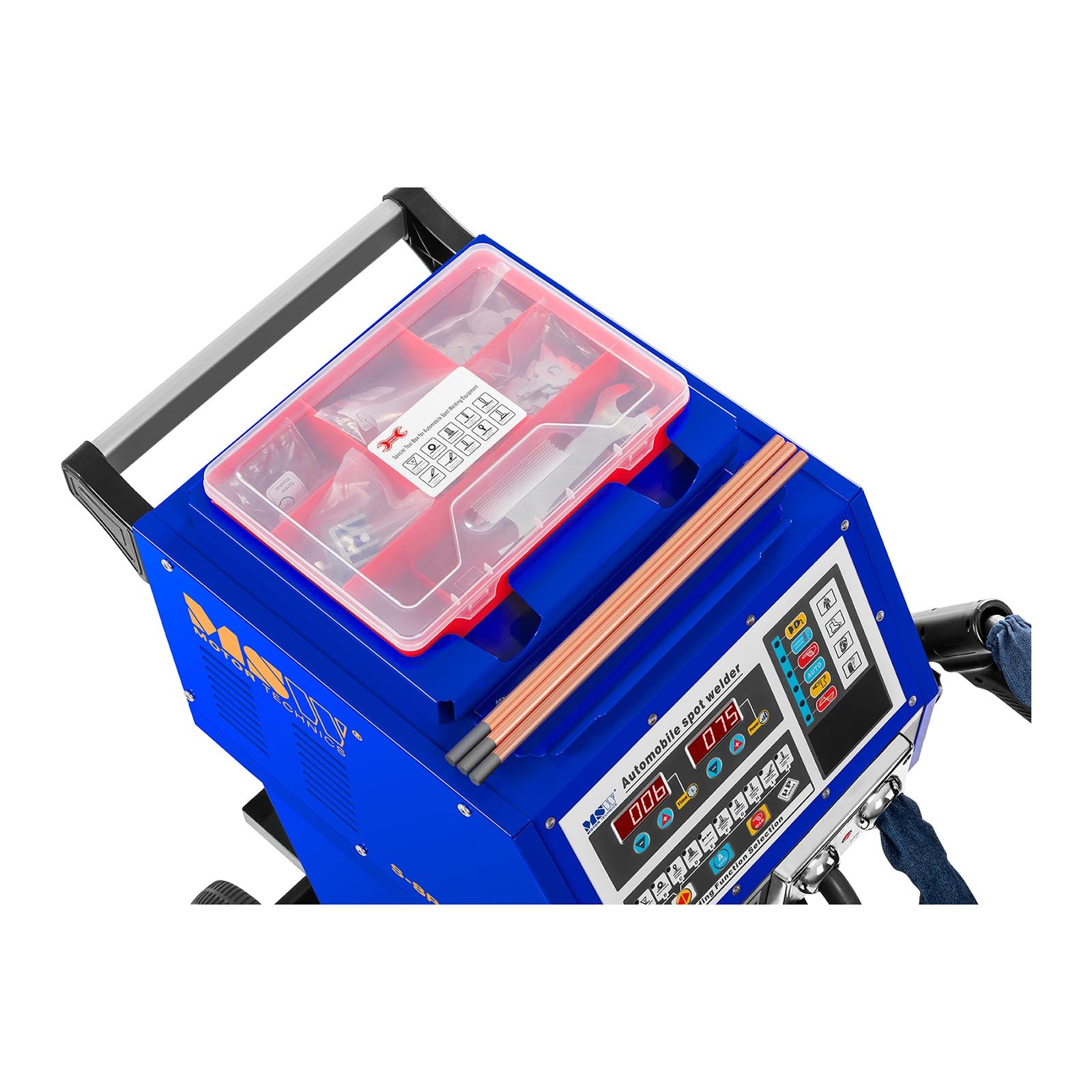

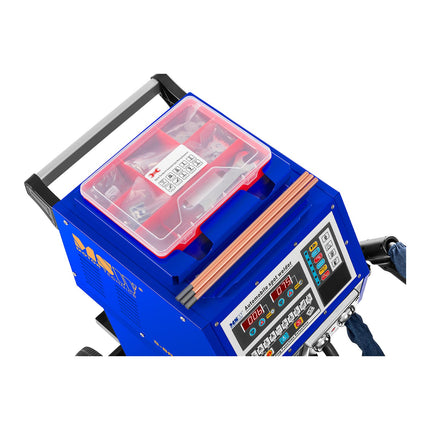

for practical shelves you can put tools and accessories. The device is included
practical set of pads and tools for pulling dents.
Product features: -
Universality - capable of correcting and smoothing the body of various vehicles
-
Efficiency - rapid and precise transmission of signals provided by modern microchips and sensors
-
Ergonomics - touch control panel facilitating the adjustment of the device
-
Security - built-in fuse and overheating protection system
-
Mobility - four wheels mounted
-
Accessories - set of padding and accessory for pulling dents
Technical parameters: - - Model - S-SPOTTER 5000
- - Catalog number - 10060443
- - The state of the article - New
- - Voltage - 400 V / 50 Hz
- - Marked input power - 19 kVA
- - Output voltage - 13 V
- - Marked input current - 50 A
- - Maximum output current - 5000 A
- - The thickness of the welding - 0,8 + 0,8 mm
- - Time regulation - 0,01
- - The fuse - 42 A
- - The wire of the gun - 1.75 m
- - Ground wire - 1,6
- - Dimensions - 62 x 47 x 96 cm
- - Weight - 56,85 kg
- - Dimensions of dispatch (DxSxW) - 62 x 54 x 88 cm
- - Weight of shipping - 68.85 kg
Included: - S-SPOTTER 5000 welding machine
- Pistol wire
- Grounding cable
- Point hammer
- 3 x carbon rods
- Bar adapter
- Pad adapter
- Triangular pad adapter
- 10 x Triangular pads
- 15 x 10 mm pads
- 15 x 12 mm pads
- Key
- Pull-on hook
- Gearbox
- User Manual
