Description
Product code:
1009064

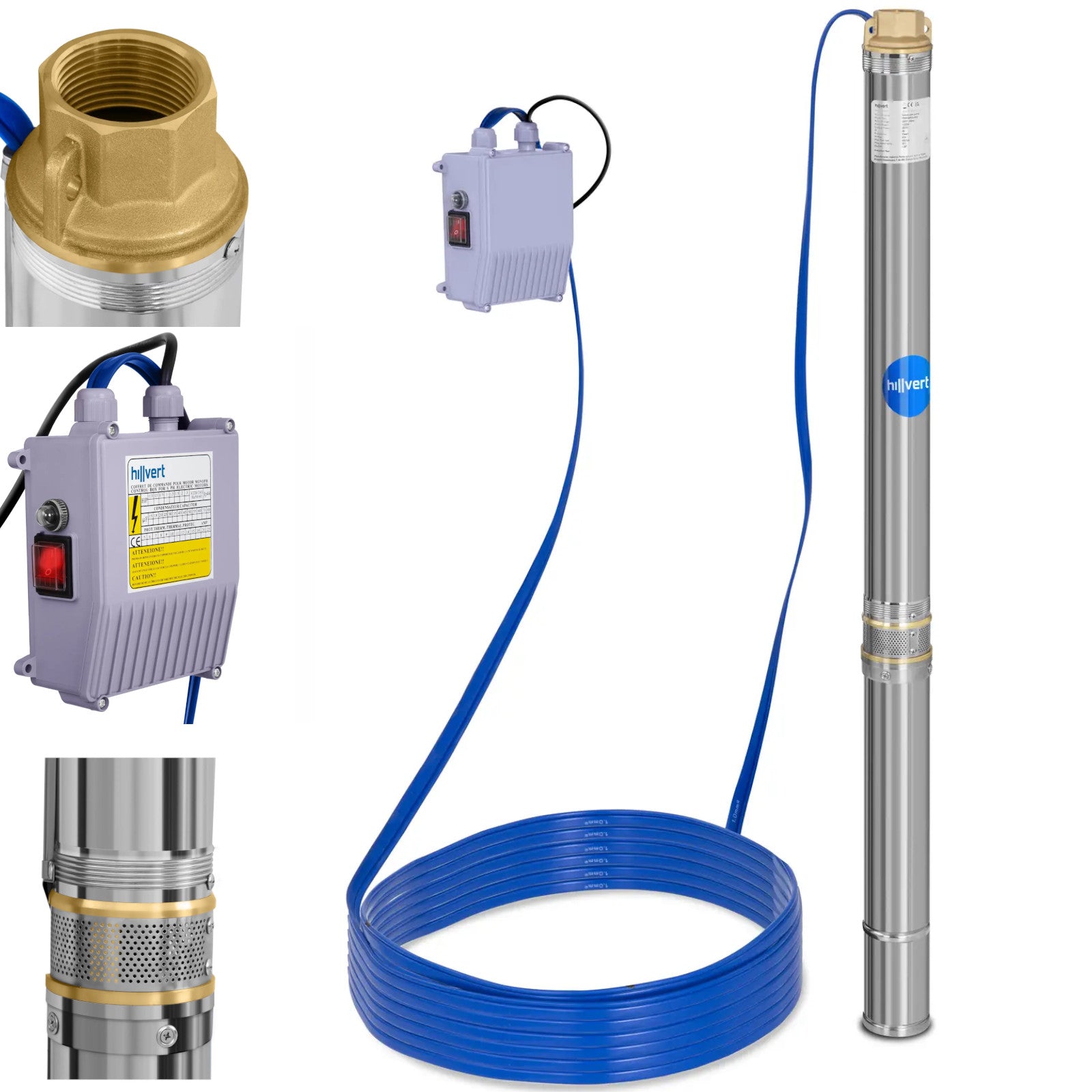

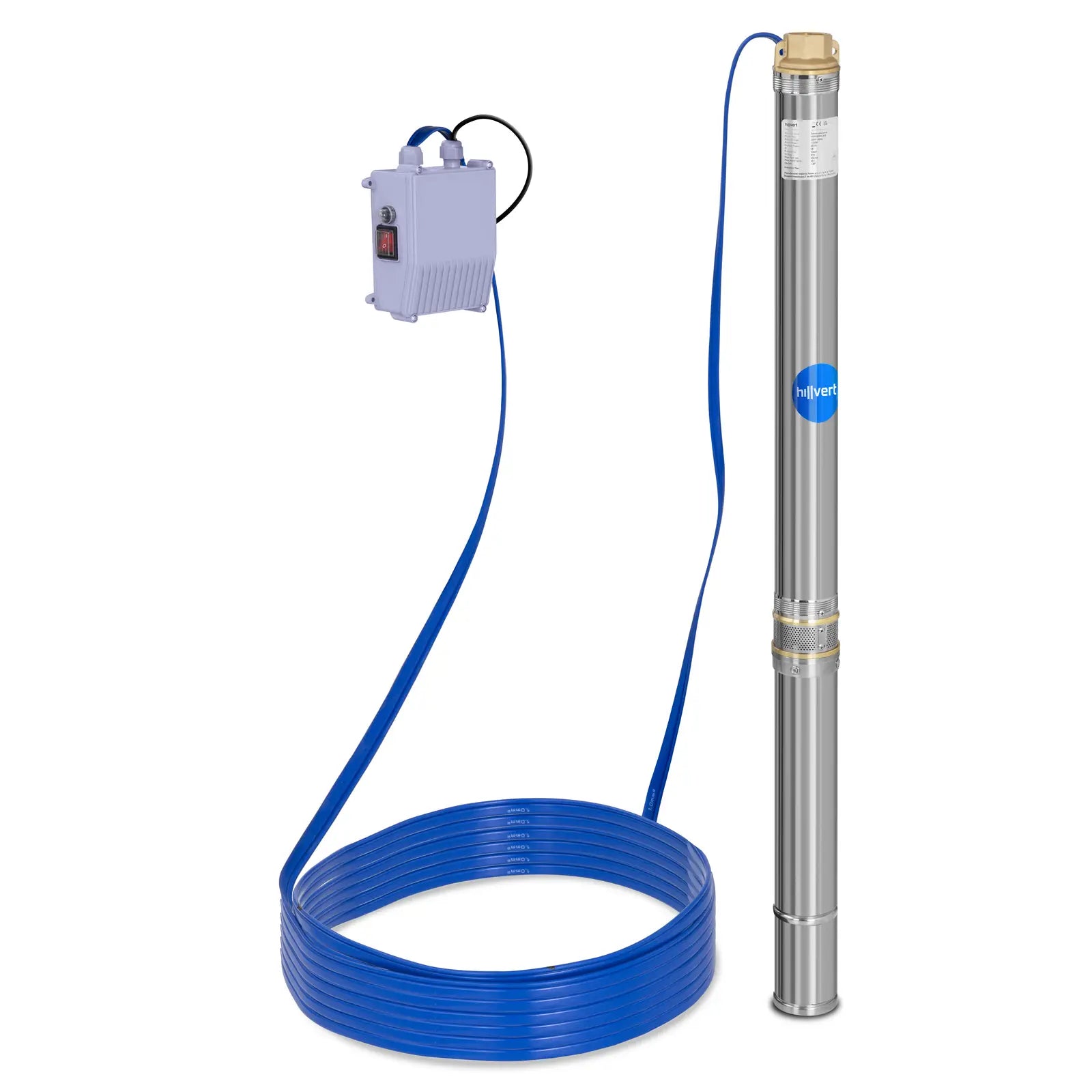

Hillvert submersible pumpeasily pumps water from deep and narrow shafts, wells, tanks or cisterns. The
stainless steel housing has a diameter of only 70 mm and is ideal for narrow drilling.
The 550 W motor operates at a speed of 2,850 rpm and provides a high flow rate of up to 3,800 l/h. The device can be submerged to a depth of 20 m with a maximum lifting height of 60 m. The well pump is suitable for clean water with a temperature of up to 35 degrees Celsius.
The submersible pump motor is hermetically sealed and protected against pressure and water. Steel casing stainless steel is resistant to corrosion and dirt. Moreover, it reliably withstands even the heaviest loads.
Product features: - - Capacity of 3,800 l/h thanks to a 550 W motor and a speed of 2,850 rpm.

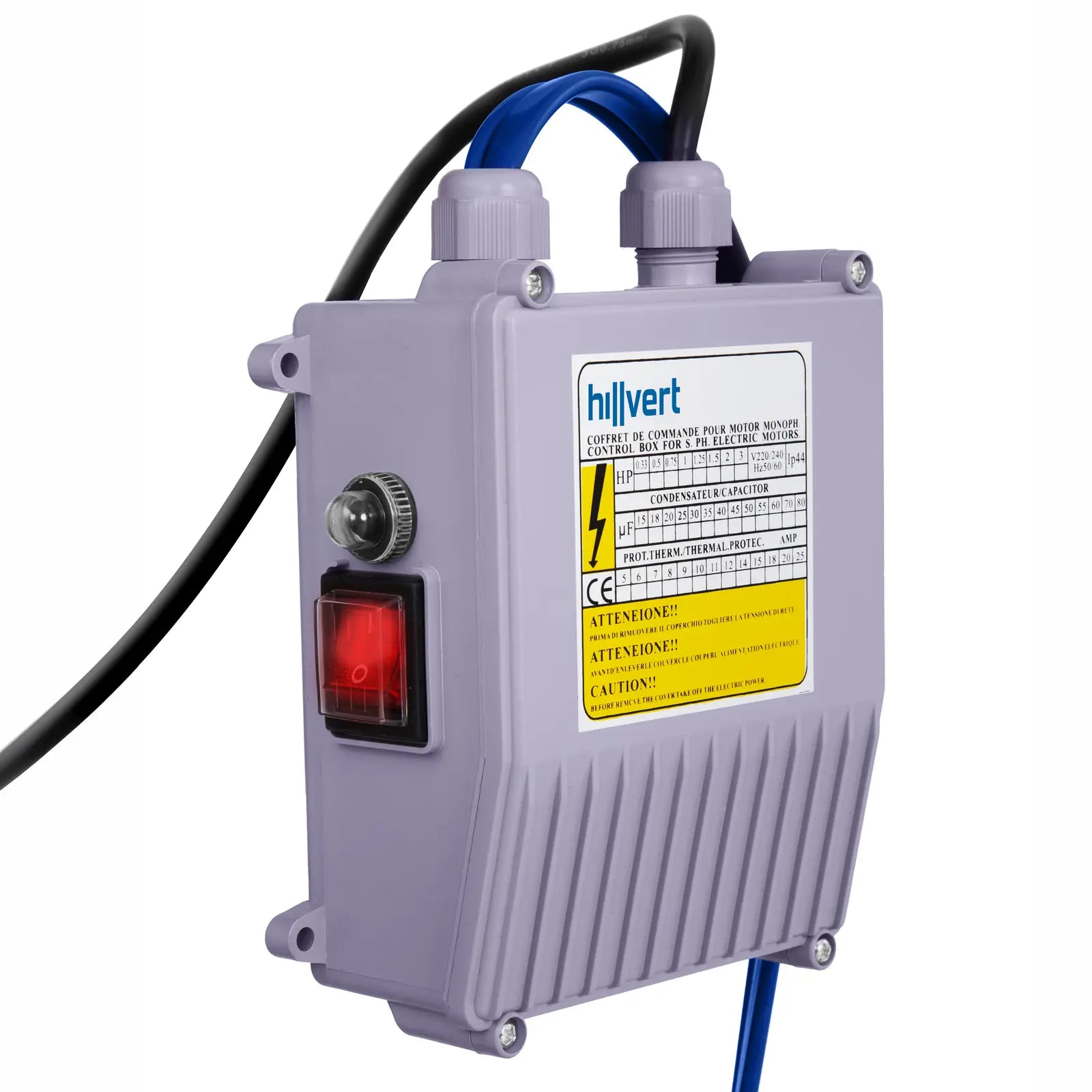

- - Control via a control box with a protected on/off switch.
- - Maximum lifting height of 60 m.
- - Housing made of stainless steel, resistant to corrosion and dirt.
Technical parameters: - - Brand - Hillvert
- - Voltage [V] - 230
- - Material - Stainless steel
- - Color - Silver
- - Rated current - 4 A
- - Rated speed [rpm] - 2850
- - Water flow - 3800 l/h
- - Total diameter - 70mm / 2.75"
- - Insulation class -B
- - IEC protection class - I
- - Number of stages (pump impellers) - 17
- - Max. depth of immersion under water - 20 m
- - Max. sand content in water [%] - 0.25
- - Maximum number of starts per hour - 50 h
- - Maximum input power - 1.1 kW
- - Maximum output power - 0.55 kW
- - Maximum water temperature - 35 deg C
- - Maximum lifting height - 60 m
- - Maximum working pressure - 5.5 Bar
- - Maximum water flow - 3.8 m³/h
- - Maximum particle size - 1.8 mm
- - Control methods - External start box (550 W)

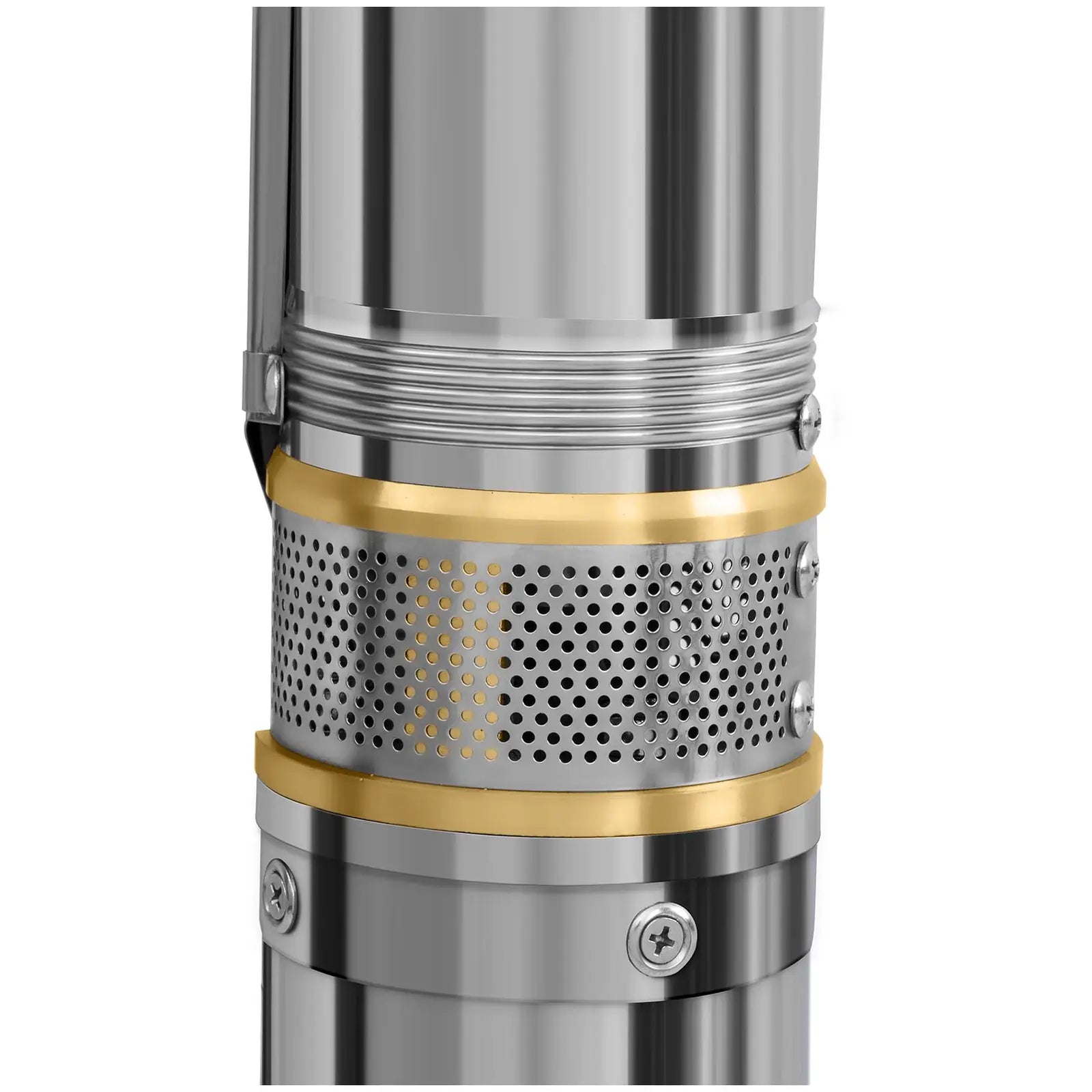

- - Filter - Yes
- - Overcurrent - Yes
- - Check valve - Yes
- - Power cable - 20 m
- - Cable specification - HO7RN-F3G0.75mm²
- - IP protection level - IP68
- - Mounting hole diameter - 80 mm

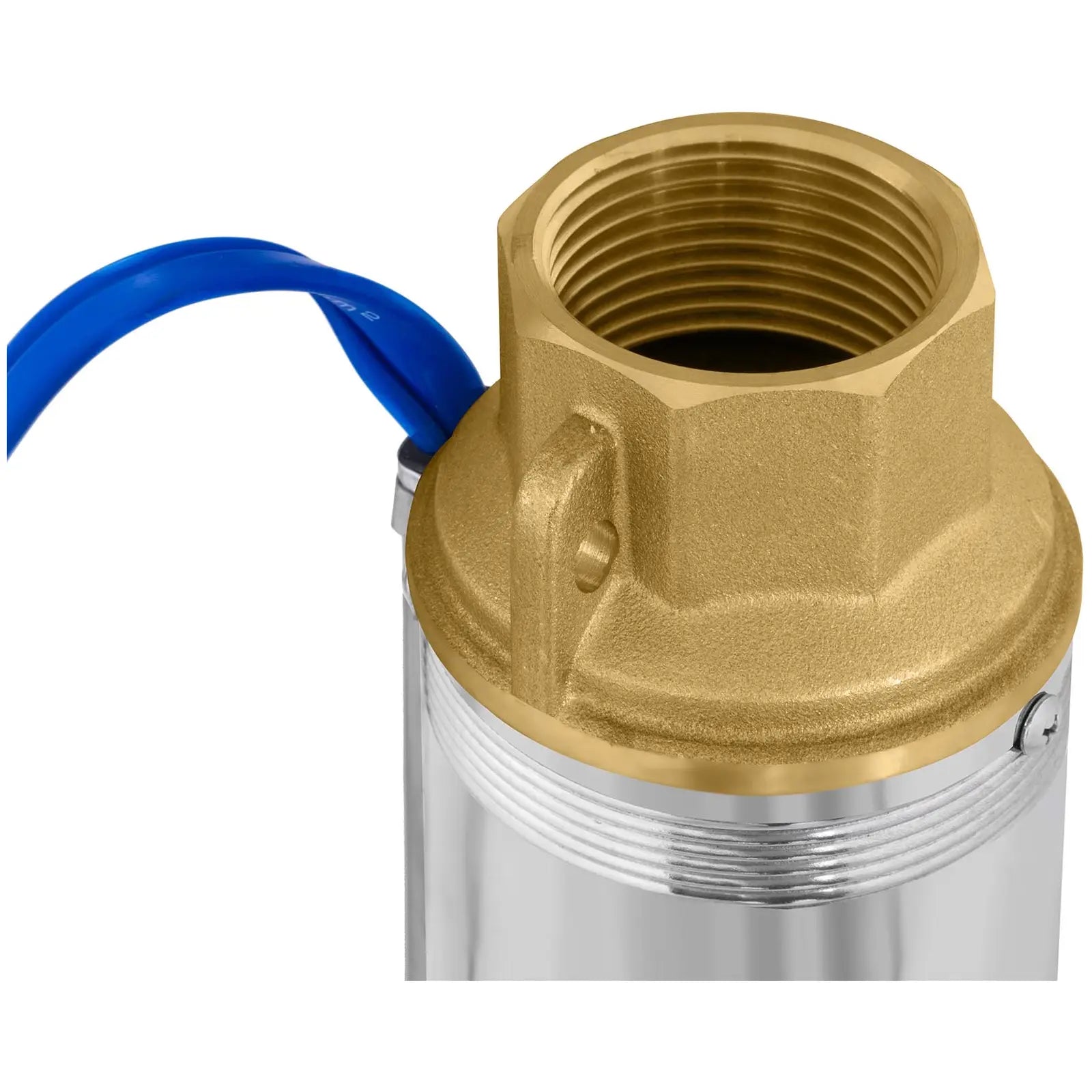

- - Water connection diameter - 1.25 in
- - Dimensions (LxWxH) - 103.3 x 7.1 x 7.1 cm
- - Weight - 12 kg
- - Shipping dimensions (LxWxH) - 141 x 25 x 10 cm
- - Shipping weight - 14 kg
Included in the set:
