Description
Manufacturer's code:

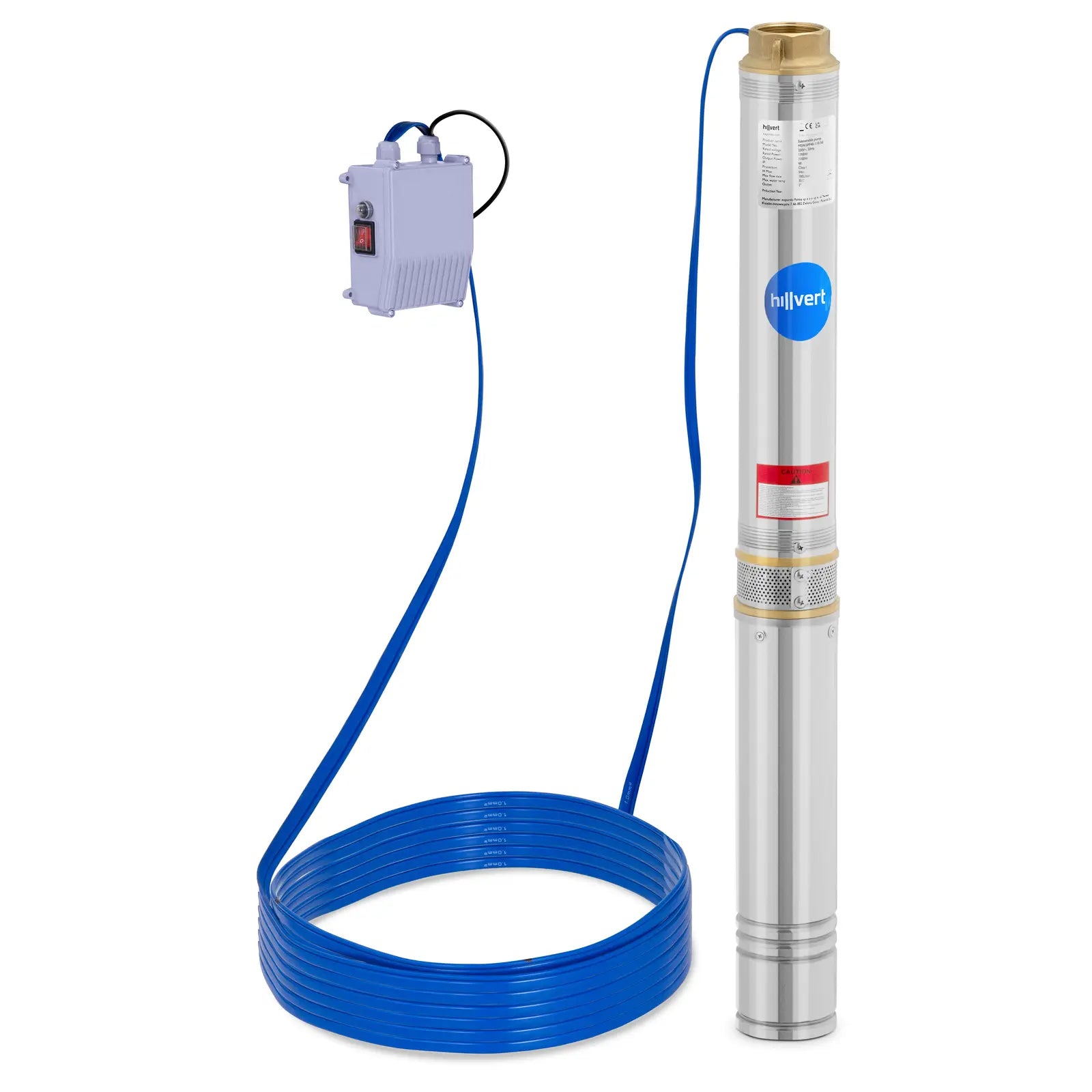

10062053Hillvert submersible pump easily pumps water from deep and narrow shafts, wells, tanks or cisterns. The
stainless steelhousing has a diameter of only
95 mmand is ideal for narrow drilling. The 1100 W motor operates at a speed of
2,850 rpm and ensures high flow of up to 10,800 l/h. The device can be submerged to a depth of 50 m with a maximum lifting height of 54 m. The well pump is suitable for clean water with a temperature of up to 35 degrees Celsius - perfect for water supply.
Product features: - - Fast pumping - capacity of 10,800 l/h thanks to a 1100 W motor and a speed of 2850 rpm,

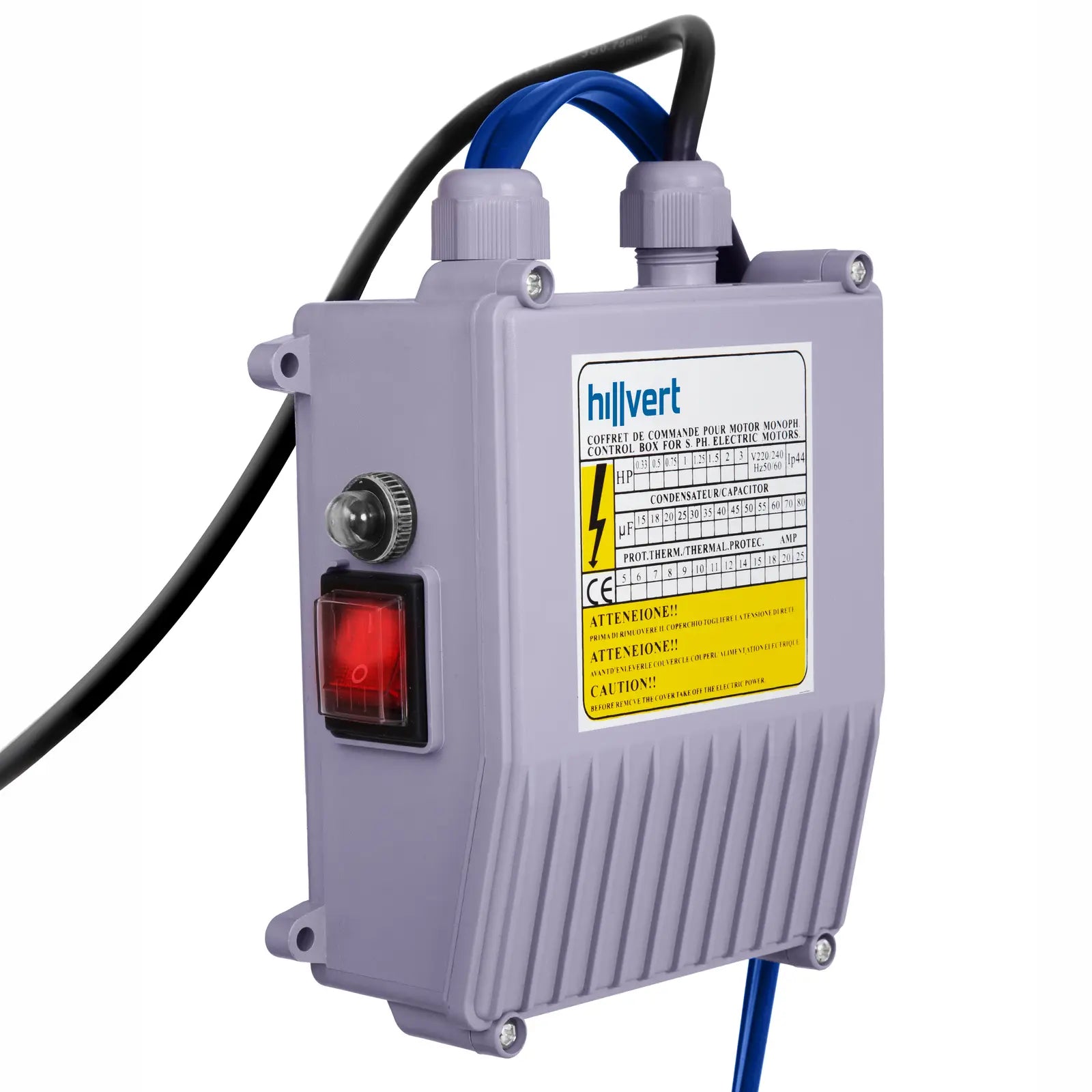

- - Convenient operation - control via a control box with a protected on/off switch,
- - Wide application - maximum lifting height 54 m,
- - You can place the device flexibly - thanks to the long power cord and maximum immersion depth of 50 m,
- - High durability - stainless steel housing resistant to corrosion and dirt.
Technical parameters: - - Catalog number - 10062053
- - Article condition - New
- - Total diameter - 95 mm / 3.75''

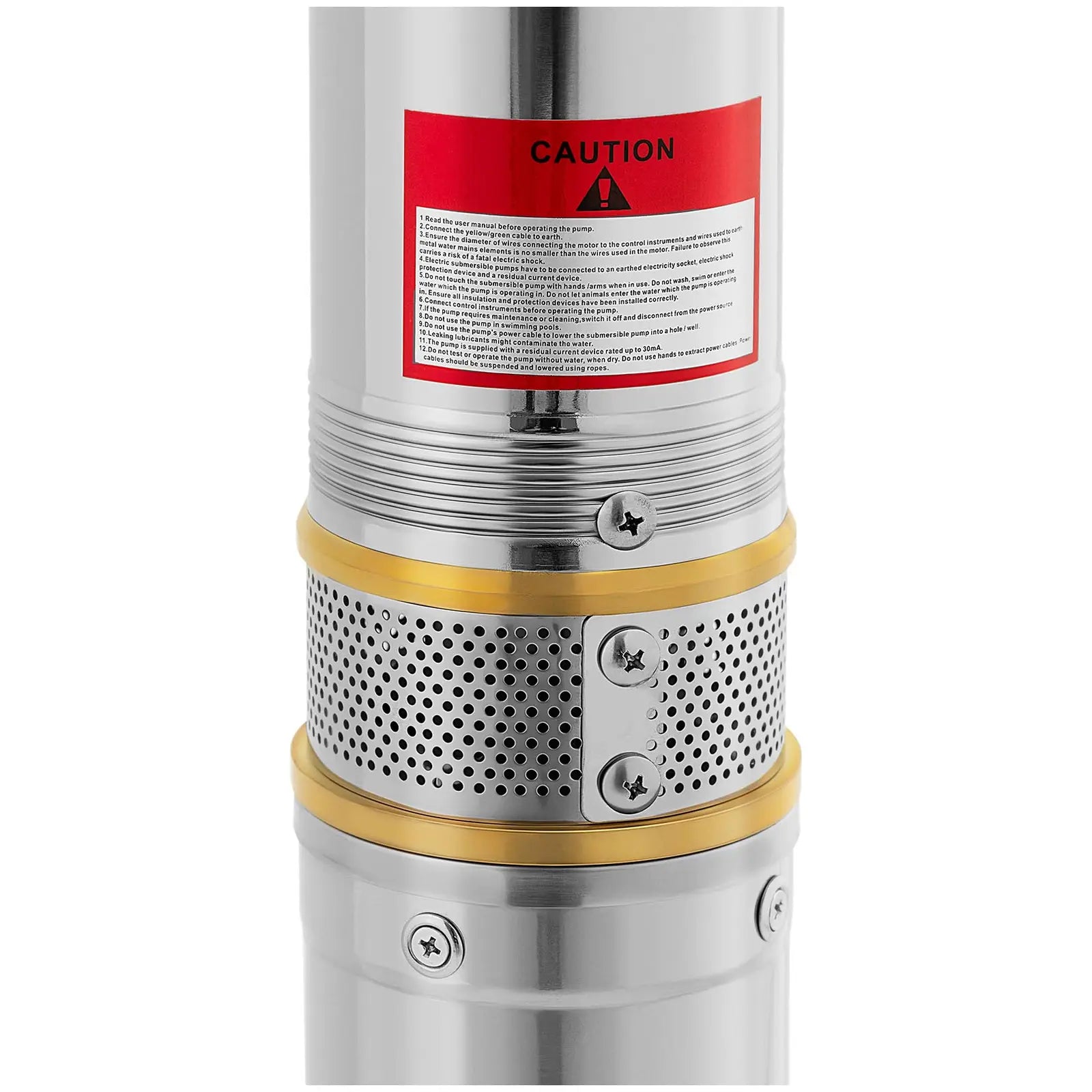

- - Filter - Yes
- - Insulation class - B
- - IEC protection class - I
- - Color - Silver
- - Number of stages (pump impellers) - 8
- - Max. immersion depth under water - 50 m
- - Max. sand content in water [%] - 0.25
- - Maximum number of starts per hour - 50 h
- - Maximum input power - 1.7 kW
- - Maximum output power - 1.1 kW
- - Maximum water temperature - 35 deg C
- - Maximum lifting height - 54 m
- - Maximum working pressure - 5.09 Bar
- - Maximum water flow - 10.8 m³/h
- - Maximum particle size - 1.8 mm
- - Material - Stainless steel
- - Control methods - External starter box (1100 W)
- - Voltage [V] - 230
- - Rated current - 6 A
- - Rated speed [rpm] - 2850
- - Water flow - 10800 l/h
- - Overcurrent - Yes
- - Power cable - 50 m
- - Cable specification - HO7RN-F3G1.5mm²
- - IP protection level - IP68
- - Mounting hole diameter - 100 mm
- - Water connection diameter - 2 in
- - Check valve - Yes
- - Weight - 19.95 kg
- - Shipping weight - 23.1 kg
- - Dimensions (LxWxH) - 88 x 9 x 9 cm
- - Shipping dimensions (LxWxH) - 129 x 24 x 13 cm
The set includes: - - Submersible pump
- - User manual
