Measuring Tools & Sensors – Car paint thickness gauge, range

The Car paint thickness gauge, range 0 - 5000 µm from Steinberg Systems brings measuring tools & sensors you can rely on, made for your workshop & garage needs. A popular choice in Workshop garage, Car Workshop.

Manufacturer number: 10030313

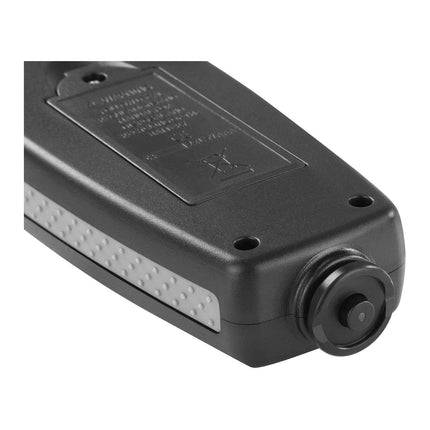

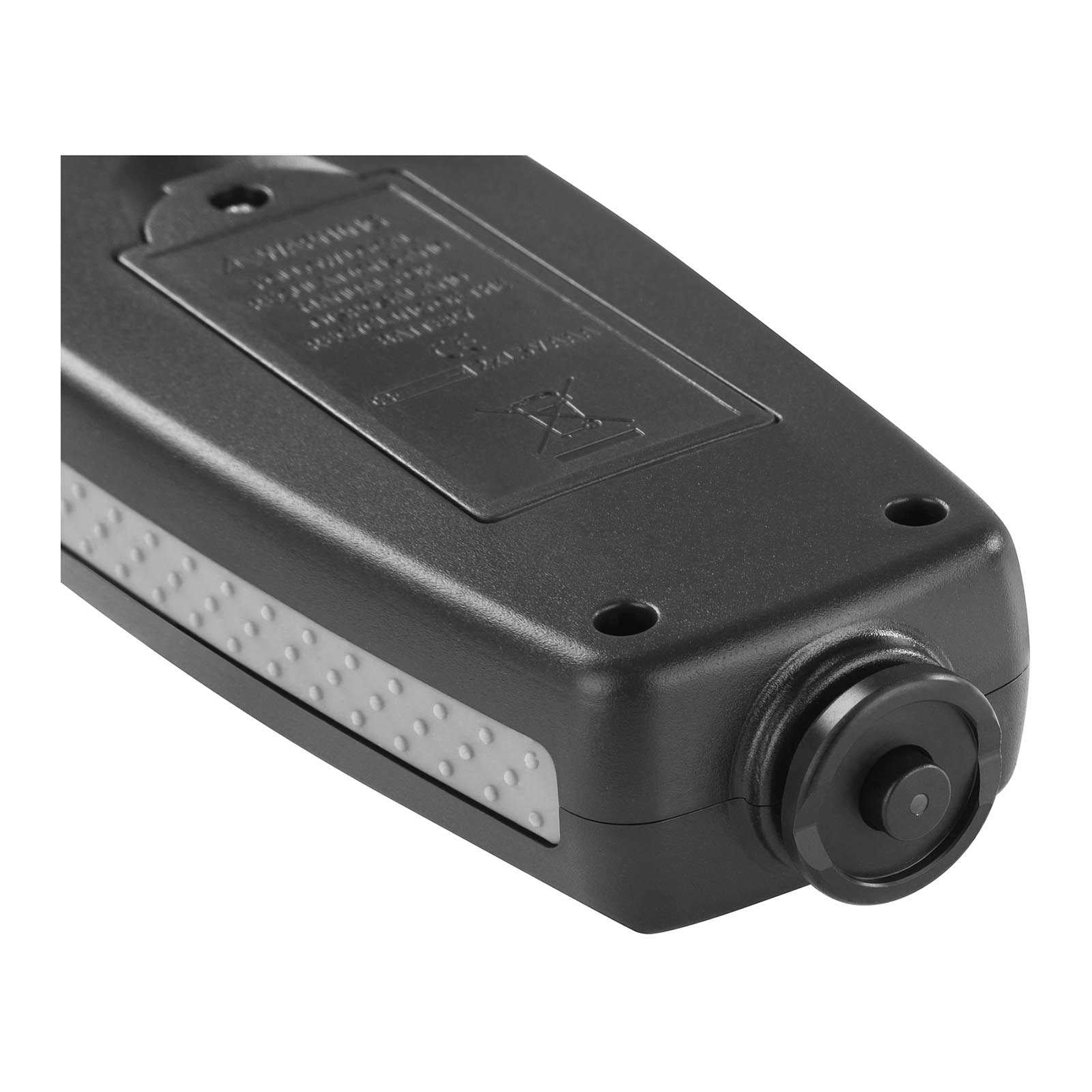

The Steinberg Systems precision paint thickness gauge is capable of making measurements in the rangefrom 0 to 5000 µm with an accuracy of ±2% + 1 µm. The device is designed to work on bothstraight and curved surfaces. This is due to the V-shaped tip, which provides a minimum measuring area of ​​20 mm, 5 mm for convex surfaces and 25 mm for concave surfaces.

The tester has many functions, including: test mode, measurement method, or measurement unit (μm, mm, mil). The device also allows you to save up to 320 results and, thanks to the mini USB port, save them on your computer. The meter is designed to operateat temperatures ranging from 0 to 50℃ and air humidity of 20-90%.

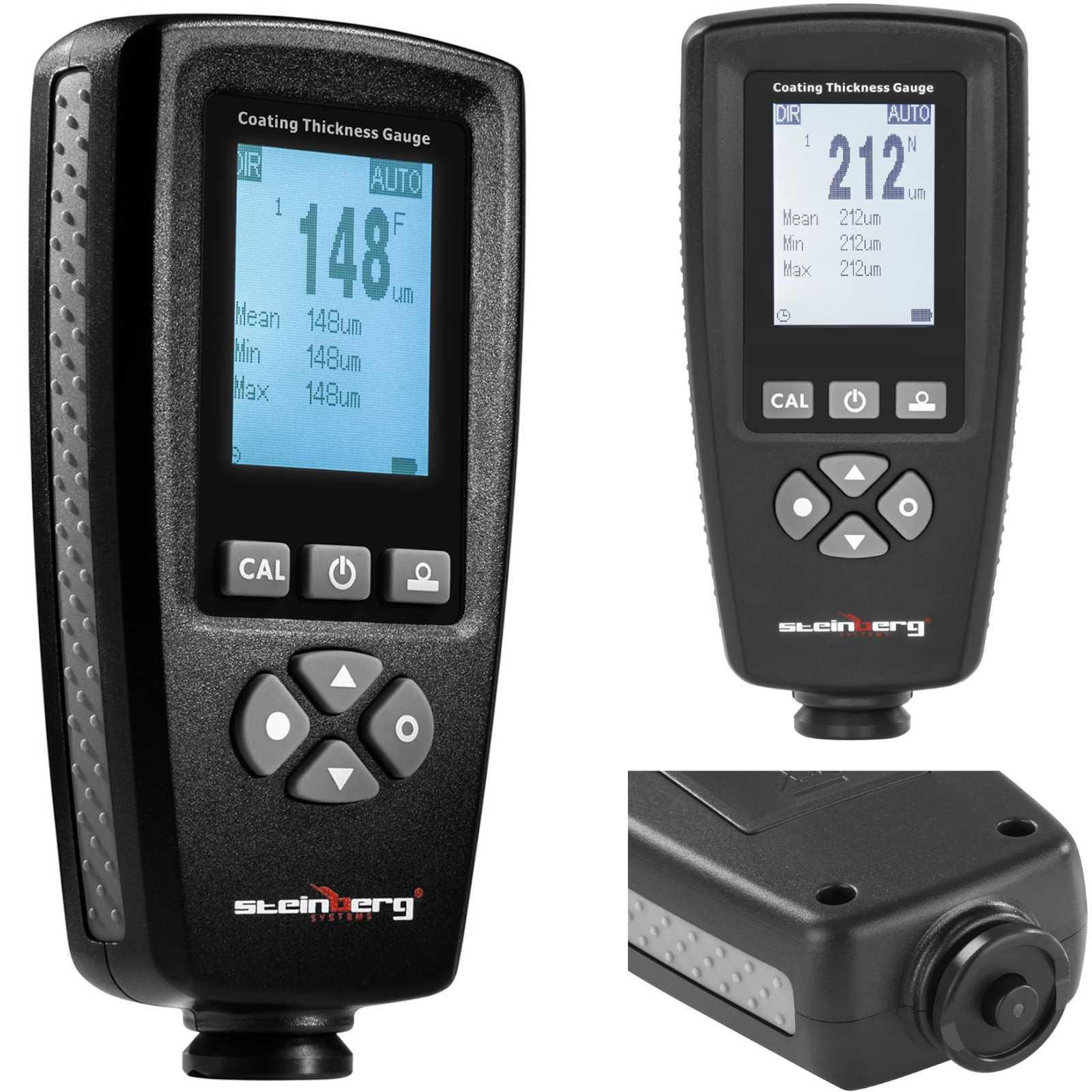

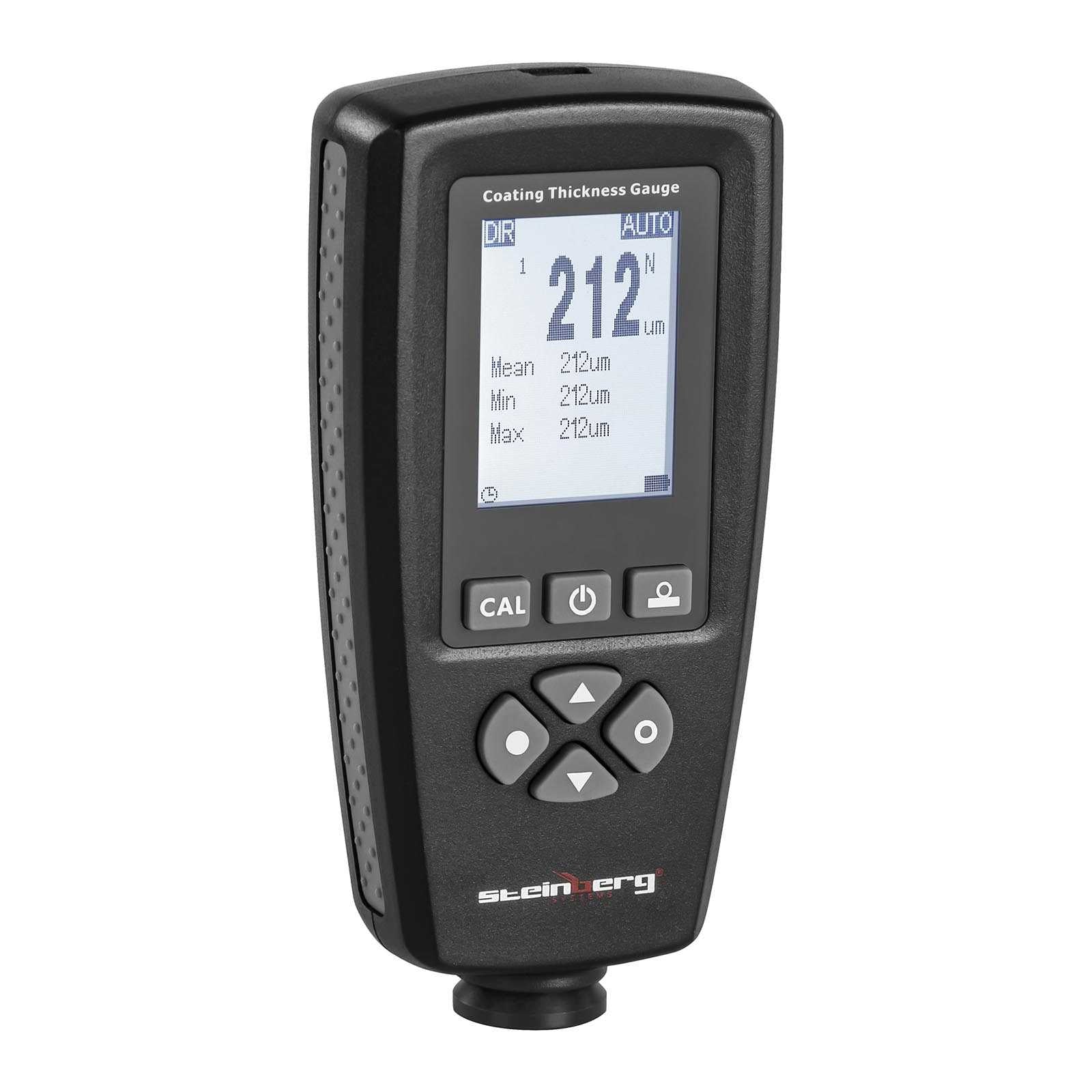

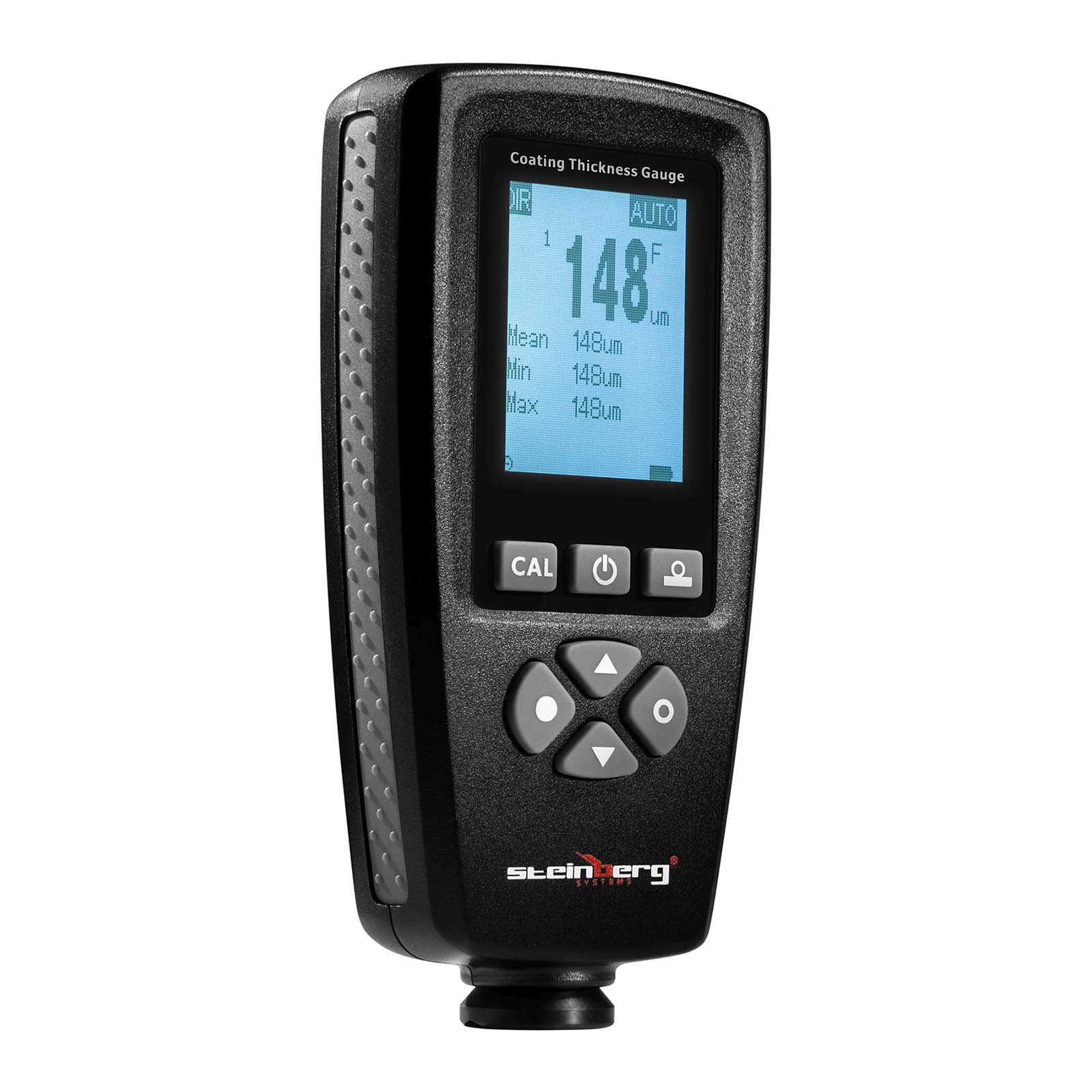

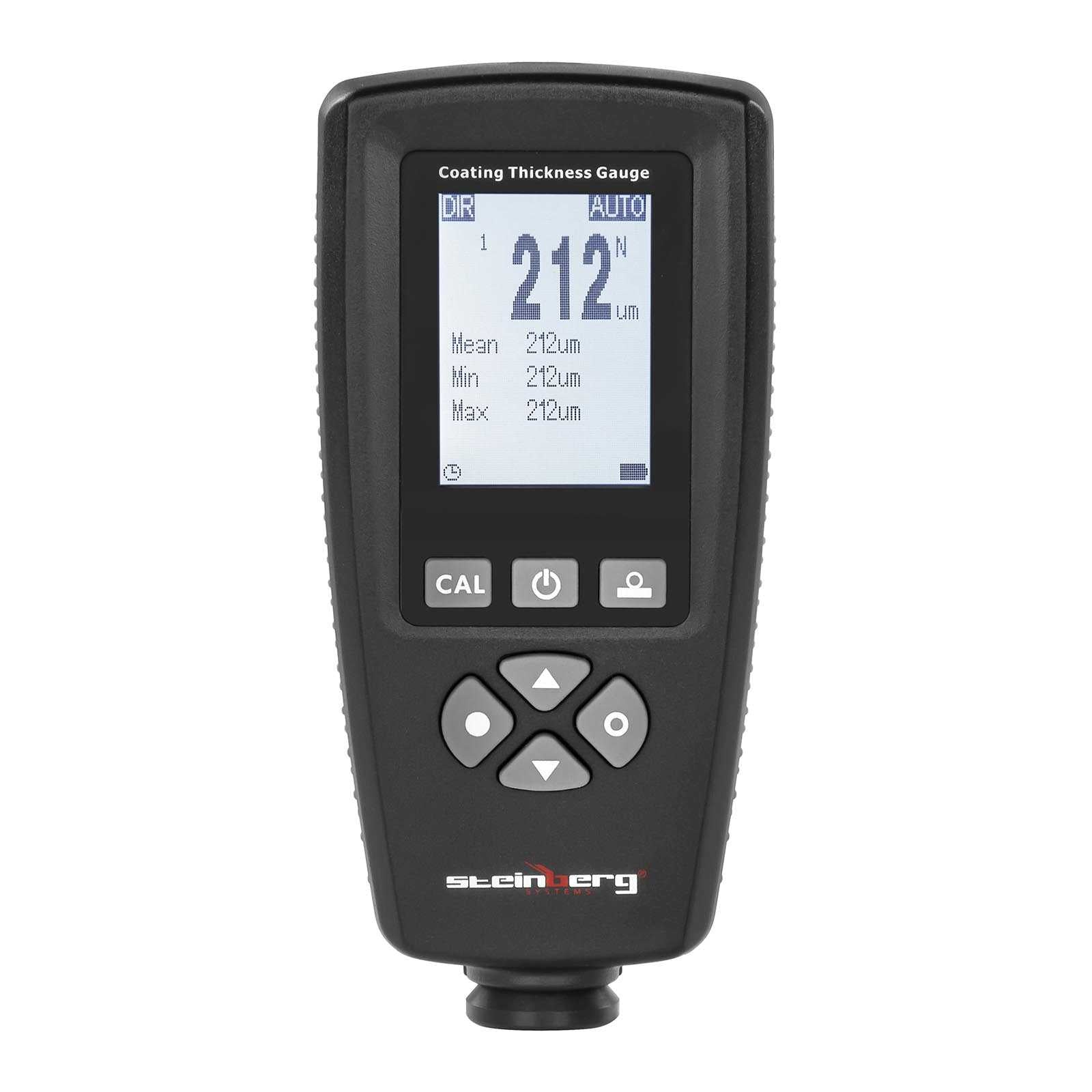

The device is easy to use thanks toconvex buttons and a backlit LCD screen. The spring-loaded tester ensures safety during measurement, without the risk of scratching the paint. The end of the test is announced by an acoustic signal.

The set with the tester includes accessories necessary for its proper functioning. These include: a USB cable, a software CD and calibration plates. With the help of the latter, the user can independently ensure the precise operation of the meter. Additionally, a convenient suitcase makes it easier to transport the entire set.

The device is powered by two 1.5 V AAA batteries. A special system turns off the tester when it is not used for 3 minutes, which allows you toextend battery life.
