Description
Manufacturer's code:

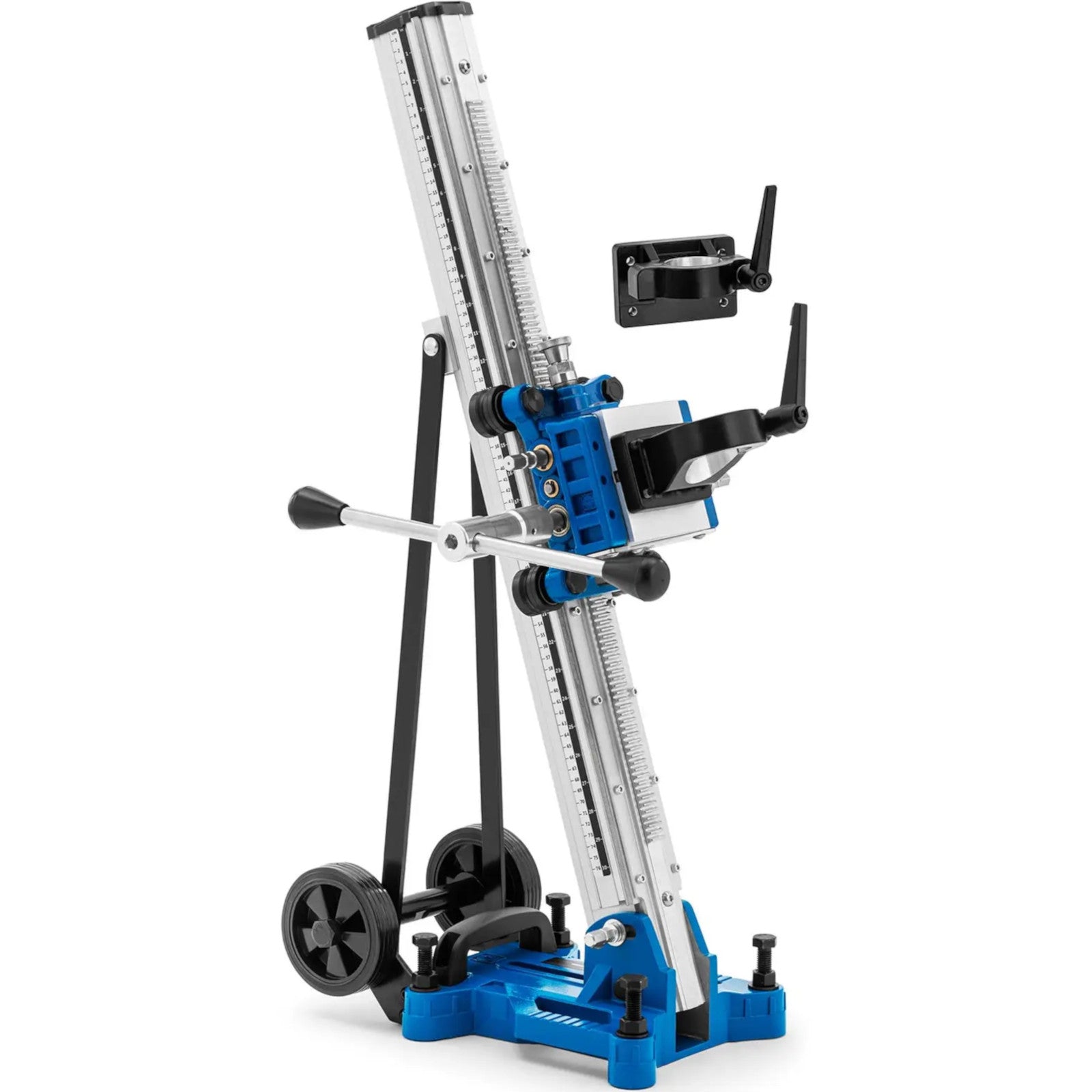

10062185The MSW brand drilling rig stand will allow you to work with the core drilling rig with the highest precision and stabilize it. In a few simple steps you can attach the drill rig to the guide column and select the optimal drilling angle. Even large drill bits up to 350 mm in diameter are held securely in the drill stand. Compact dimensions, two wheels and lightweight construction allow you to quickly move the product to any place. It is equally easy to set up a stand and mount the device on it.
The equipment has been optimally designed for MSW machines. The base allows you to safely and stably place the drill where you need it.

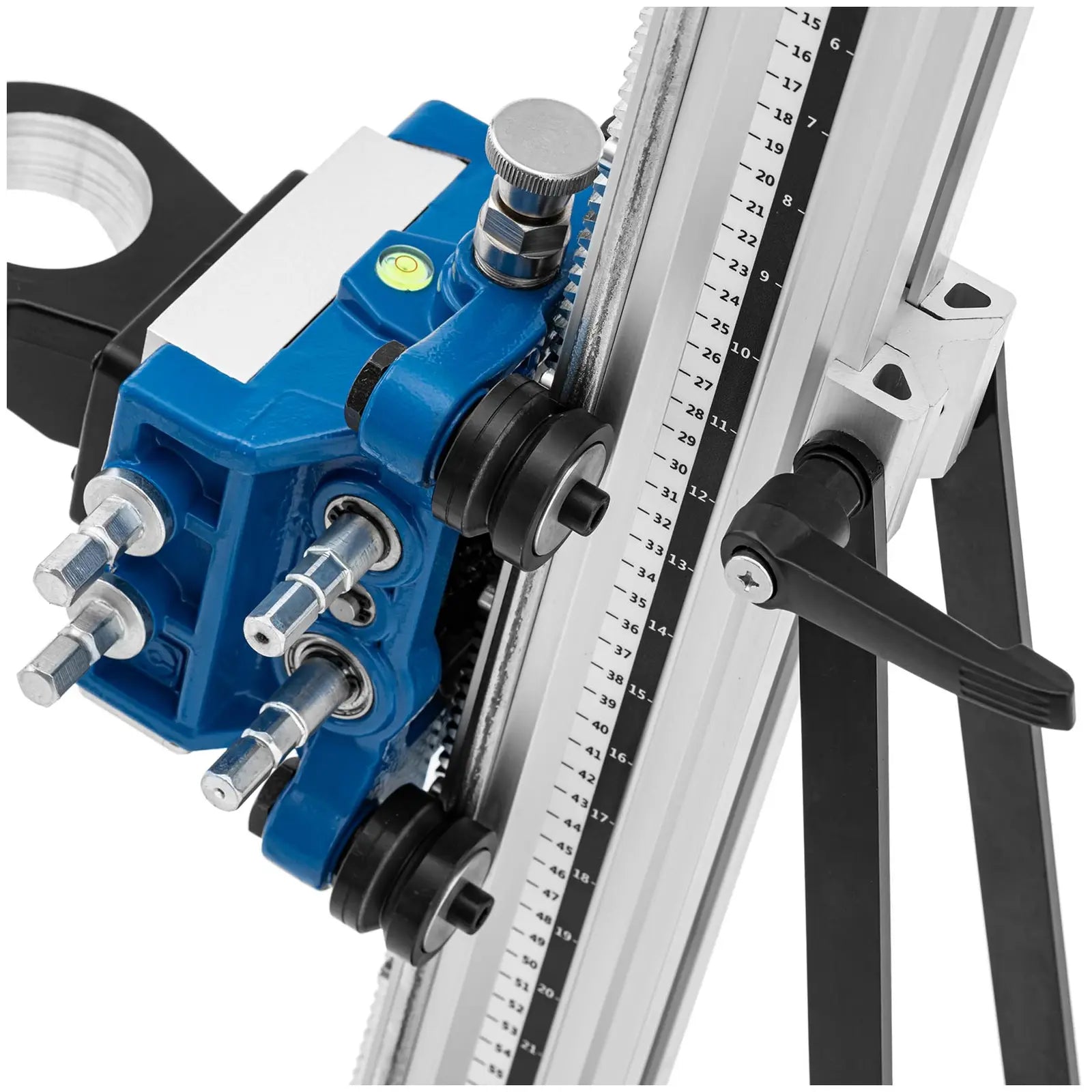

The stand made of steel and aluminum alloy ensures stability even in difficult conditions. This allows you to obtain a precise hole that can be drilled at an angle from 0 to 45 degrees. The crank will allow you to easily attach and guide the drill bit. The guide rail moves the drill safely. Additionally, a built-in spirit level ensures accuracy. This makes drilling safe and effective.
Product features: - - Strong construction of steel and aluminum alloys,
- - For drills with a diameter of up to 350 mm,
- - Stepless angle adjustment from 0 to 45 degrees on the guide rail,
- - Easy operation with a crank and quick attachment drilling rig,

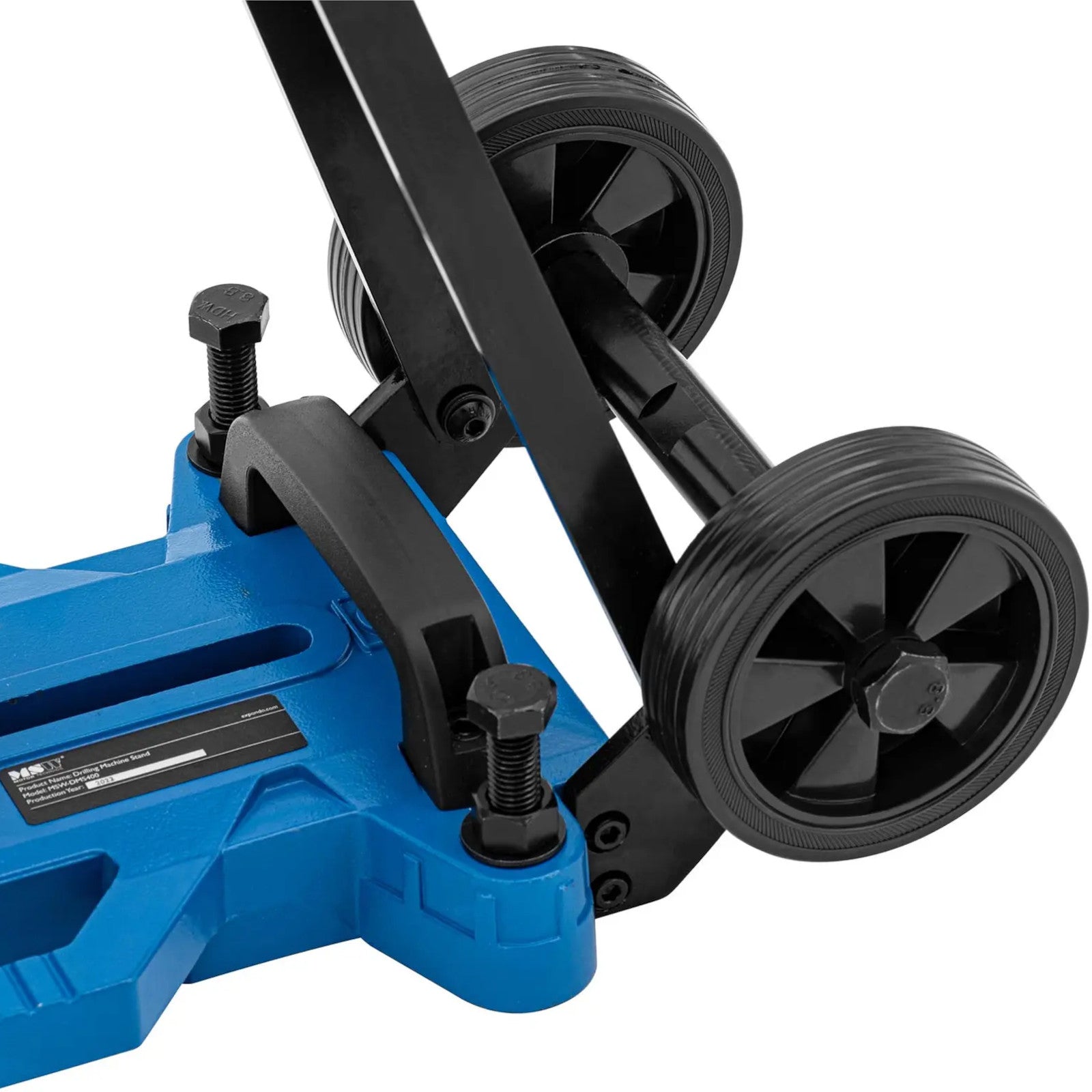

- - Mobile thanks to compact dimensions, two wheels and light structure.
Technical parameters: - - Catalog number - 10062185
- - Article condition - New
- - Model - MSW-DMS40
- - Material - Aluminum alloy, Steel
- - Color - Black, Blue, Silver
- - Column size [mm] - 900
- - Machining angle [deg] - 0 - 45
- - Max. drilling diameter [mm] - 350
- - Path length - 550 mm
- - Motor installation bracket - 350 mm
- - Mounting hole diameter - 350 mm
- - Dimensions (LxWxH) - 33 x 95 x 65 cm
- - Weight - 22.25 kg
- - Shipping dimensions (LxWxH) - 92 x 30.5 x 47.5 cm
- - Shipping weight - 24.8 kg

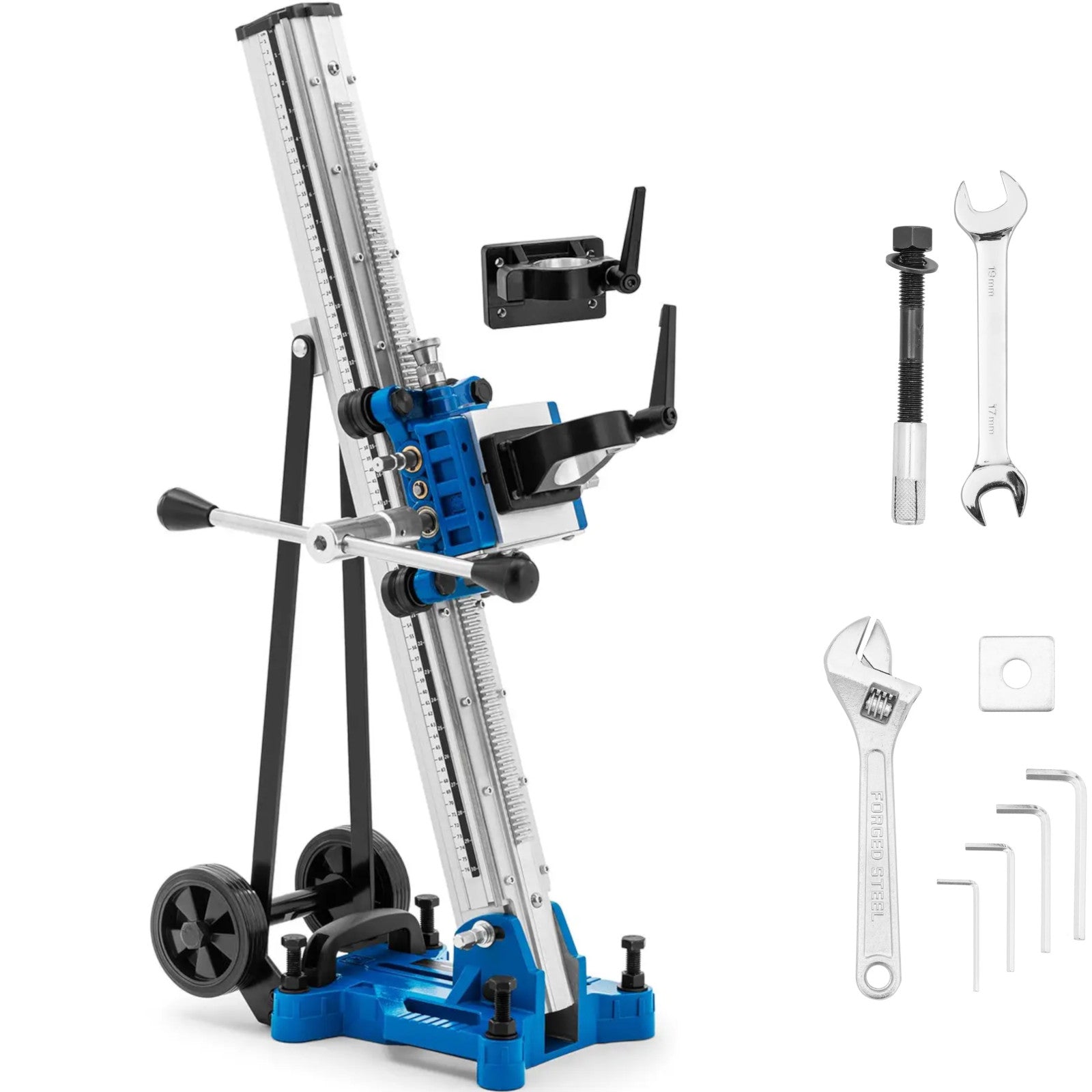

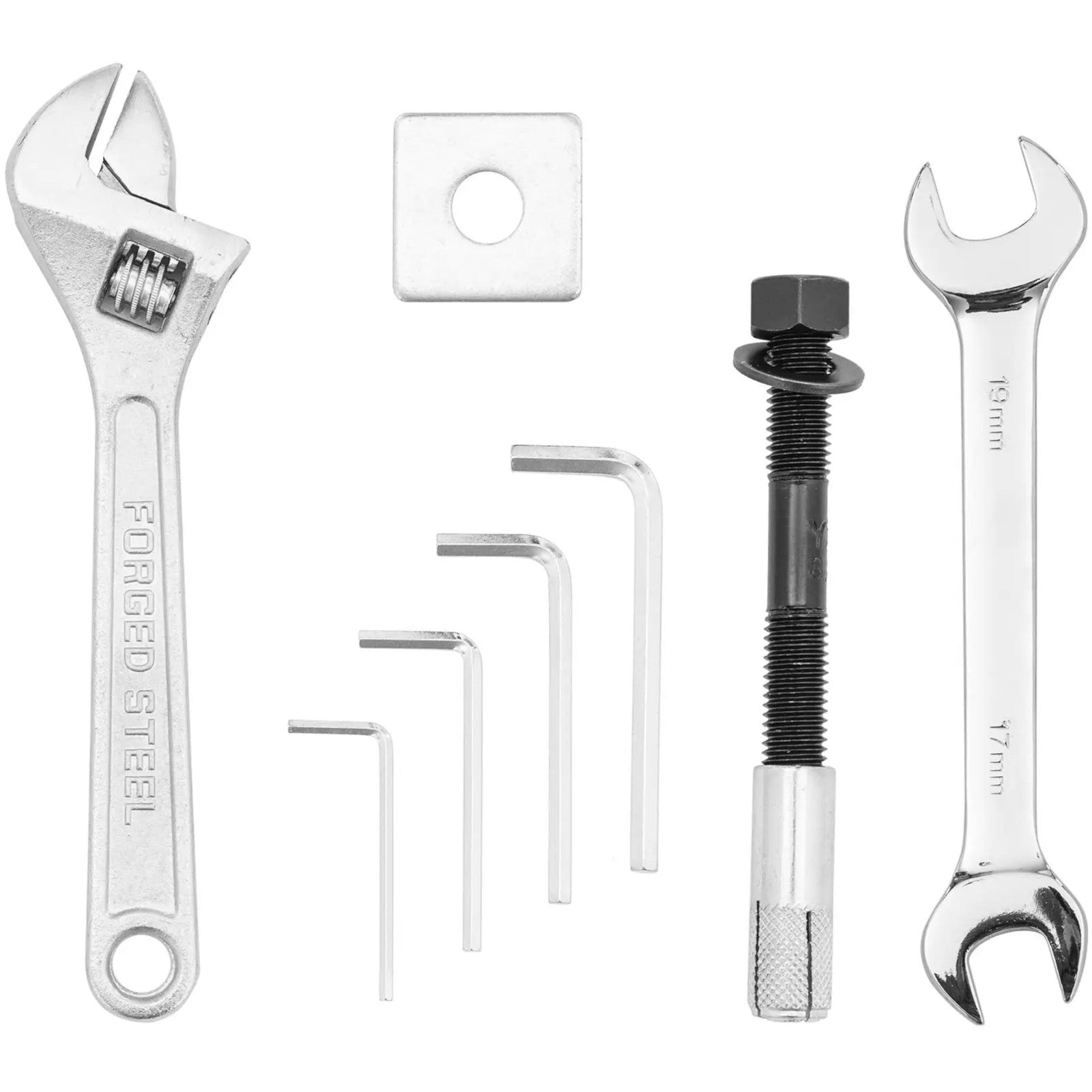

Included in the set:
