Description
Manufacturer's code:
10061222Professional concrete drill The MMA brand will be used to cut holes in very hard materials, e.g. reinforced concrete, natural stone, bituminous surface, asphalt or even sewage pipes. The perfect performance of the device is responsible for the engine of
power 4000 WIt allows you to get speed
up to 750 rpmThe product will start using an intuitive switch
ON/OFFYou'll mount a maximum hole drill in it.

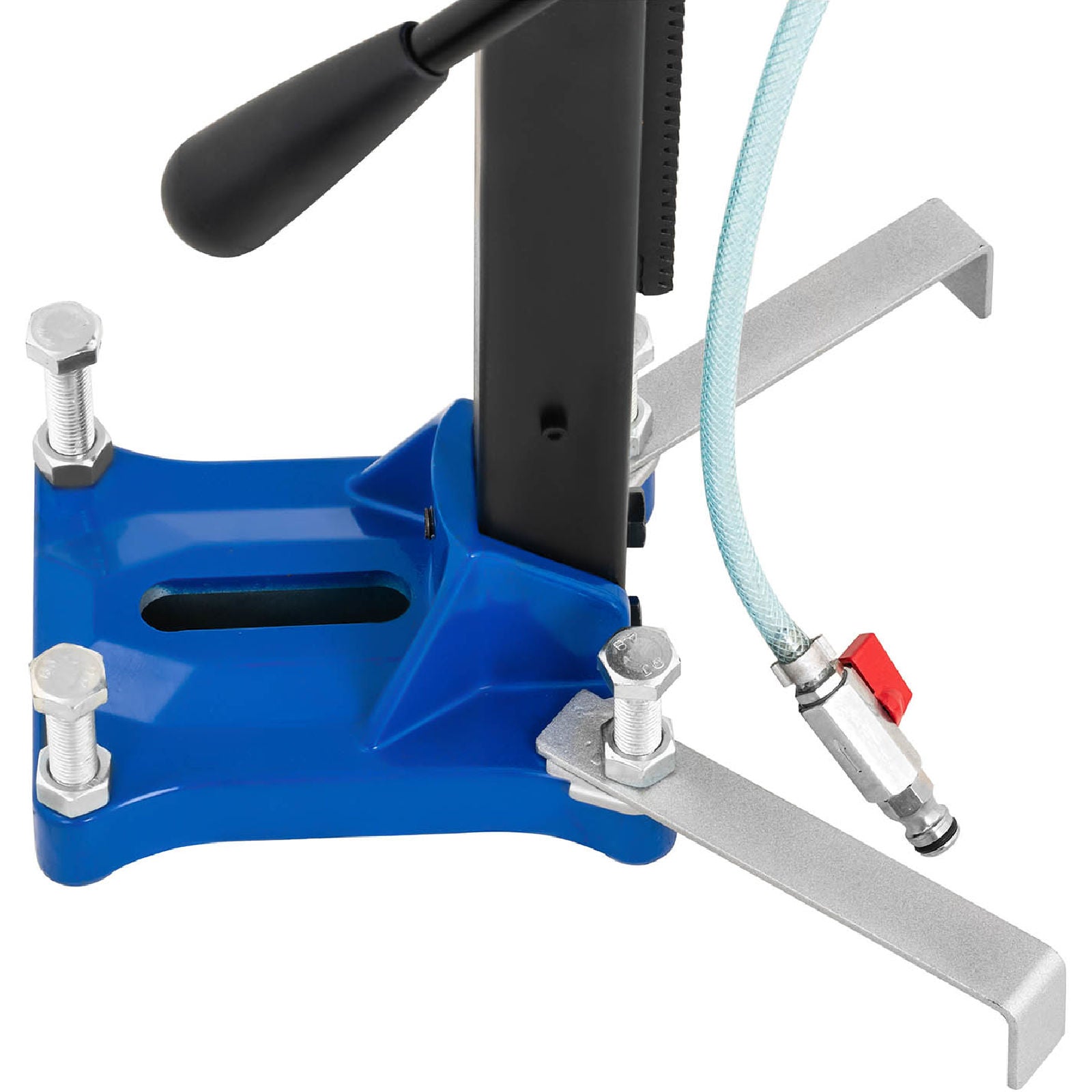

a diameter of 260 mmIn addition, the machine also has a function of regulating the depth of the drilling. To change the settings it serves a rotating shaft in shape.
T-letterswhich moves the device on the vertical guide. The control over the safety of the differential current switch (
PRCD) placed on the power line. Additionally, hidden carbon brushes and water connection were used to enable
wet drilling.
Product features: - - Engine with power 4000 W and speed up to 750 rpm,
- - For drills with maximum a diameter of 260 mm,
- - Water cooling system,
- - Different current circuitry cable PRCD,
- - Made to work in difficult conditions.
Technical parameters: - - Model - MSW-DDM260
- - Catalog number - 10061222
- - The state of the article - New
- - Voltage - 230 V
- - Power - 4000 W
- - The material of the casing - Aluminium / PA6-GF30 / Steel
- - Maximum diameter of the drill - 260 mm
- - The drill connection - 1 1/4" UNC
- - Rotating speed - 750 rpm
- - Dry/wet drilling function - Yes.
- - The cable from the PRCD - Yes.
- - The length of the power cord - 2.3 m
- - The size of the water connection - 0,51" (13 mm)
- - The range of the guide - 500 mm
- - The power of sound - 89.1 dB
- - User manual - Yes.
- - Dimensions (DxSxW) - 40 x 40 x 104 cm
- - Weight - 23 kg
- - Dimensions of dispatch (DxSxW) - 97 x 37.5 x 25 cm
- - Weight of shipping - 27 kg
Included: - - Concrete drill,
- - Accessories,
- - Manual.
