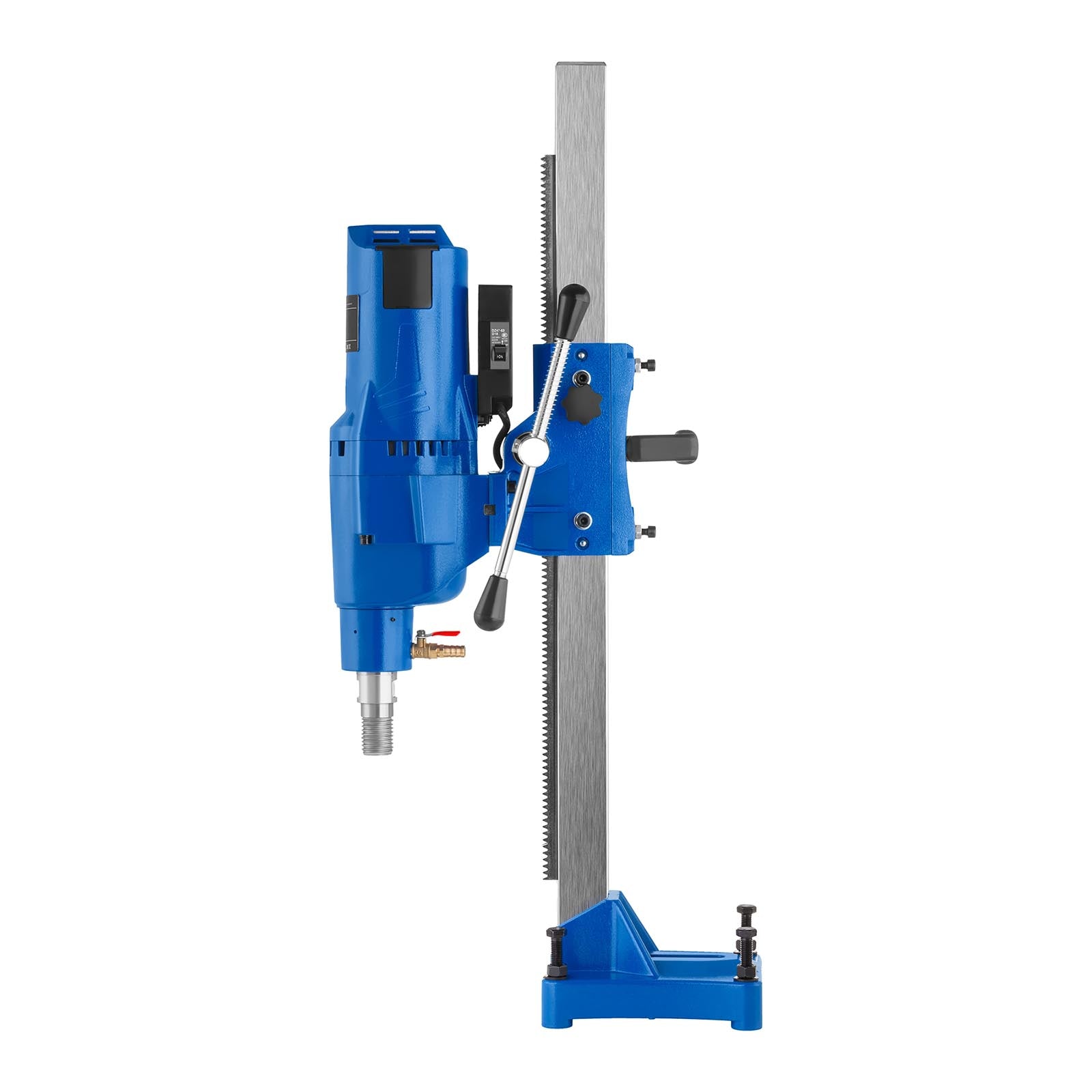

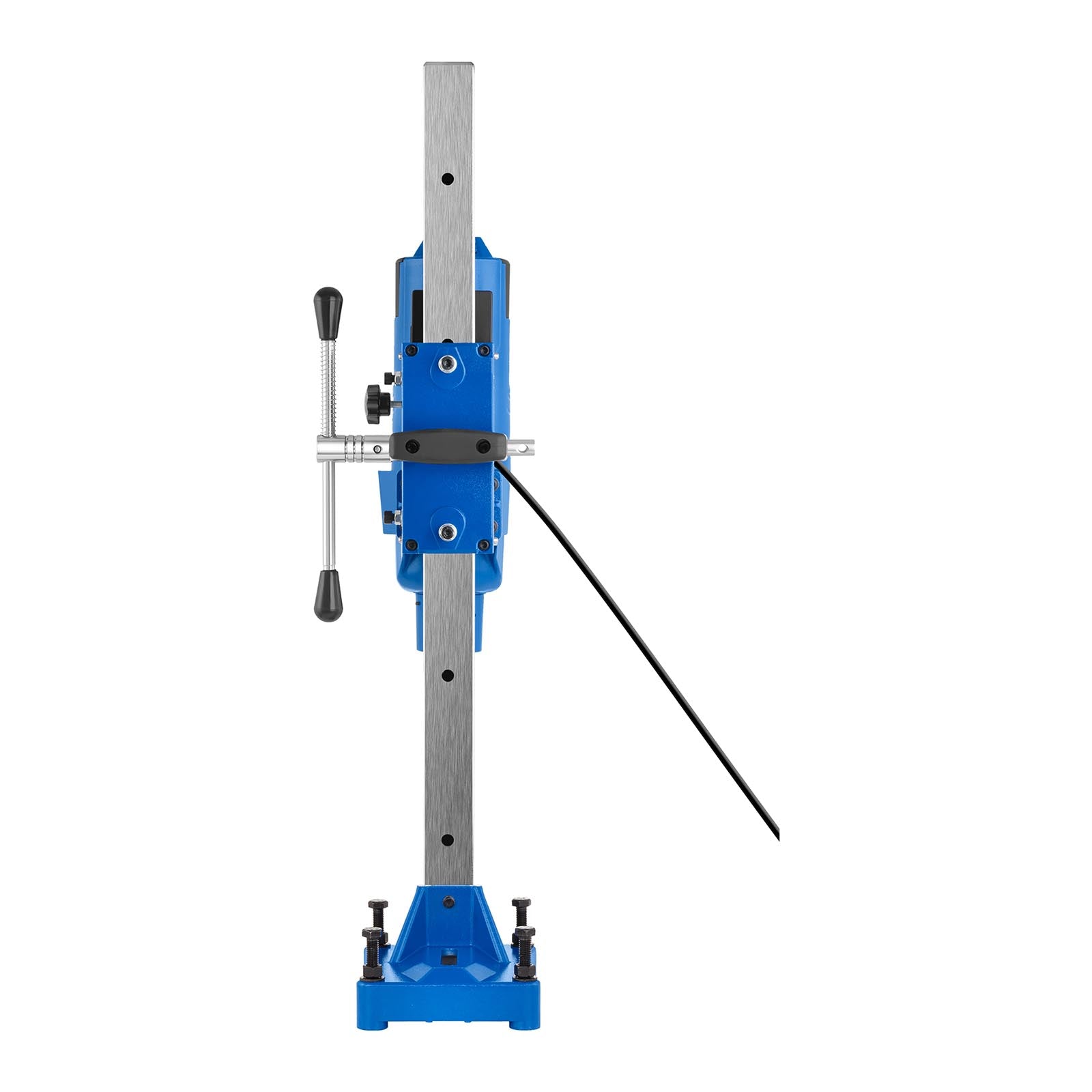

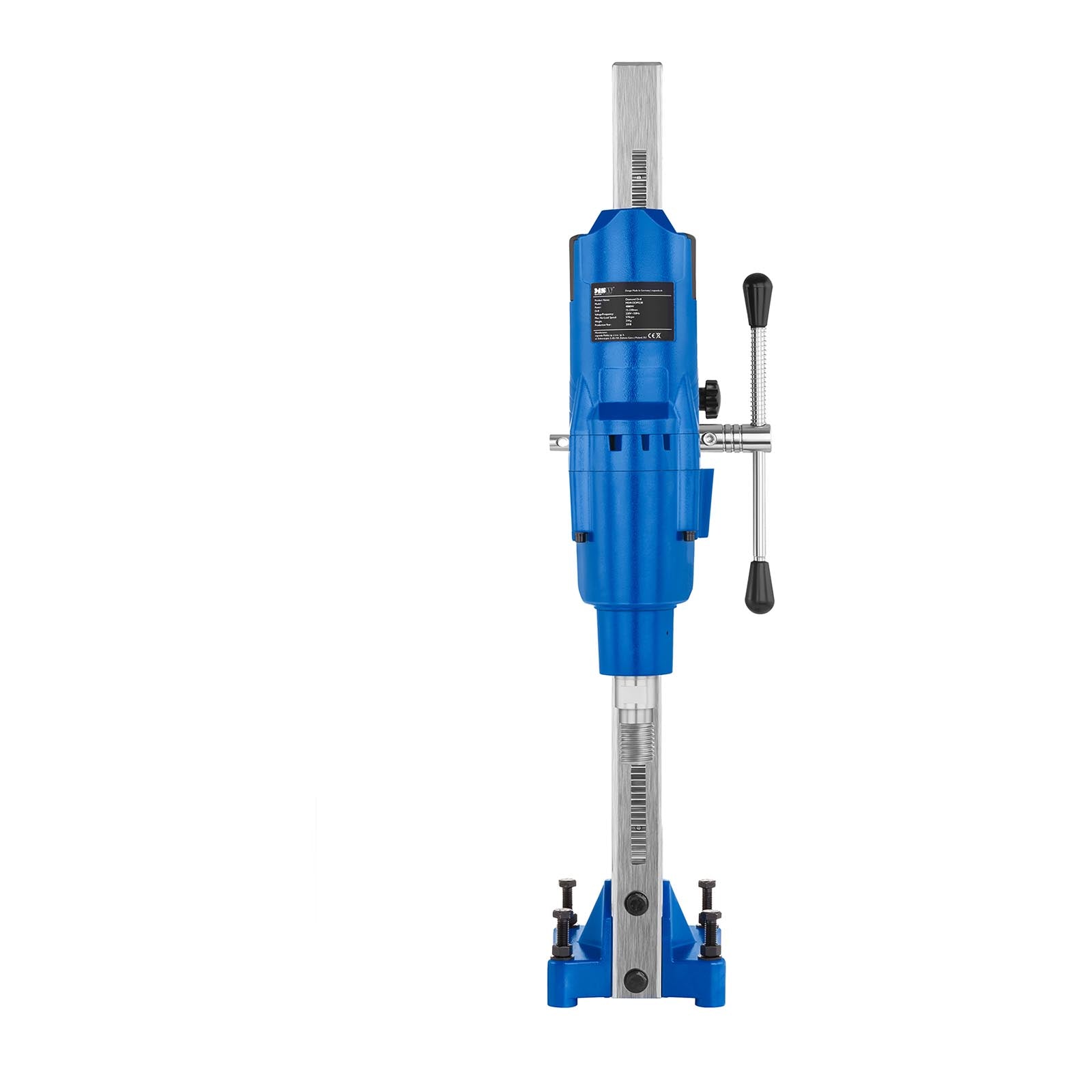

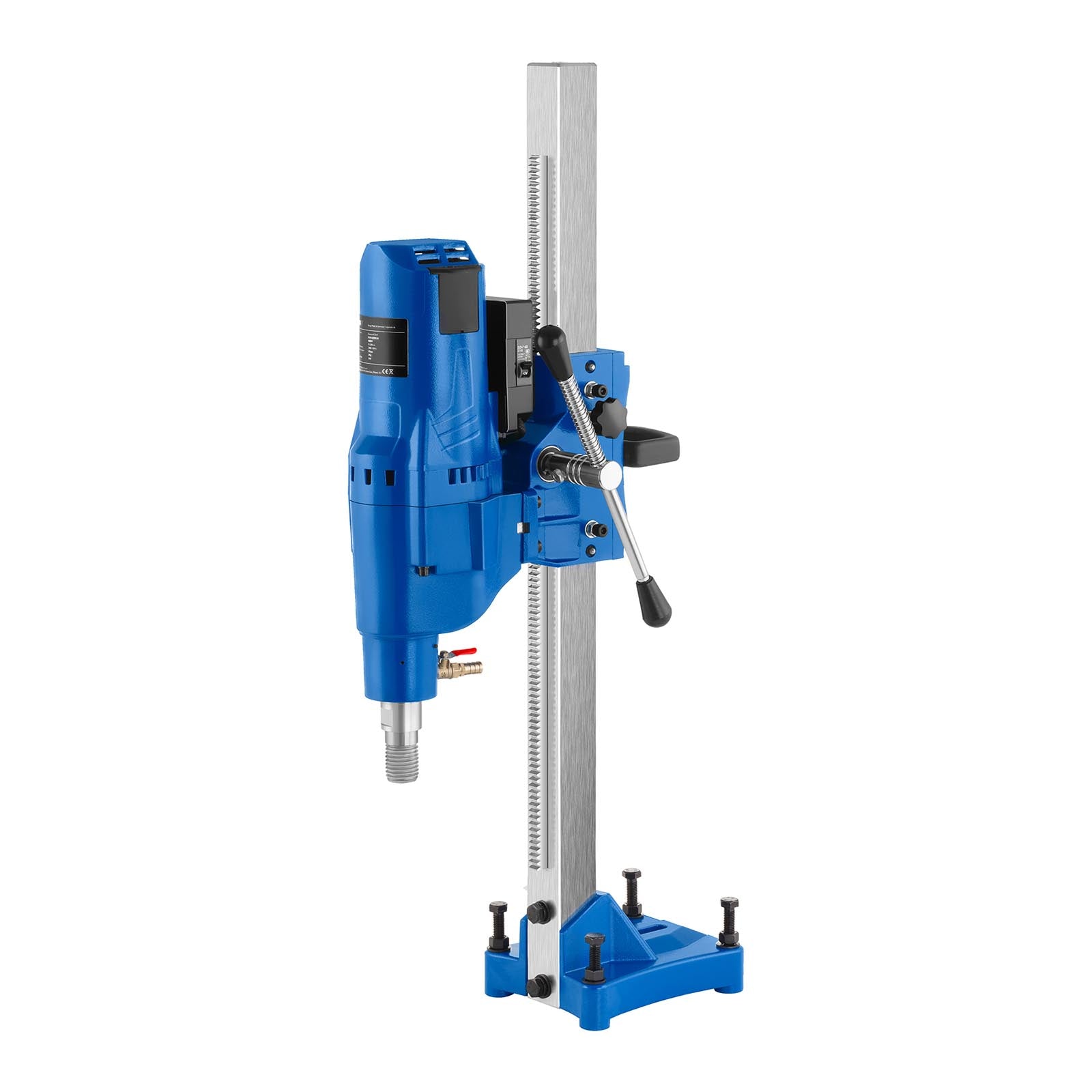

Drills – Drilling rig vertical concrete drill 230 mm 3250W

Drills – Drilling rig vertical concrete drill 230 mm 3250W

41 in stock

Quantity
Regular price €374,41 EUR
Regular price €420,69 EUR Sale price €374,41 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Overview

The Drilling rig vertical concrete drill 230 mm 3250W MSW-DDM230 from MSW brings drills you can rely on, made for your power tools needs. A popular choice in Electro-tools, Impact hammer drilling machines.

Product code: 1009361

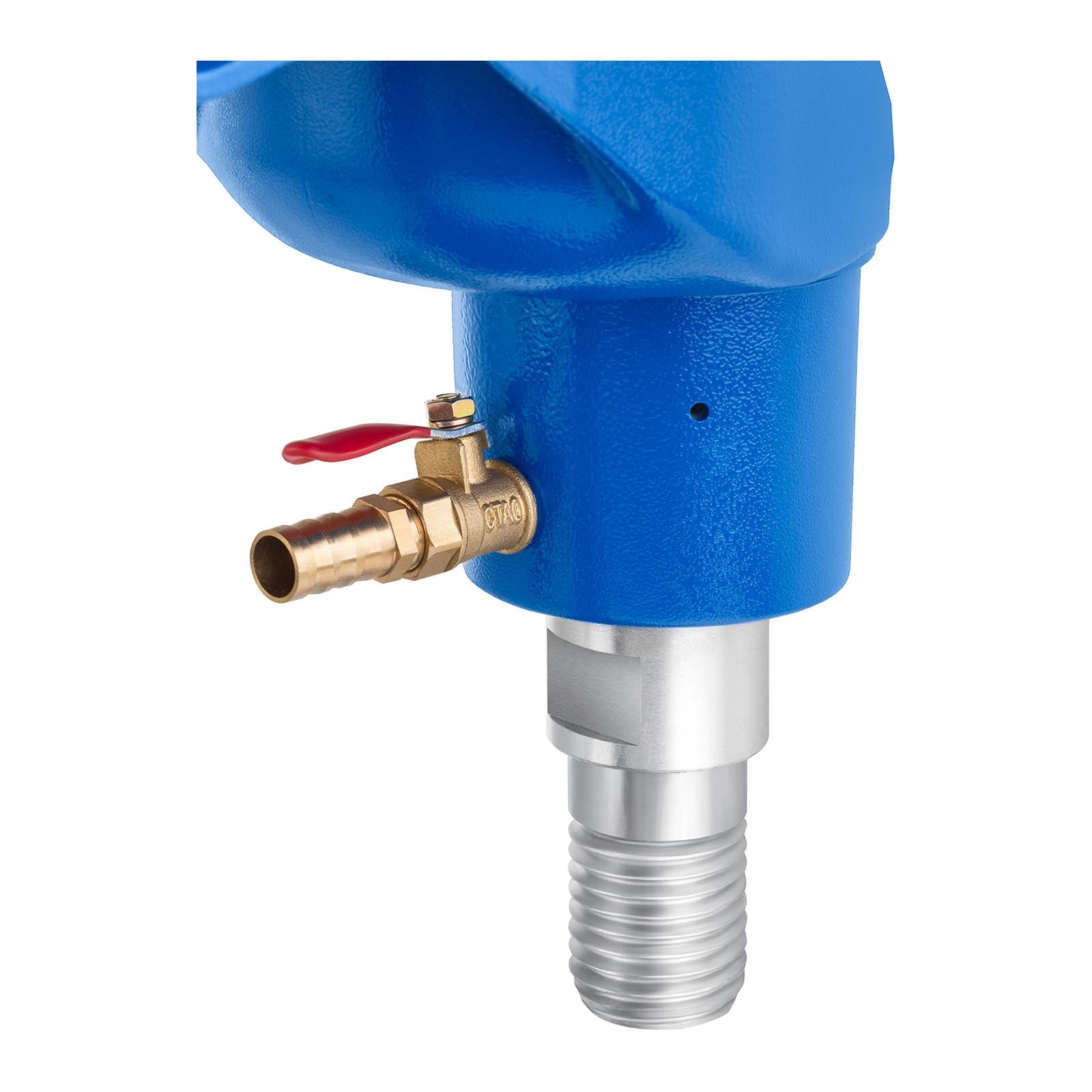

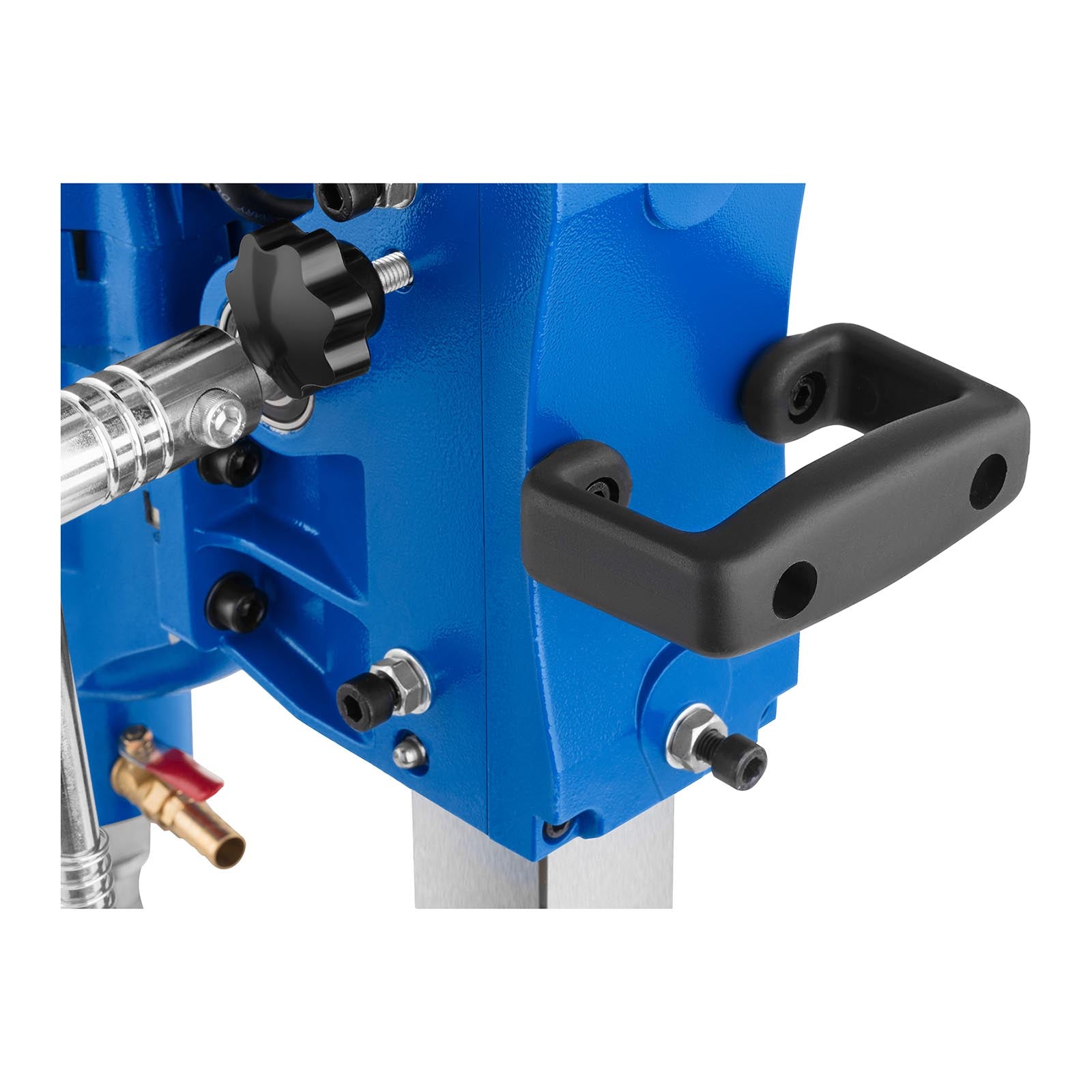

The professional MSW-DDM230 drilling rig, thanks to its solid construction, is suitable for processing hard materials such as brick, concrete or stone. The engine withpower3250W guarantees efficient operation and drilling speedup to 580 rpm. A comfortable T-handle allows you to adjust the drilling depth, and the guide ensures smooth up and down movement in the range of 0 - 520 mm. To increase work efficiency, drilling rigs are equipped with a special connector and hose that can be connected to an external device responsible for wet work. This will extend the life of the laces and reduce the risk of damage to the processed material. The device fits diamond crowns with a diameter of up to 230 mm. The safety of work on the drilling rig is ensured by the PRCD module (residual current device)which prevents the machine from turning on in the event of a short circuit. It also guarantees that the device will not start uncontrolled when connected to a power source.

Key features

Reliability
Multi-tasking
Versatility
Safety

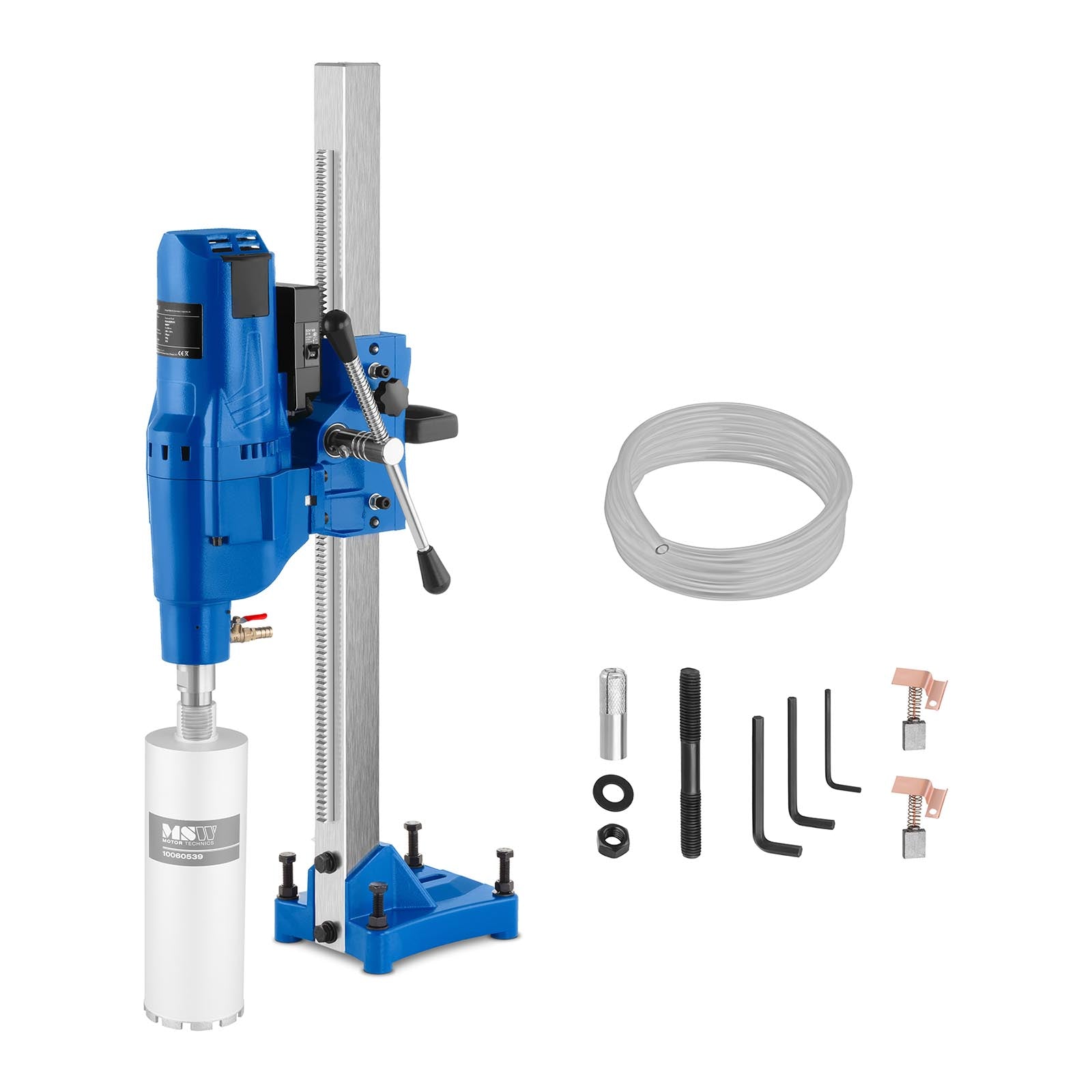

Concrete drill

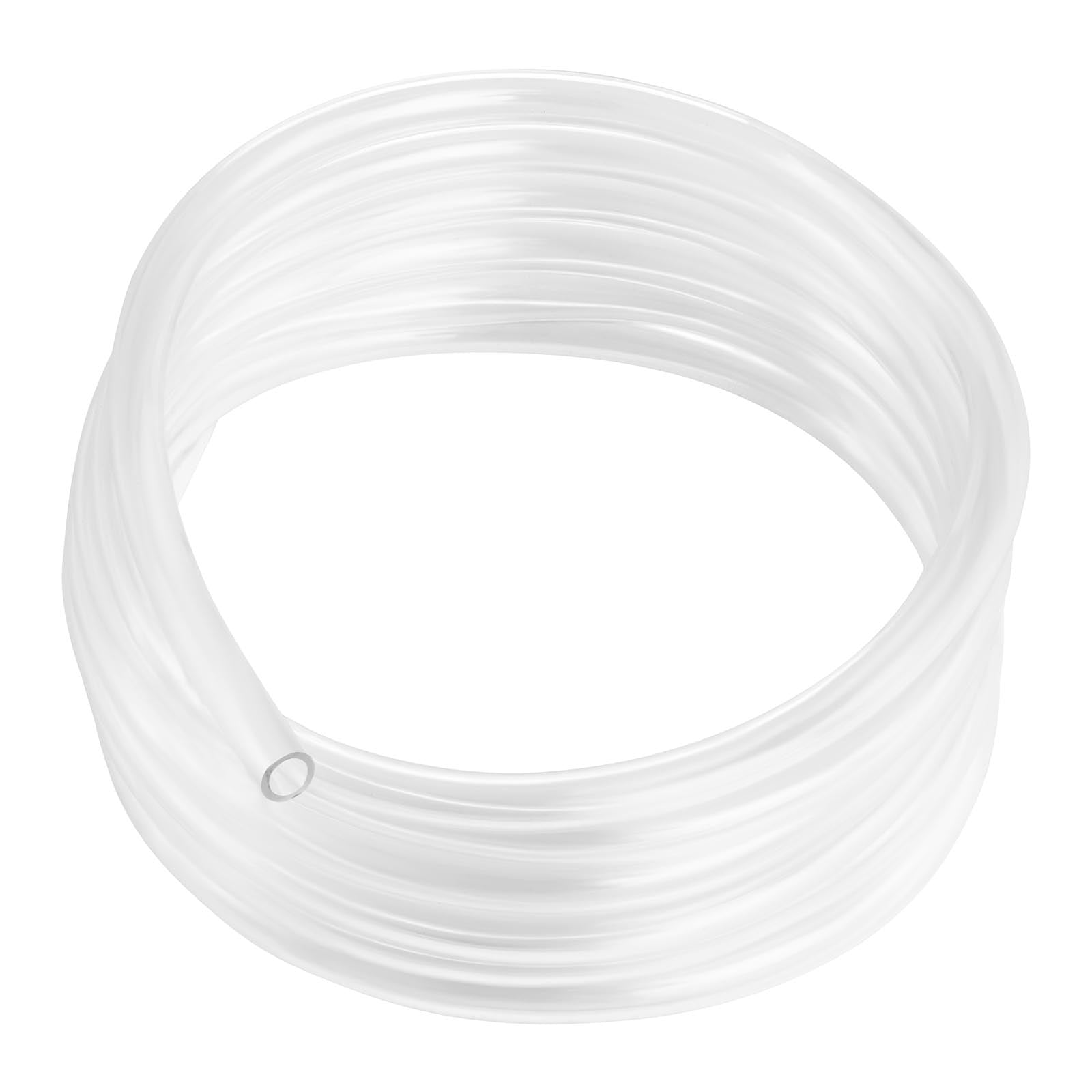

Water hose 3.1 m
Rotatable handle

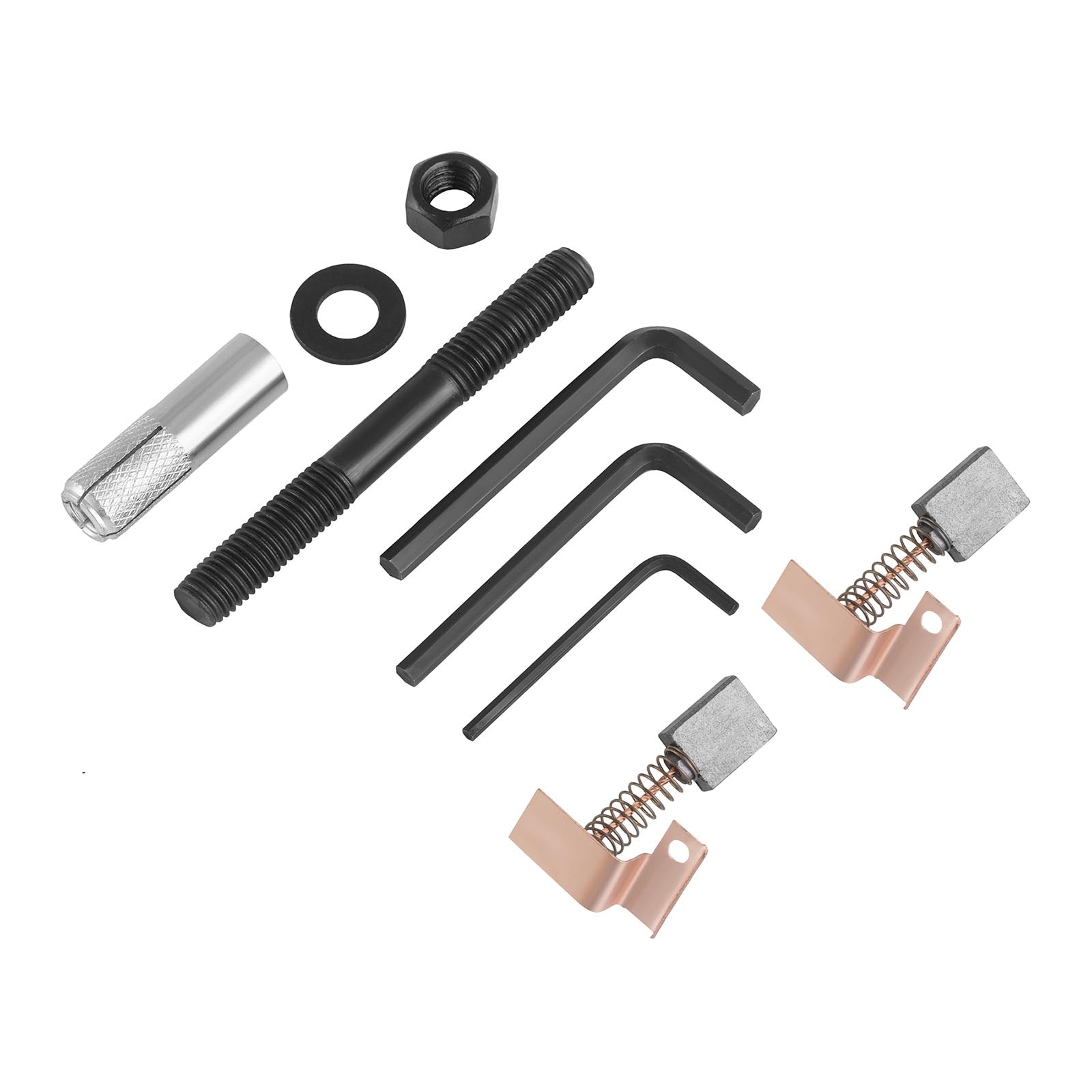

Allen keys - 3 pcs
Rear guide holder
Anchor screw
Carbon brushes - 2 pcs

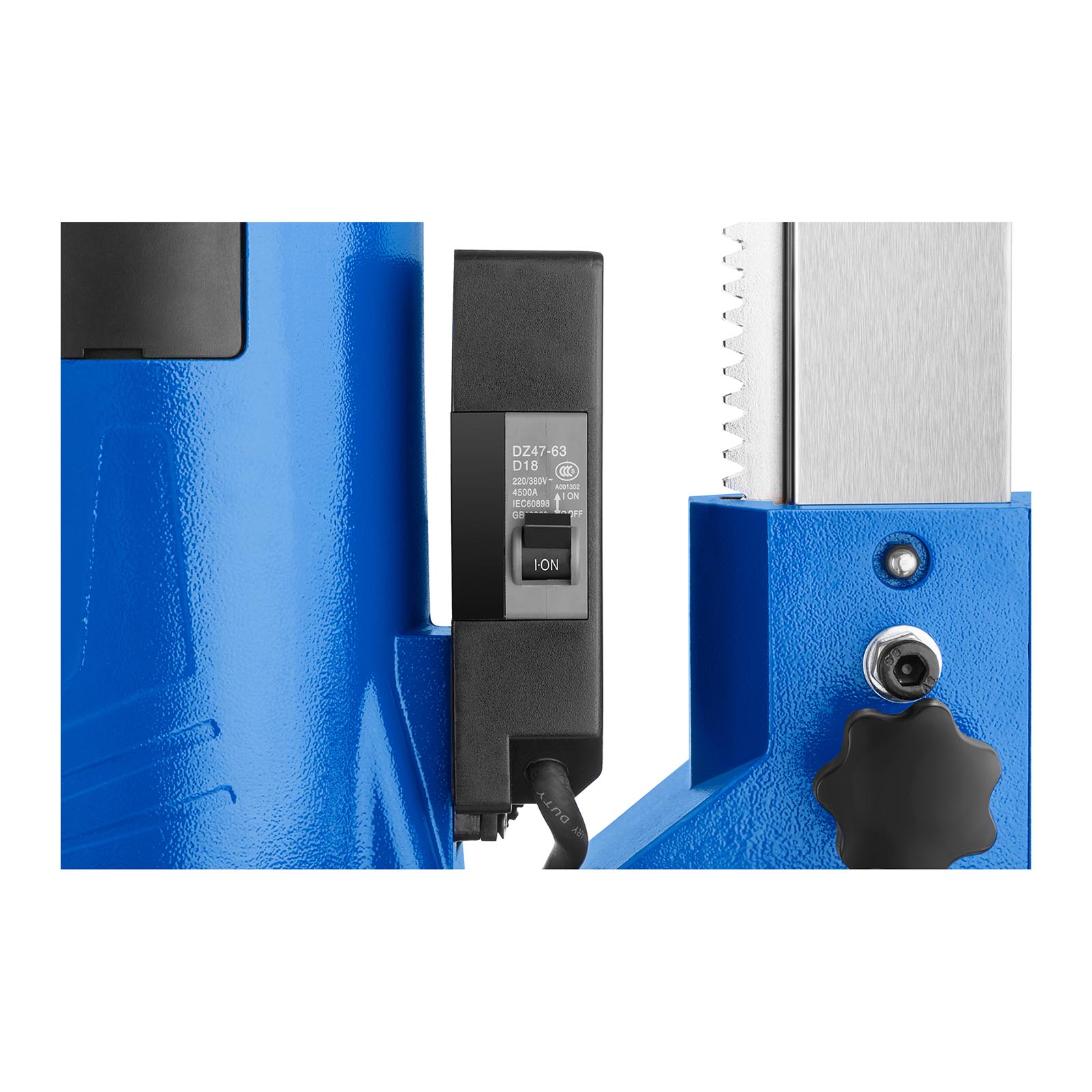

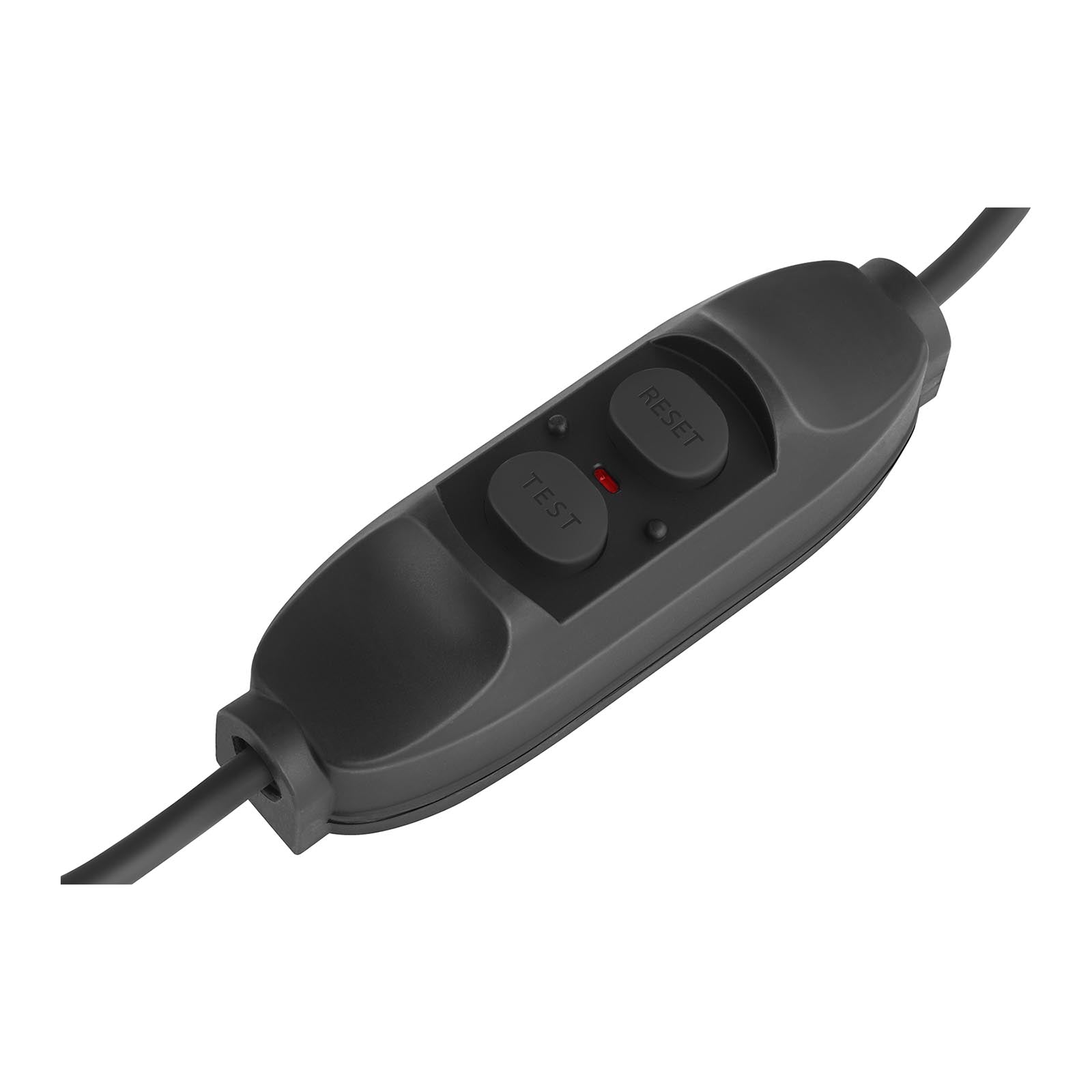

3.2 m power cable with PRCD safety module
Manual
Technical specification
SpecificationDetail
ModelMSW-DDM230
Catalog number10060435
Housing materialAluminium, steel, plastic
Power3250 W
Voltage/frequency230V/50Hz
Sound pressure70 dB(A)
Acoustic power85 dB(A)
Max. drilling diameter230 mm
Drill attachment diameter1 1/4"
Water hose connection diameter1/2"
Water hose length3.1 m
Max. rotational speed (no load)580 rpm
Guide range0-520 mm
Dry and wet drillingYes
PRCD moduleYes
Power cable length3.2 m
Dimensions (LxWxH)35 x 22 x 102 cm
Weight20.9 kg
Shipping dimensions (LxWxH)95 x 36 x 23 cm
Shipping weight24 kg
