Drills – Drilling rig vertical concrete drill 255 mm 3300W

Drills – Drilling rig vertical concrete drill 255 mm 3300W

9 in stock

Quantity
Regular price €433,36 EUR
Regular price €486,92 EUR Sale price €433,36 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Overview

The Drilling rig vertical concrete drill 255 mm 3300W MSW-DDM255 from MSW brings drills you can rely on, made for your power tools needs. A popular choice in Electro-tools, Impact hammer drilling machines.

Manufacturer's number: MSW 10060438

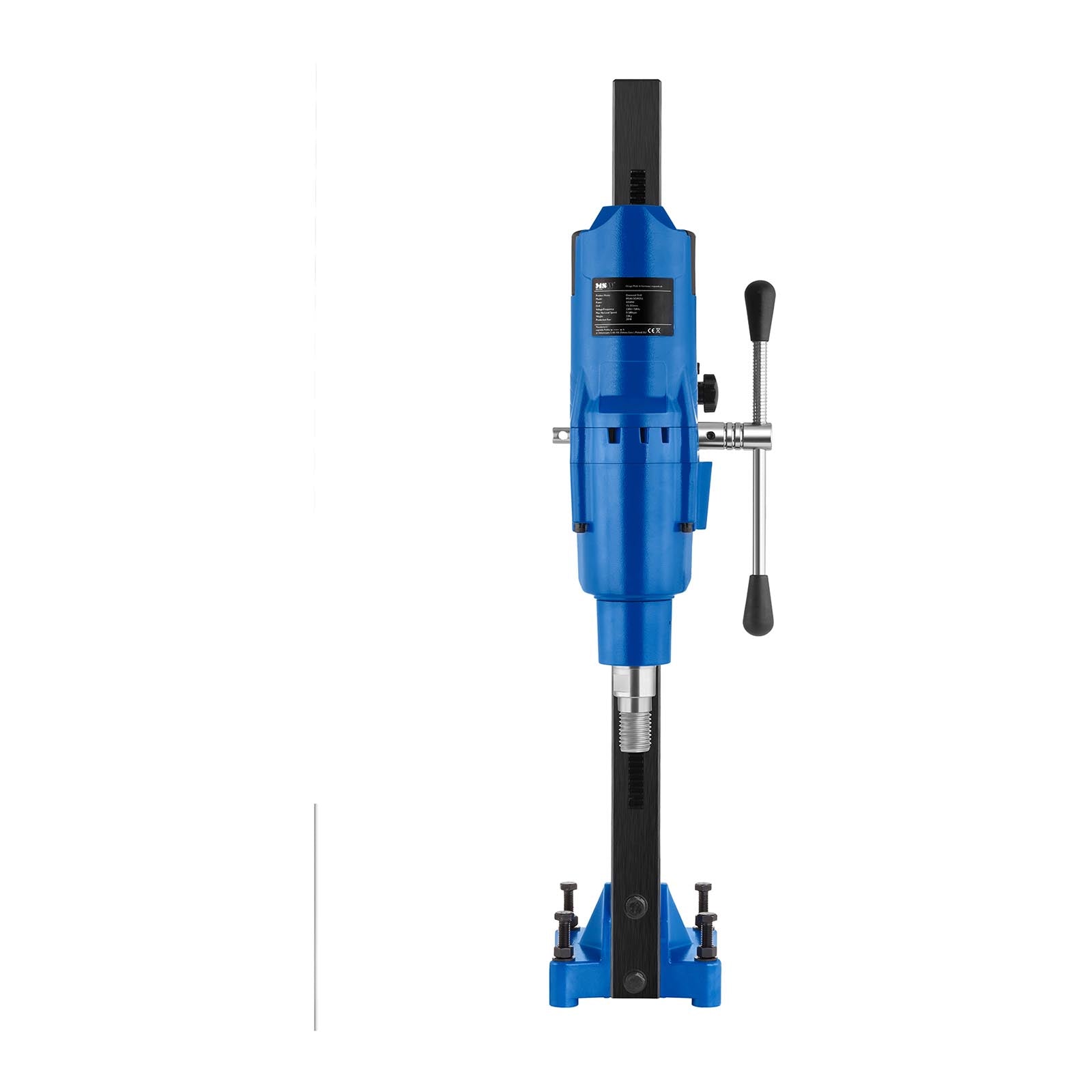

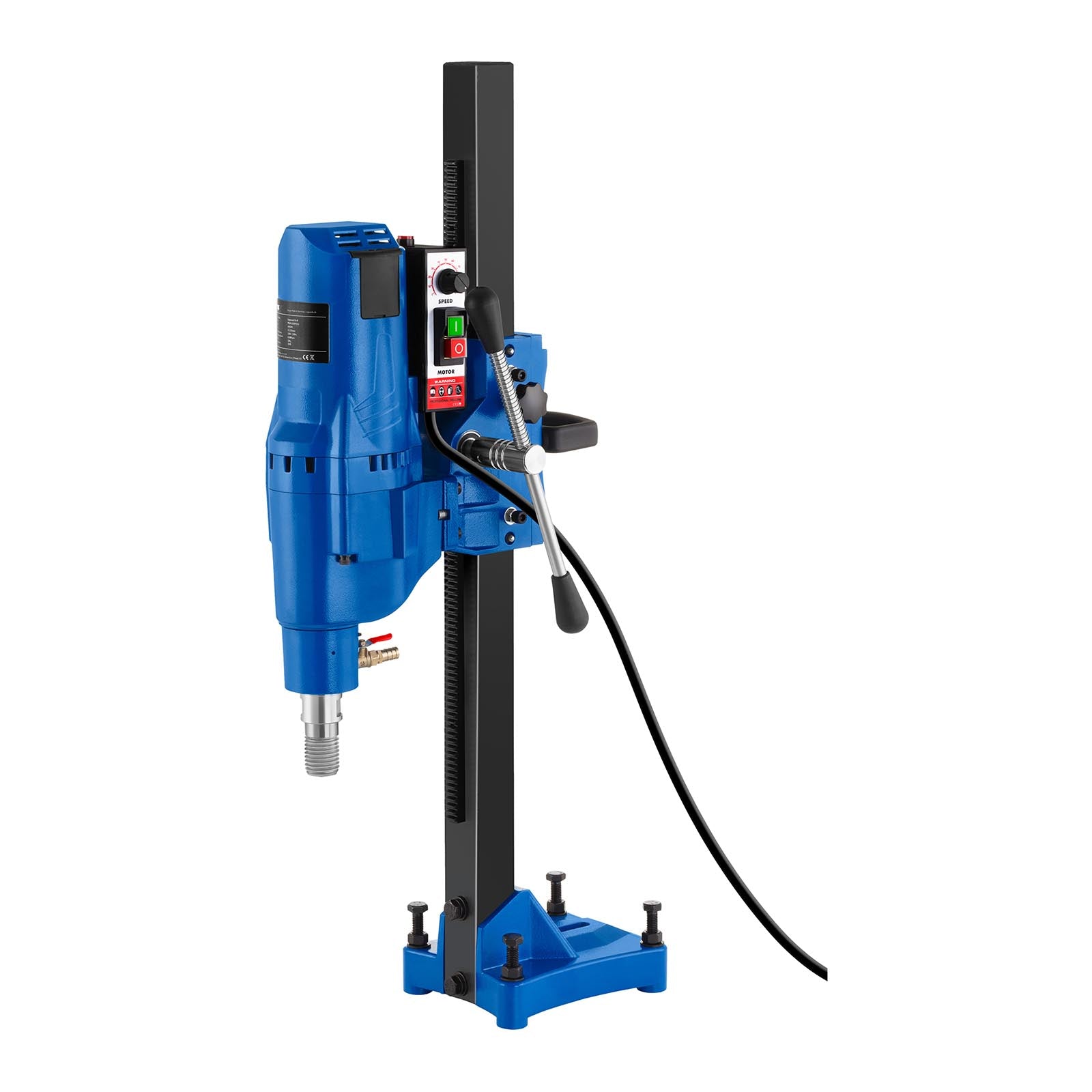

The professional MSW-DDM255 drilling rig, thanks to its solid construction, is suitable for processing hard materials such as brick, concrete or stone. The 3300 W motor guarantees efficient operation and drilling speed up to 580 rpm. A comfortable T-handle allows you to adjust the drilling depth, and the guide ensures smooth movement up and down in the range of 0 - 520 mm.

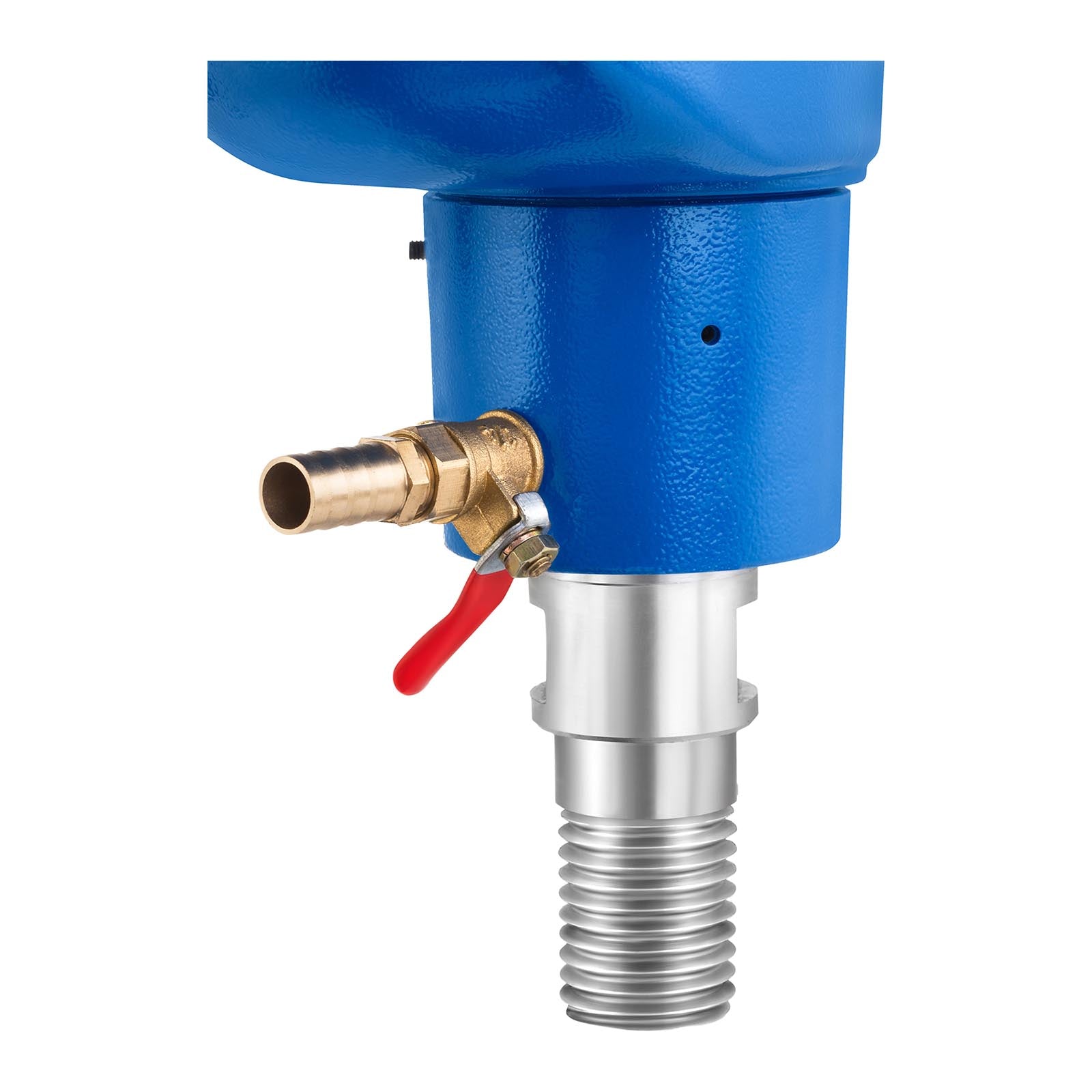

To increase work efficiency, the drilling rigs are equipped with a special connector and hose that can be connected to an external device responsible for wet work. This will extend the life of the laces and reduce the risk of damage to the processed material. The device fits diamond crownswith a diameter of up to 255 mm.

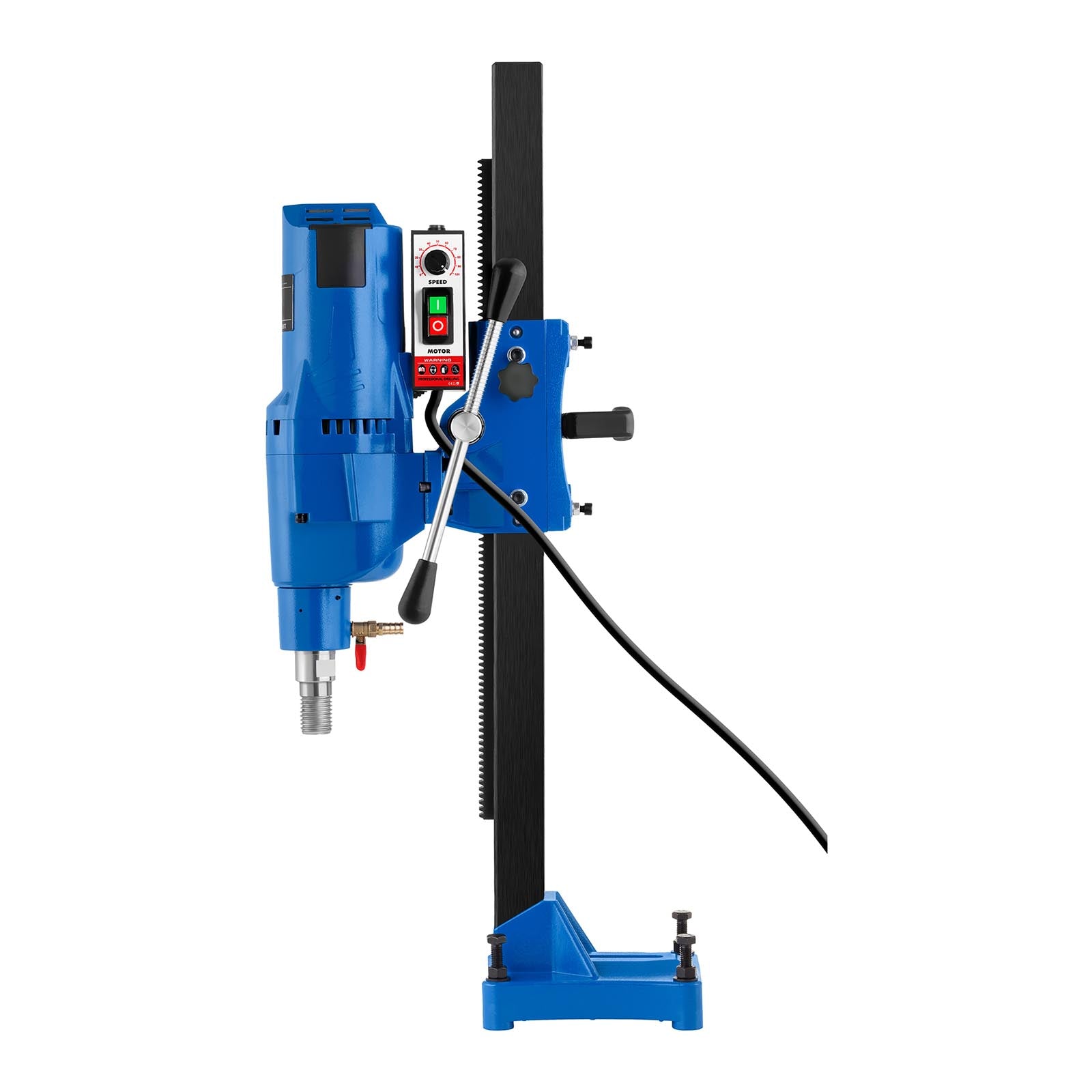

Convenient operation of the device is due to, among others, clear control panel. It has large buttons responsible for turning on and off the equipment and astepless knob for setting the drilling speed. A special light indicates that the machine is ready for operation.

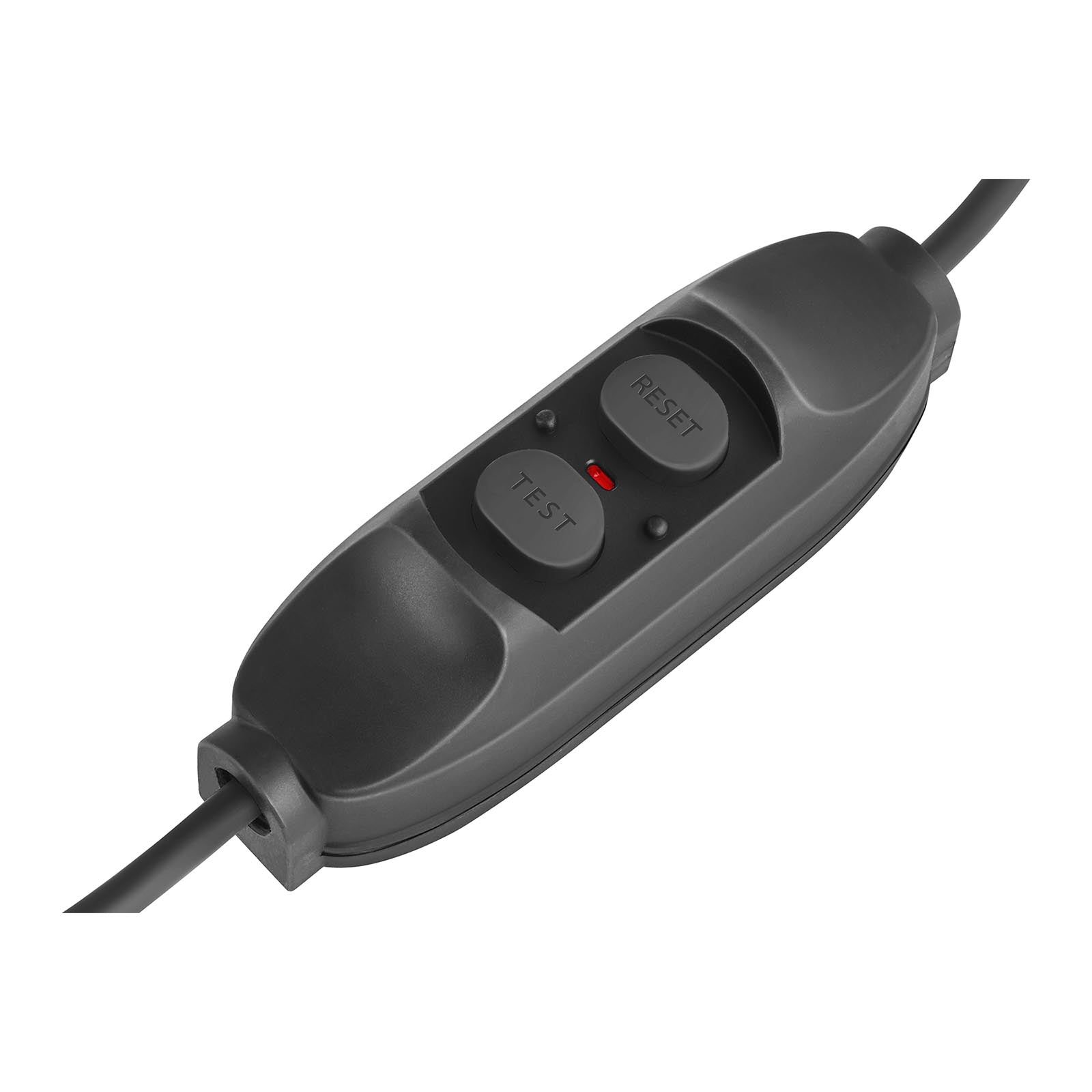

Safety of work on the drilling rig is ensured by the PRCD module (residual current device) which prevents the machine from turning on in the event of a short circuit. It also guarantees that the device will not start uncontrolled when connected to a power source.

Key features

Reliability
Multi-tasking
Versatility
Safety

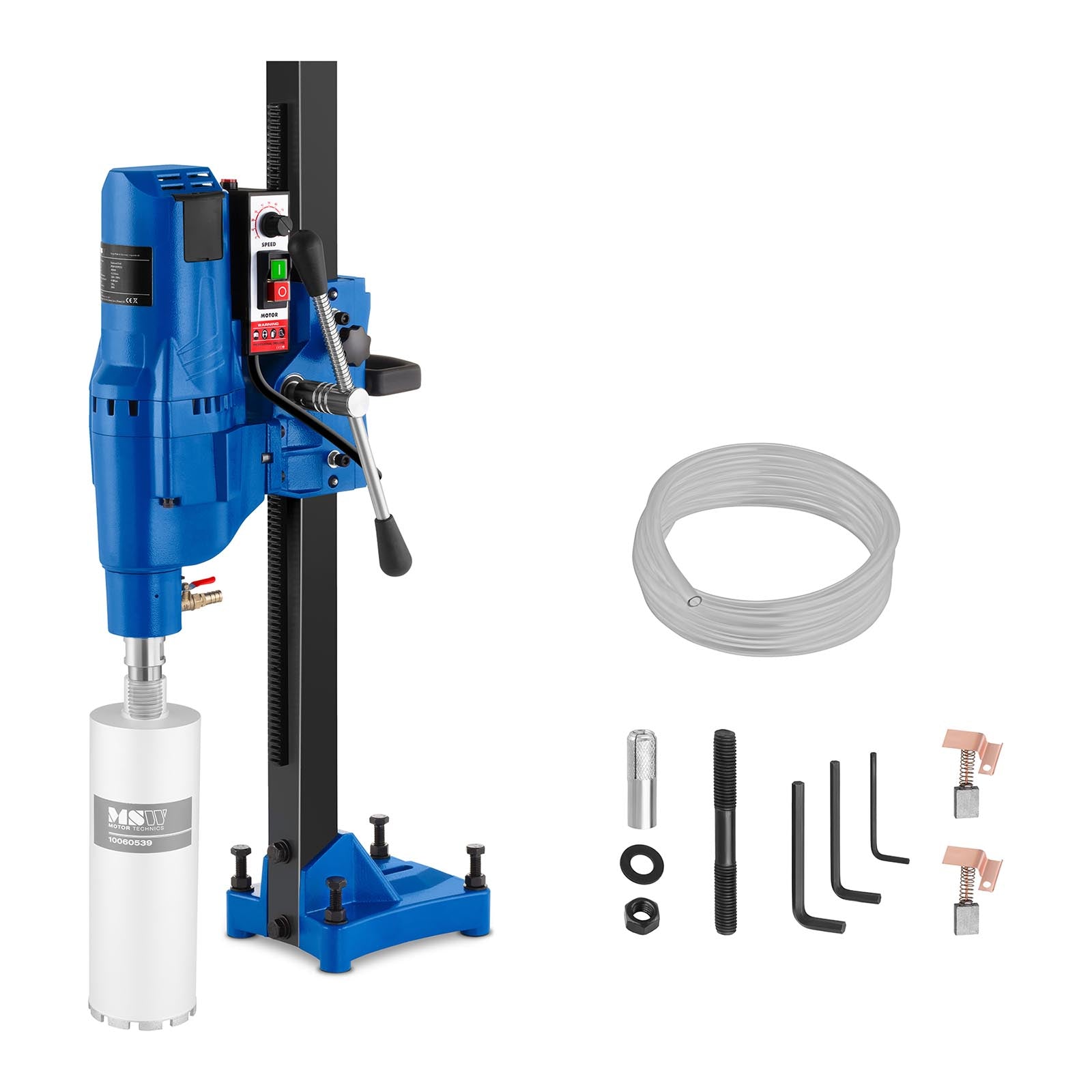

Concrete drill

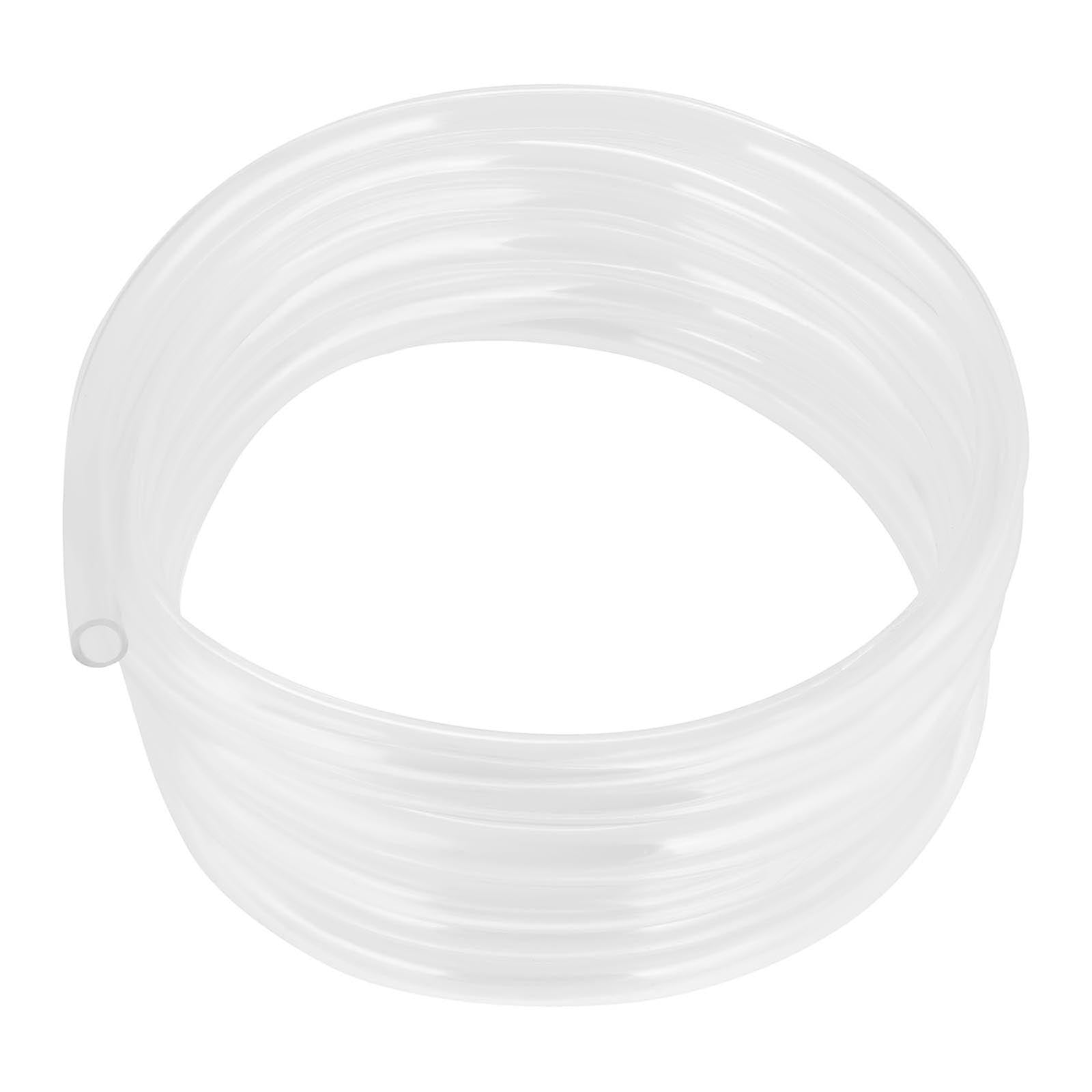

3.1 m water hose
Rotatable handle

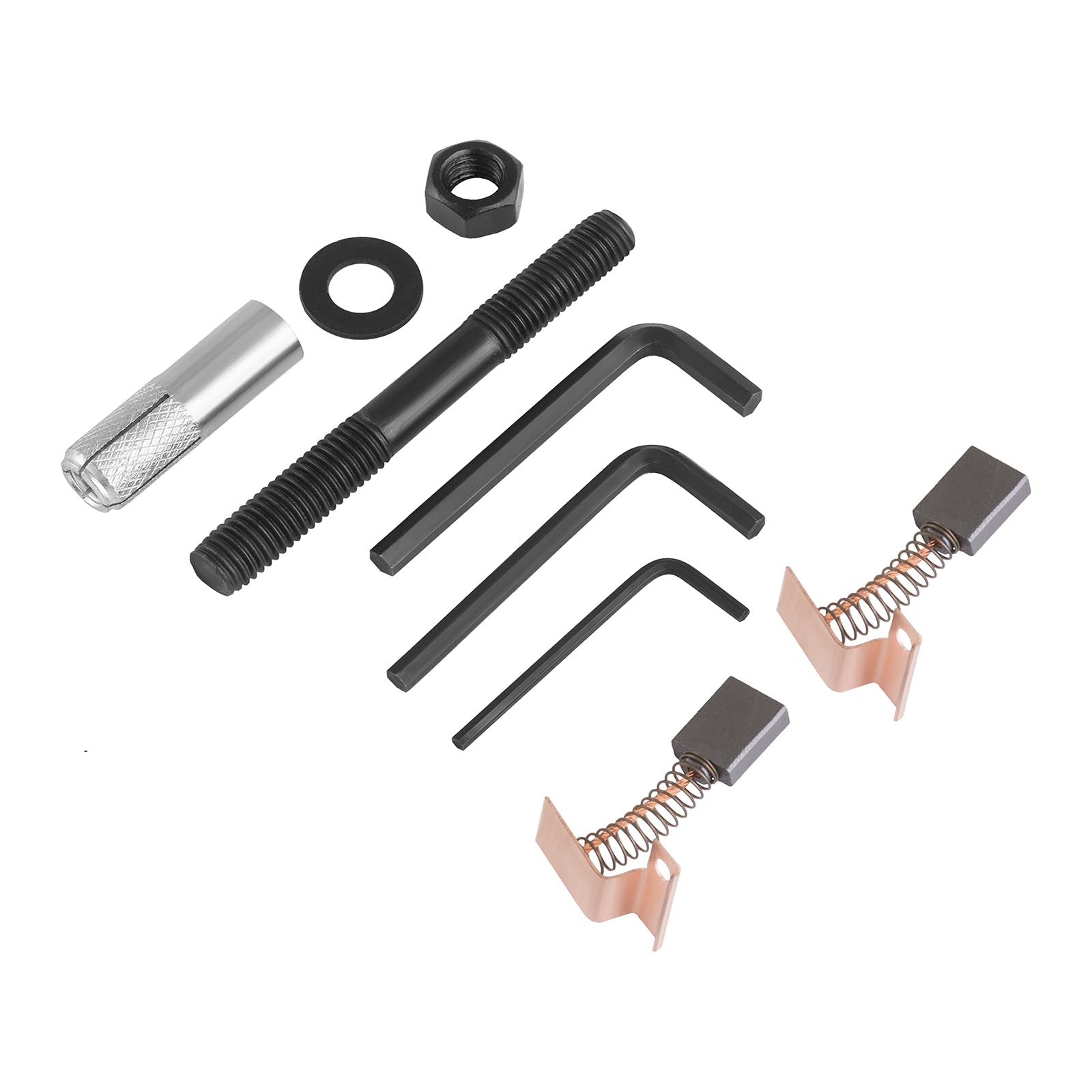

Allen keys – 3 pcs
Rear guide handle
Anchor screw
Brushes carbon – 2 pcs
3.2 m power cable with PRCD safety module
PL manual
Technical specification
SpecificationDetail
ModelMSW-DDM255
Catalog number10060438
Housing materialAluminum, steel, plastic
Power3300
Voltage/frequency230V/50Hz
Sound pressure70 dB(A)
Acoustic power85 dB(A)
Max. drilling diameter255 mm
Drill attachment diameter1 1/4"
Water hose connection diameter1/2"
Water hose length3.1 m
Max. rotational speed (no load)580 rpm
Guide range0-520 mm
Dry and wet drillingYes
PRCD moduleYes
Power cable length3.2 m
Dimensions (LxWxH)20.5 x 30 x 101.5 cm
Weight21.1 kg
Shipping dimensions (LxWxH)93 x 36 x 23 cm
Shipping weight23.8 kg
