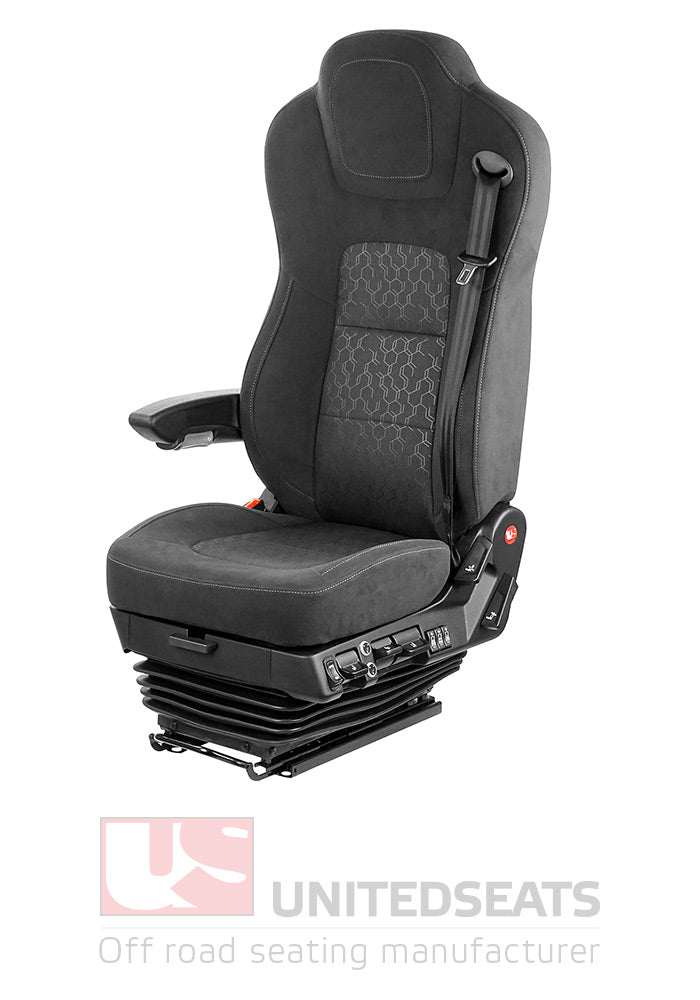

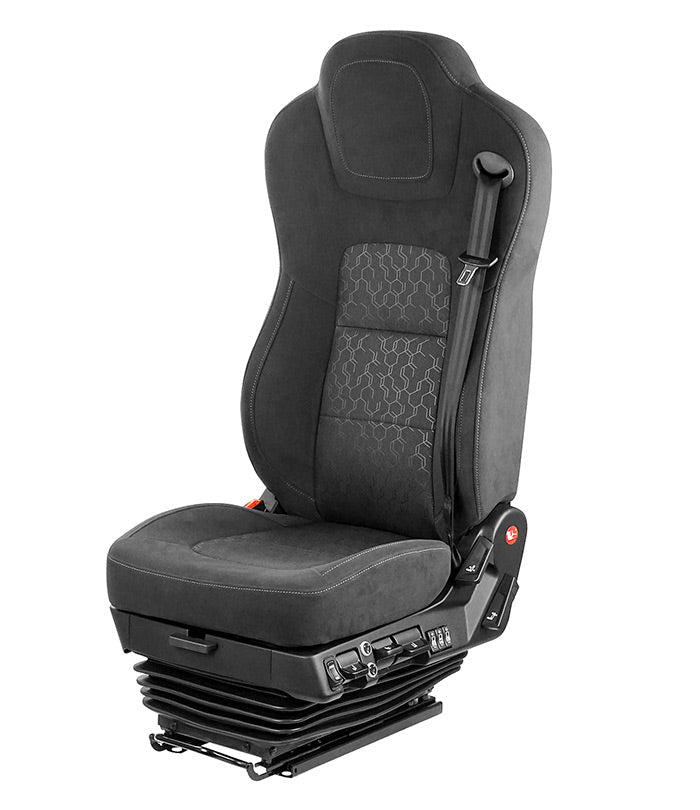

UnitedSeats Voyager C65 Premium Fabric Air Suspension Seat
Advanced comfort. Intelligent adjustability. Built for demanding professionals.
The Voyager C65 Premium is a high-performance seat engineered for the most rigorous industrial, construction, and agricultural applications. With integrated heating, cooling, dual pneumatic lumbar support, and a deluxe ergonomic profile, it delivers unmatched comfort and safety throughout long working hours.
🛠️ Key Features
-
Automatic Air Suspension – Smooth ride with 140 mm suspension travel and 90 mm pneumatic height adjustment.
-

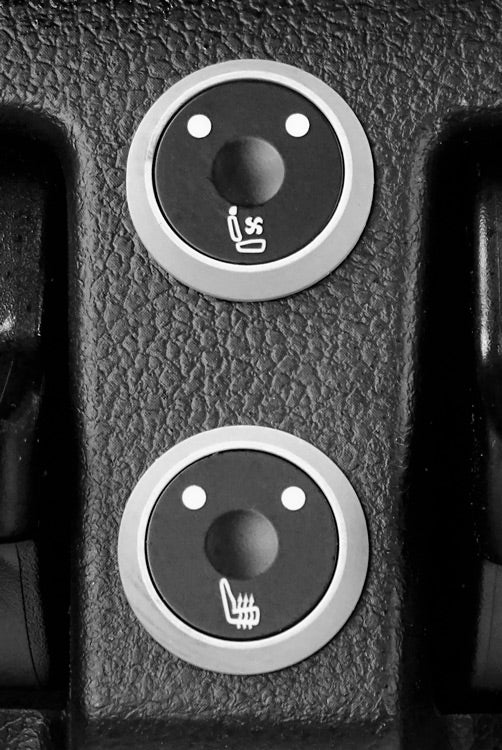

Heating & Cooling – Two-stage 12V integrated heating and cooling systems keep the operator comfortable in all climates.
-
Dual Pneumatic Lumbar Support – Two-zone lumbar adjustment (upper & lower) for tailored lower back comfort.
-
Adjustable Side Bolsters – Pneumatically controlled for better lateral support.
-
5-Step Adjustable Damper – Tuning comfort and performance to match terrain and operator preference.
-
Seat Depth & Tilt Adjustment – Full ergonomic customization with 60 mm depth range and tilt from 11° up to 4° down.
-
3-Point Safety Belt – Integrated, left-side mounted safety belt with height adjustability for optimal fit.
-
Integrated Headrest – Ergonomic head support with reinforced construction for safety and comfort.
-
Slide Rail Travel – 180 mm travel, 216 mm center width for flexible installation.
-
Premium Trim – High-quality deluxe fabric upholstery ensures lasting durability and visual appeal.
🚜 Compatibility & Fitment
This premium seat is engineered for a wide range of modern tractors, heavy-duty construction vehicles, and industrial equipment, especially where operator comfort and EU safety compliance are critical:
-
Tractors: Fendt 700 Vario, John Deere 6R Series, New Holland T7 Series, Case IH Puma, Massey Ferguson 7700 S, Valtra N and T Series
-
Construction: JCB Fastrac, Volvo L Series loaders, CAT medium equipment, Manitou, Bobcat telehandlers
-
Industrial/Utility: Terminal tractors, municipal vehicles, forestry machines

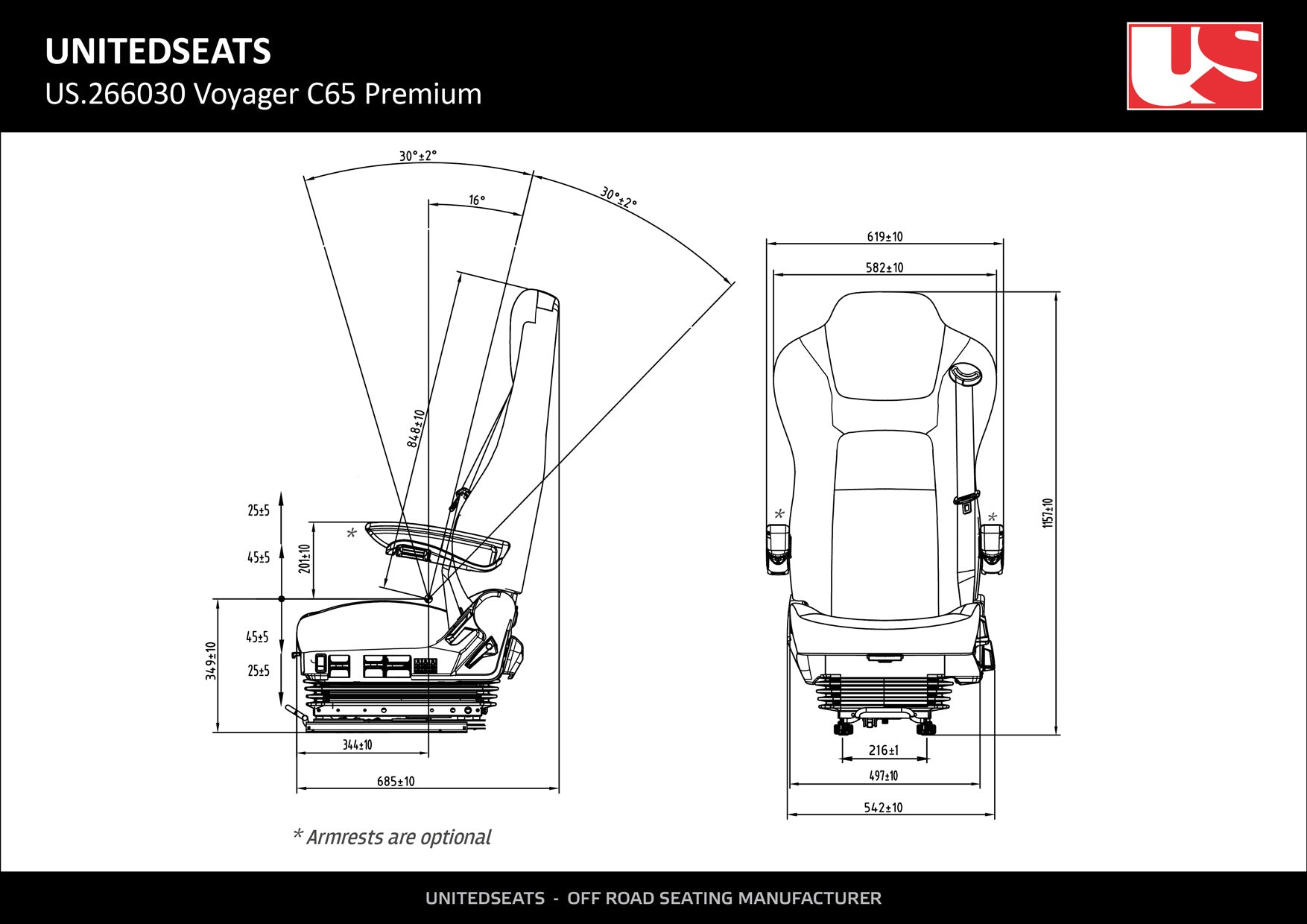

🔧 Technical Specifications
-
Suspension Type: Automatic air
-
Suspension Travel: 140 mm ± 20 mm
-
Height Adjustment: Pneumatic, 90 mm ± 10 mm
-
Weight Range: 50 – 150 kg
-
Seat Width: 490 mm
-
Trim: Deluxe fabric
-
Backrest Adjustment: 30° forward / 30° back
-
Shoulder Adjustment: 12°
-
Slide Rail Travel: 180 mm (center 216 mm)
-
Integrated Headrest: Yes
✅ Certified Safety
- ECE-R16 – 3-point safety belt
- ECE-R17 – Headrest strength certification
- UN Regulation 14R09/02 – Structural safety compliance
🧭 Final Thoughts
The UnitedSeats Voyager C65 Premium seat is the perfect match for operators who demand maximum comfort, safety, and control. With a full suite of ergonomic features and top-tier build quality, it’s ready for intensive daily use in any high-performance machine cabin.
