Description

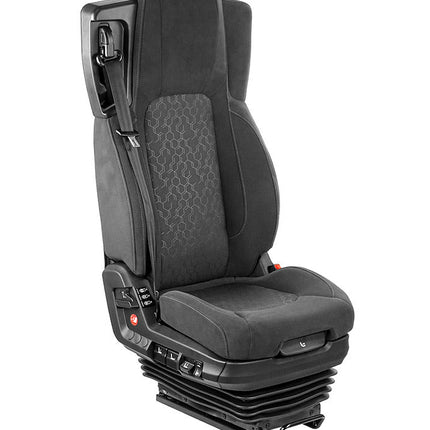

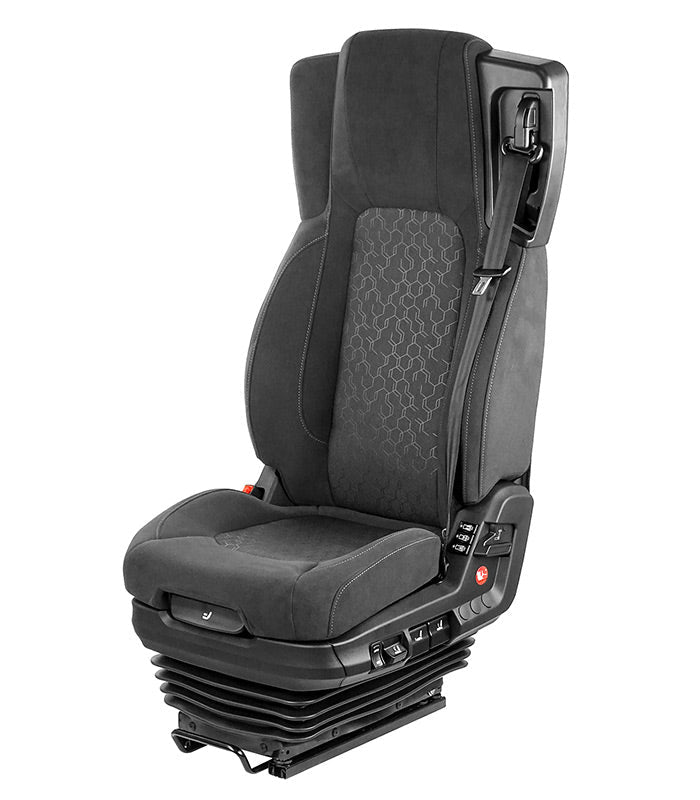

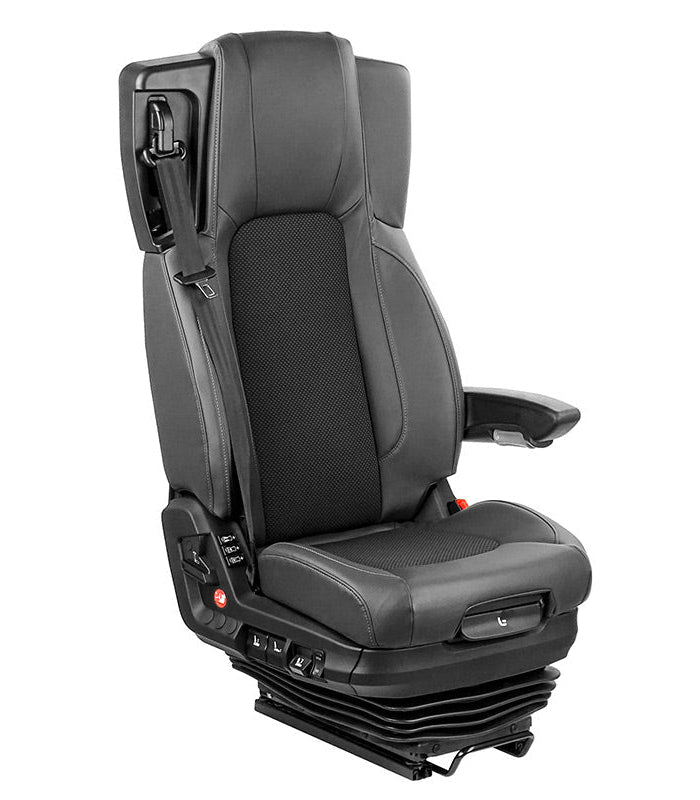

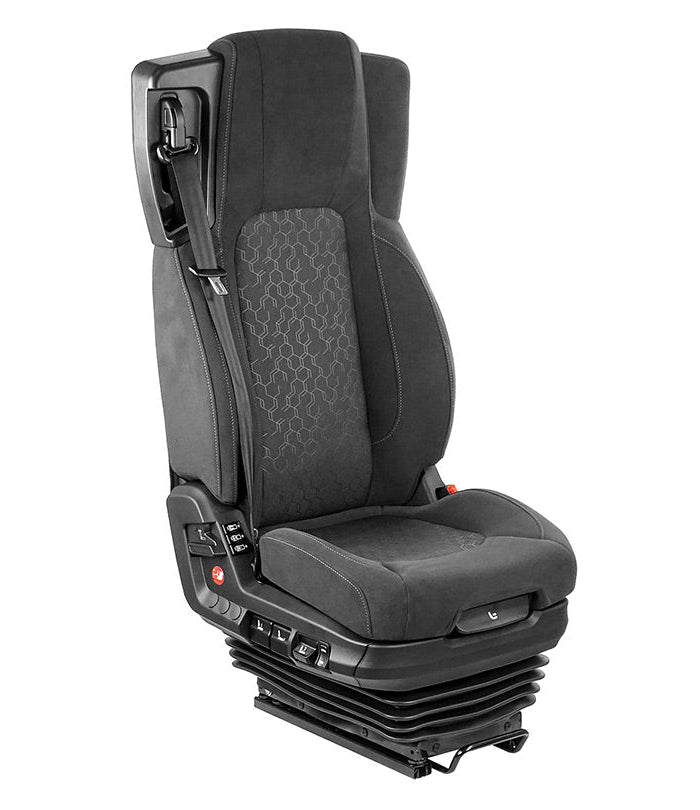

Voyager C70 Comfort Air Suspension Seat – Fabric & Eco Leather
Maximum safety. Ultimate adjustability. Premium comfort built for industrial-grade environments.
The Voyager C70 Comfort seat features automatic air suspension, dual pneumatic lumbar support, and a wide range of ergonomic adjustments—all wrapped in a premium fabric and eco leather combination. Designed to meet the highest EU safety standards, it's the ideal upgrade for modern industrial vehicles that demand both operator comfort and certified protection.
🛠️ Key Features
-
Automatic Air Suspension – Delivers a smooth ride with 120 mm suspension stroke and 80 mm pneumatic height adjustment.
-
Quick Release Valve (Dump Valve) – Instantly lowers suspension when exiting the vehicle.
-
Dual Pneumatic Lumbar Support – Two-position system to support the lower back during long shifts.
-
Side Bolsters – Pneumatically adjustable for lateral stability and personalized support.
-
Ergonomic Adjustments – Tilt, seat depth, damper hardness, and backrest angle all fully customizable.
-
Integrated Safety – 3-point seatbelt (left or right mount), adjustable belt height, and headrest compliant with ECE-R17.
-
Durable Trim – High-wear fabric and eco-leather combo for comfort and longevity.
-
Universal Mounting – Slide rail center 216 mm (optional 230 mm) fits most industrial and heavy-duty cabs.
🔧 Technical Specifications
| Suspension Type |
Automatic Air |
| Suspension Travel |
120 mm |
| Height Adjustment |
80 mm (pneumatic) |
| Lumbar Support |
Dual pneumatic (2 positions) |
| Bolsters |
Pneumatic side bolsters |
| Seat Belt |
3-point, left or right mount |
| Slide Rail Center |
216 mm (option: 230 mm) |
| Trim Material |
Fabric / Eco leather |
| Certifications |
ECE-R16, ECE-R17, UN 14R09/02 |
🚜 Compatible With:
-
Heavy-duty industrial machinery – loaders, graders, excavators
-
Construction vehicles – wheel loaders, compactors, backhoes
-
Forklifts and telehandlers – requiring seatbelt certification
-
Municipal and airport vehicles – sweepers, tugs, utility platforms
-
Special service vehicles – rescue, transport, or logistics cabs
✅ Ideal For:
- Operators needing certified 3-point seatbelt safety
- Industrial environments with vibration and long hours
- Cabins requiring EU-compliant seat solutions
- Drivers working in extreme outdoor or indoor conditions
🧭 Fitment & Suitability Analysis
| Category |
Fit |
Notes |
| Truck seats |
✅ Yes |
Meets required safety belt standards for trucks |
| Marine seats |
❌ No |
Not rated for maritime environments |
| Factory / Production |
✅ Yes |
Well-suited for operator control cabins |
| Special services transport |
✅ Yes |
Certified belt and headrest makes it ideal |
| Ships |
❌ No |
Lacks marine-grade certification |
| Small construction vehicles |
✅ With adaptation |
Best for mid-to-large cabins |
| Small vehicles |
❌ No |
Too large for compact utility vehicles |
| Forklifts |
✅ Yes |
Great choice where belts are required |
| Construction seats |
✅ Ideal |
Designed for full-shift operator use |
| Tractor seats |
✅ For premium models |
Best for large or enclosed cabins |
🧭 Final Thoughts
The Voyager C70 Comfort brings top-tier ergonomic features and certified safety into industrial and construction cabins. With full adjustability, premium upholstery, and 3-point seatbelt compliance, it’s built for professionals who won’t compromise on comfort or protection.
