Description
Manufacturer's code:
10250397Water softener Uniporo brand is equipped with high-end
Automatic ASD2 valve with built-in processor and electronic water meter, which monitors the flow of water, adjusting accordingly
regeneration processWater flow in the range
1,4 - 2,7 m3/h, working pressure
0,15 - 0,5 Mpa 1,5 - 5,0 bar, ion exchange resin tank with

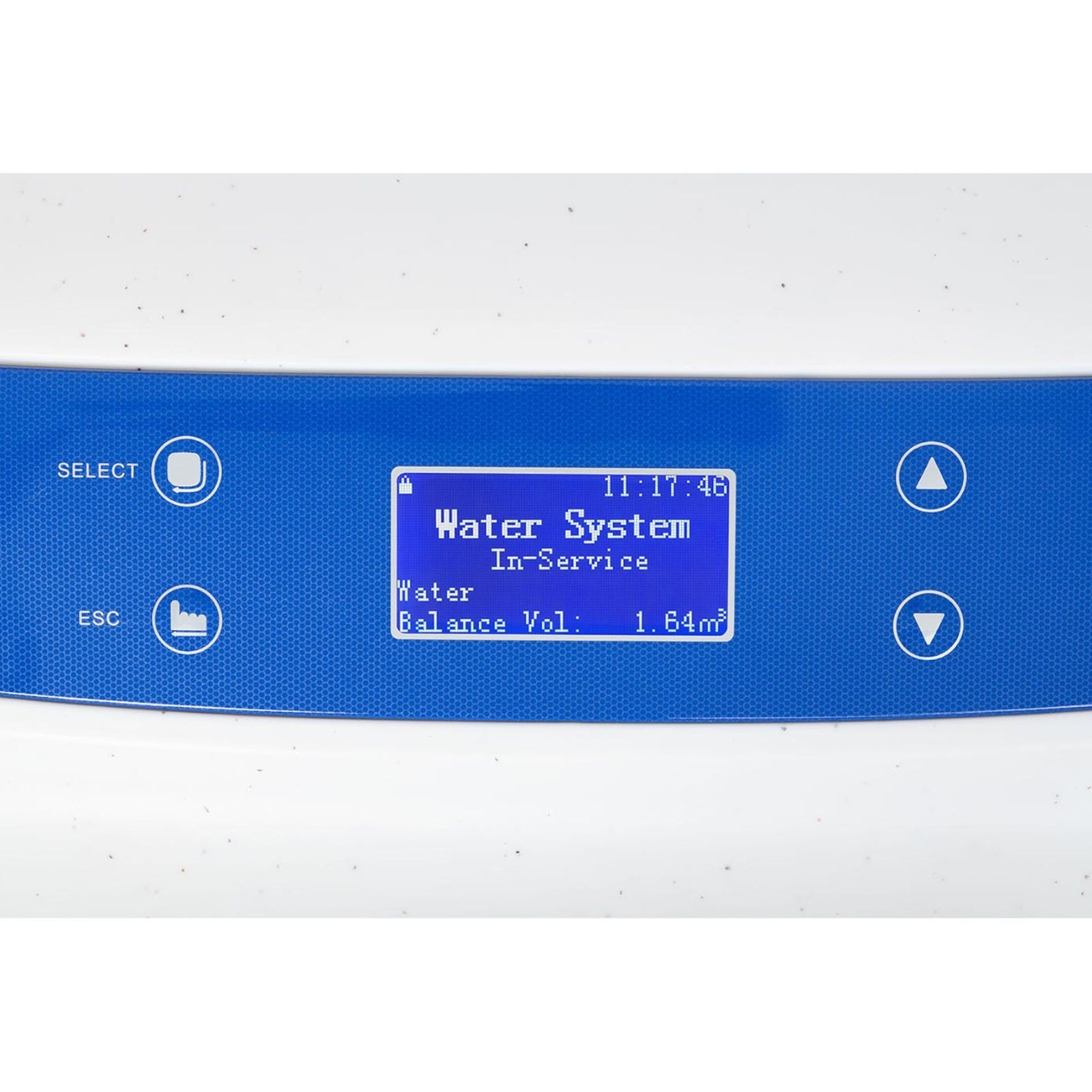

capacity 25 lThe product is connected both with the main valve or water intake and with the specific device. The device has a panel with display
LCDThe locking function protects against accidental switching of parameters. For regeneration of ion exchange deposit is used
salts- which you have to put on a regular sheet.
50 ppm After each passage, the water should be supplemented.
4000 l waterThe restoration of the ion exchange deposit is carried out in one of two ways:
volume mode start when a specific amount of water passes,
Time mode starts to regenerate after a specified number of days. The power consumption for resin regeneration is
3,3 WThe remaining time the power is only charged for the display and its value
1 W.
Product features: - - Automatic ASD2 softening valve,
- - Two modes of regeneration - Volume or Time,
- - Resin tank 25 l,
- - Water flow 1,4-2.7 m3/h,
- - Panel LCD.
Technical parameters: - - Model - UNI_WATERSOFTENER_2500A
- - Catalog number - 10250397
- - The state of the article - New
- - The power supply - Switching adapter 12 V 1500 mA
- - Voltage - 100-240V ~ 50/60 Hz
- - Power - During regeneration: 3,3 W
- - Valve type - ASD2
- - The material of the casing - Plastic
- - Adapted for - 4
- - Volume of resin - 25 l
- - Display - LCD
- - Inlet size - 3/4#8221
- - The size of the exit - 3/4#8221
- - The size of the drain - Ø12 mm
- - Drop connection (channeling) - Yes.
- - The central size of the pipe - 35
- - Water flow - 1,4
- - Working pressure - 0,15
- - Regeneration of resin - Automatic, with special salt
- - Regeneration time - 92 min
- - Salt consumption during regeneration - 3.3 kg
- - Recommended maximum flow - 2,5 m3/h
- - Performance at 10deg dH - 9000 l
- - Performance at 20deg dH - 4600 l
- - Max. stock of salt - 30 kg
- - Pressure drop - 5%
- - Operating temperature range - 5
- - Power cord - 1,5 m
- - User manual - Yes.
- - Dimensions (DxSxW) - 30.5 x 50 x 111 cm
- - Weight - 35 kg
- - Dimensions of dispatch (DxSxW) - 52 x 36 x 120 cm
- - Weight of shipping - 42,85 kg

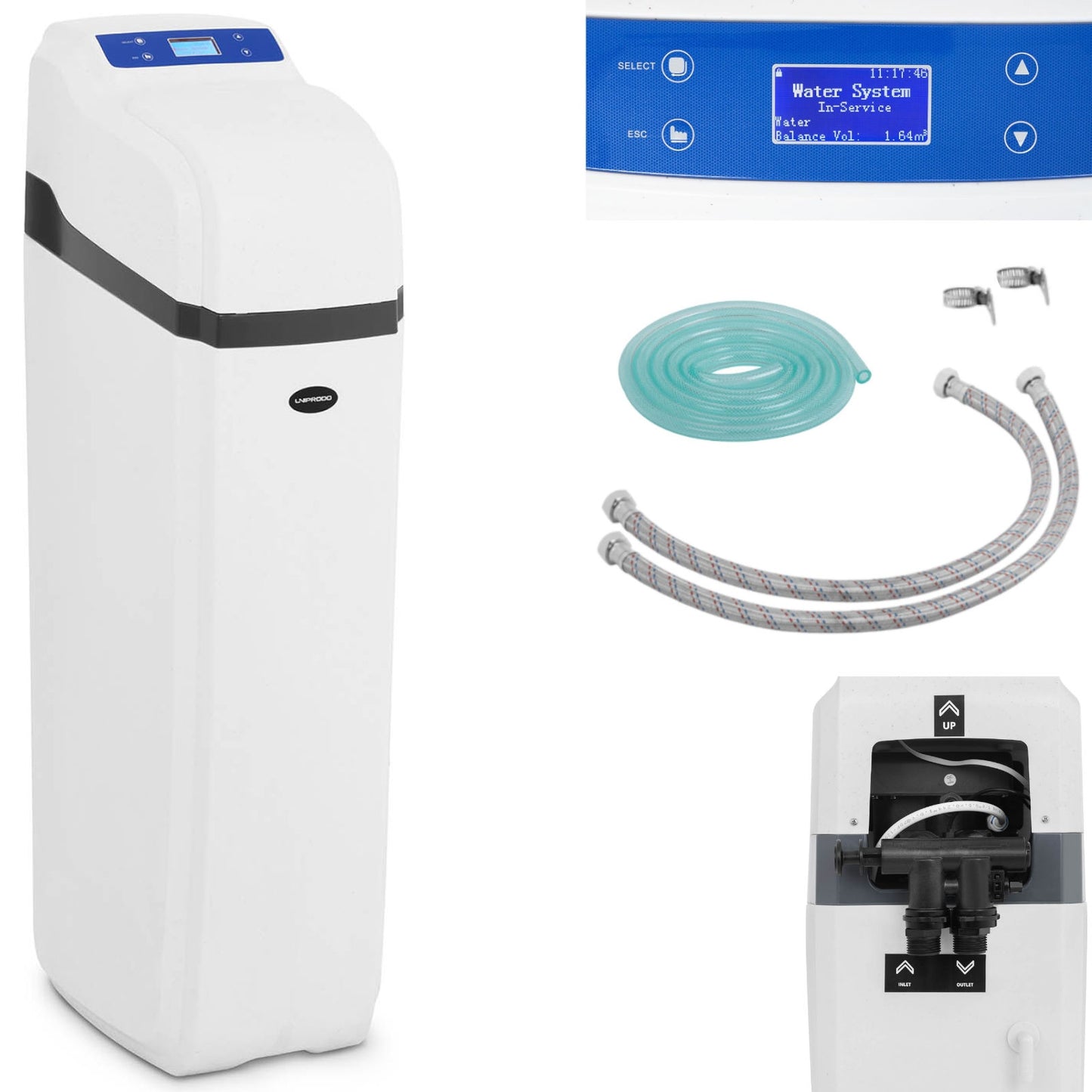

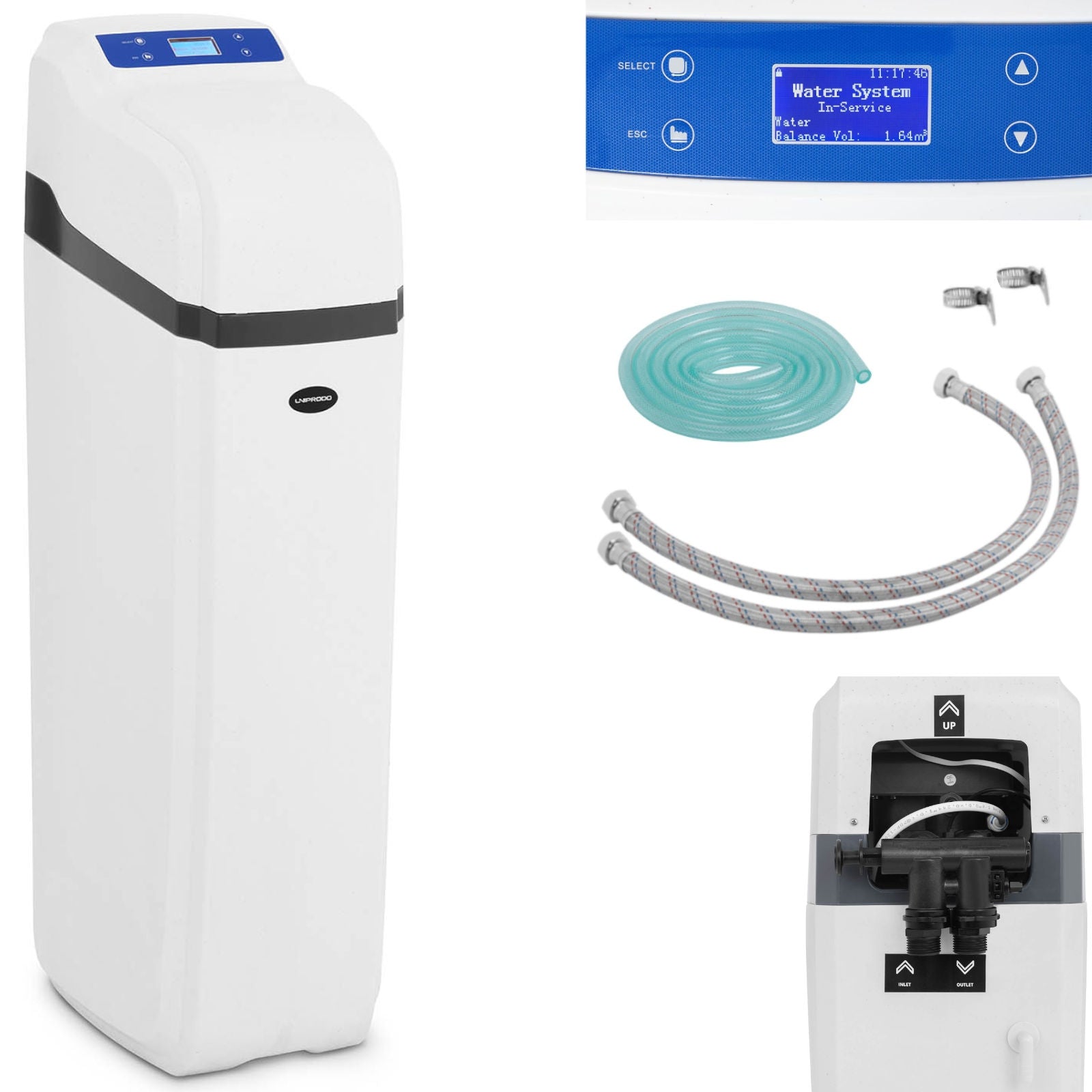

Included: - - Water softener,

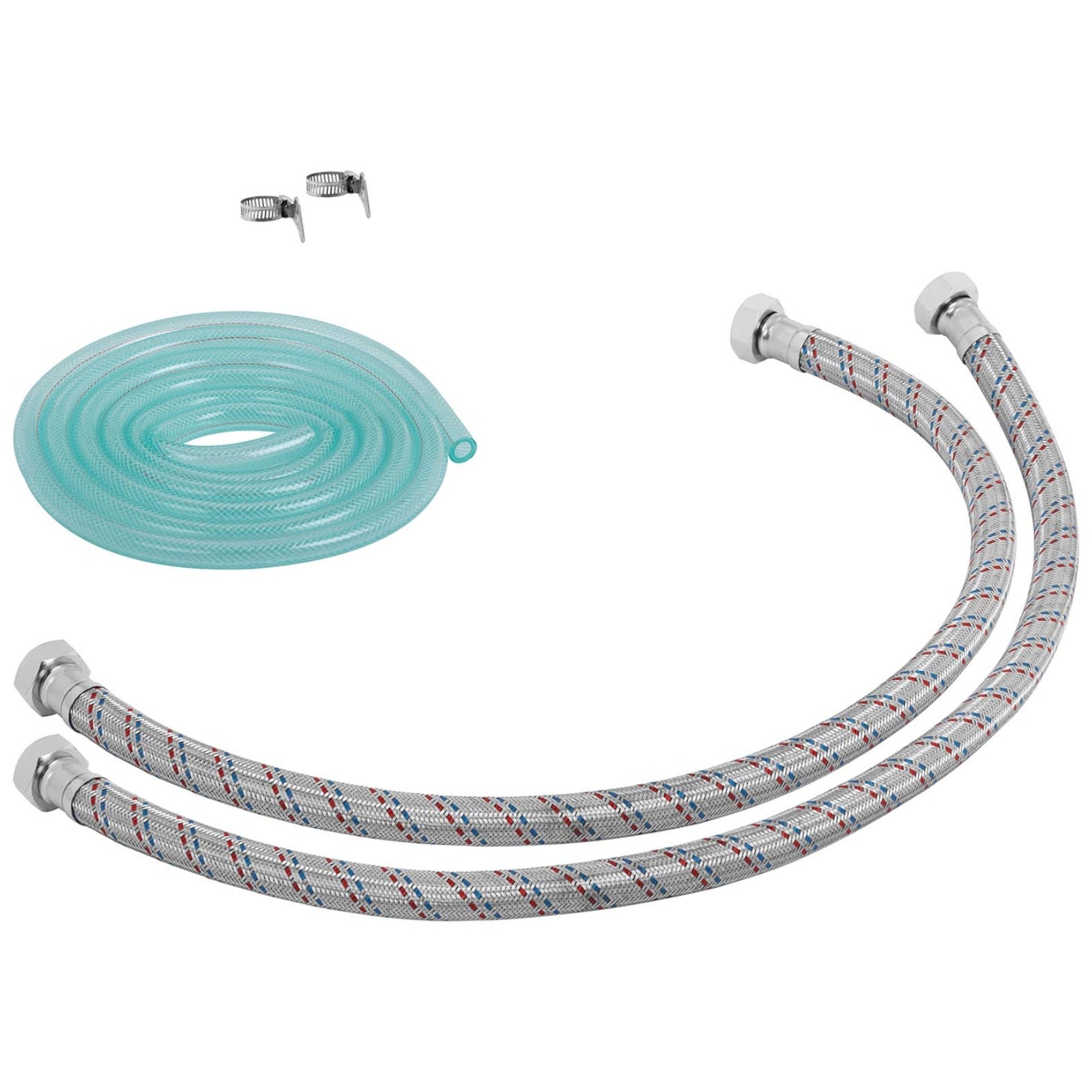

- - Accessories,
- - Manual.
