Overview
The Winch electric cable winch 1350 W 12 m 400 kg from MSW brings chain hoists you can rely on, made for your workshop & garage needs. A popular choice in Workshop garage, Lifting or winch-lifts.
Manufacturer's code: 10062132

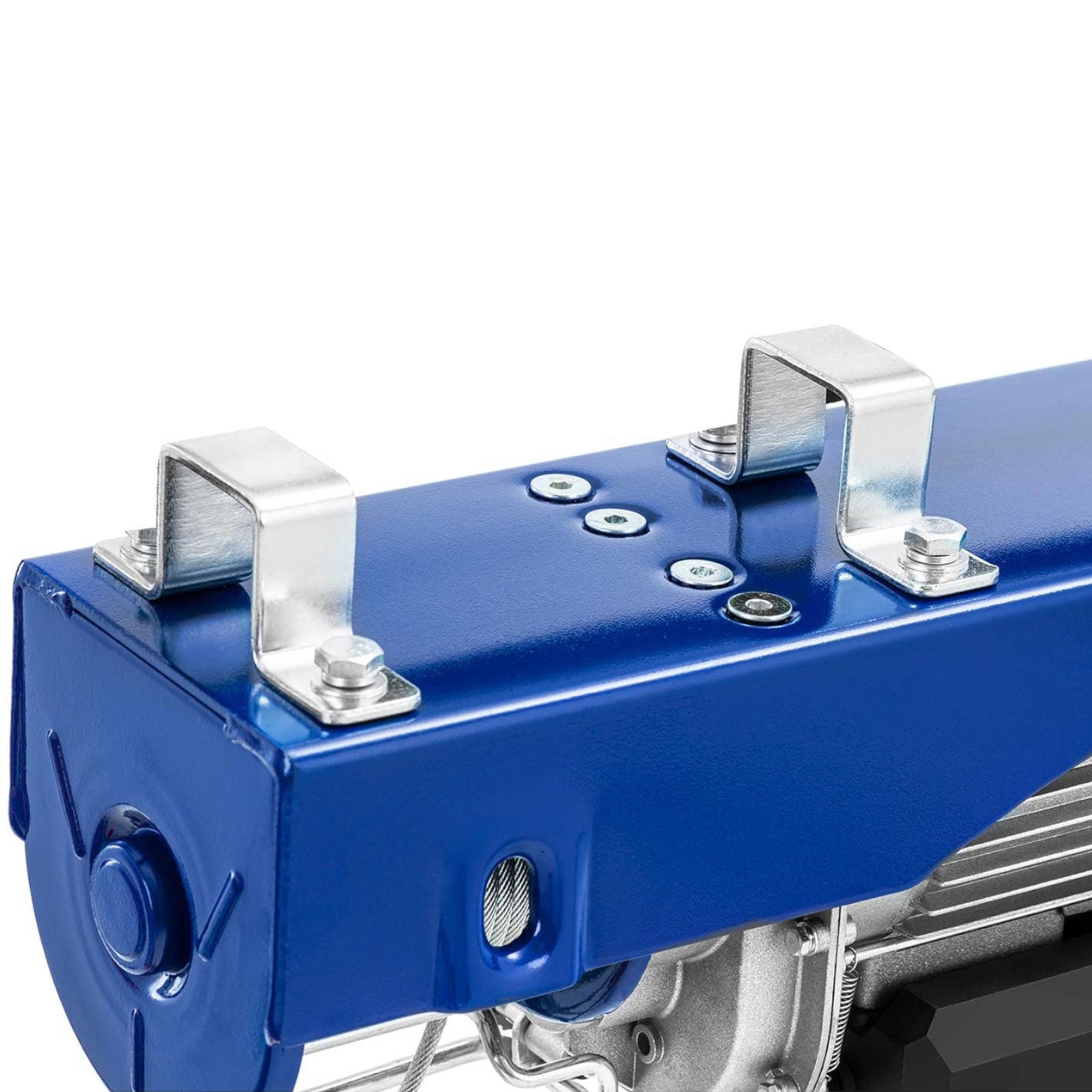

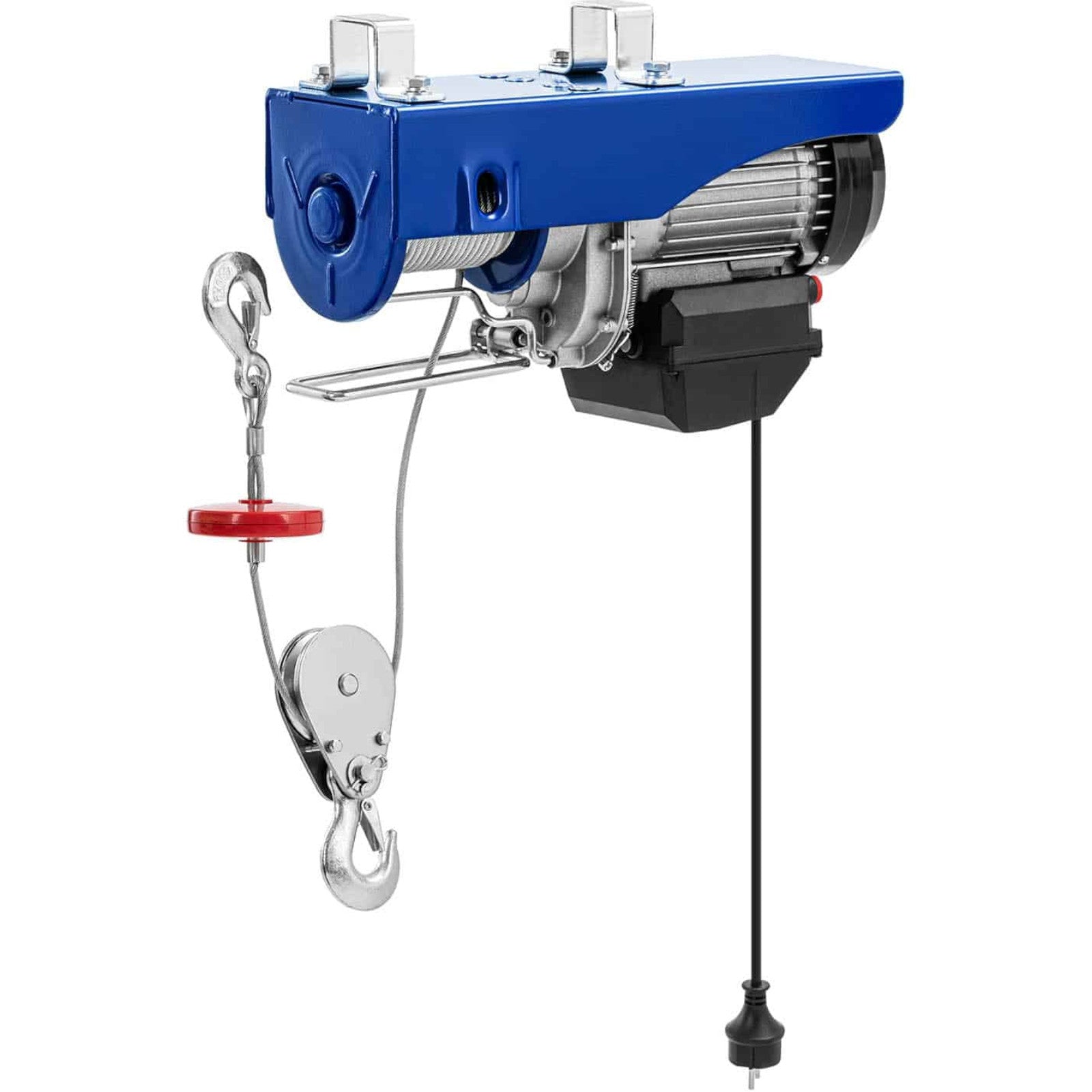

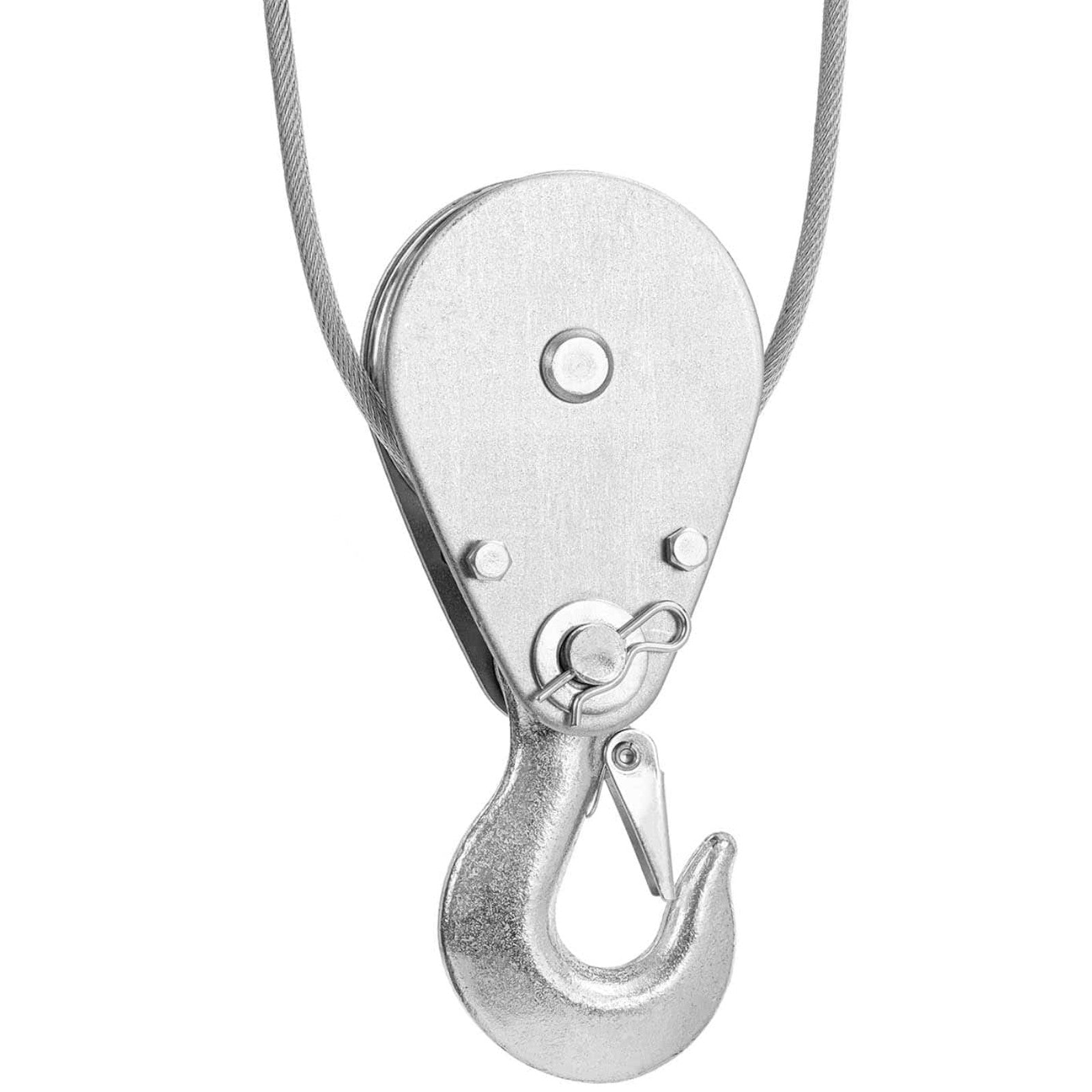

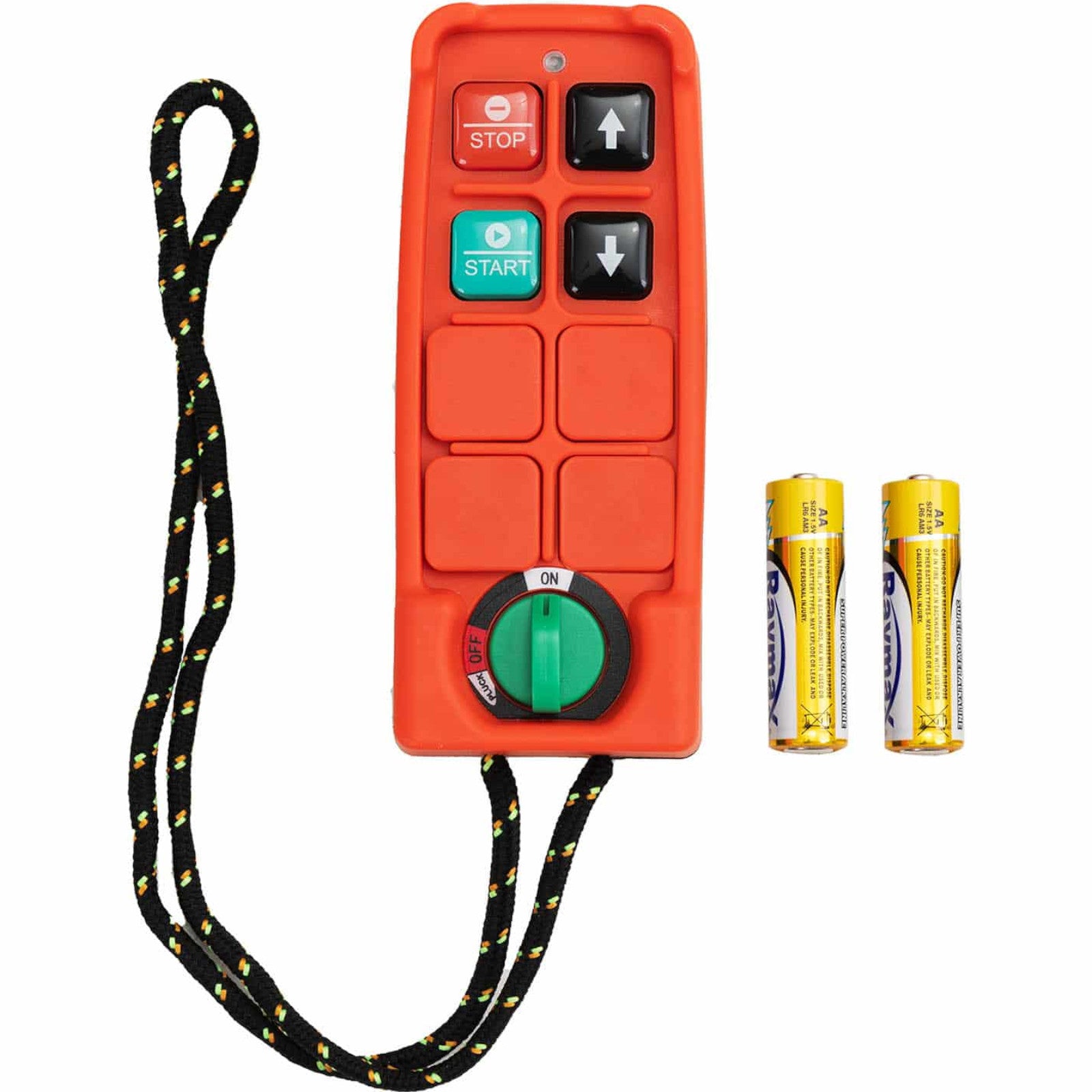

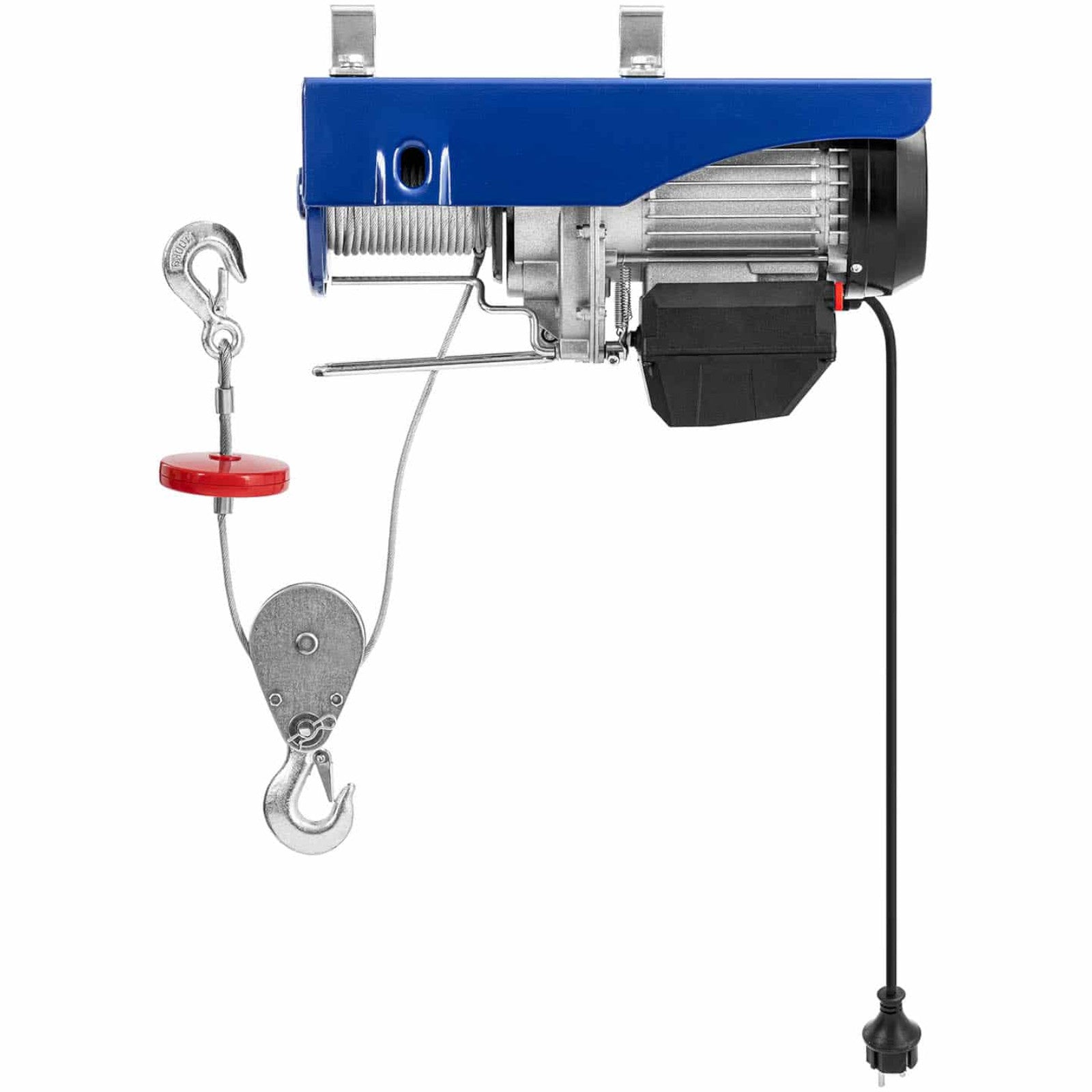

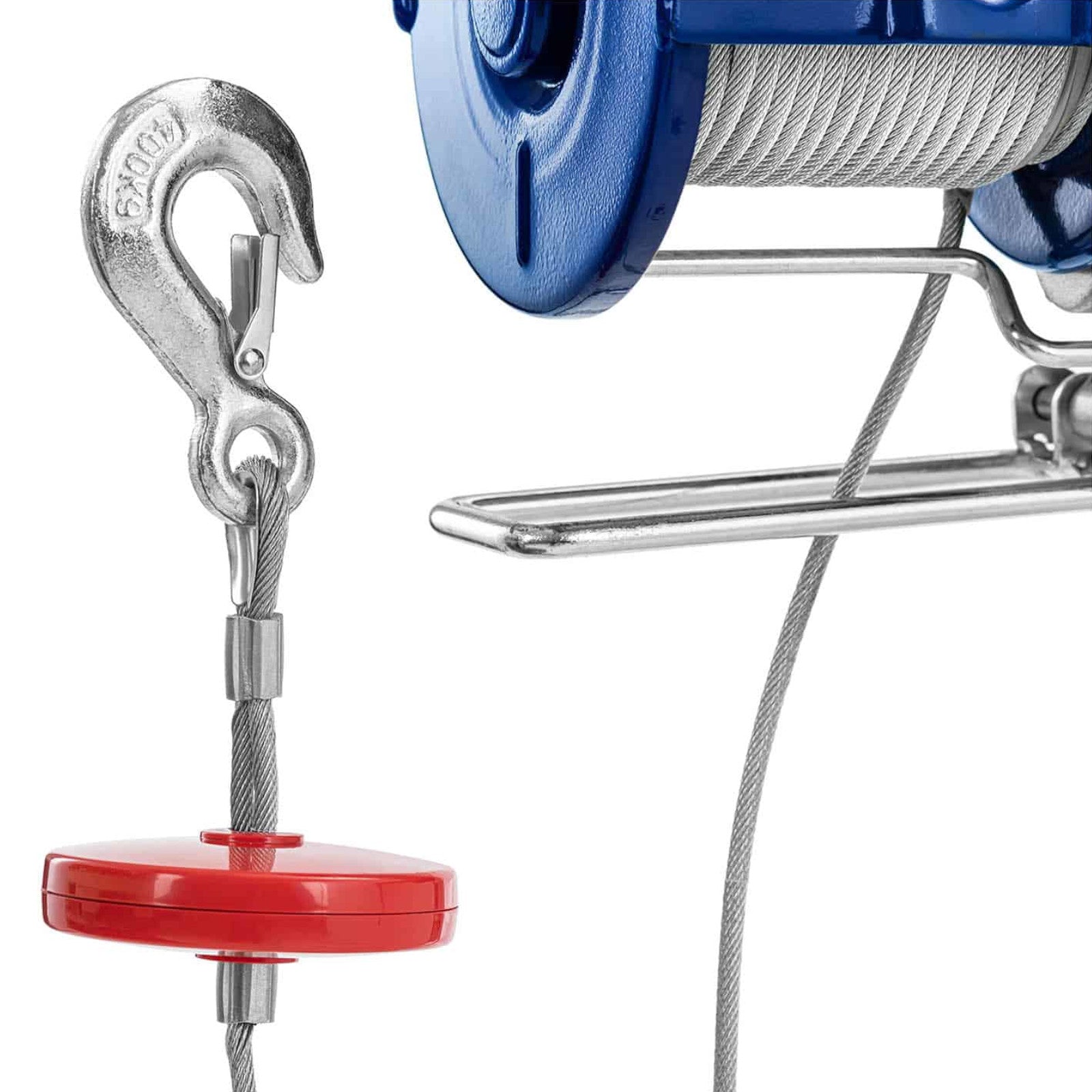

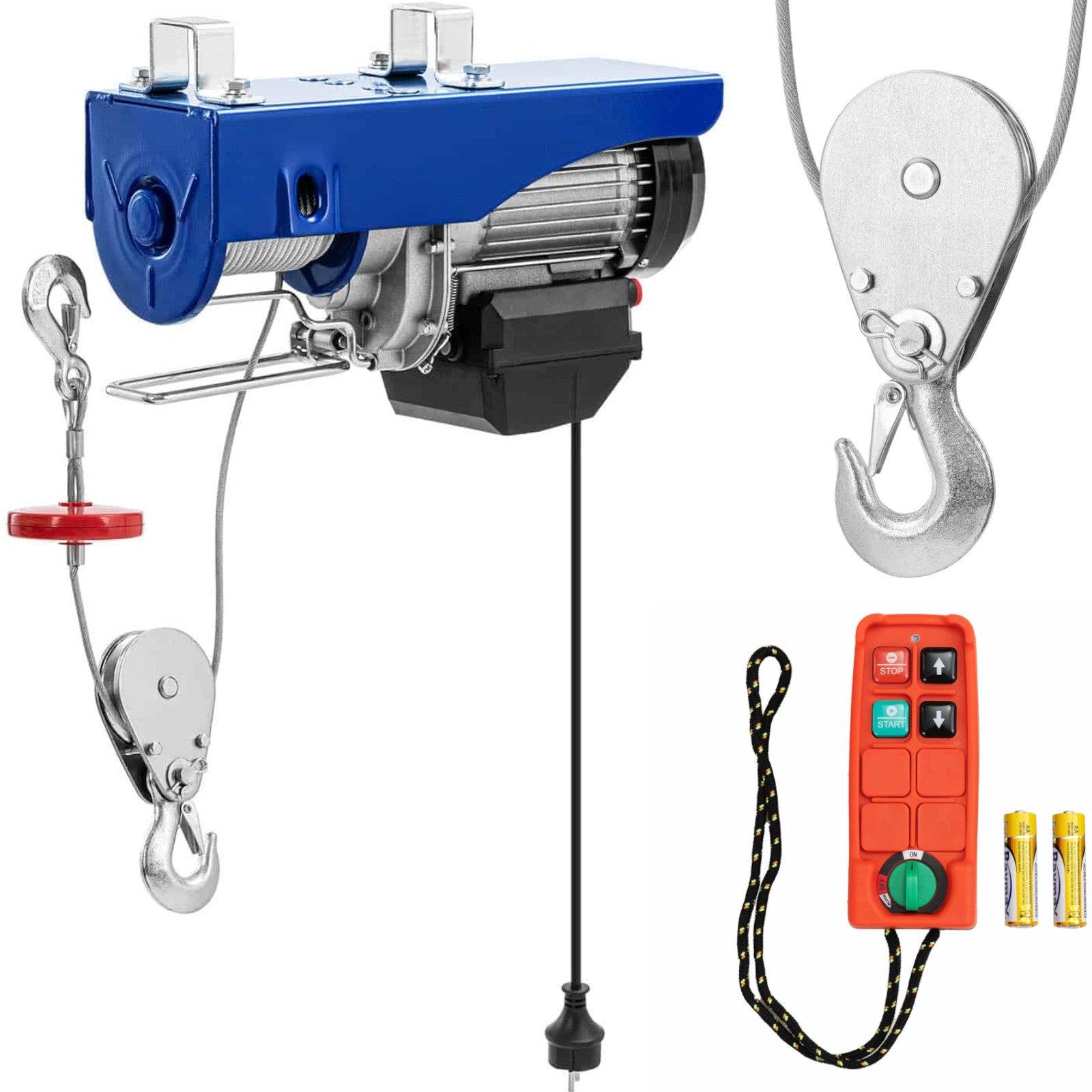

The MSW brand rope winch allows you to effortlessly lift heavy loads in a warehouse or workshop. The 1350 W motor lifts loads weighing up to 400 kg to a height of12 m. The lifting speed is 8 m/min. The steel rope is twist-proof, strong and durable. After installing the block, the lifting height is reduced by half, to 6 m, and the lifting speed to 4 m/min. At the same time, the load on the winch increases to 800 kg. The Wireless remote control allows you to control the device from a distance. The device stops automatically in the event of a power outage. The winch is marked with IP54 protection class and is protected against the ingress of dirt and water.
Product features:
Technical parameters:
Included in the set:
Key features
| Specification | Detail |
|---|---|
| Catalog number | 10062132 |
| Article condition | New |
| Model | MSW-PROLIFTOR-800NW |
| Voltage [V] | 230 |
| Material | Aluminum, Steel, Copper |
| Color | Blue |
| Load [kg] | 400 |
| Power [W] | 1350 |
| Rope length [m] | 12 |
| Maximum load [kg] | 800 |
| Motor power [W] | 1350 |
| Power cable [m] | 0.55 |
| Max. lifting height [m] | 12 |
| Rope diameter [mm] | 5.1 |
| Work break time | S3 / 20% / 10 min |
| Max. lifting speed | 8 m/min |
| IP protection level | IP54 |
| Lifting speed - without block [m/min] | 8 |
| Load capacity - without block [kg] | 400 |
| Lifting speed - with block [m/min] | 4 |
| Load capacity - with block [kg] | 800 |
| Max. lifting capacity - without block [m] | 12 |
| Max. lifting capacity - with block [m] | 6 |
| Load hook | Yes |
| Remote control | Yes |
| Emergency stop switch | Yes |
| Block with hook | Yes |
| Clamp – mounting to a profile or swing arm | Yes |
| Dimensions (LxWxH) [cm] | 41 x 15 x 22 |
| Weight [kg] | 19.5 |
| Shipping dimensions (LxWxH) [cm] | 50 x 30 x 21 |
| Shipping weight [kg] | 20.6 |
