Description
Manufacturer's number:

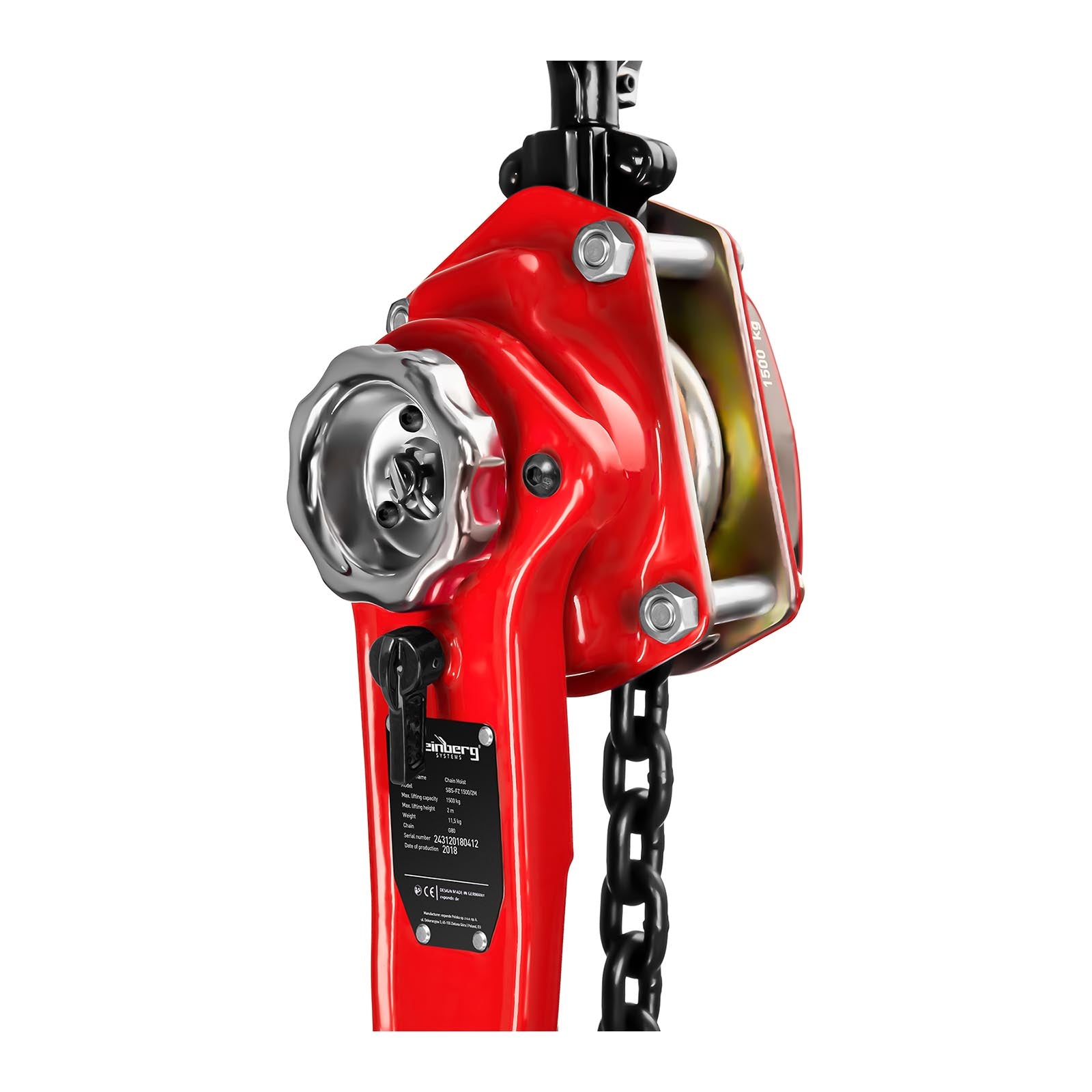

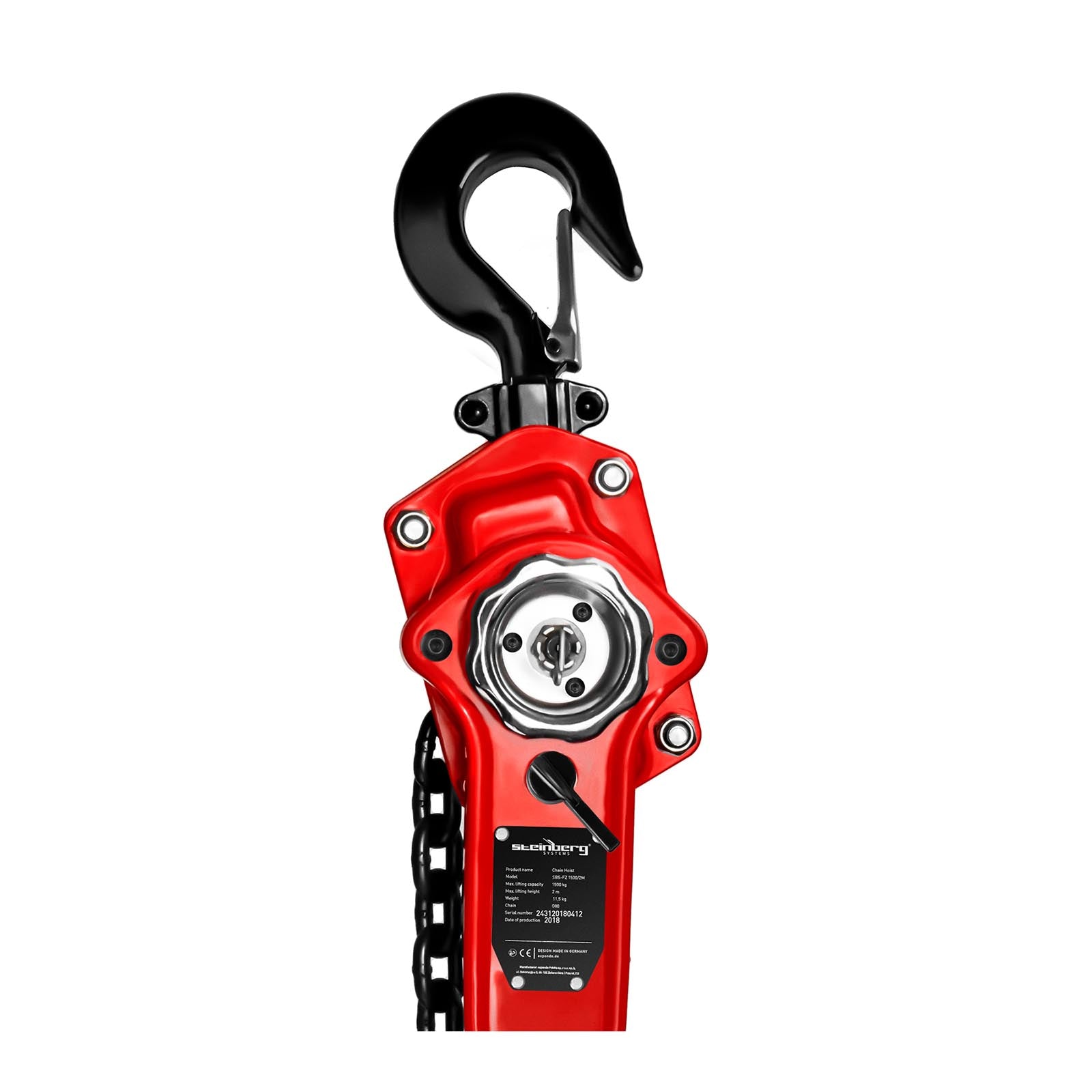

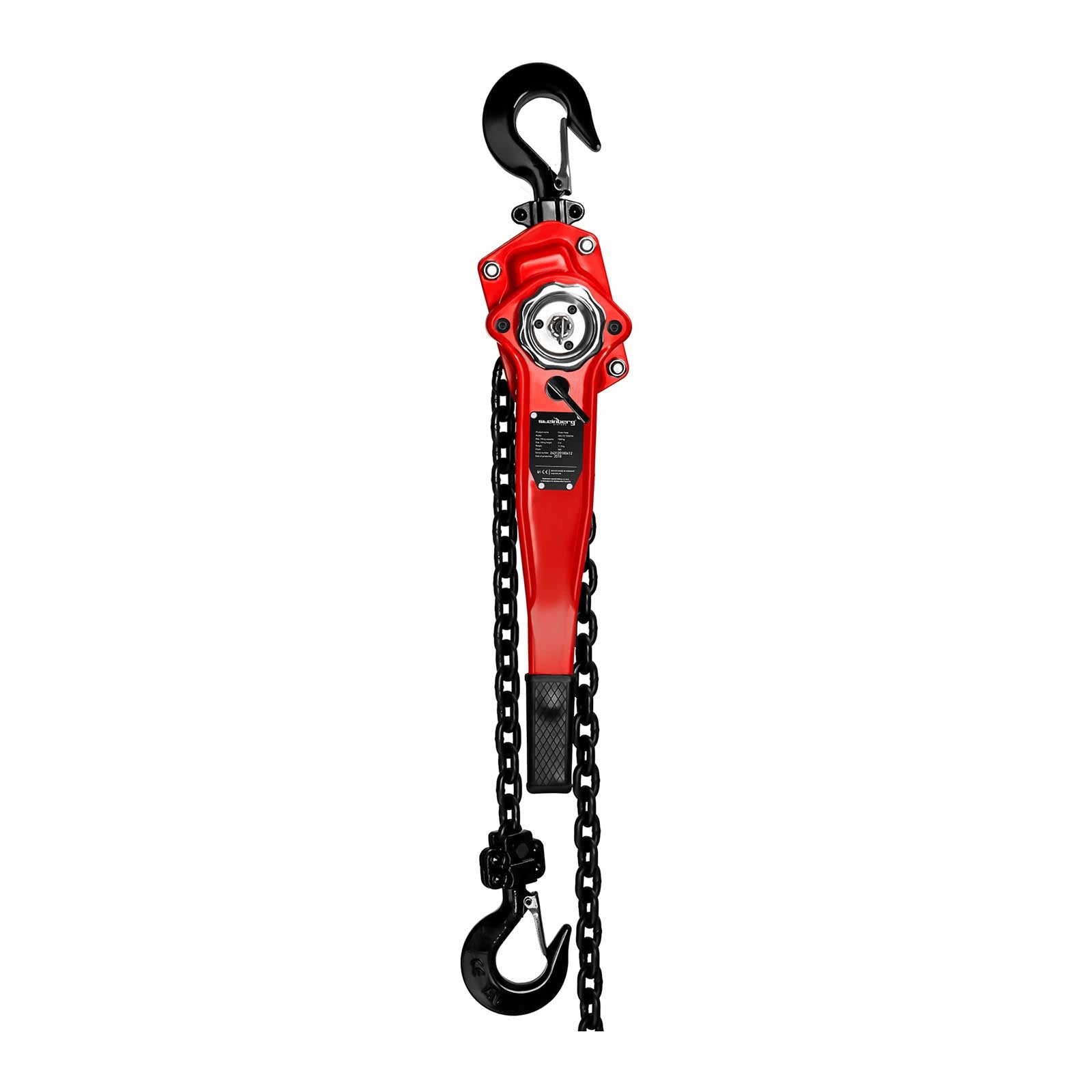

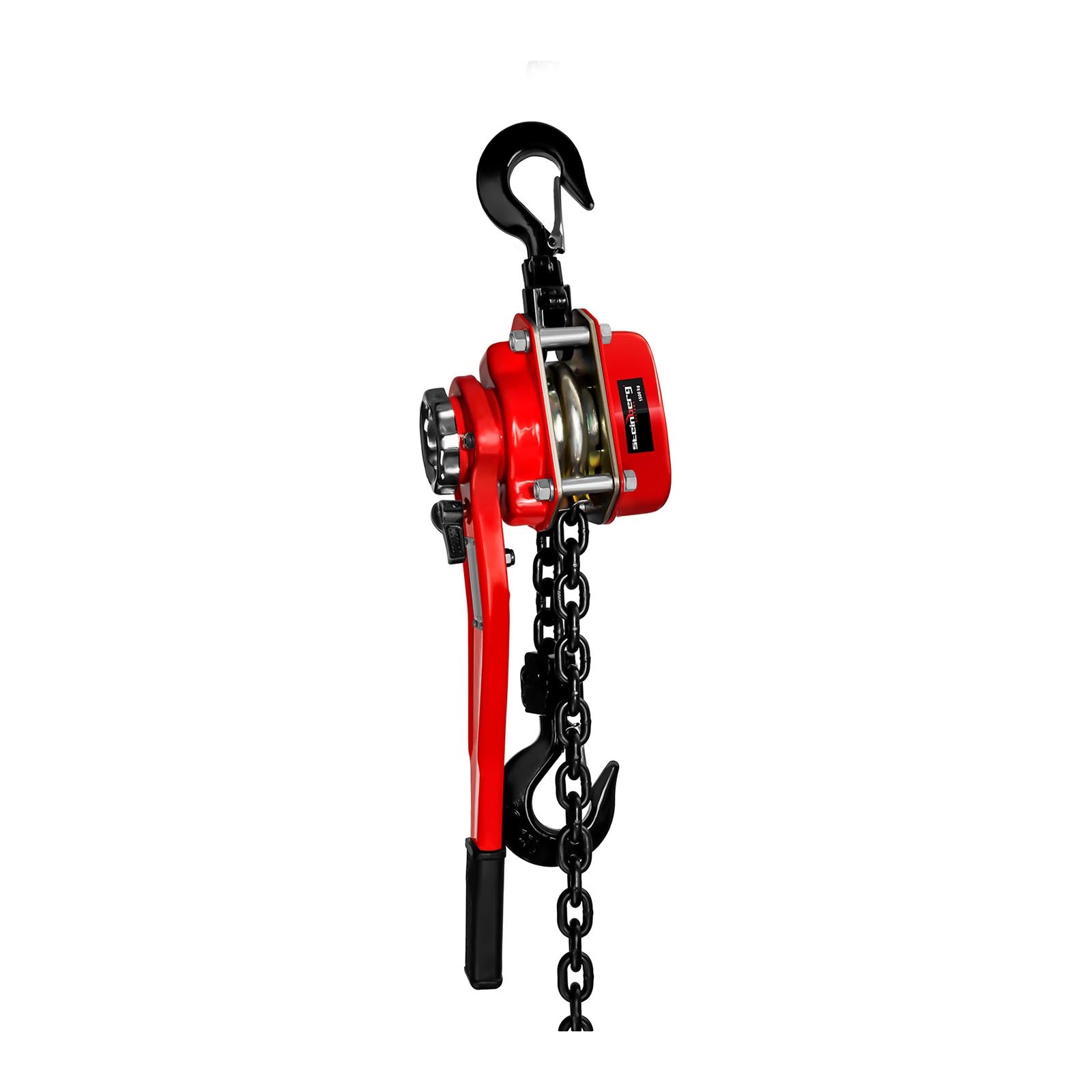

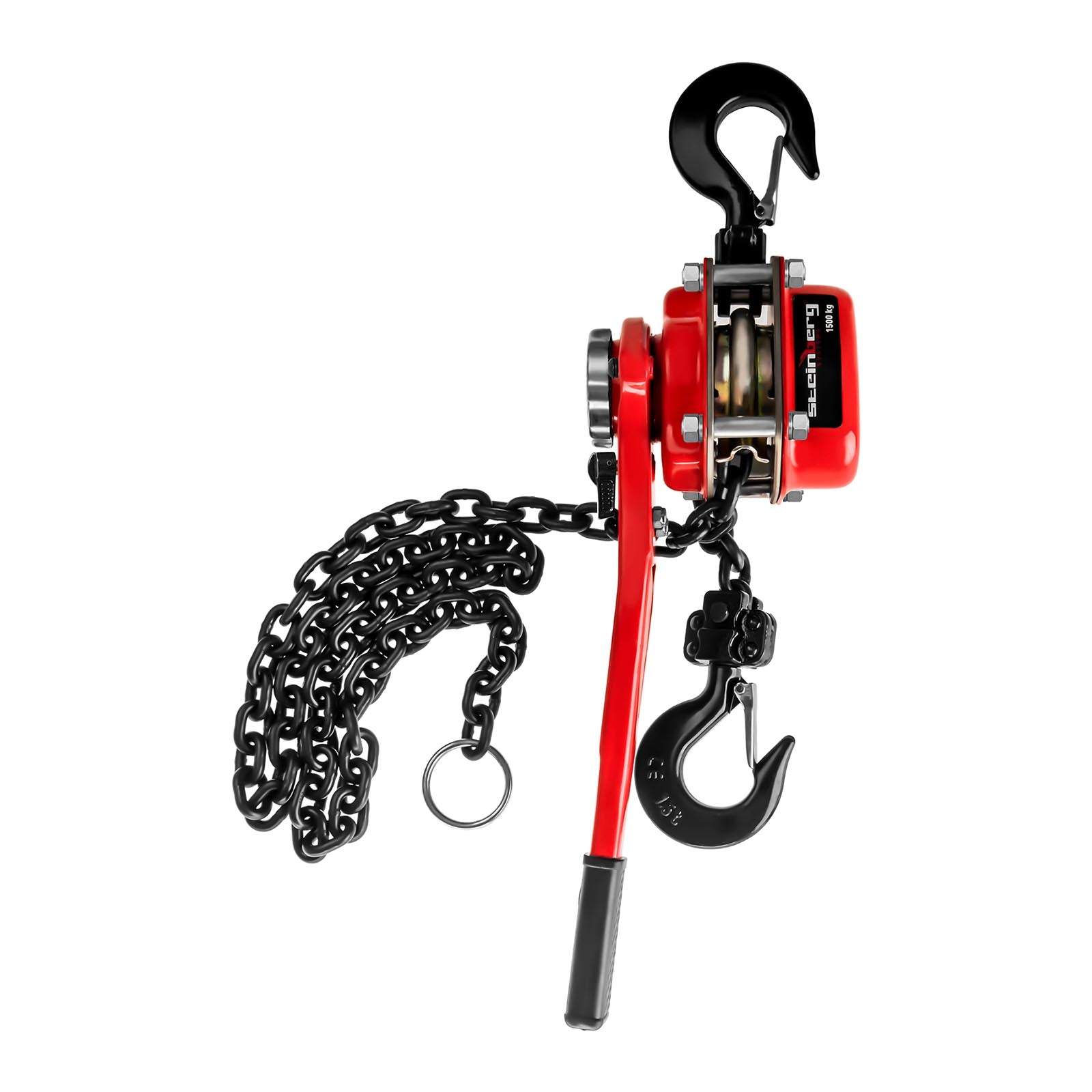

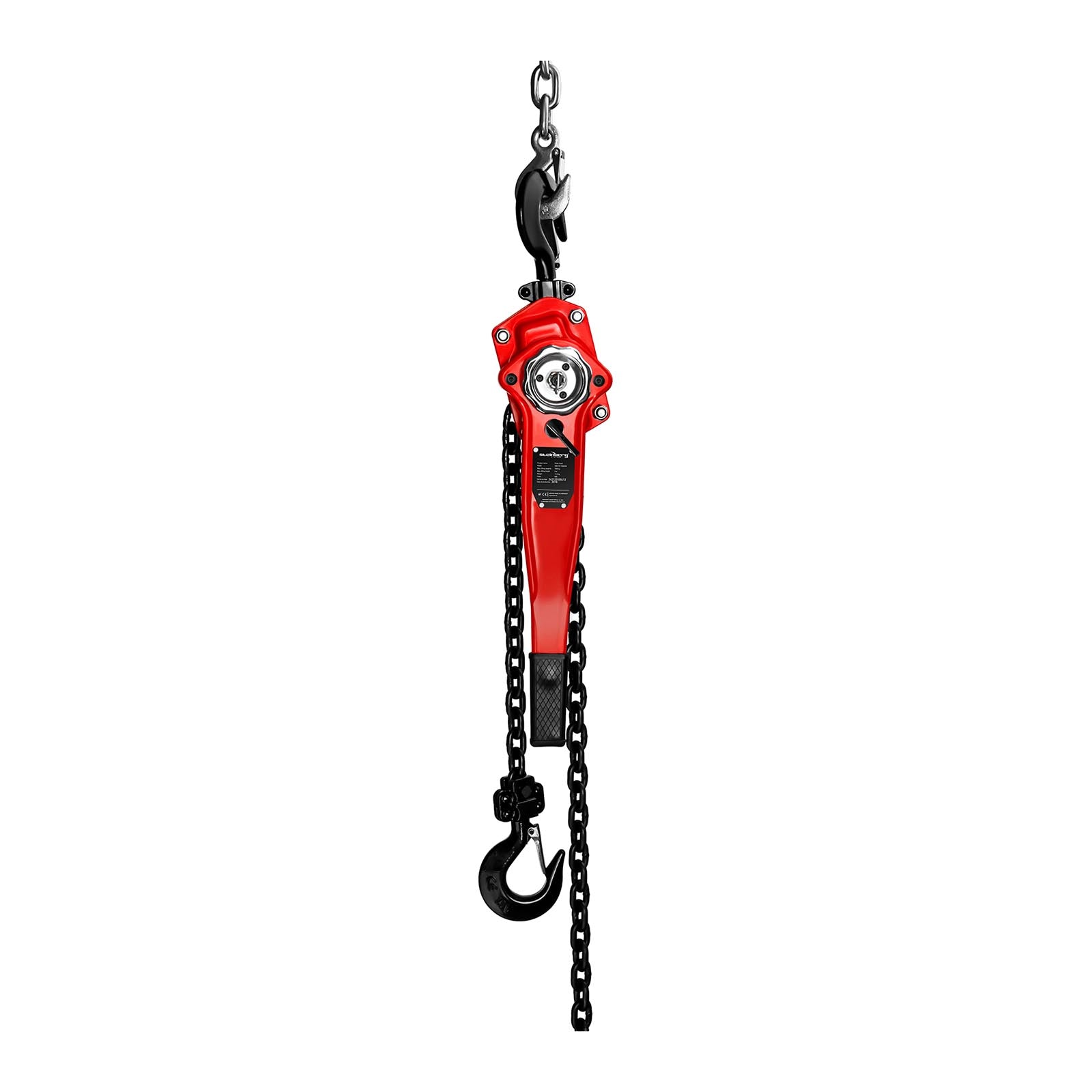

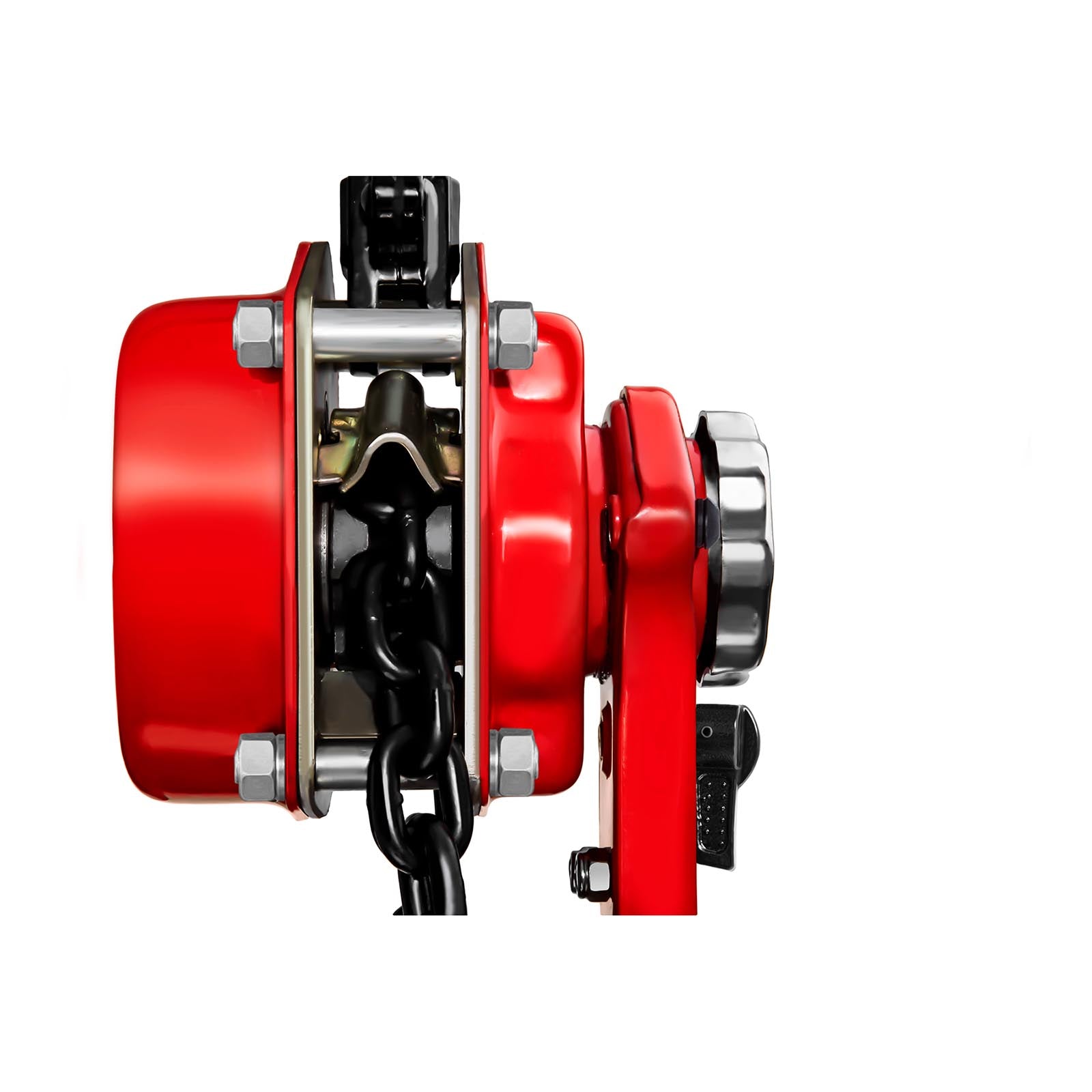

Steinberg Systems 10030378Chain winch The German brand Steinberg Systems is a versatile device that will be perfect for various manufacturing companies, mechanics, warehouses or construction sites. Its basic application is lifting and lowering heavy objects.
The hand-held chain lifter allows you to carry objects up to 1500 kg even up to two meters high. Thanks to the durable chains (G80 type, 8 mm diameter cell) and high quality steel components, the operation with the SBS-FZ 1500/2M is very safe. This is also influenced by the rubberized tip of the control rod and the lock to keep the load at the indicated height. To increase the user's comfort, the winch has been
with two rotating hooks and light-weight levers connected with a mechanism inside the enclosure. It allows for comfortable lifting and lowering of the object.
Product features: - - Productivity - maximum lifting capacity up to 1.5 T allows lifting of objects up to 2 m height,
- - Comfort - control lever and lock to stop the winch,
- - Security - steel construction, high quality of construction, two rotating hooks and a lever with anti-slip handle.
Technical parameters: - - Model - SBS-FZ 1500/2M
- - Catalog number - 10030378
- - The state of the article - New
- - Max. capacity - 1500 kg
- - Material - Steel
- - Max. lifting height - 2 m
- - Min. distance between hooks - 380 mm
- - The required force to lift the weight - 225 N
- - Chain type - G80
- - Number of carrier chains - 1
- - Wed link chain - 8 mm
- - User manual - Yes.
- - Dimensions (DxSxW) - 64.5 x 18 x 13.5 cm
- - Weight - 11.8 kg
- - Dimensions of dispatch (DxSxW) - 53.5 x 20 x 16.5 cm
- - Weight of shipping - 12.7 kg
Included: - Chain winch
- EN Instructions
