Description
Manufacturer's number:

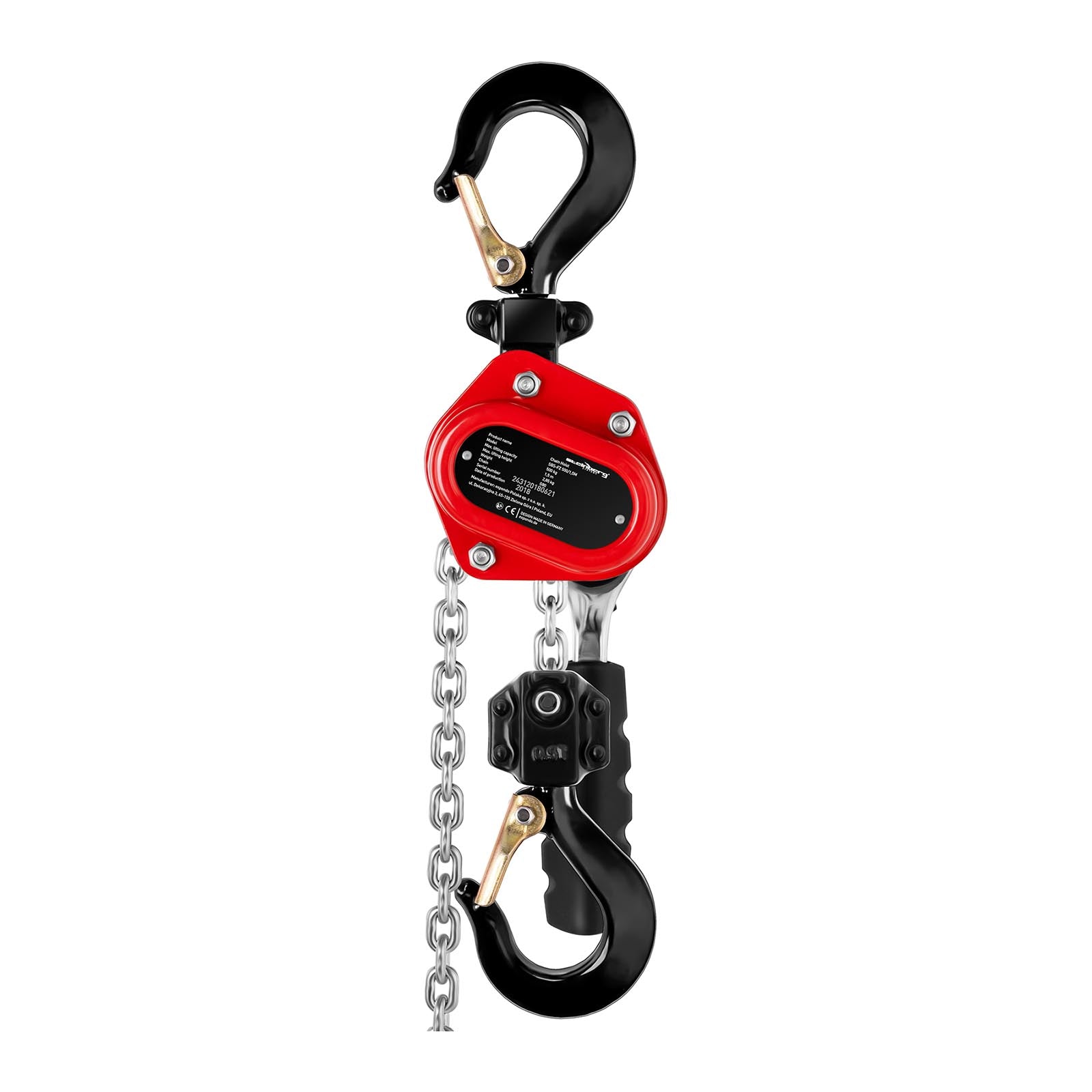

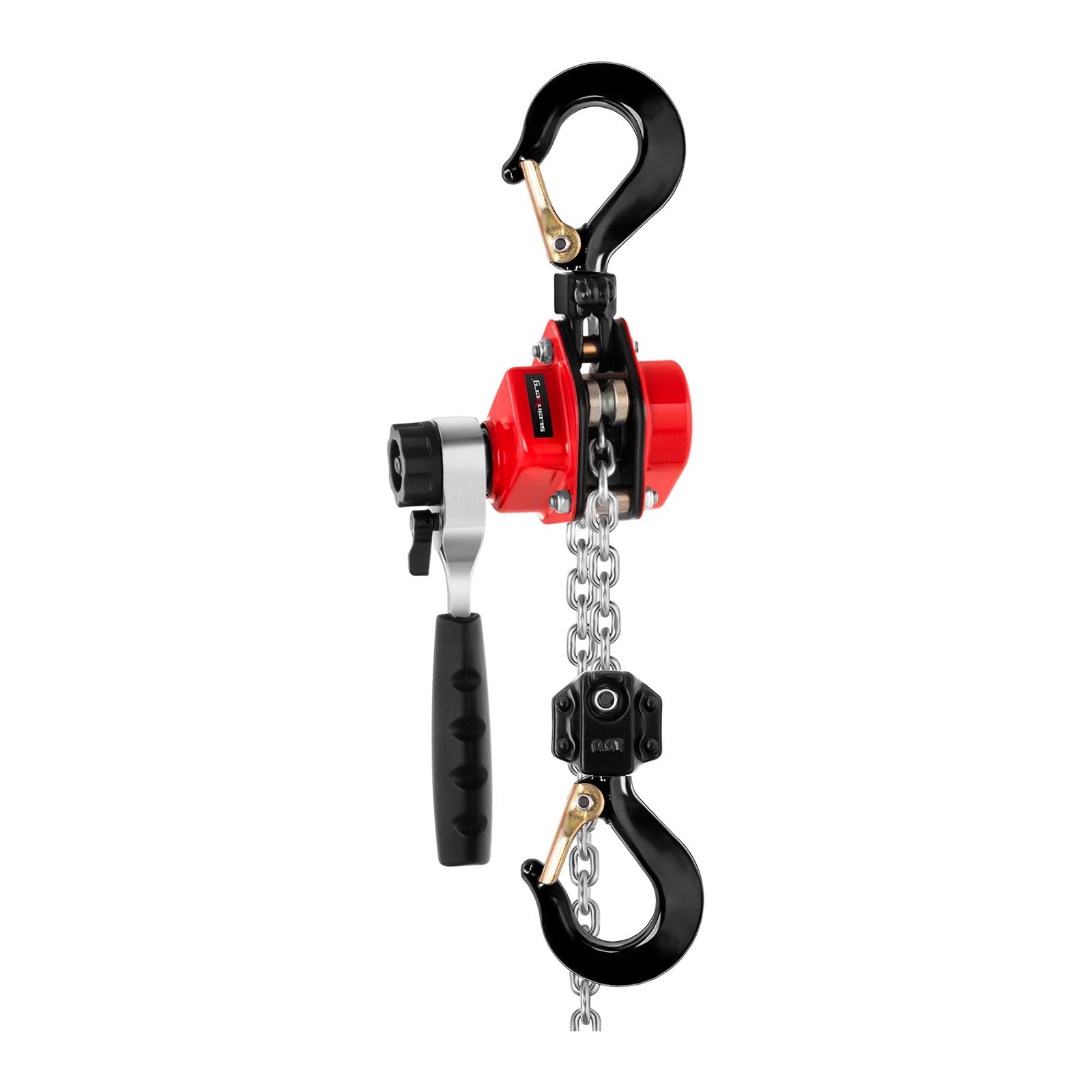

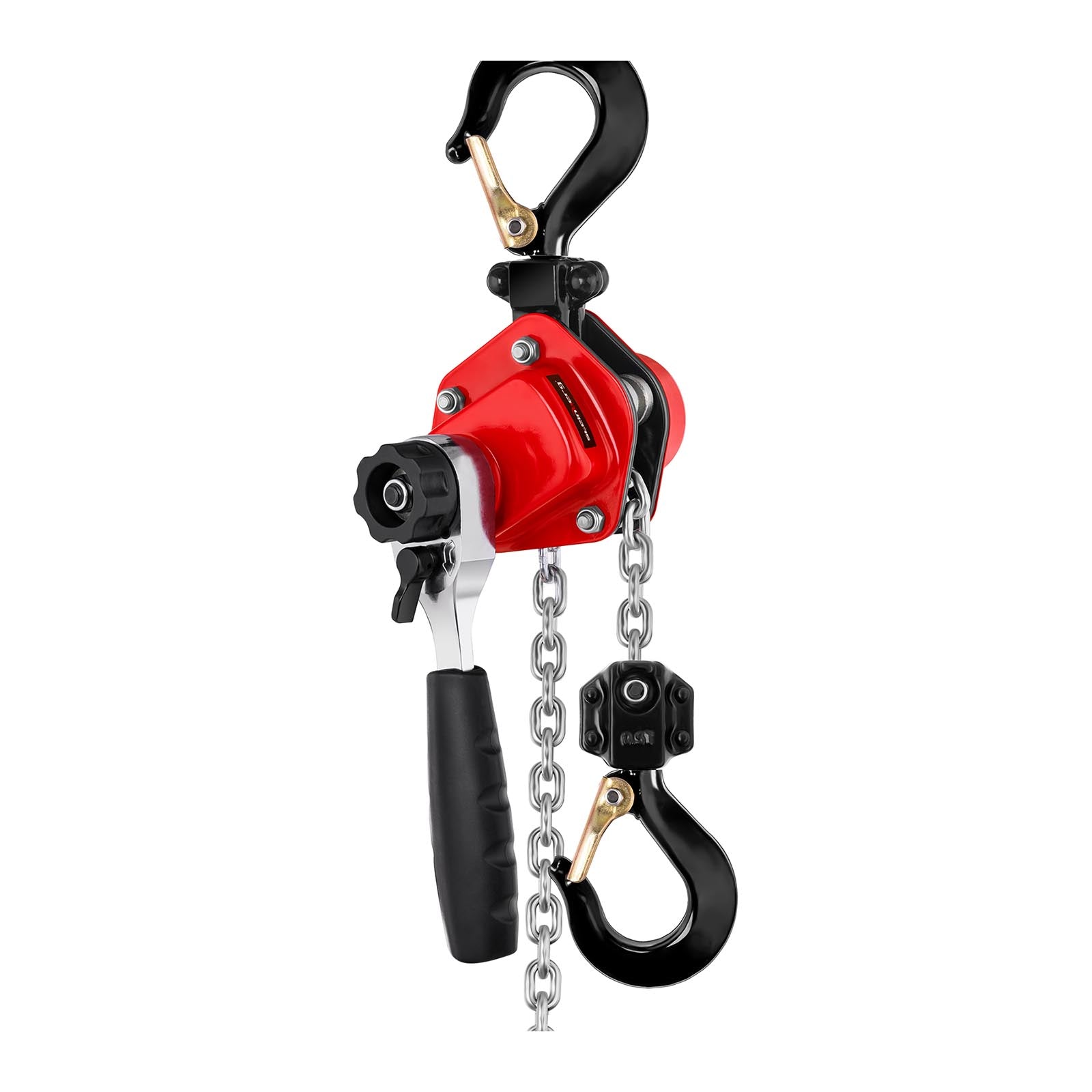

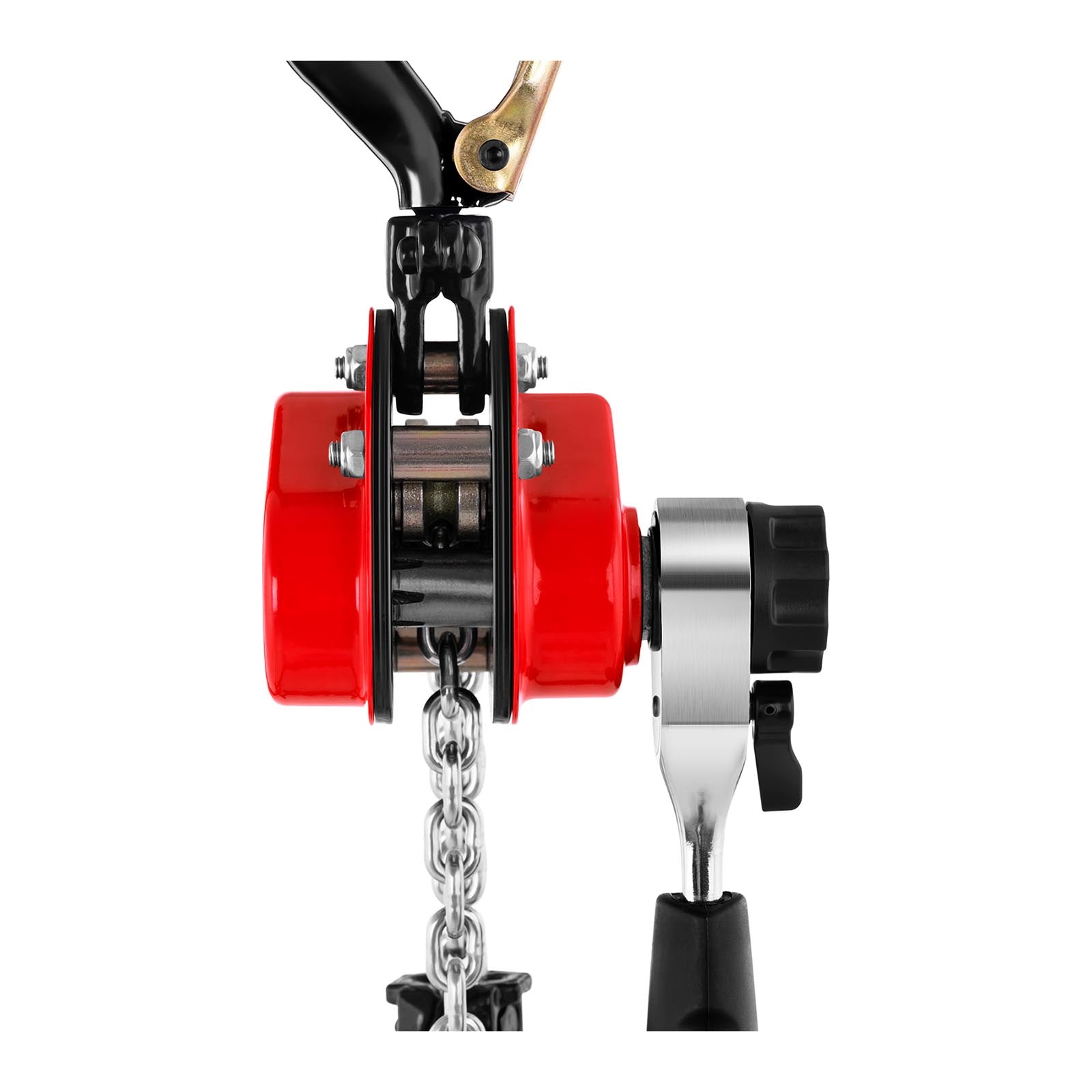

Steinberg Systems 10030376Chain winch The German brand Steinberg Systems is a versatile device that will be perfect for various manufacturing companies, mechanics, warehouses or construction sites. Its basic application is lifting and lowering heavy objects.
The hand lift enables lifting of objects up to 500 kg up to a height of 1 and a half metres. Thanks to the robust chains (type G80, 4 mm diameter cell) and the construction of high quality steel components, the operation with the SBS-FZ 500/1.5M model is very safe. This is also affected by the nylon-coated tip of the control bar and the lock that allows the load to be stopped at the indicated height. To increase the user's comfort the winch has been
with two rotating hooks and light-weight levers connected with a mechanism inside the enclosure. It allows for comfortable lifting and lowering of the object.
Product features: - - Productivity - maximum lifting capacity up to 500 kg allows lifting of objects at a height of 1,5 m,
- - Comfort - control lever and lock to stop the winch,
- - Security - steel construction, high quality of construction, two rotating hooks and lever with non-slip handle,
- - Mobility - a comfortable cotton bag is included in the set.
Technical parameters: - - Model - SBS-FZ 500/1,5M
- - Catalog number - 10030376
- - The state of the article - New
- - Max. capacity - 500 kg
- - Material - Steel
- - Max. lifting height - 1,5 m
- - Min. distance between hooks - 300 mm
- - The required force to lift the weight - 260 N
- - Chain type - G80
- - Number of carrier chains - 1
- - Wed link chain - 4 mm
- - User manual - Yes.
- - Dimensions (DxSxW) - 23 x 12.5 x 10 cm
- - Weight - 3.05 kg
- - Dimensions of dispatch (DxSxW) - 26.5 x 16 x 16.5 cm
- - Weight of shipping - 3.45 kg
Included: - Chain winch

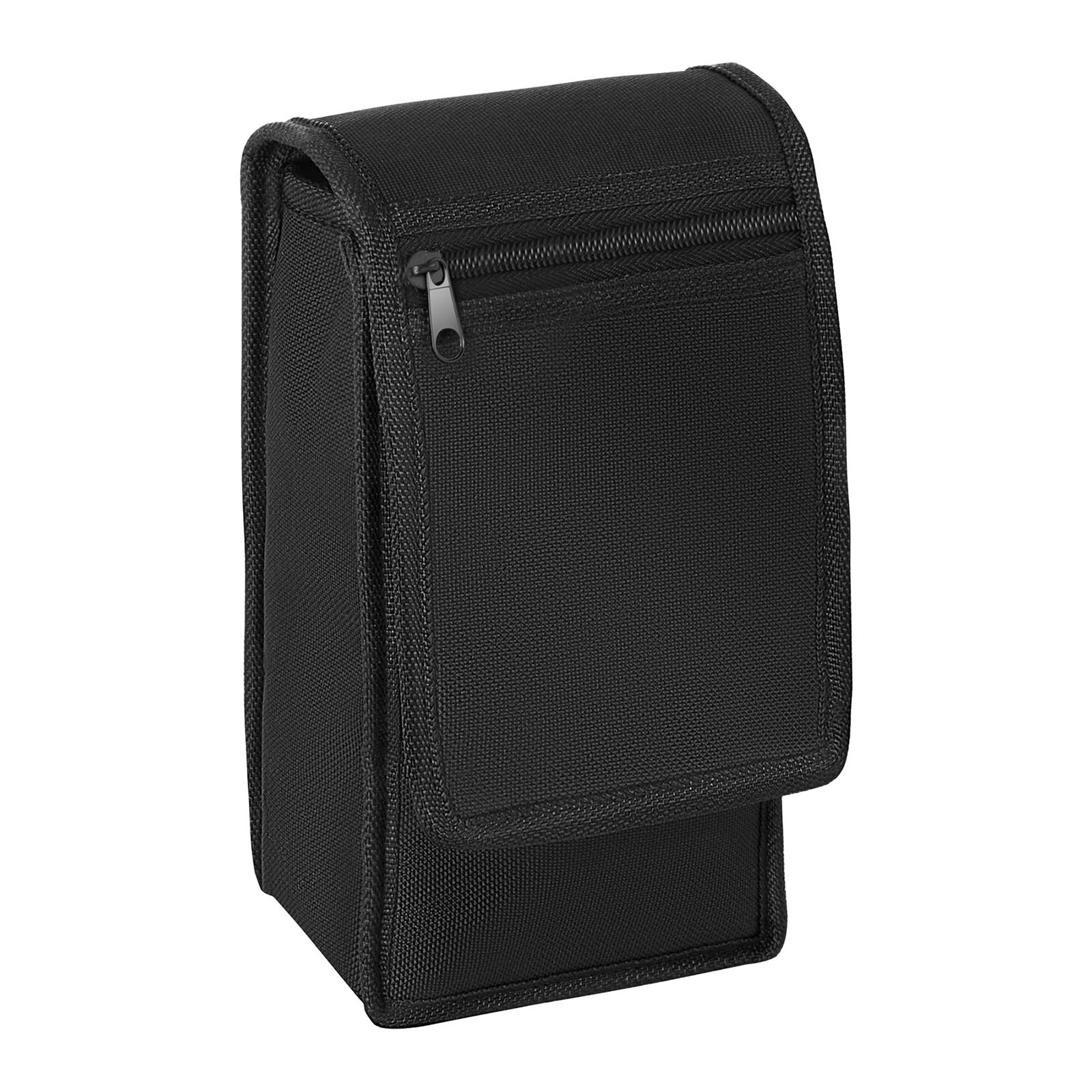

- Cotton cover
- User Manual
