Chain Hoists – Winch chain winch chain hoist 3T /

Chain Hoists – Winch chain winch chain hoist 3T /

Out of stock

Quantity
Regular price €118,64 EUR
Regular price €128,96 EUR Sale price €118,64 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Overview

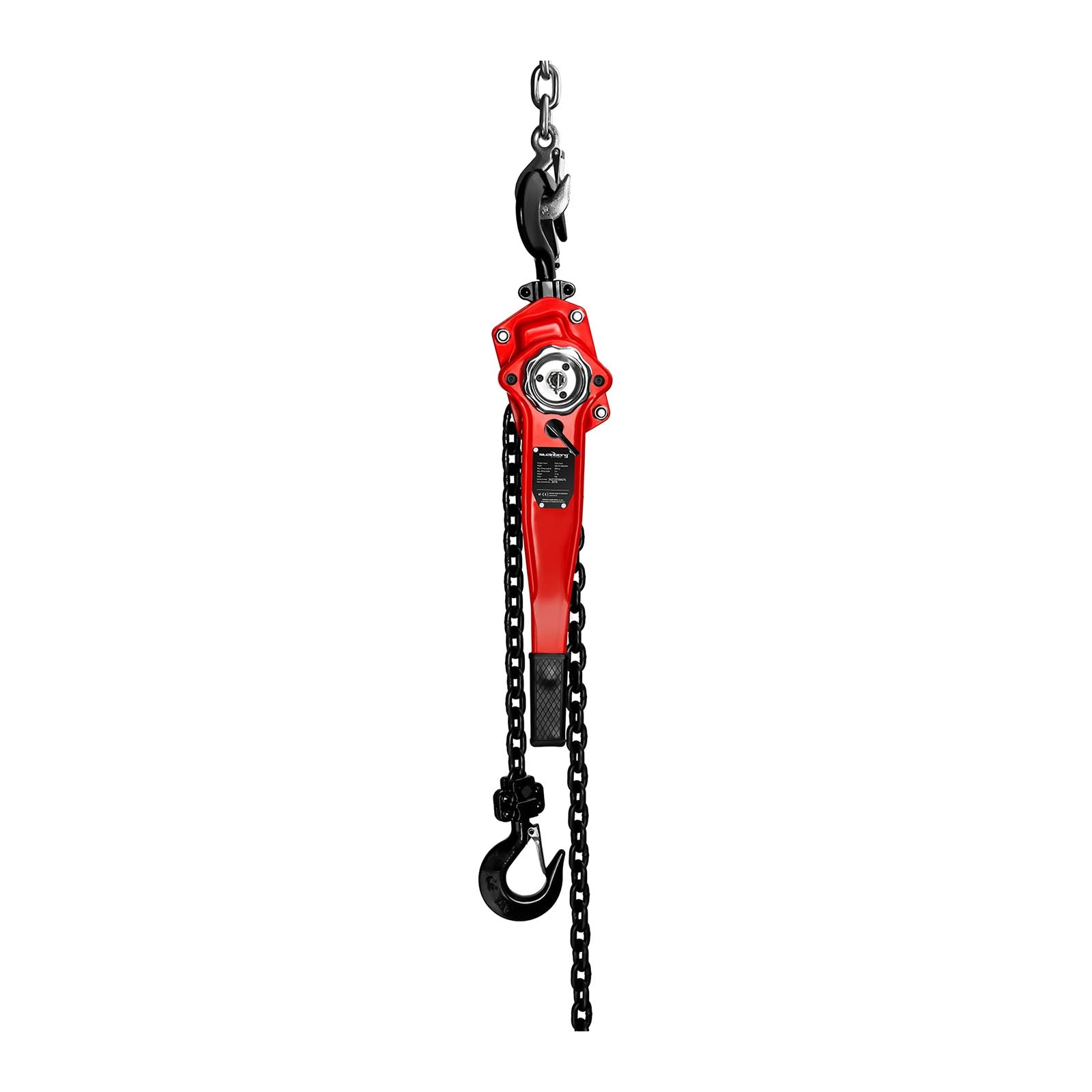

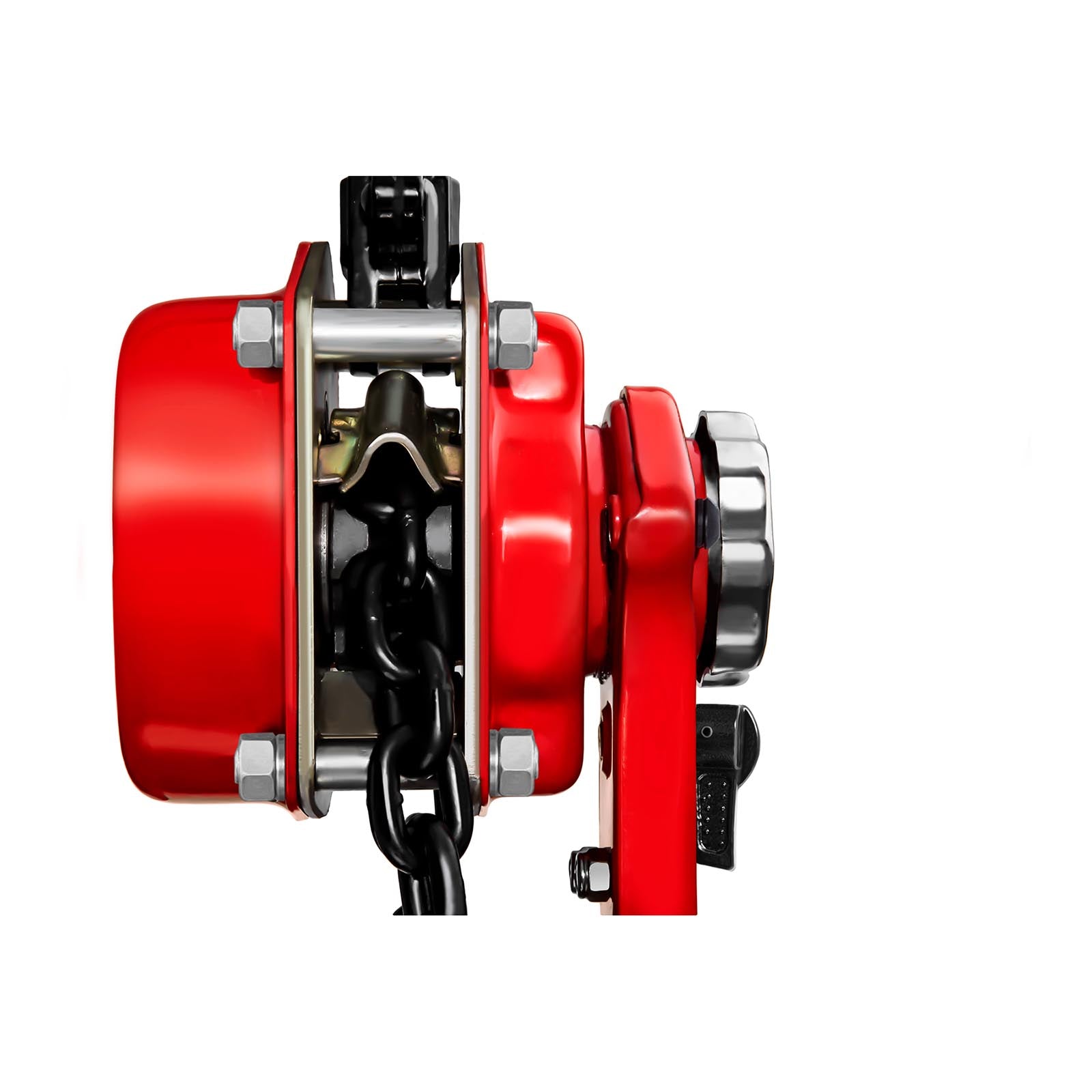

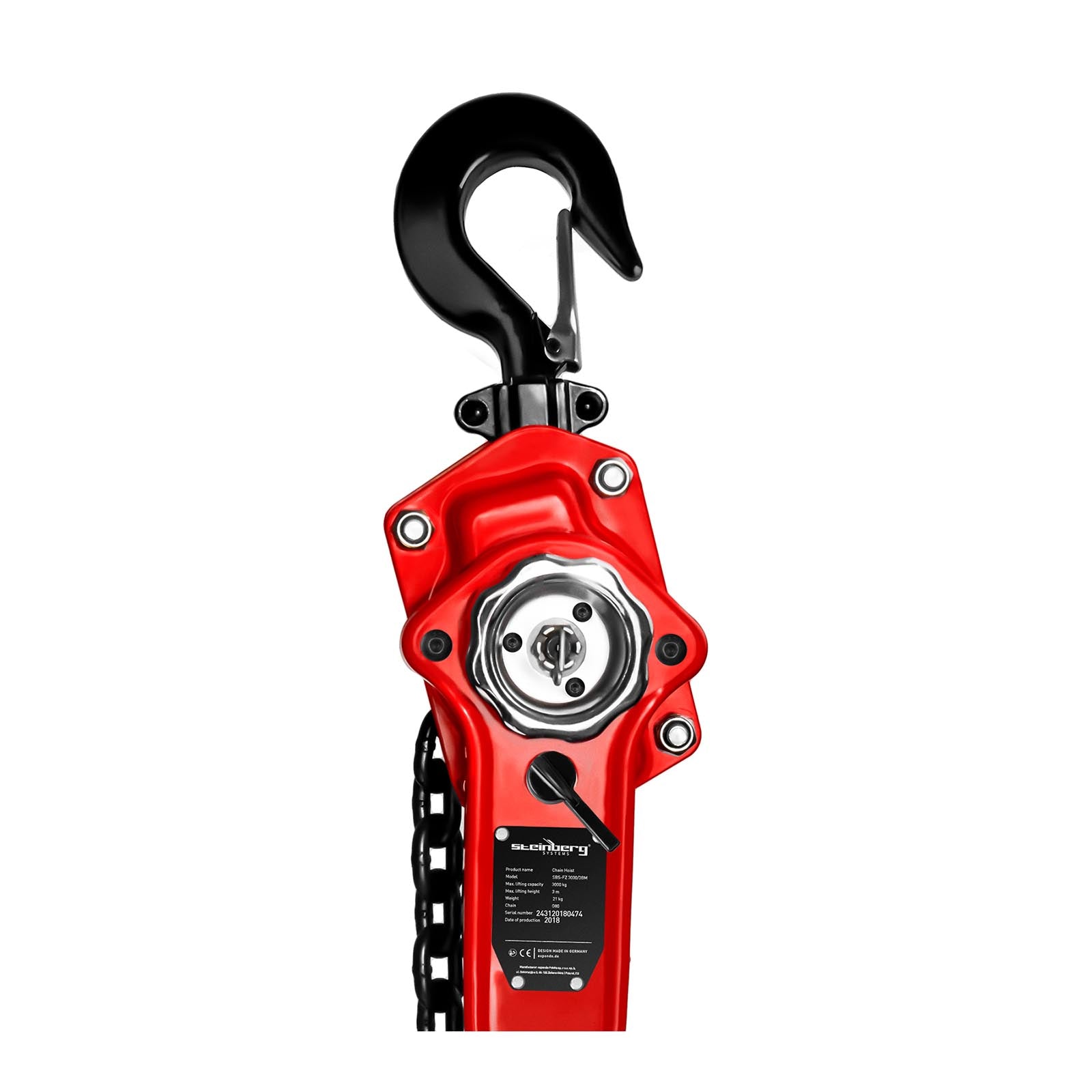

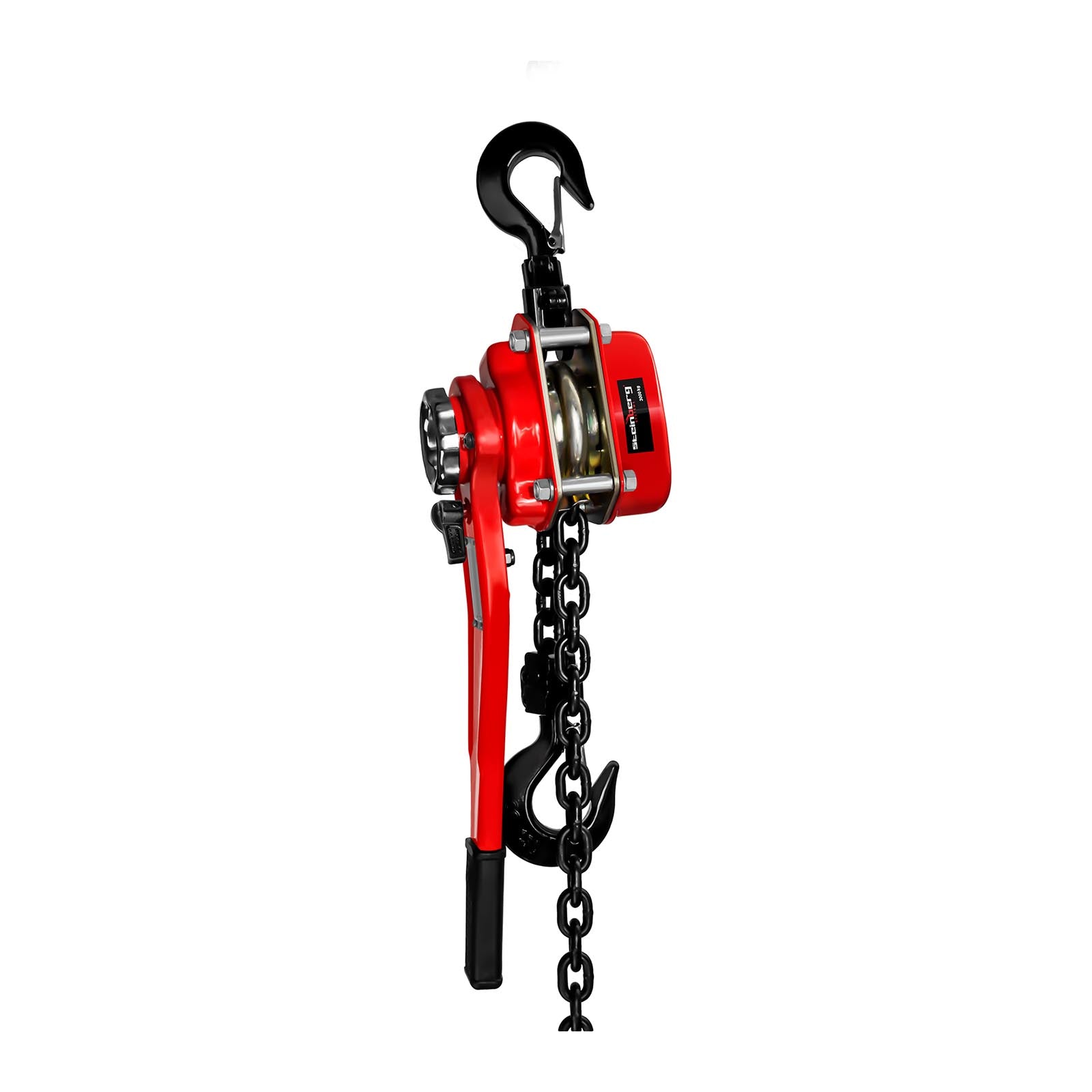

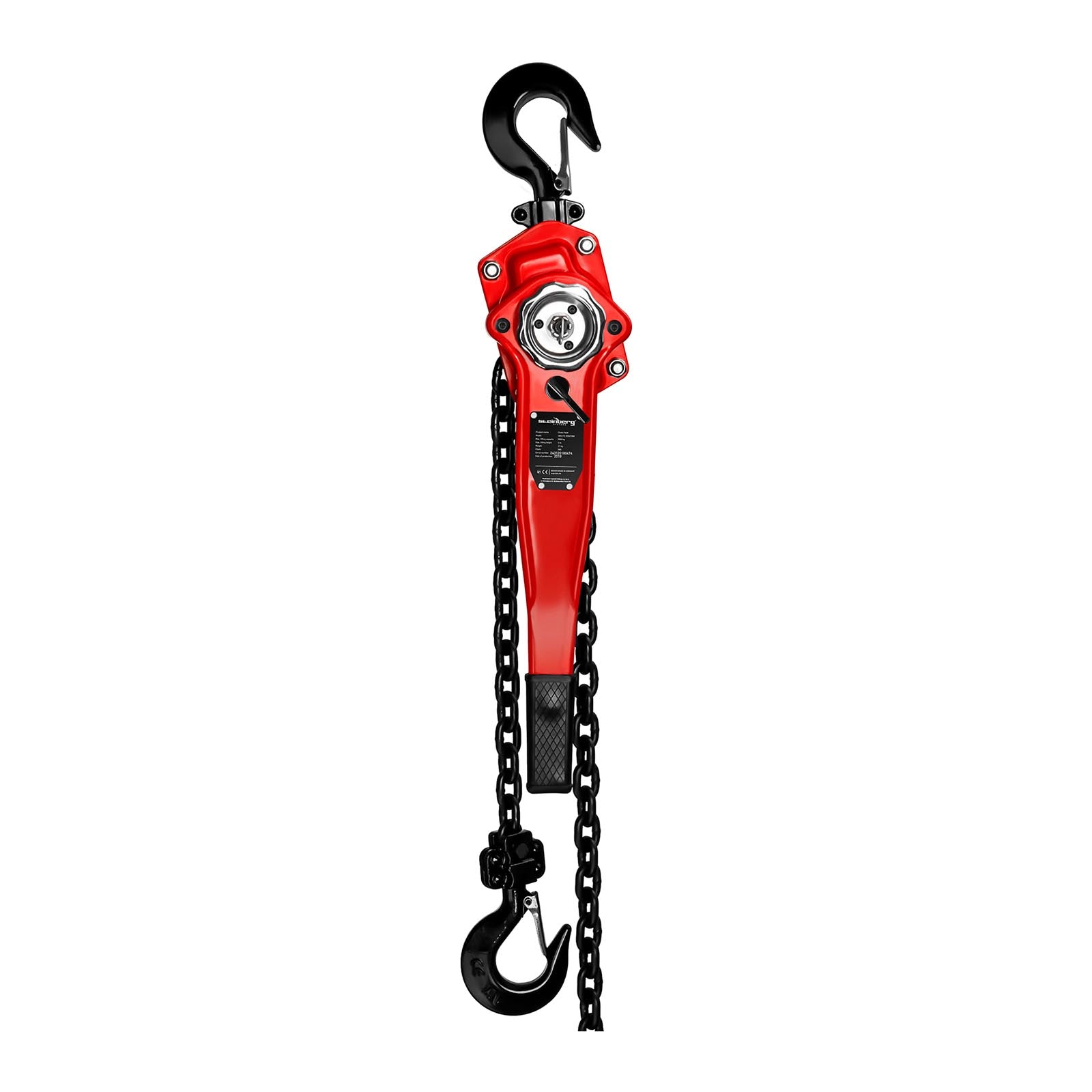

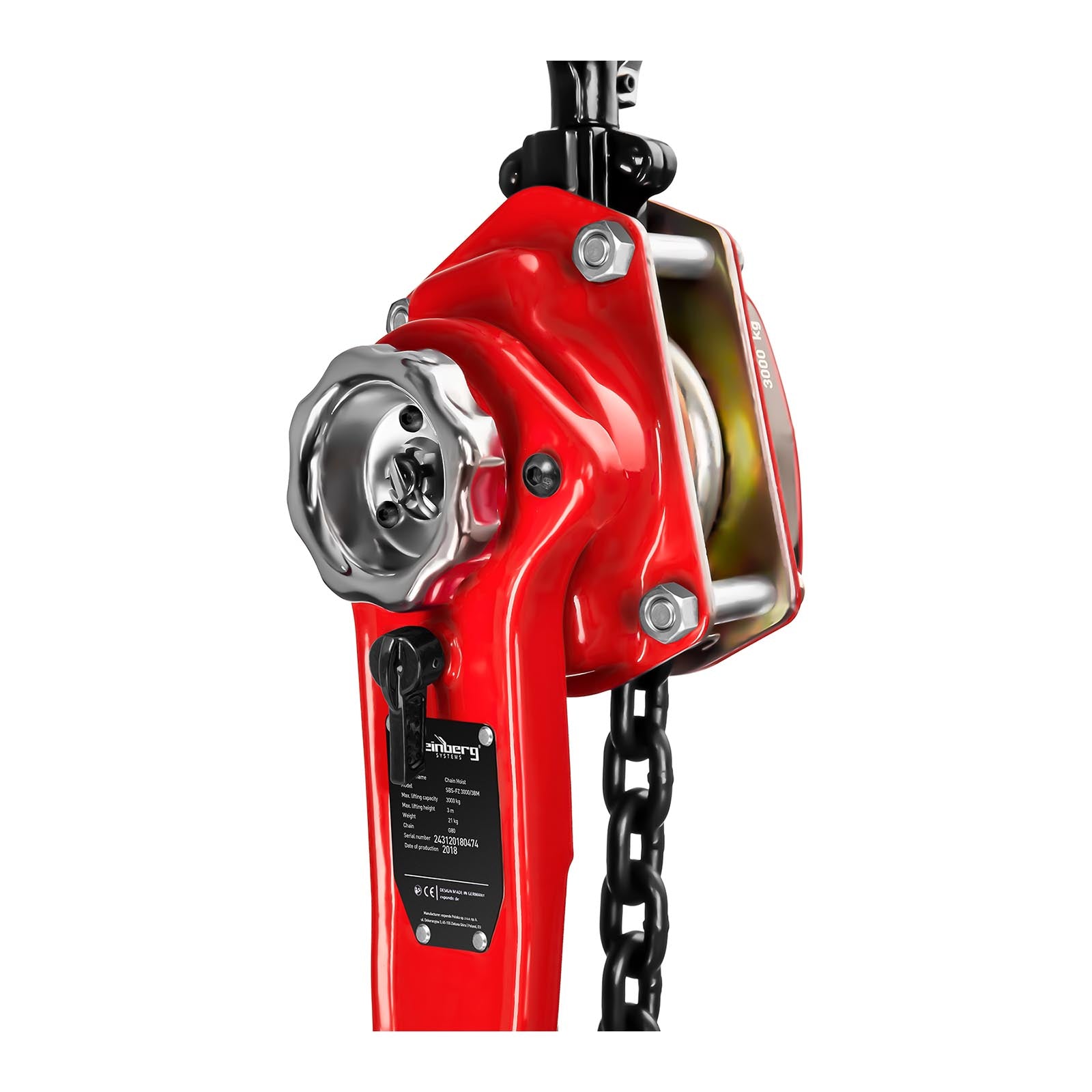

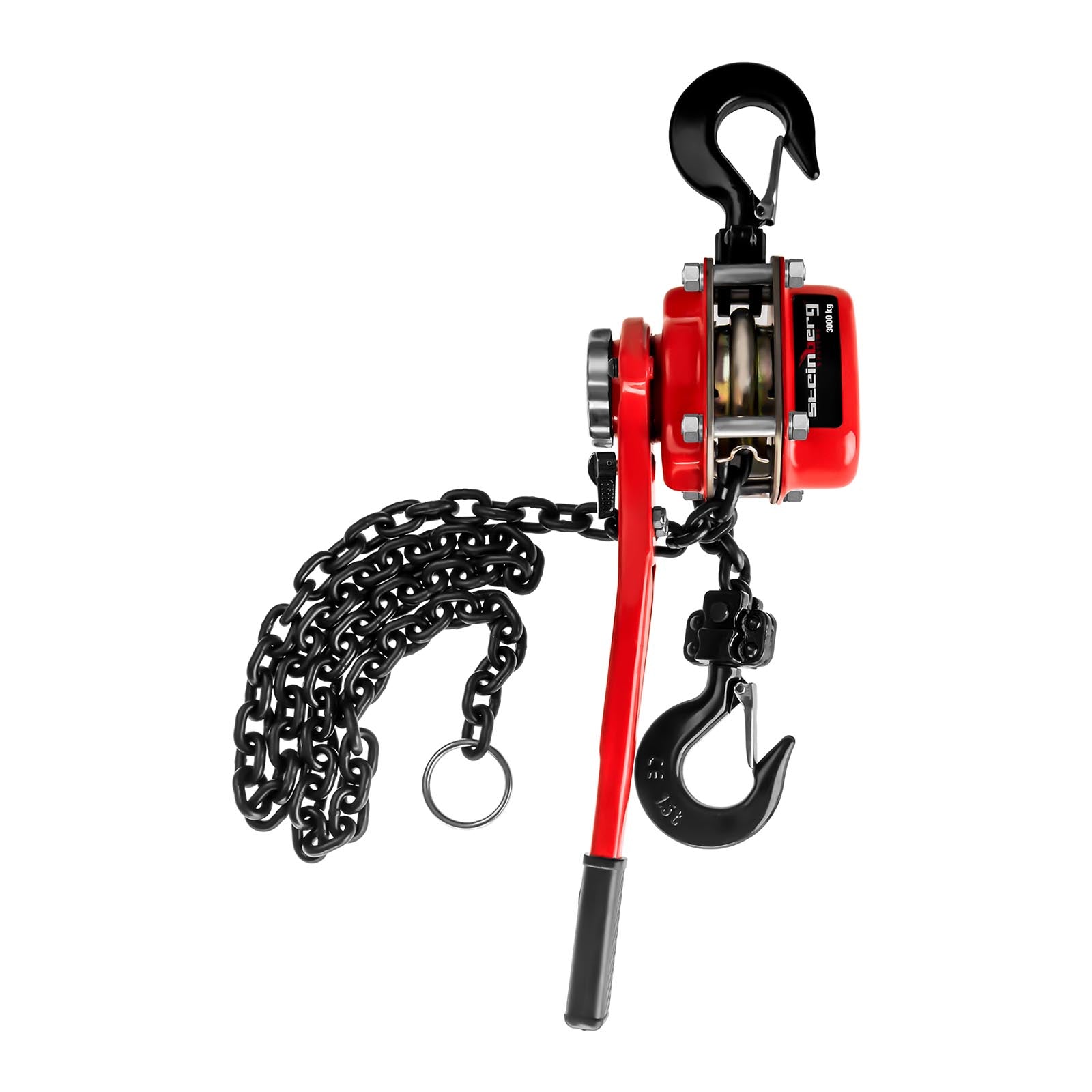

The Winch chain winch chain hoist 3T / 3m from Steinberg Systems brings chain hoists you can rely on, made for your workshop & garage needs. A popular choice in Workshop garage, Lifting or winch-lifts.

Manufacturer number: Steinberg Systems 10030379Chain winchfrom the German brand Steinberg Systems is a versatile device that is perfect for various manufacturing companies, mechanical plants, warehouses and construction sites. Its primary use is lifting and lowering heavy objects. The manual chain lift allows you to lift objects weighing up to 3,000 kg even to a height of three meters. Due to durable chains (type G80, links with a diameter of 10 mm) and elements made of high-quality steel, working with the SBS-FZ 3000/3M model is very safe. This is also influenced by the rubberized tip of the control rod and the lock that allows the load to be stopped at the indicated height. In order to increase user comfort, the hoist is equipped with two rotating hooks and lightly geared levers connected to the mechanism located inside the housing. It allows for comfortable lifting and lowering of the object.

Key features

Efficiency
Comfort
Safety
Chain winch
PL instructions
Technical specification
SpecificationDetail
ModelSBS-FZ 3000/3BM
Catalog number10030379
Article conditionNew
Max. lifting capacity3000 kg
MaterialSteel
Max. lifting height3 m
Min. distance between hooks480 mm
Required force to lift the weight340 N
Chain typeG80
Number of load-bearing chains1
Avg. chain links10 mm
User manualYes
Dimensions (LxWxH)50 x 14.5 x 20.5 cm
Weight21.35 kg
Shipping dimensions (LxWxH)52.5 x 21.5 x 22 cm
Shipping weight22.3 kg
