Description
Manufacturer's name

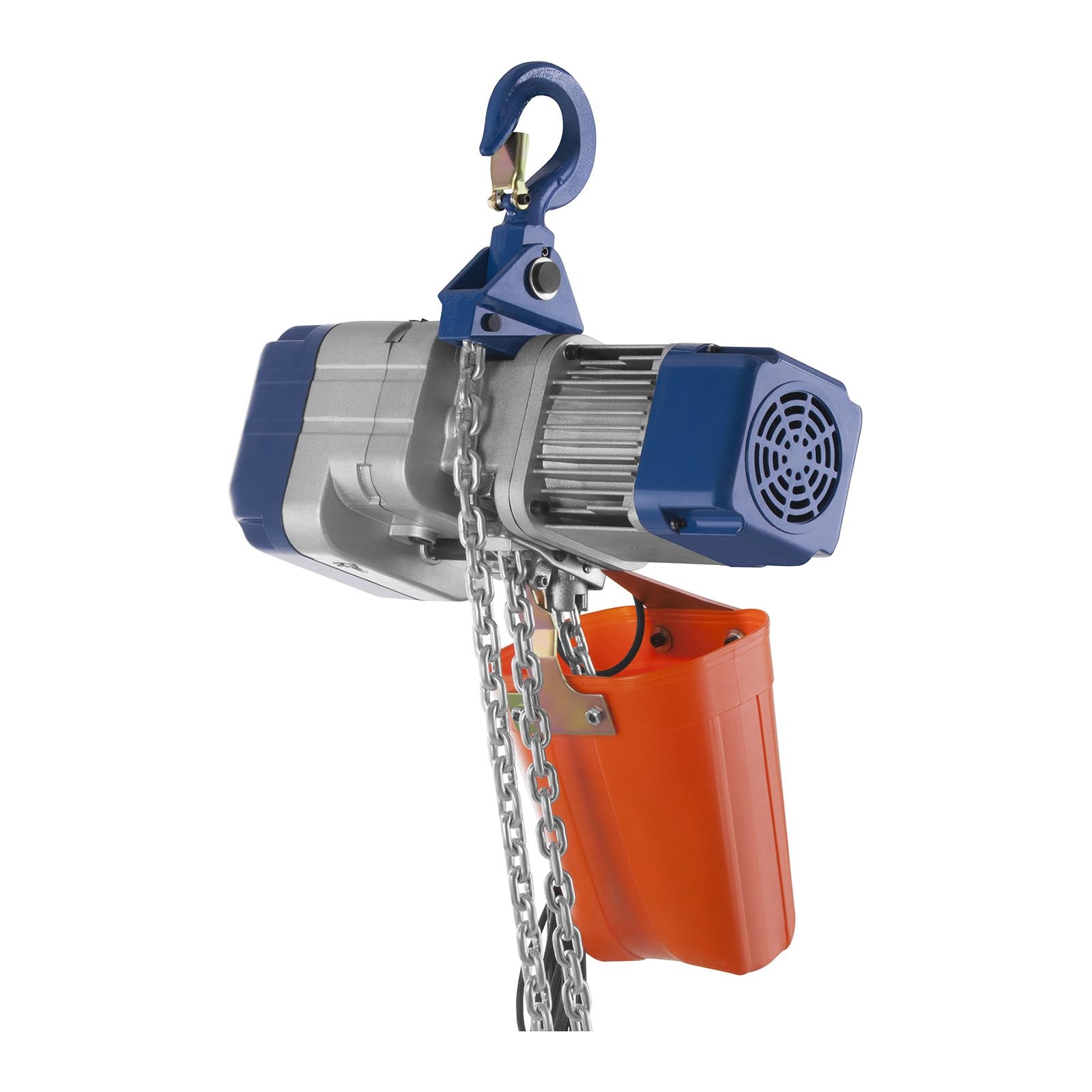

: PROLIFTOR 2000 MMA branded chain winch allows to raise objects of 2000 kg to height 6 m. Its power is
1100 WThe PROLIFTOR 2000 features a rotating loader with safety and a hook for installation of the device. The equipment has a slip-clutch to prevent overloads, brake and marginal switch. The control tape with a wire length is provided for comfort.
4.8 mThe product is suitable for use in factories, warehouses, workshops, etc.
Product features:- Safety of operation
- A solid building.
- Steel chain
- Chain container
- Slip clutch
- End-time switch
- Brake
- Rotating hook with security
- Pilot control
Technical parameters: - - Model - PROLIFTOR 2000
- - Catalog number - 6016
- - The state of the article - New
- - Voltage - 400 V
- - Frequency - 50 Hz
- - Power - 1100 W
- - Max. capacity - 2000 kg
- - Lift height - 6 m
- - Lifting speed - 2,5 m/min
- - The length of the chain - 12 m
- - The diameter of the chain - 8 mm
- - Cycle of work - 30%/20 min
- - Type of control - Pilot
- - The length of the power cord - 4.9 m
- - Protection class - IP54
- - Emergency switch button - Yes.
- - Clamp - arm/profile mounting - No.
- - Dimensions (DxSxW) - 57 x 25 x 84 cm
- - Weight - 76.5 kg
- - Dimensions of dispatch (DxSxW) - 82.5 x 36.5 x 54.5 cm
- - Weight of shipping - 79 kg
Included:- Electric winch chain
- Installation parts

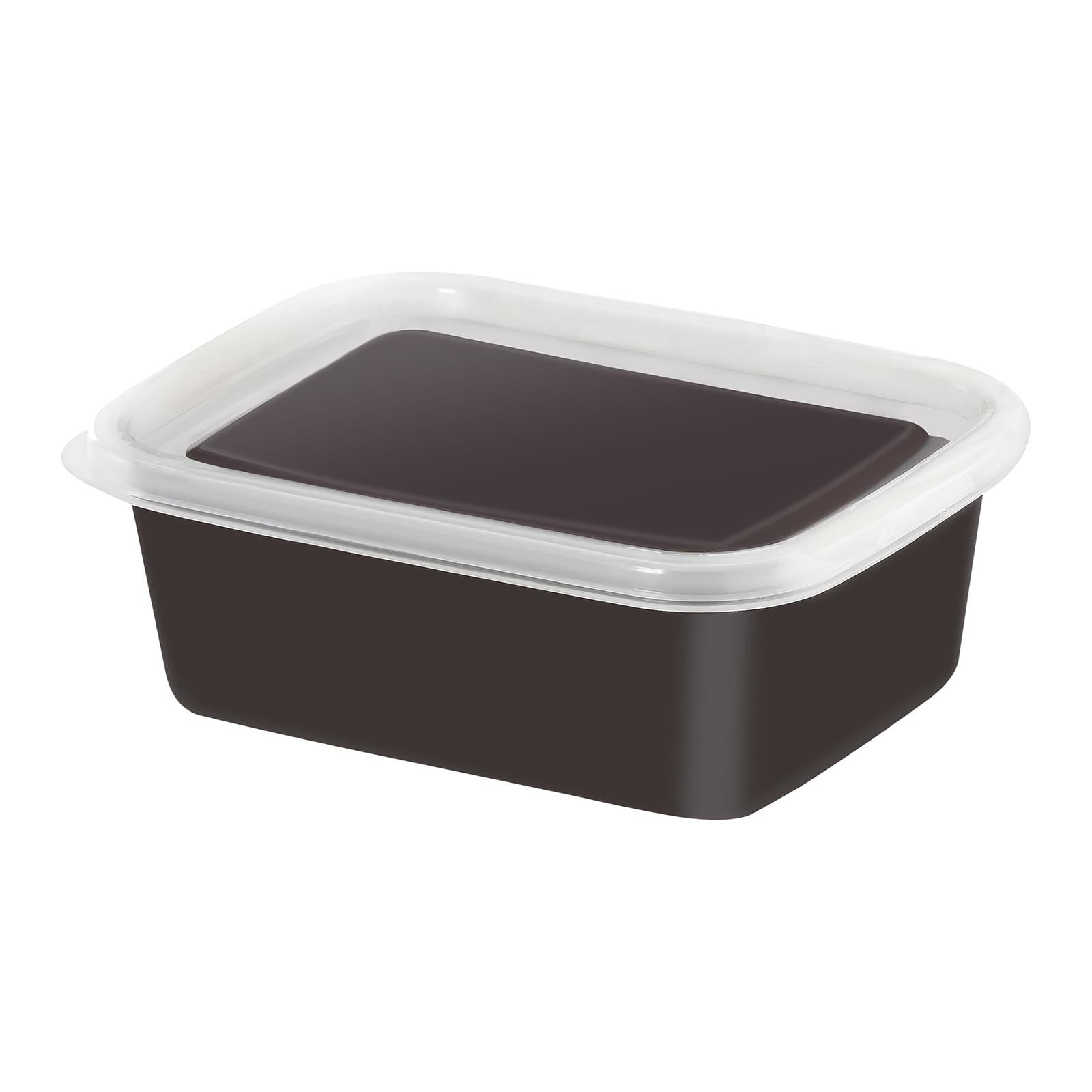

- Smear.
- PL Manual
