Description
Product code:
1009753MMA car lifter it is a universal device that will work in both professional car workshops and private garages.
It is durable, easy to transport, convenient to use and does not require power supplySo it's gonna work out in any way.
The maximum load of the MMW-HB-1500 model is 1500 kgbut to pick up the car for a longer time, you need to use additional supports under the car or lifting cushions. If you exceed the maximum arm lifting capacity will only damage the pin, which does not cause problems to be replaced.
Universality of the device it's thanks to many of the possibilities to pick up vehicles.

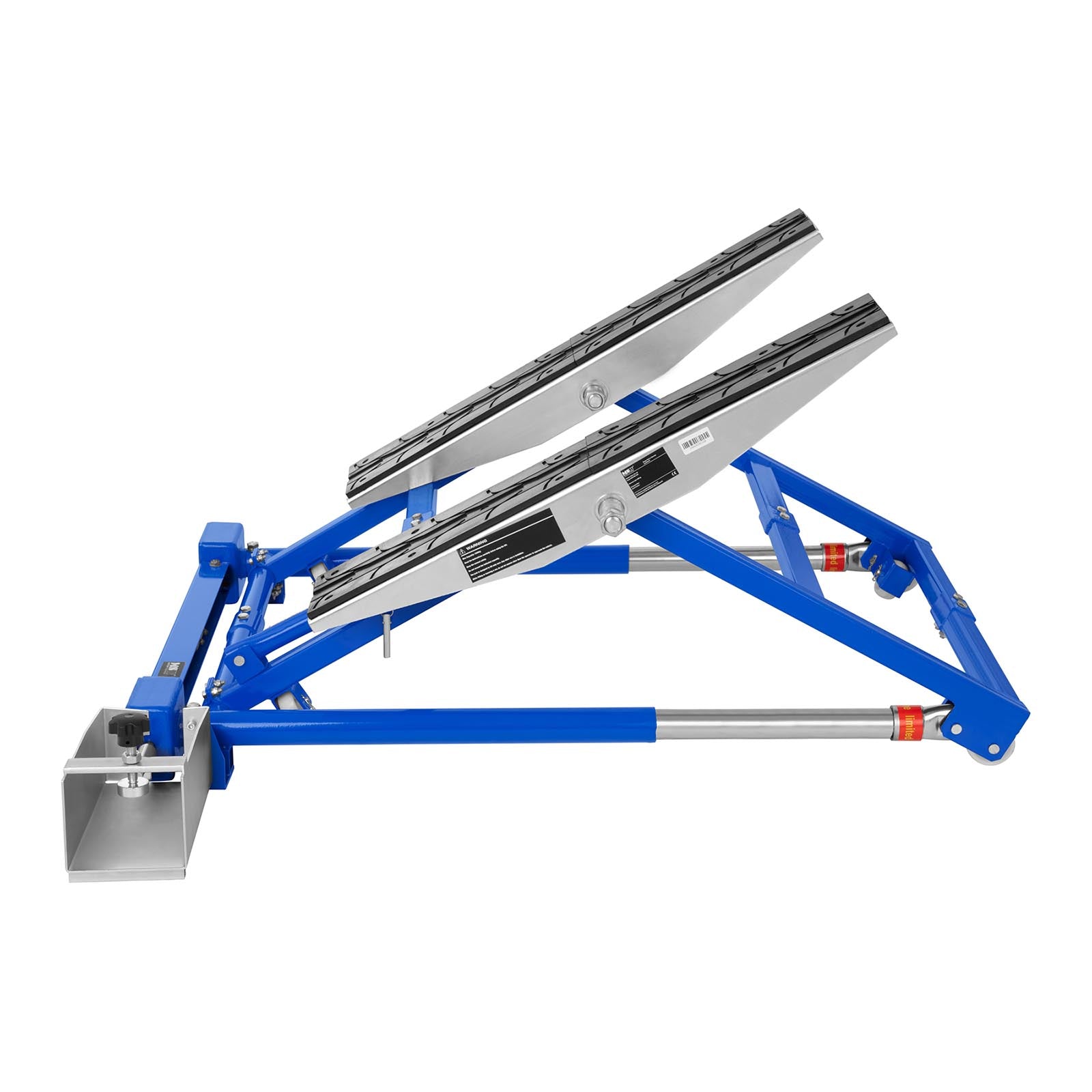

With a lift you can lift both front or rear wheels and tilt or lift the whole car. It is worth noting that when you lift four wheels simultaneously, the device should be operated by two people. To increase the comfort of use of the structure, the lift was adapted to work in the field
is extremely lightweight, easy to install and requires no power source. In addition, the adjustment of the ramp width allows for setting the lift in 3 positions (800/11/15/1540 mm), which facilitates lifting of different types of cars. The lift height of the vehicle can be adjusted from 150 to 585 mm.
Product features: - - Productivity - the maximum load shall be 1,5 t,
- - Security - overload protection,
- - Multifunctionality - the lift can only lift the front or rear wheels, and also tilt or lift the whole car,
- - Universality - 3 positions for width adjustment,
- - Precision - height adjustment of the vehicle,

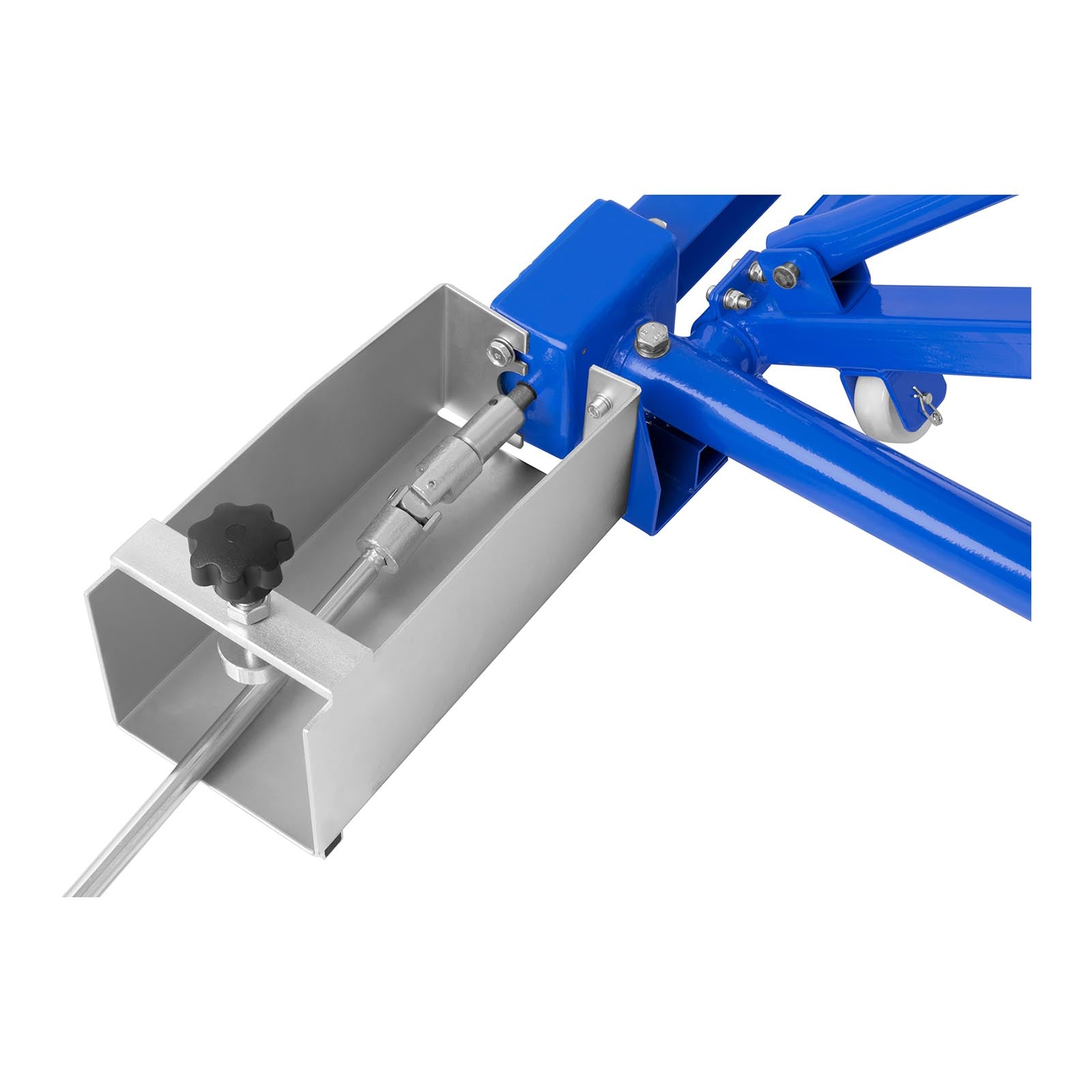

- - Comfort - operation by mechanical crank,
- - Mobility - small weight and easy assembly.
Technical parameters: - - Model - MSW-HB-1500
- - Catalog number - 10060937
- - The state of the article - New
- - Maximum load - 1500 kg
- - Range of lifting - 150-585 mm

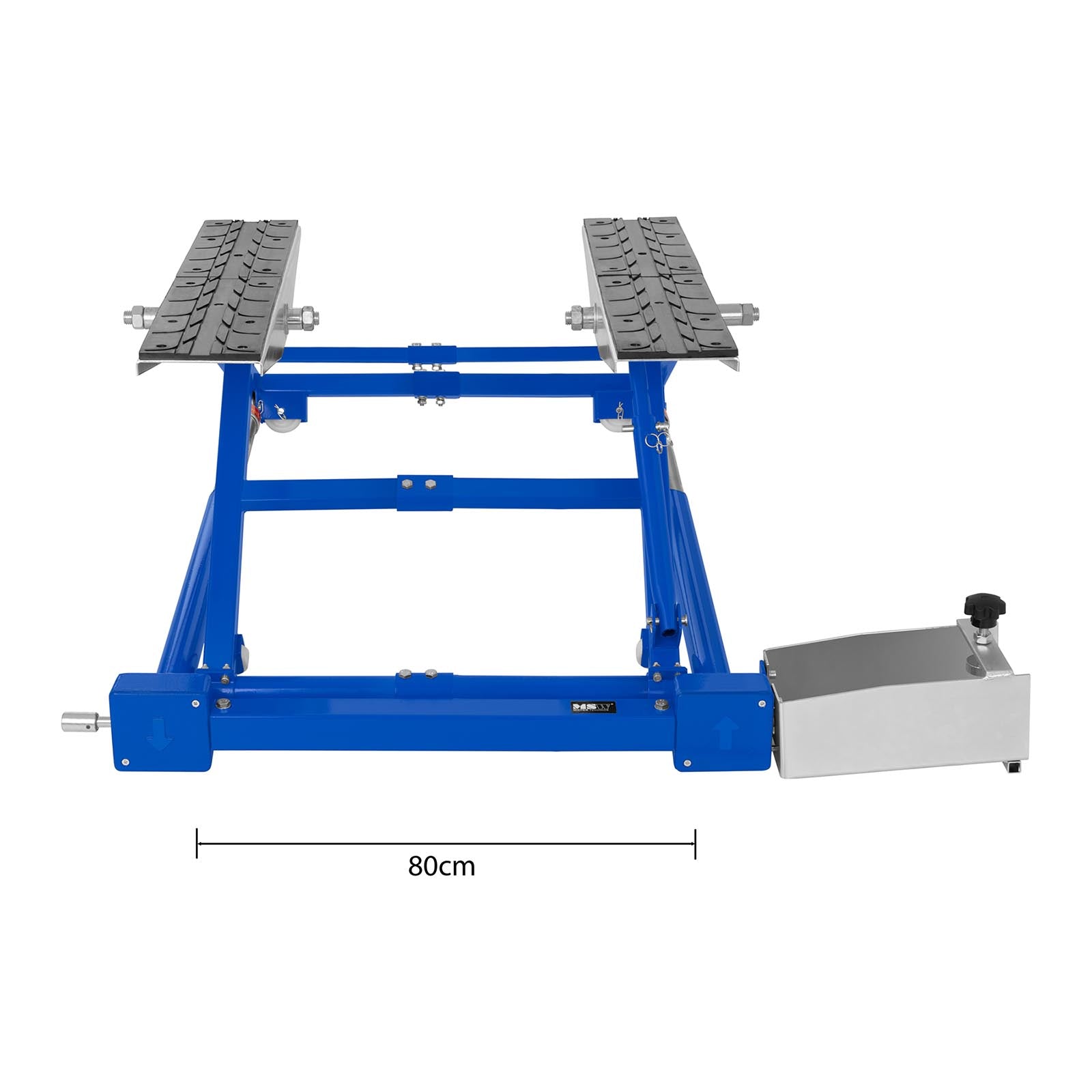

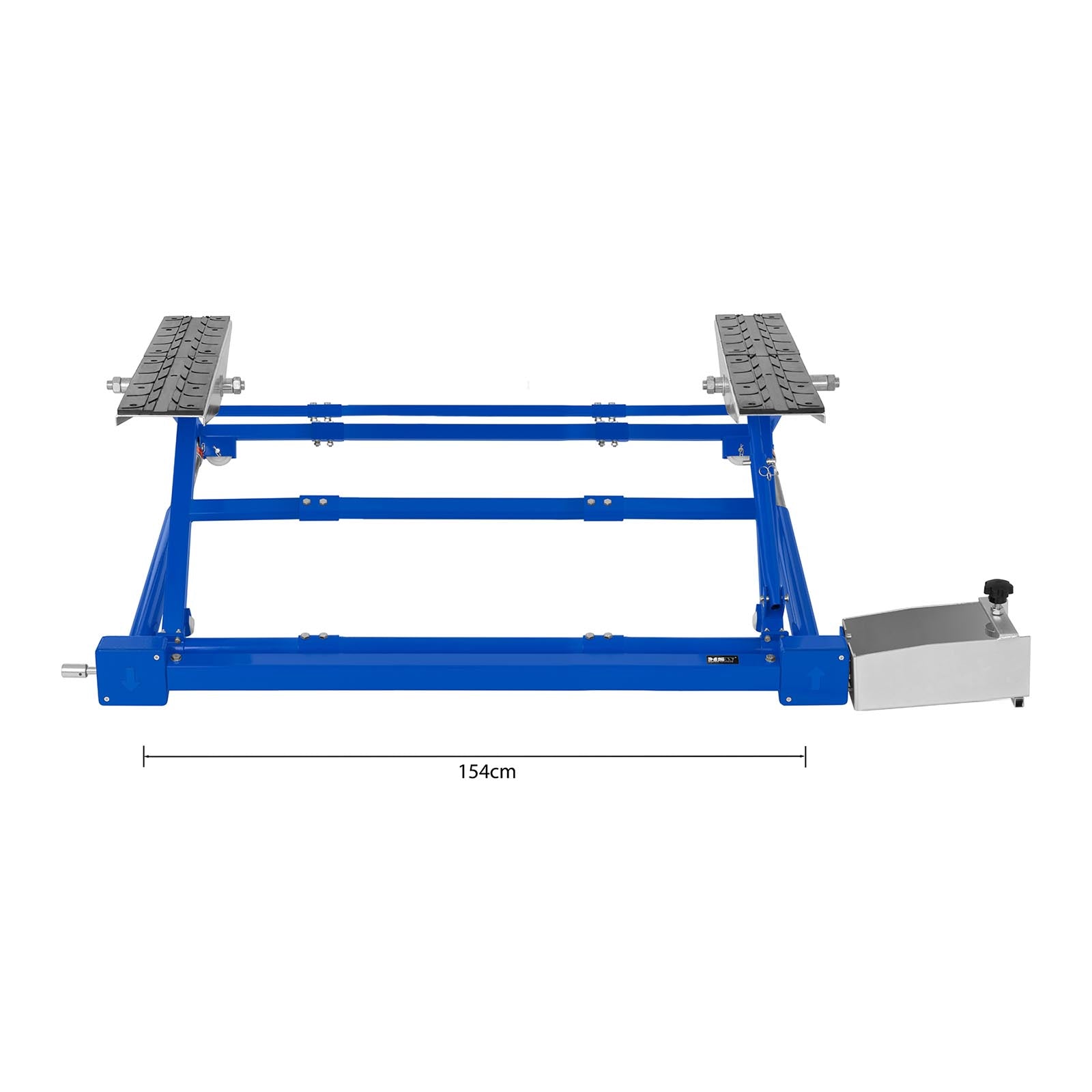

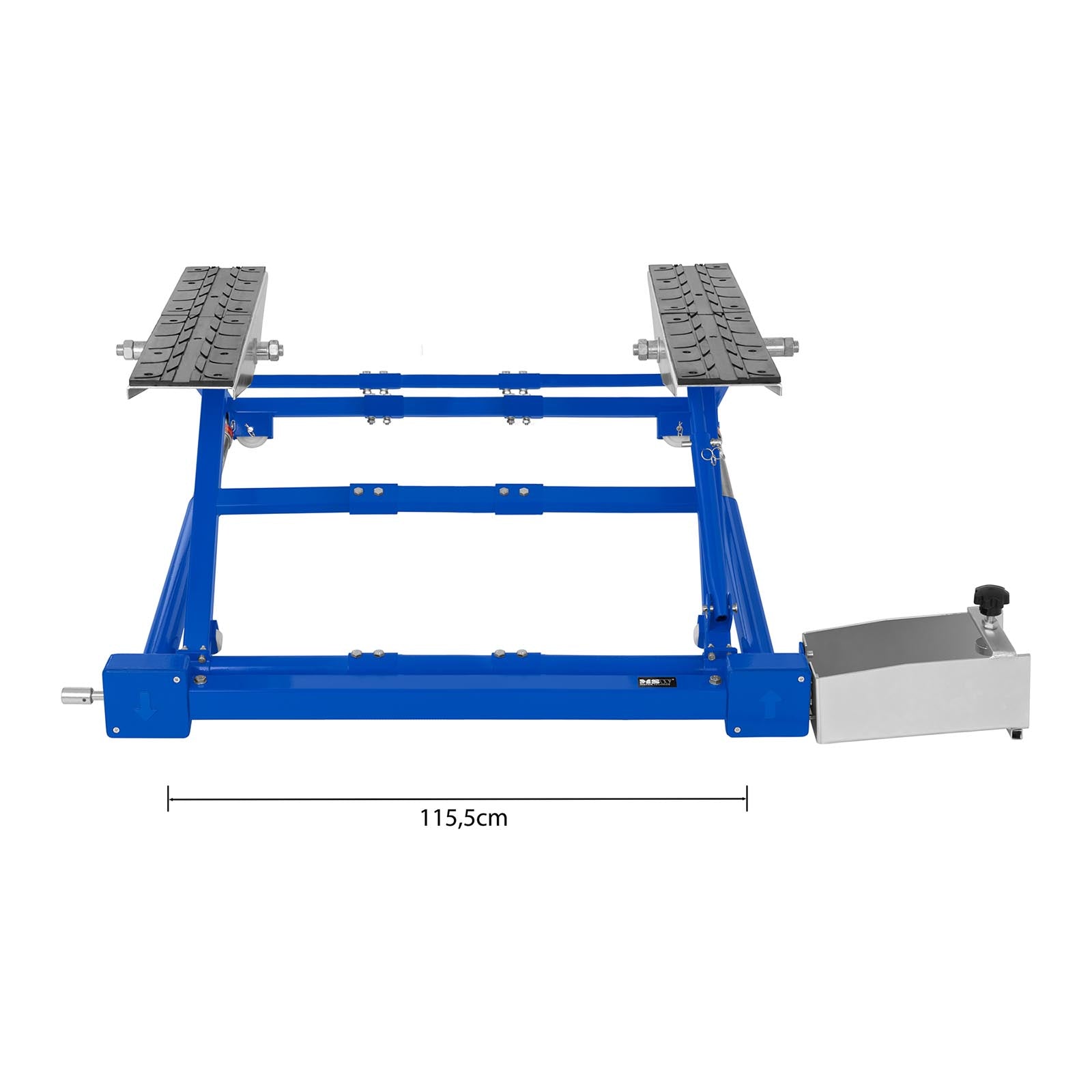

- - Length adjustment - 800-1115-1540 mm
- - Width - 1300 mm
- - Ambient temperature - -10-50deg C
- - Dimensions (DxSxW) - 130 x 166.5 x 87.5 cm
- - Weight - 67 kg
- - Dimensions of dispatch (DxSxW) - 134 x 89 x 17 cm
- - Weight of shipping - 88 kg

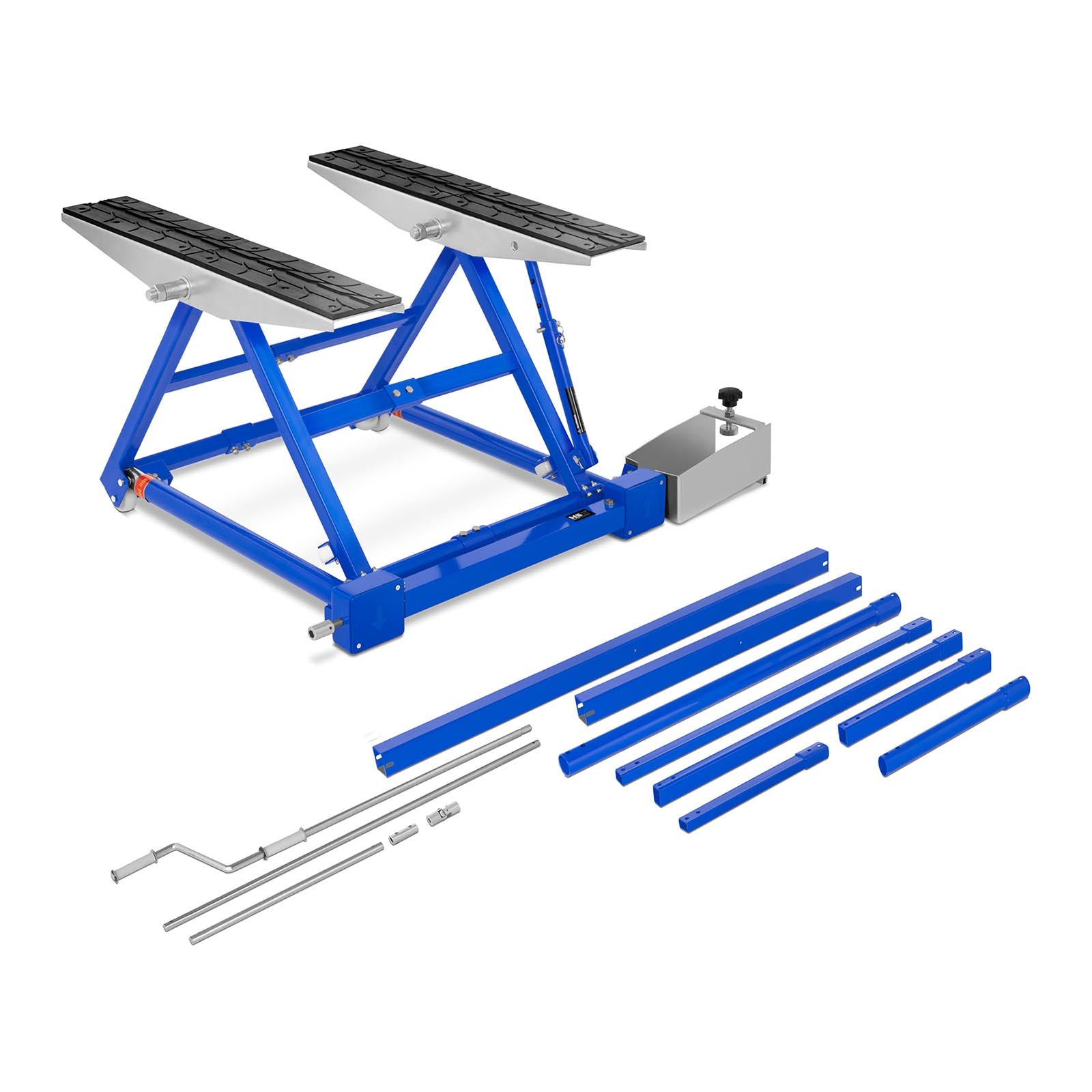

Included: - Car lift
- Installation elements
- EN Instructions
